See part 10 in the diagram
Replacing your Maytag Dryer Dryer Drum Felt Seal play video
( Grid squares measure 1x1 inch )

Dryer Drum Felt Seal

$ 22.64   In Stock
Fix Number: FIX11741074
Manufacturer #: WP33001807
Manufactured by: Whirlpool

Product Description

This seal can be used for the front or rear drum. Adhesive is NOT included. For adhesive search: WPY055980

Videos For installing this part.

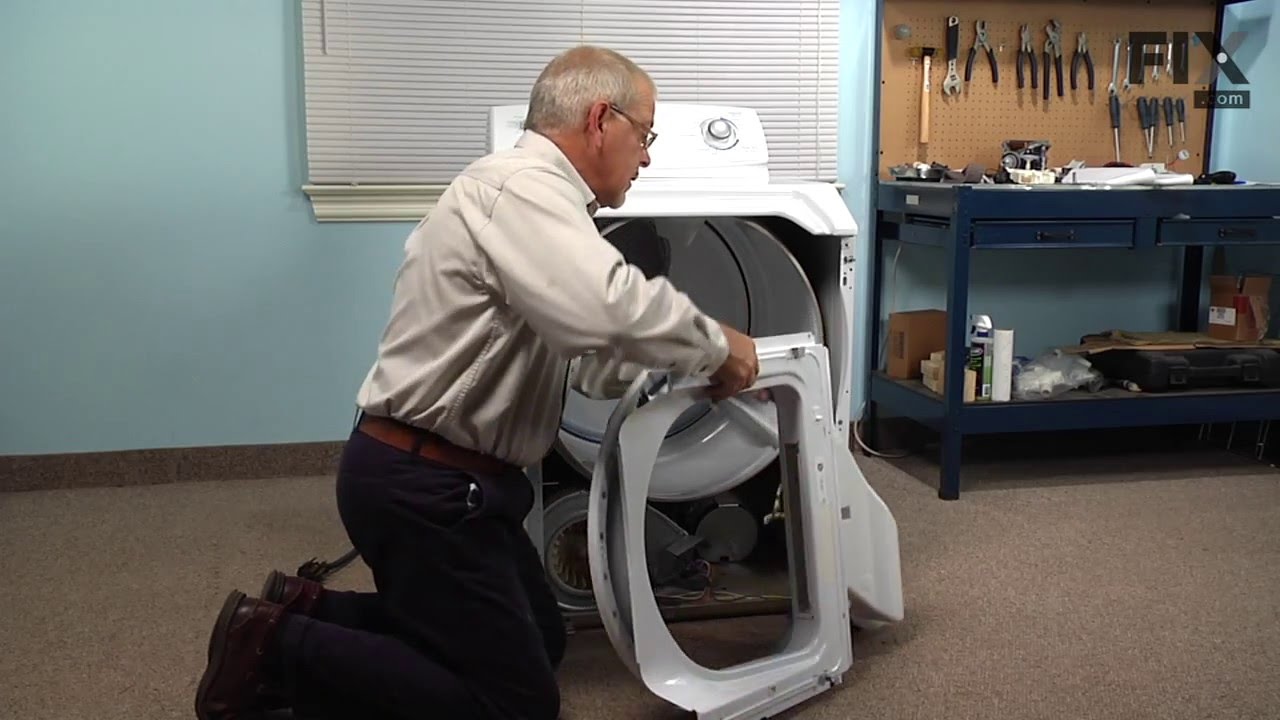

Replacing your Dryer Drum Felt Seal

Replacing your Dryer Drum Felt Seal play video

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 2.4 / 5.0, 5 reviews.
    Sort by:
    Sorry, we couldn't find any existing installation instruction that matched.
    • Customer:
      James from EASTON, PA
    • Parts Used:
      WP33001807, WP33001764
    • Difficulty Level:
      Easy
    • Total Repair Time:
      30 - 60 mins
    • Tools:
      Screw drivers, Socket set
    The dryer was making a loud noise.
    The felt around the front of the drum was coming off. This caused the drum to grind against the front end of the dryer. Had to remove the front and the drum. Replaced it and reintalled. All is good again. I could not have done this without the assistance of your "How To" videos. After watching it was very clear the steps needed to accomplish this repair. The hinge hole cover was cracked that was "Very Easy" to replace. All parts puchased at this site.
    1 person found this instruction helpful.
    Was this instruction helpful to you?
    Thank you for voting!
    Broken fan blade destroyed housing
    I found an instruction video that explained the steps.It did not explain how to replace the rear seal or felt.After i replace the front felt following the video it was simple.Getting the felt to form or fit the drum was not shown .I put the drum next to the felt and used the cotter key puller to flip the seal to the correct position.
    0 of 1 people found this instruction helpful.
    Was this instruction helpful to you?
    Thank you for voting!
    • Customer:
      Jeff G from Loomis, CA
    • Parts Used:
      WP33001807, WP22002263, 306508
    • Difficulty Level:
      Easy
    • Total Repair Time:
      1- 2 hours
    • Tools:
      Nutdriver, Screw drivers
    Dryer was not drying cloths very well and hot air was leaking within the unit instead of venting out through the vent.
    Follow the easy video instructions on the website! I pulled off the front cover and door, then the front cover of the drum while propping-up the top cover to get more room to work. Take the drive belt off by compressing the tension roller then slip the entire drum out the front. I drilled out the old rivets on the drum front cover and installed new pads as per the video. I then used a flat blade screw driver to open the metal tabs that hold the felt pads in place and removed the pads (on the front cover and inside the unit on the back cover). Pay attention to how they overlap on the ends because you want it correct so the drum does not rub the wrong way on the overlap as it spins. It spins clockwise as you look at the front of the machine. I used the screw driver to push the tabs back down as I held the felt in place and worked around each one to install it. A large flat blade works really well. When you put the drum back inside, you need to work your fingers (or use the screw driver) to make sure the felt pad is folded over on itself and the drum is seated. I found it helpful to have someone hold the drum up in position so the back pad stays well seated while I was putting the front support cover on and doing the same thing with the front felt pad. I also put the 2 screws in place (finger tight) to help hold the drum while I was making sure the felt pad was seated all the way around the front of the drum. Then I finished putting no the rest of the front cover (not the front panel yet) and then reinstalled the drive belt on the motor and tension roller. This take both hands because you have to reach around on both sides of the hot air vet to do this. Then reinstall the top cover, the front cover and door and your all set. The dryer now drys cloths very quickly like it did when we first bought it over 20 years ago. I had also replaced the drum rollers and the tension roller earlier but if you haven;t done this, i would do them at the same time when you have the drum out of the machine. They are inexpensive and easy to do when it's all apart anyway. It helps to reduce any noisy squeaks and makes it run nice and quiet like it did when new!
    0 of 1 people found this instruction helpful.
    Was this instruction helpful to you?
    Thank you for voting!
    dryer runs noisy
    The only additional step I incorporated was to place a block of wood under the tension pulley arm to hold it in the full off position while installing the drive belt. This was very helpful especially since you are working by feel while threading the drive belt onto the motor pulley and tension pulley. Once they are in place the wood block can be removed to engage the tension pulley. The instruction videos brought out a couple of helpful tips that made the repair successful.
    0 of 1 people found this instruction helpful.
    Was this instruction helpful to you?
    Thank you for voting!
    • Customer:
      Manuel from Safford, AZ
    • Difficulty Level:
      Very Difficult
    • Total Repair Time:
      More than 2 hours
    • Tools:
      Nutdriver, Screw drivers
    Have not been able to finish the repair. Have not been able to install the felt seals to enable us to reinstall the drum.
    Followed the video to remove the drum to the point of installing the felt seals. No instructions given to install the back seal. Removed the part where the back seal goes and placed the back seal in place. Have not been able to reinstall the drum because front felt seals are in the way. Can not determine how to keep them out of the way while trying to install the front part of the drum in place. Any help you can give me will be greatly appreciated.
    0 of 1 people found this instruction helpful.
    Was this instruction helpful to you?
    Thank you for voting!
      Model Compatibility
      This part works with the following models:
      Fix Number: FIX11741074
      Manufacturer Part Number: WP33001807
      Brand
      Model Number
      Description
      Crosley
      CDE4205AYJ
      Dryer - Residential
      Crosley
      CDE4205AYW
      Dryer - Residential
      Crosley
      CDE4205AZJ
      Dryer - Residential
      Crosley
      CDE4205AZW
      Dryer - Residential
      Crosley
      CDG4205AWJ
      Dryer - Residential
      Crosley
      CDG4205AWW
      Dryer - Residential
      Maytag
      MDE14PDACL
      Dryer - Electric
      Maytag
      MDE14PDACQ
      Dryer - Electric
      Maytag
      MDE14PDACW
      Dryer - Electric
      Maytag
      MDE14PDADL
      Dryer - Electric
      Maytag
      MDE14PDADW
      Dryer - Electric
      Maytag
      MDE14PDAGW
      Dryer - Electric
      Maytag
      MDE14PNAGW
      Dryer - Gas
      Maytag
      MDE14PNAYW
      Dryer - Gas
      Maytag
      MDE14PNAZW
      Dryer - Gas
      Maytag
      MDE14PRAYW
      Dryer - Gas
      Maytag
      MDE14PRAZW
      Dryer - Gas
      Maytag
      MDE14PSADW
      Dryer - Electric
      Maytag
      MDE16CSAGW
      Dryer - Electric
      Maytag
      MDE16CSAKA
      Dryer - Electric
      Maytag
      MDE16CSAKQ
      Dryer - Electric
      Maytag
      MDE16CSAYA
      Dryer - Electric
      Maytag
      MDE16CSAYQ
      Dryer - Commercial
      Maytag
      MDE16CSAYW
      Dryer - Electric
      Maytag
      MDE16CSAZA
      Dryer - Electric
      Maytag
      MDE16CSAZQ
      Dryer - Commercial
      Maytag
      MDE16CSAZW
      Dryer - Commercial
      Maytag
      MDE16CSDGW
      Dryer - Electric
      Maytag
      MDE16CSDYW
      Dryer - Electric
      Maytag
      MDE16CSDZW
      Dryer - Electric
