Part Location Diagram of WP33002535 Whirlpool Multi Rib Belt - 91-5/8 Inches
See part 1 in the diagram
Replacing your Maytag Dryer Multi Rib Belt - 91-5/8 Inches
( Grid squares measure 1x1 inch )

Multi Rib Belt - 91-5/8 Inches WP33002535

★★★★★
★★★★★
2 Reviews

Rated by 34 customers

?

Easy

1- 2 hours

Ratings submitted by customers like you who bought this part.

?
$22.89
In Stock
Fix Number:
FIX11741110
Manufacturer #:
WP33002535
Manufactured by:
Whirlpool

Product Description

If your dryer is noisy while operating, or will not tumble at all, there may be an issue with the drum belt. Over time, the rubber can become brittle and snap, and the belt will need to be replaced. This genuine OEM multi rib dryer drum belt measures approximately 91 and 5/8-inch in length and is 3/8-inch wide. It is made of black rubber and have five ridges, helping it to grip to your dryer drum.

Videos For installing this part.

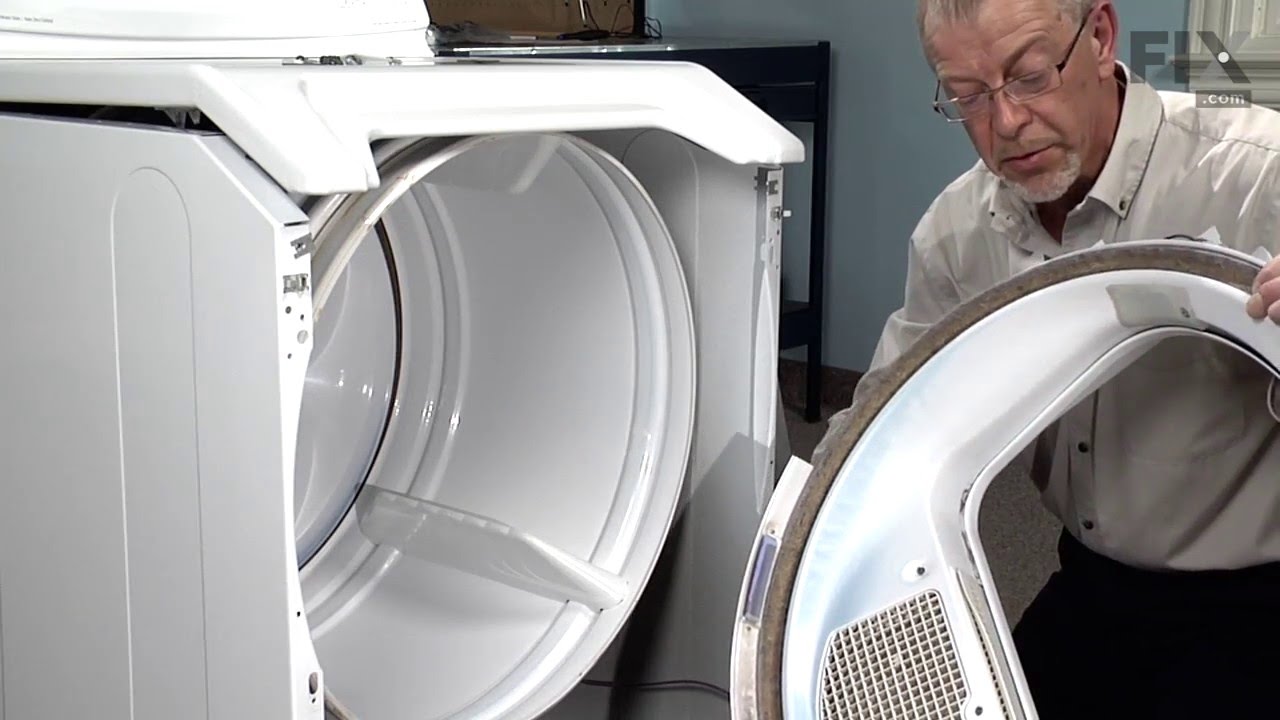

Replacing your Multi Rib Belt - 91-5/8 Inches

Replacing your Multi Rib Belt - 91-5/8 Inches

Questions and Answers

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

View More View Less
Drum Support Roller Kit
$13.49
In Stock
Front Glide Kit
$14.69
In Stock
Roller Shaft
$9.80
In Stock
Idler Pulley Wheel and Bearing
$17.89
In Stock
Affresh Washing Machine Cleaner - 3 pack
$12.58
In Stock
Produce Preserver Filter
$21.50
In Stock
Affresh Dishwasher Cleaner Tablets - 6
$19.09
In Stock
Cooktop Cleaning Cream
$15.57
In Stock
Cooktop Cleaner
$17.74
In Stock
Affresh Cleaner
$19.09
In Stock

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 3.0 / 5.0, 34 reviews.
  • 1
  • 2
  • 3
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.
Customer:
Tim from PORTLAND, OR
Parts Used:
WP6-3700340, WP6-3129480, WP33002535, 306508, 12001541, WP9703438
Difficulty Level:
Easy
Total Repair Time:
1- 2 hours
Tools:
Nutdriver, Pliers, Screw drivers
Dryer was a bit noisy with a full load of wet clothes
As per the repair videos on the site, I searched the internet for a couple of supplementary videos just to make sure I was doing it correctly. It was was all pretty easy. Expect to vacuum out and clean out the interior of the dryer. Also, to make things easier, disconnect the bulkhead and exterior like in the video, but also keep the top flipped up until reassembling, it'll make it much easier. When reinstalling the belt, remember how the belt is going to go around the pulley, you'll have to do this without sight as the barrel will the way and you won't be able to see what you're doing. It's really not hard but just keep this in mind. Also, as you disassembling, it would help to snap some pictures of where each screw goes and how; reassembly was a tiny bit tricky as I didn't do this.
8 of 9 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
Shawn from Plano, TX
Parts Used:
WP6-3700340, WP33002535, 12001541
Difficulty Level:
Really Easy
Total Repair Time:
1- 2 hours
Tools:
Pliers, Screw drivers, Socket set
Squeaky
Followed youtube tutorials, pretty straightforward. Take pictures of where wires connect for door switch, light, et al. Have a shop-vac handy to vacuum all the dust, lint, dog hair, etc that's accumulated over the years inside the unit.My spreader c-clip pliers were not small enough to fit in the holes of those tiny c-clips,had to improvi se.Used steel wool to polish all roller shafts, Before re-installing drum and belt, orient yourself to this procedure by practicing threading belt properly before positioning the drum in your way!
5 of 8 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
JOE from HIGHLAND, IN
Parts Used:
WP6-3705180, WP6-3700340, WP33002535, 306508, 12001541
Difficulty Level:
Easy
Total Repair Time:
1- 2 hours
Tools:
Nutdriver, Pliers, Screw drivers, Wrench set
Hella Loud
1st off, watch all the video's they supply even before you buy the parts. A lot of knowledge in them. It helped to ensure I bought the right parts to begin with. I removed the front of the machine, removed the brackets holding the lid down. Raised the lid, and did an inspection of everything. Removed the front so I could remove the drum. Once that was down, piece of cake. I got out the vacuum, vacuumed out everything, then moved to removing the rollers. Because my tool broke to remove the retaining clip from the front, I had to use a 1/2" wrench to removed the roller studs. Rebuilt the drum support rollers, and put them back on. Next was the idler pulley wheel and bearing and idler arm and shaft. Another piece of cake. I decided to not replace the front glide as it looked fine. NOW THE TRICKY PART. Putting the new belt on and putting the drum back in. Watched that video 4 times. Finally got it. Of the little over two hours, 30 minutes was spent on this part. Put everything back together from there a cake walk. YOU DO NOT NEED TO REMOVE ANY WIRES FROM ANYTHING EITHER. Hope this helps.
3 of 3 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
Tammy from Fremont, OH
Parts Used:
WP6-3700340, WP6-3129480, WP33002535, 12001541
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
Tools:
Pliers, Screw drivers, Socket set
Very loud rubbing/squeaking noise
Watched 2 YouTube videos. 1. How to take apart a dependable care dryer. 2. How to replace a belt on a maytag dryer. We replaced all the parts. It was eeasy. When putting dryer back together make sure felt is straight. We did have to take it apart again there was felt sticking out inside the dryer and it caused the drum to not spin. Every thing works great. And Thank you parts select. I received the right parts in 2 days without paying extra. I will use you again.
3 of 5 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
John from Zephyr, TX
Parts Used:
WP33002535, 33001917A, 12001541, WP9703438
Difficulty Level:
Really Easy
Total Repair Time:
30 - 60 mins
Tools:
Nutdriver, Pliers, Screw drivers
The roller bearings worn out causing belt to break
First thing was to watch this video on Youtube on the take down of this dryer and determine what caused the malfunction.
3 of 5 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
michael from muncie, IN
Parts Used:
WP6-3700340, WP33002535, 12001541
Difficulty Level:
Very Easy
Total Repair Time:
1- 2 hours
Tools:
Nutdriver, Screw drivers
squeeky
removed dryer, set up on roll around work bench, watched your repair video, took my time and cleaned with air compressor and shop vac. did it all in standing position.
2 of 3 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
James from MOGADORE, OH
Parts Used:
WP9703438, WP33002535, 33001790
Difficulty Level:
Easy
Total Repair Time:
1- 2 hours
Tools:
Pliers, Screw drivers, Socket set
The blower wheel was deteriorating around the axle
Step 1. I disconnected the electrical outlet Step 2. Took the front panel then the door and then the panel that holds the tumbler. Took the belt off the tumbler then the tumbler. Took the housing cover for the blower wheel off. Took the clip off the blower wheel to the axle of the motor. Replaced with new blower wheel and belt and cl eaned the inside of the dryer.
1 person found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
RICHARD from TOWSON, MD
Parts Used:
WP6-3700340, 33002560, WP33002535, 306508, 12001541
Difficulty Level:
Easy
Total Repair Time:
1- 2 hours
Tools:
Nutdriver, Screw drivers
Loud screeching noise, intermittant but with increasing regularity when running dryer.
Took off the door, and then front panel and shroud/bulkhead according to video instructions. Removed the belt, and then the tumbler. Found that the roller assembly bearing was rubbing against the shaft support on lower right side. I replaced both rollers, they come as a pair, the idler wheel, the front glides, the blower seal, and the belt. I purchased all these based on suggestions in reviews, but would suggest taking apart to make sure of part needed, in this case it was obvious when I spun the drum support wheels, one was less giving and literally screeched. I did not need a new idler wheel or belt, but used them anyway. The glides looked a little worn, so was good to replace them and the blower seal seemed a little worse for wear. I cleaned the blower wheel ribs as best as possible and vacuumed everything I could. For the glides, you will need a 1/8" drill bit to drill out old rivets and a rivet gun to replace. For the drum support wheels you will need a pair of C-Ring pliers. It was all very straight forward having reviewed the videos. I did raise the cover when working on all of this, which provided much better access and space, and used a bungee cord to help hold the tumbler in place when doing reassemble. Fantastic website, instruction with videos, couldn't be easier. Good luck.
1 of 2 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
ROBERT from Germantown, TN
Parts Used:
WP33002535, 12001541
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
Tools:
Pliers, Screw drivers, Wrench set
Squeaky, worn clothes dryer drum rollers
I watched 2 different U-Tube videos, studied tools needed, tool sizes required and dis-assembly/assembly techniques. When viewing videos be sure to visualize how to properly install the drum belt on the motor drive and tensioner. Prep your repair area-clear areas to put dissembled parts, screw etc.. Take the time to remove all internal dust and lint in the vent tubing and front drum face(Motor fan area & lint screen area) and rear lint exhaust tube, Photo all wire connections that are to be unplugged to review for re-assembly. No need to move the dryer or remove rear dryer panel: all you need is a good closed wrench ratchet(boxed on one end/circular ratchet on the other) and a pliers to remove the two rollers and re-install them. If you re-use the roller pins clean them thoroughly.
0 of 1 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
Frank from Colorado Springs, CO
Parts Used:
WP33002535
Difficulty Level:
Really Easy
Total Repair Time:
30 - 60 mins
Tools:
Nutdriver, Screw drivers
would not tumble
watch the video and followed the intructions not hard to do safed several dollars doing it yourself works great now thank you
0 of 1 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • 1
  • 2
  • 3
Customer Reviews
Average Rating: (2 Reviews)
4.5
★★★★★
★★★★★
Filter By Rating:
  • 5
    1
  • 4
    1
  • 3
    0
  • 2
    0
  • 1
    0
  • 1
Sort by:
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.

Model Compatibility

This part works with the following models:
Fix Number: FIX11741110
Manufacturer Part Number: WP33002535
Brand
Model Number
Description
Crosley
CDE4205AYJ
Dryer - Residential
Crosley
CDE4205AYW
Dryer - Residential
Crosley
CDE4205AZJ
Dryer - Residential
Crosley
CDE4205AZW
Dryer - Residential
Crosley
CDG4205AWJ
Dryer - Residential
Crosley
CDG4205AWW
Dryer - Residential
Maytag
MDB9206AWW
Dryer - Maytag Dryer Model MDB9206AWW Parts
Maytag
MDE14PDACL
Dryer - Electric
Maytag
MDE14PDACQ
Dryer - Electric
Maytag
MDE14PDACW
Dryer - Electric
Maytag
MDE14PDADL
Dryer - Electric
Maytag
MDE14PDADW
Dryer - Electric
Maytag
MDE14PDAGW
Dryer - Electric
Maytag
MDE14PNAGW
Dryer - Gas
Maytag
MDE14PNAYW
Dryer - Gas
Maytag
MDE14PNAZW
Dryer - Gas
Maytag
MDE14PRAYW
Dryer - Gas
Maytag
MDE14PRAZW
Dryer - Gas
Maytag
MDE14PSADW
Dryer - Electric
Maytag
MDE16CSAGW
Dryer - Electric
Maytag
MDE16CSAKA
Dryer - Electric
Maytag
MDE16CSAKQ
Dryer - Electric
Maytag
MDE16CSAYA
Dryer - Electric
Maytag
MDE16CSAYQ
Dryer - Commercial
Maytag
MDE16CSAYW
Dryer - Electric
Maytag
MDE16CSAZA
Dryer - Electric
Maytag
MDE16CSAZQ
Dryer - Commercial
Maytag
MDE16CSAZW
Dryer - Commercial
Maytag
MDE16CSDGW
Dryer - Electric
Maytag
MDE16CSDYW
Dryer - Electric
