Surface Burner Switch - 240V W11120791

Rated by 2 customers

?

Really Easy

Less than 15 mins

Ratings submitted by customers like you who bought this part.

?
$90.58
In Stock
Fix Number:
FIX12347301
Manufacturer #:
W11120791
Manufactured by:
Whirlpool

Jump to:

Product Description

  • Works with the following brands:
    Jenn-Air, Kenmore, Maytag, Whirlpool
  • Works with the following products:
    Range, Cooktop, Wall Oven
  • Fixes the following symptoms:
    Element will not heat, Will Not Start, Oven is too hot
  • Part# W11120791 replaces these:
    AP6278040, 04100359, 04100360, 04100361, 04100426, 04100429 , 04100502, 4381772, 5-70199, 570199, 7-3650, 703650, 7403P402-60, W10894483, WP7403P402-60, WP7403P402-60VP, Y04100359, Y04100360, Y04100361, Y04100426, Y04100429, Y04100502 Show less
Works with the following brands:
Jenn-Air, Kenmore, Maytag, Whirlpool
Works with the following products
Range, Cooktop, Wall Oven
Fixes the following symptoms
Element will not heat, Will Not Start, Oven is too hot
Part Number Cross Reference
Part# W11120791 replaces these:
AP6278040, 04100359, 04100360, 04100361, 04100426, 04100429, 04100502, 4381772, 5-70199, 570199, 7-3650, 703650, 7403P402-60, W10894483, WP7403P402-60, WP7403P402-60VP, Y04100359, Y04100360, Y04100361, Y04100426 , Y04100429, Y04100502

Videos For installing this part.

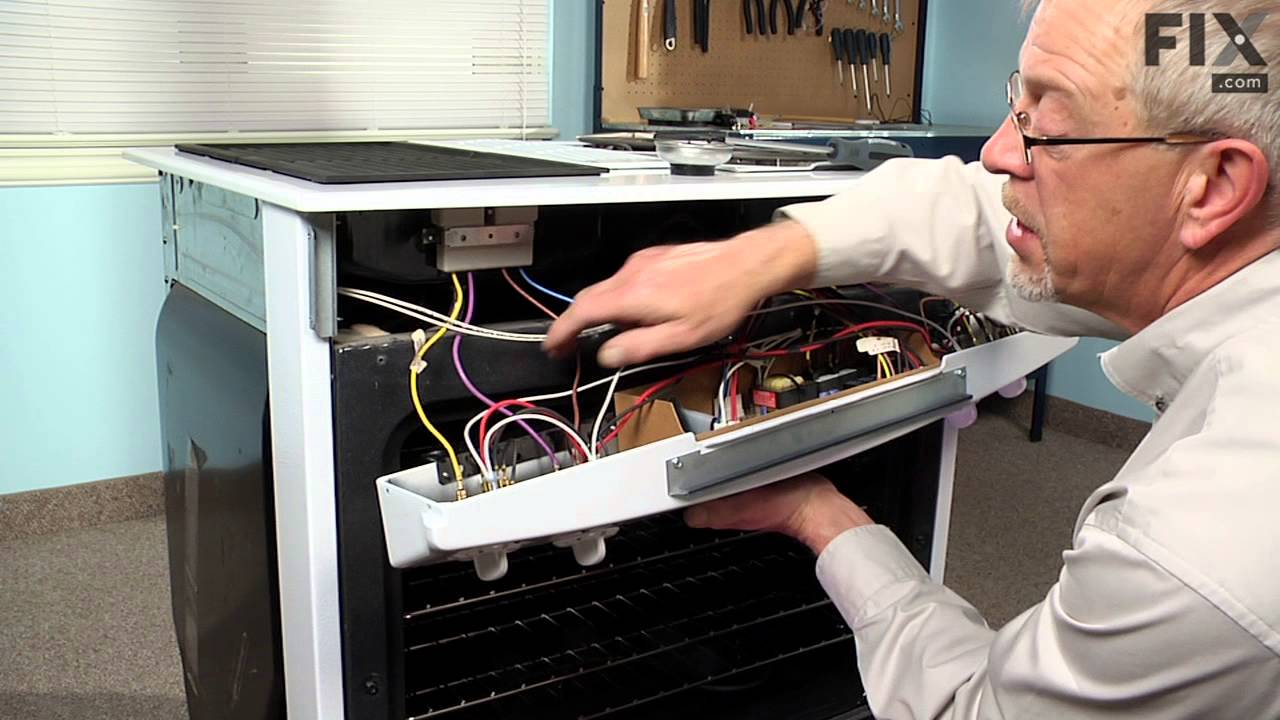

Replacing your Surface Burner Switch - 240V

Replacing your Surface Burner Switch - 240V

Questions and Answers

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

1 question answered by our experts.
  • 1
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.
Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Jolene
May 5, 2024
How do I know if I need a 240v switch or the other one that doesn't have 240v in the name? part number WPLW11120791
For model number SVE47500W
Fix.com logo
Hello Jolene, thank you for contacting us. The compatible infinite switches for all the burners of your model have the same part number FIX12347301. The voltage of this switch is 240 volts. If you need help placing an order for it, please feel free to give us a call!

Was this helpful?
Thank you for voting!
