Disposable Thermal Fuse - Two Terminal
$17.53
In Stock
Fix Number: FIX11741444
Manufacturer #: WP3390719
Manufactured by:
Whirlpool
-
Product Description
This part includes a dryer thermal fuse, also sometimes referred to as a thermal limiter, for dryers. This authentically sourced part is located on the exhaust duct and acts a safety mechanism that shuts off the power to the dryer when it overheats. This part can be tested for continuity between the two terminals, and if no continuity is detected, it will need to be replaced. The thermal fuse cannot be reset. Once the fuse opens, it needs to be replaced to get your dryer back up and running again.
-
Works with the following brandsKenmore, Whirlpool, KitchenAid, Maytag
-
Works with the following productsDryer, Washer Dryer Combo
-
Fixes the following symptomsToo hot
-
Part Number Cross ReferencePart# WP3390719 replaces these:AP6008309, 279650, 3389639, 3389640, 3390719, 660877, 688841, 690198, 690798, 80004, WP3390719VP
Product Description
This part includes a dryer thermal fuse, also sometimes referred to as a thermal limiter, for dryers. This authentically sourced part is located on the exhaust duct and acts a safety mechanism that shuts off the power to the dryer when it overheats. This part can be tested for continuity between the two terminals, and if no continuity is detected, it will need to be replaced. The thermal fuse cannot be reset. Once the fuse opens, it needs to be replaced to get your dryer back up and running again.
-
Works with the following brands:Kenmore, Whirlpool, KitchenAid, Maytag
-
Works with the following products:Dryer, Washer Dryer Combo
-
Fixes the following symptoms:Too hot
-
Part# WP3390719 replaces these:AP6008309, 279650, 3389639, 3389640, 3390719, 660877 ... Show more , 688841, 690198, 690798, 80004, WP3390719VP Show less
Videos For installing this part.

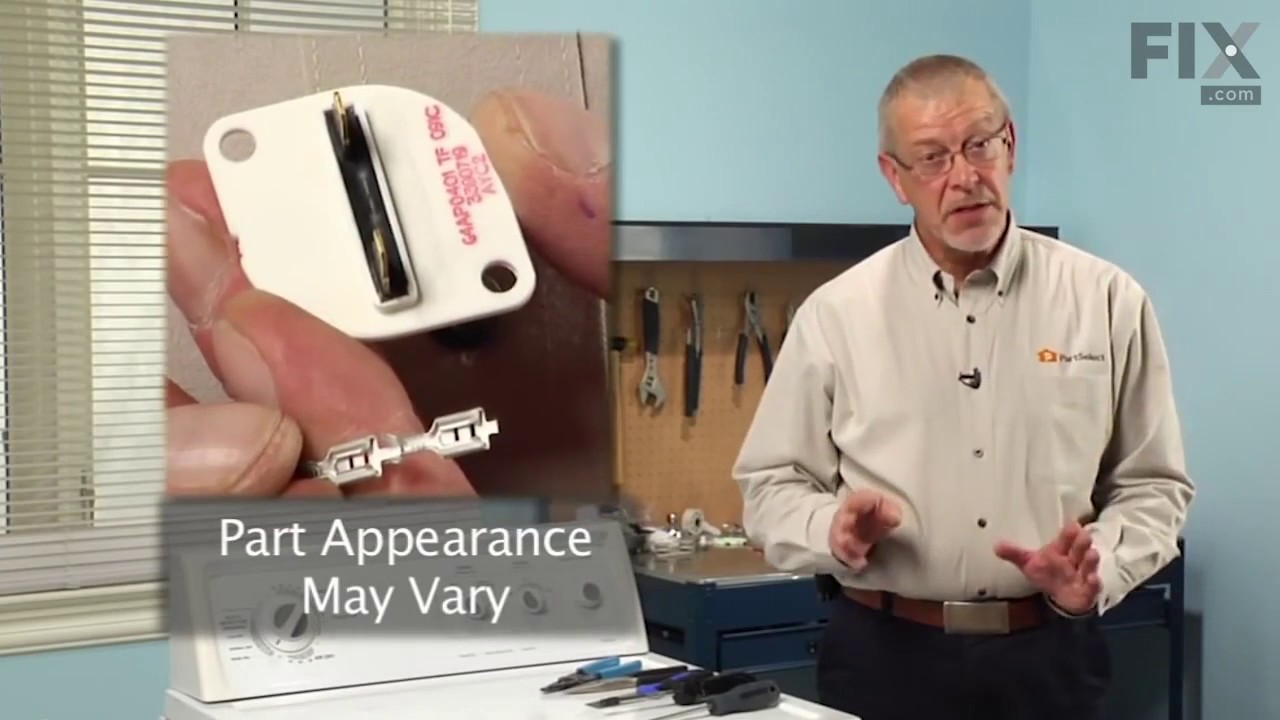

Replacing your Disposable Thermal Fuse - Two Terminal
Questions and Answers
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Related PartsAdditional or alternate parts to consider.
Installation Instructions Provided by Fix customers like you.
- < Prev
- 1
- Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
-
Customer:jeffrey from Brookhaven, PA
-
Difficulty Level:Easy
-
Total Repair Time:30 - 60 mins
-
Tools:Screw drivers, Socket set, Wrench set
Dryer would run, but not heat
Needed it running quick, so no diagnostics. Ordered one of everything that could fix problem (plus a new door catch). Tipped it onto it's back & popped the bottom cover off. Element, thermal cutoff, thermistor, and fuse. were right in front and held by 2 screws each (don't drop them, don't ask). A little bit tight inside, but no big issue. vacuumed the inside, replaced everything (it was the Heating Element, by the way), slapped the cover on, and put it back in its spot. works like it was new. Yes, I unplugged it first. Remember! Safety Third!
Was this instruction helpful to you?
Thank you for voting!
-
Customer:Al from Cape Coral, FL
-
Difficulty Level:Really Easy
-
Total Repair Time:30 - 60 mins
-
Tools:Nutdriver
No heat when trying to dry clothes .
Followed instructions on your videos. Everything went as planned and the dryer works like new....
Was this instruction helpful to you?
Thank you for voting!
-
Customer:joseph from hatboro, PA
-
Parts Used:WP3390719
-
Difficulty Level:A Bit Difficult
-
Total Repair Time:30 - 60 mins
-
Tools:Socket set
Nothing worked
Unplug dryer. Use putty knife to open front bottom panel. Remove front of fan housing the Thermal fuse is on top two blue wires use a 1/4 in. socket wrench to remove screws replace part. Vacuum all dust from dryer.
Was this instruction helpful to you?
Thank you for voting!
-
Customer:Deb from Clarksville, OH
-
Parts Used:WP3390719
-
Difficulty Level:Very Easy
-
Total Repair Time:Less than 15 mins
-
Tools:Nutdriver, Pliers, Socket set
Not Heating L2 error flashing on display
Looked at the bulk head image provided by your site for my model. Removed the front panel of the dryer. Located the fuse on top of the fan housing and replaced it with the new one I ordered from you. The only thing that was different were the connectors which did not allow me to apply the plastic covers that were on the original due to a different orientation but otherwise it all worked out well. Turns out it was a bad heating element which I also ordered from you and replaced.
Was this instruction helpful to you?
Thank you for voting!
-
Customer:Ed from Alixandria, VA
-
Difficulty Level:A Bit Difficult
-
Total Repair Time:More than 2 hours
-
Tools:Nutdriver, Screw drivers
low heat
Replaced five parts and then finally went up on the roof to inspect the 3" exhaust pipe. The cap was clogged. It was the four-side-slot type for keeping out weather. I replaced it with a two 90 deg L's with output pointing downward. That's wide open 3" diameter and should not clog up again.
Was this instruction helpful to you?
Thank you for voting!
-
Customer:Steve from Boerne, TX
-
Difficulty Level:Easy
-
Total Repair Time:1- 2 hours
-
Tools:Nutdriver, Pliers, Screw drivers
The dryer would not start
I viewed one of the numerous YouTube videos to diagnose the problem, and how to my disassemble my particular dryer. I ordered the necessary parts from this site . The issue was that the thermal fuse and or the associated thermostat had failed. As recommended in the diagnosis video I replaced both the fuse and the thermostat. Problem solved! I then reassembled the dryer. The trickiest part was reattaching the tumbler drive belt on the tensioning pulley and the drive spindle. I needed a couple to get it right.
Was this instruction helpful to you?
Thank you for voting!
