How to Fix a Rotor for a Washer That Will Not Agitate

If the magnets or splines on the rotor have become damaged, it results in your wash basket not being able to spin. A visible inspection of the rotor can reveal if any of the magnets have become loose. The information below will help guide you through inspecting and replacing your washer rotor, if needed.

What is a Rotor? Where is it Located?

The rotor is an important part, as it is used to rotate the tub during the wash cycle. The rotor works with the stator to create an electromagnetic field, which causes the tub to rotate. The rotor is found at the back of the washer, directly behind the panel.

General Location of the Rotor in a Washer

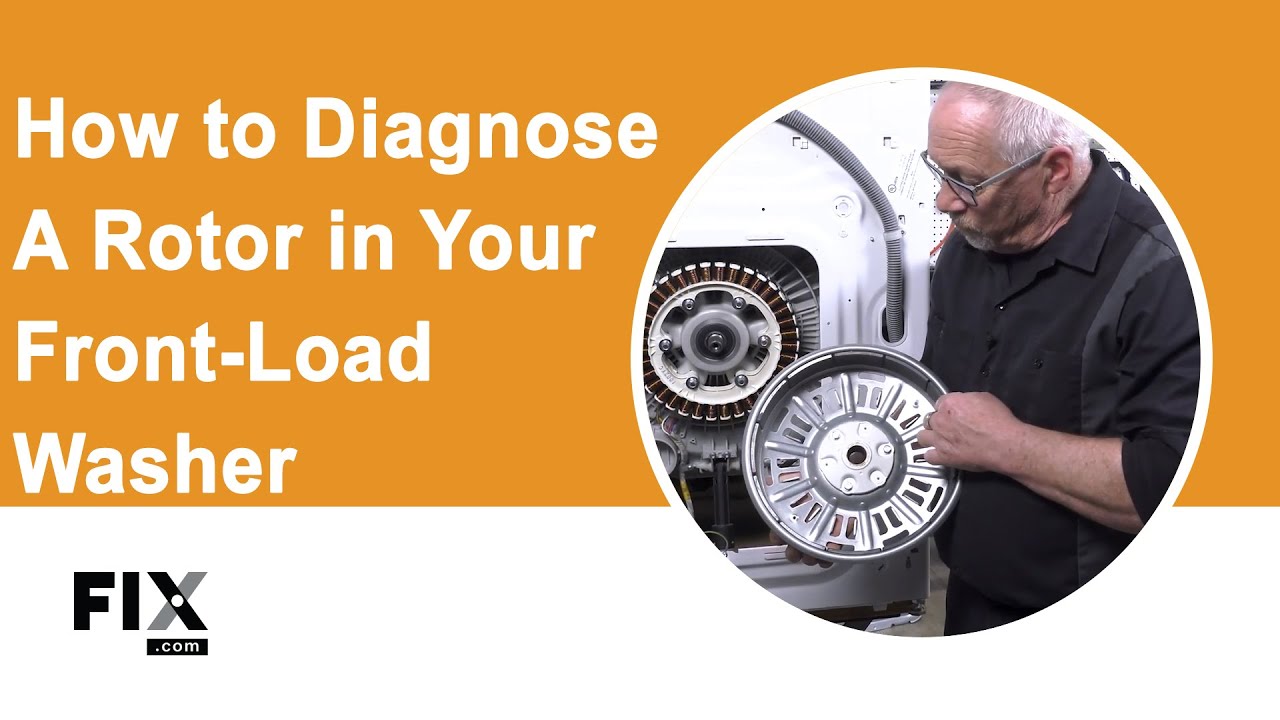

How to Tell if the Rotor is Damaged

If the magnets or splines of the rotor are damaged, it needs to be replaced.

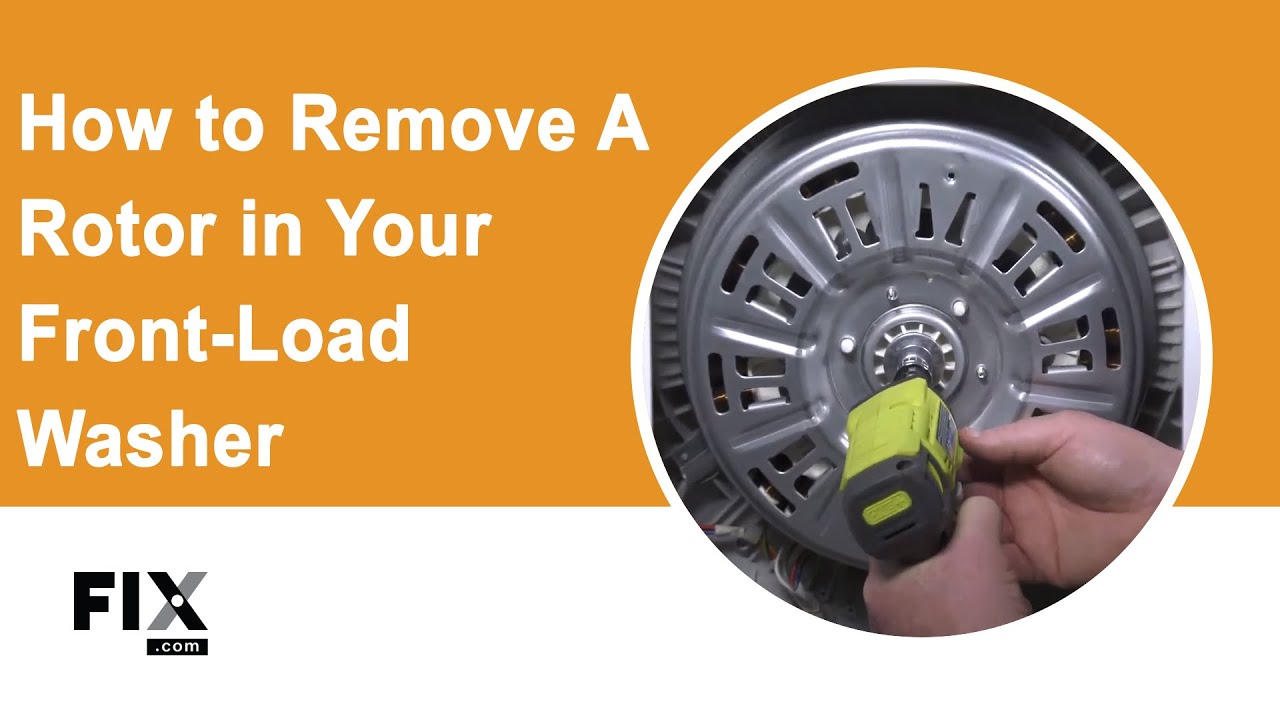

How to Access and Remove the Rotor

1. Disconnect the power and water supply to the washer, and then pull it out from the wall to access the back panel.
2. Remove the back panel from the washer.
3. Remove the bolt that holds the rotor in place.

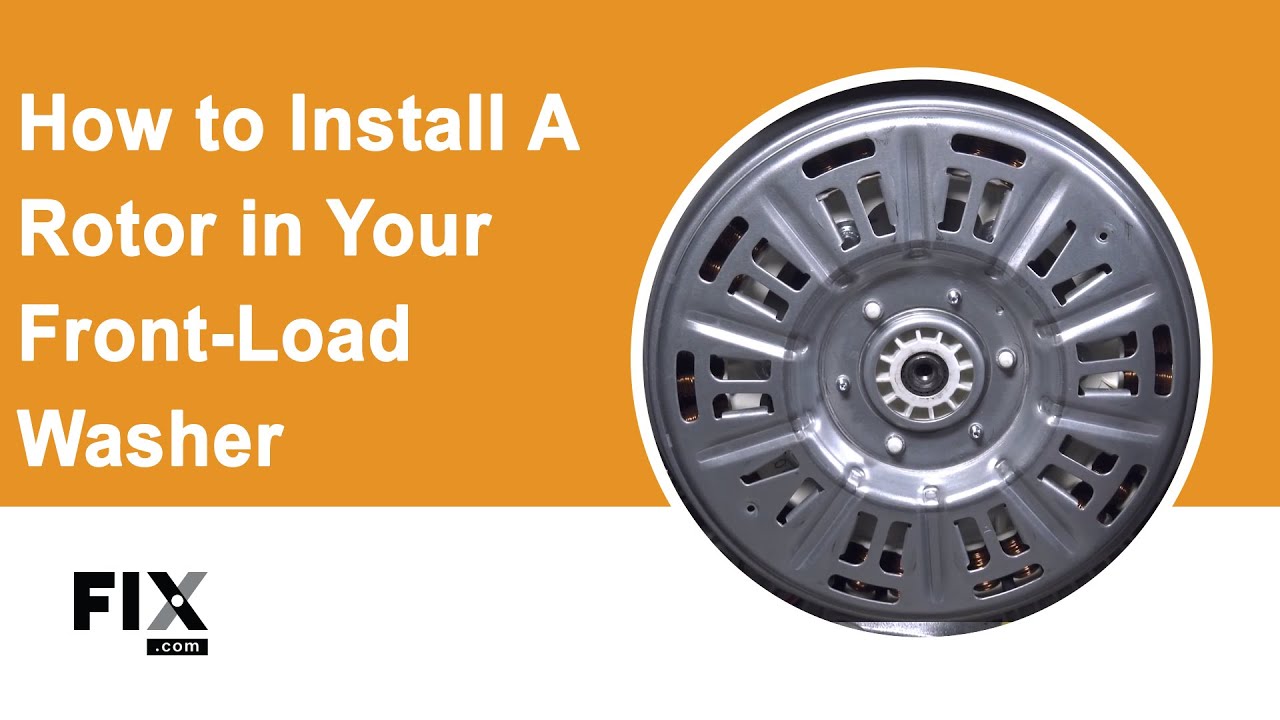

How to Install a New Rotor

1. Ensure that the shaft is free of debris before placing the new rotor on it.
2. Apply some blue thread locker to the bolt before reattaching it.
