Timer
$121.72
In Stock
Fix Number: FIX4704240
Manufacturer #: WH12X10527
Manufactured by:
GE
-
Product Description
The timer controls most of the operations of the washer: water level, tub filling and emptying, length of cycles, and cycle setting sequences.
-
Works with the following brandsGeneral Electric, Hotpoint
-
Works with the following productsWasher
-
Fixes the following symptomsWill Not Start
-
Part Number Cross ReferencePart# WH12X10527 replaces these:AP5645215
Product Description
The timer controls most of the operations of the washer: water level, tub filling and emptying, length of cycles, and cycle setting sequences.
-
Works with the following brands:General Electric, Hotpoint
-
Works with the following products:Washer
-
Fixes the following symptoms:Will Not Start
-
Part# WH12X10527 replaces these:AP5645215

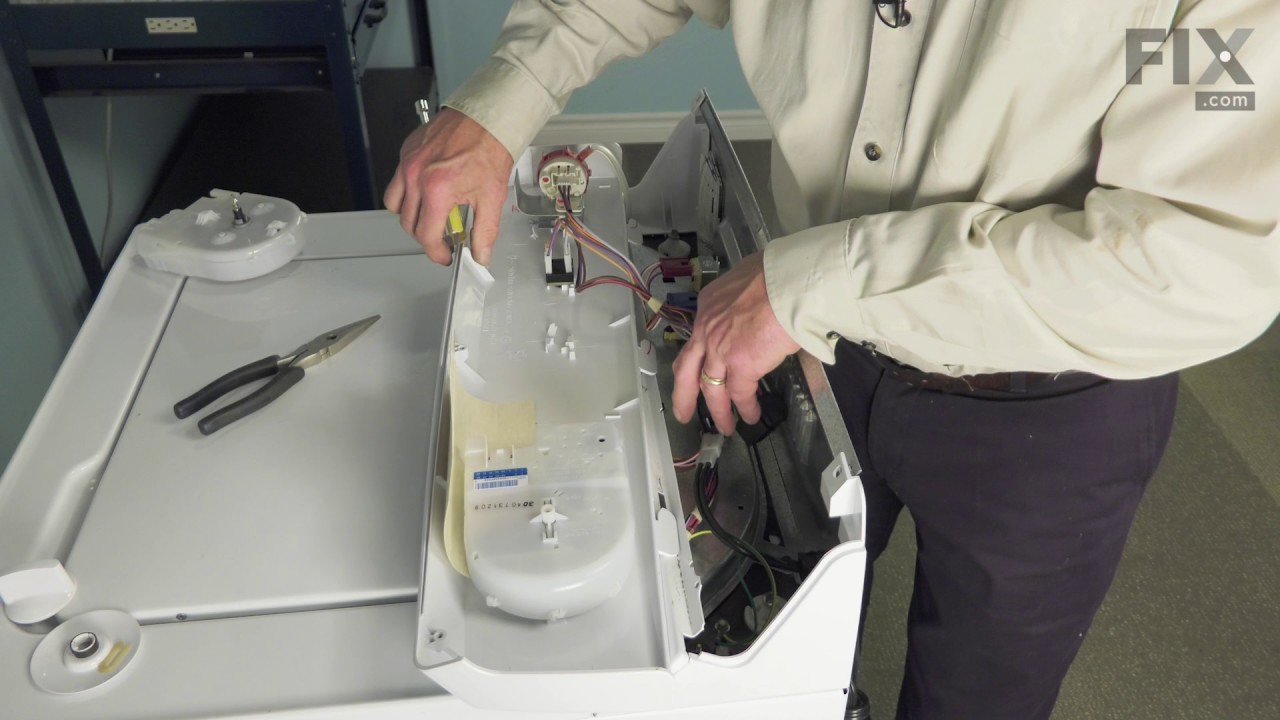

Videos For installing this part.
Replacing your Timer
Questions and Answers
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
- < Prev
- 1
- Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.
Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Julio
April 26, 2023
Hi,
I'm looking for the needle like retainers that hold the timer knob in place. Not the clip that holds it at the front But the ones that hold it on the back of the timer itself. They look like 2 small needles.
I'm looking to order a few parts and I need this needles to go with my order. One jumped out at me and can't seem to find it.
Thanks
For model number GCWP1800D0WW
Hello Julio, thank you for contacting us. According to our research, the part you are looking for is a timer knob clip, part number FIX270835. We hope this is what you are looking for!
Was this helpful?
Thank you for voting!
Related Parts:
- < Prev
- 1
- Next >
Installation Instructions Provided by Fix customers like you.
- < Prev
- 1
- Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
-
Customer:Velda from Gastonia, NC
-
Difficulty Level:Very Easy
-
Total Repair Time:30 - 60 mins
-
Tools:Socket set
Loads were not spinning properly & low water level on any level
Lift off the top piece and take off the knobs. Unscrew bolt with socket wrench. Unplug timer, unplug water level piece and air hose, replace both. Rescrew with socket wrench. Put top piece back on and put knobs back in place. No instruction needed. I was amazed how easy it was. Hardest part was unscrewing the bolt It was very tight. Easier with socket wrench.
Was this instruction helpful to you?
Thank you for voting!
-
Customer:George from SIDNEY, OH
-
Parts Used:WH12X10527
-
Difficulty Level:Very Easy
-
Total Repair Time:15 - 30 mins
-
Tools:Nutdriver, Screw drivers
Washer was not rinsing on white setting
Unplug the washer,removed clip on selector knob,removed 3 hex screws,rolled over top cover,removed screw holding control and removed connector plug then removed and replaced timer.Rinstalled top cover,knob and clip.Plug in washer and works like new.Thanks for being there.I guess I saved 200.00 dollars by buying your new timer.You can do it too......
Was this instruction helpful to you?
Thank you for voting!
- < Prev
- 1
- Next >
Model Compatibility
This part works with the following models:
Fix Number: FIX4704240
Manufacturer Part Number: WH12X10527
Manufacturer Part Number: WH12X10527
Brand
Model Number
Description
