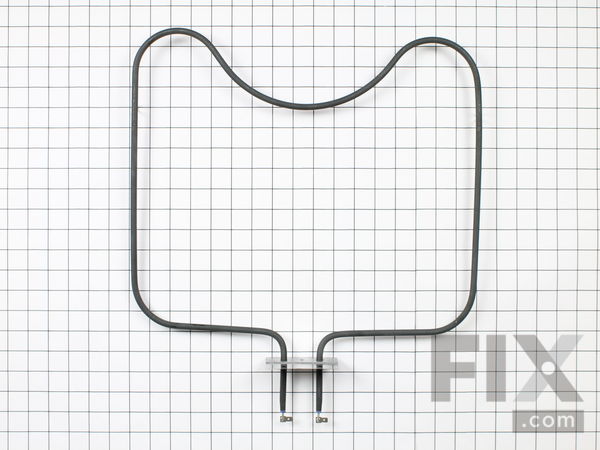

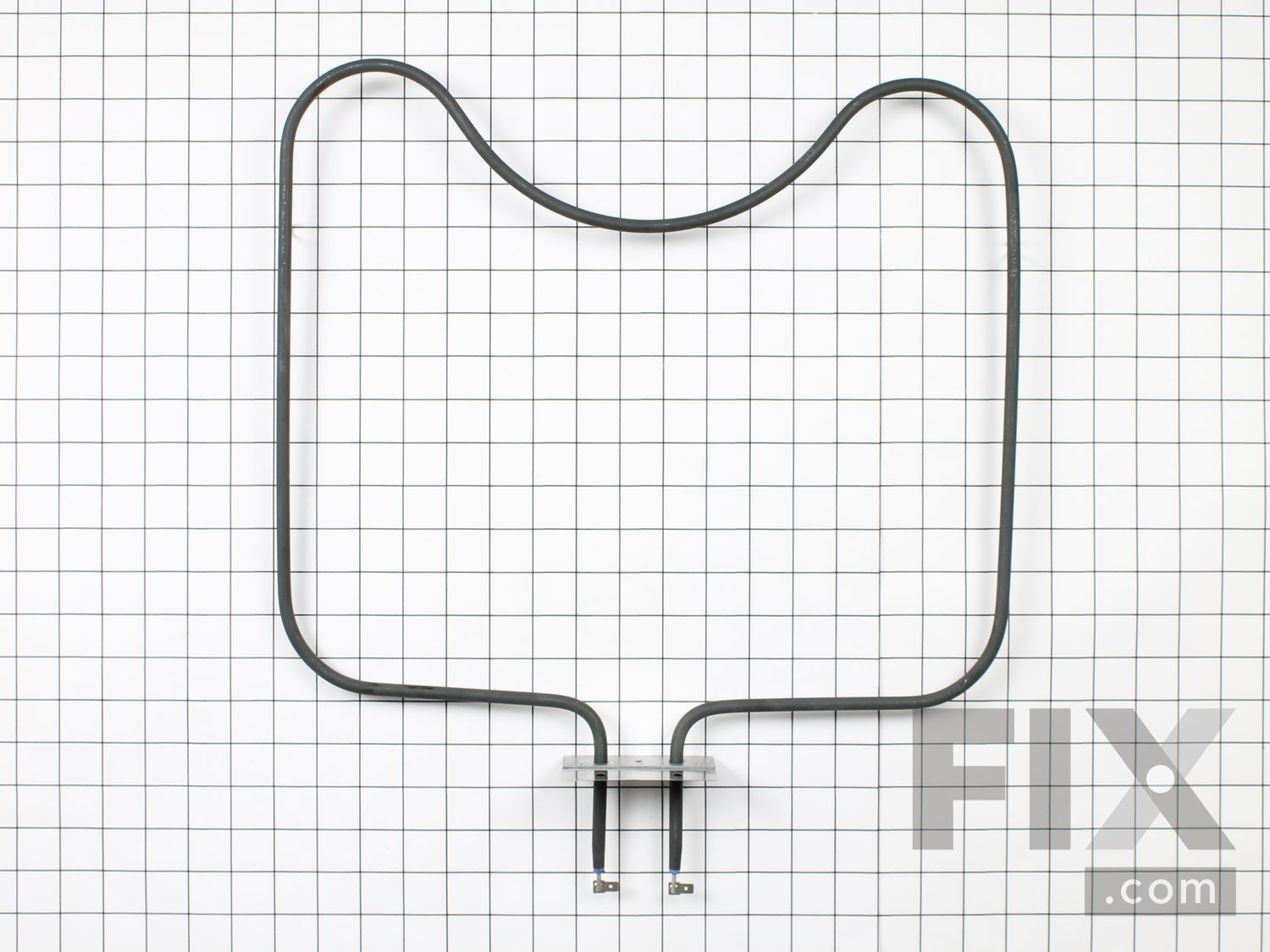

Part Location Diagram of WPY04100020 Whirlpool Bake Element
See part 10 in the diagram
( Grid squares measure 1x1 inch )

Bake Element

Rated by 5 customers

?

Really Easy

Less than 15 mins

Ratings submitted by customers like you who bought this part.

?
$100.11
In Stock
Fix Number:
FIX11757476
Manufacturer #:
WPY04100020
Manufactured by:
Whirlpool

Product Description

This bake element is 17 inches wide. It has a terminal depth of three inches, and a total element length of ninteen inches. This element is intended for use with some electric ovens.

Questions and Answers

Be the first to ask our experts a question about this part!

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 4.9 / 5.0, 5 reviews.
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.
Customer:
James from Mertzon, TX
Parts Used:
WPY04100020
Difficulty Level:
Very Easy
Total Repair Time:
Less than 15 mins
Tools:
Screw drivers
Baking element burned out
Remove 2 Phillips screws in back of oven. Disconnect power, spade leads from old element. Reconnect leads to new element and replace 2 screws and turn on breaker and test.
1 person found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
Michael from Oakland, CA
Parts Used:
WPY04100020
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins
Tools:
Screw drivers
frozen phillips screw preventing the instalation of new oven heating coil
get the screw out. snap in new coil which I had. Broke the rusted screw with a hammer on the screw driver
0 of 1 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
douglas from apopka, FL
Parts Used:
WPY04100020
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins
Tools:
Screw drivers
bad element
2 screws and 2 wires that clip on
0 of 1 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
William from Kerrville, TX
Parts Used:
WPY04100020
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Screw drivers
the two fastening screws were difficult to remove.
The two screws were 30 years old and somewhat corroded/difficult to remove. Sprayed WD-40 & left overnight. Screws then came out OK, New bake element then easy to install - worked fine when power restored. Note: Suggest new screws be part of the purchase package in case old screws get damaged during removal. Good price and great delivery. Thanks! Bill
0 of 1 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
George from Nederland, CO
Parts Used:
WPY04100020
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins
Tools:
Screw drivers
Original element burned out.
After removing the racks and turning off the circuit breaker, I removed the two screws holding the element plate to the back of the oven. (this was the most difficult part as the screws were a bit hard to loosen at first.) I easily pulled the element forward until the wires were out enough to disconnect from the element. No tools were ne eded to pull the connectors off of the element and push them onto the new element. By simply reversing the sequence I had the element back in place and ready to use. I did spend some time cleaning the bottom of the oven - sweeping up the loose debris and wiping it well with a general purpose cleaner while the element was out of the way, but that's because we don't usually make use of the self-cleaning option.
0 of 1 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • 1
