Part Location Diagram of WPY04000041 Whirlpool Bake Element (15 Inch long x 19 Inch wide)
See part 14 in the diagram

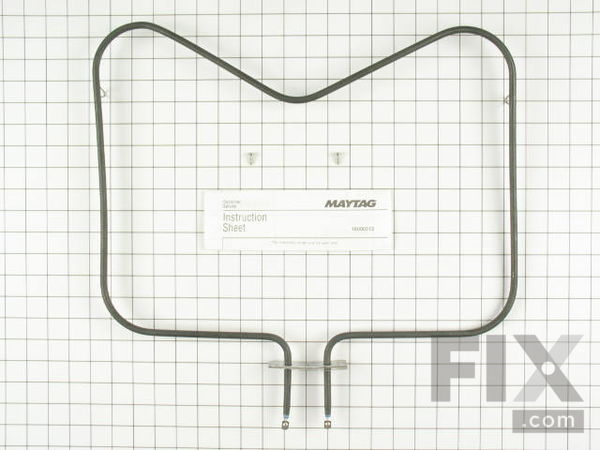

( Grid squares measure 1x1 inch )

Bake Element (15 Inch long x 19 Inch wide)

Rated by 3 customers

?

Really Easy

Less than 15 mins

Ratings submitted by customers like you who bought this part.

?
$86.59
In Stock
Fix Number:
FIX11757468
Manufacturer #:
WPY04000041
Manufactured by:
Whirlpool

Product Description

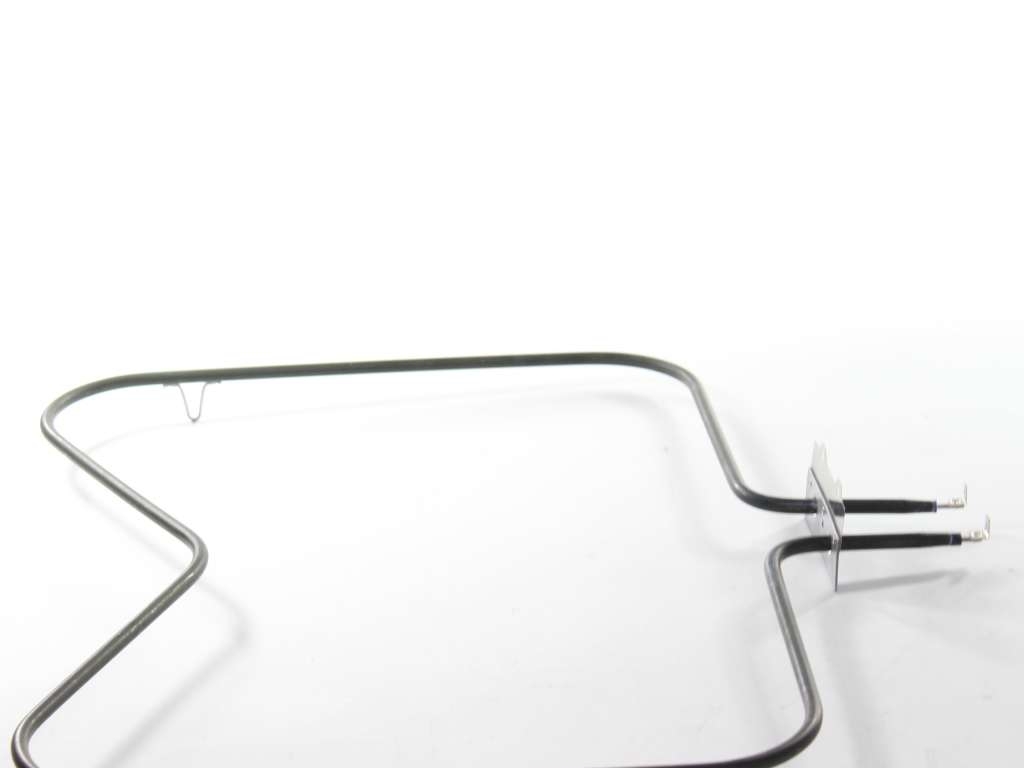

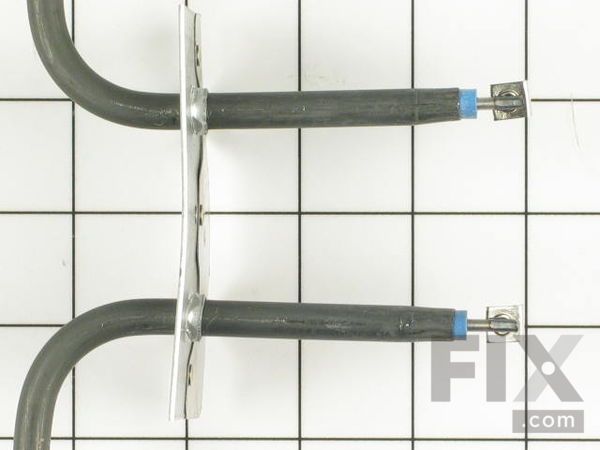

This spade style bake element with push on wire terminals is 15 inches long and 19 inches wide. The depth of the terminals is three inches.

Questions and Answers

Be the first to ask our experts a question about this part!

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 5.0 / 5.0, 3 reviews.
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.
Customer:
Regenna from Marion, IL
Parts Used:
WPY04000041
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins
Tools:
Pliers, Screw drivers
The bake element burned out; it needed to be replaced.
I took the old element off and accidently pulled the clip off that hooks onto the element. We trimmed the wire off about 1/4 inch and opened the original clip, sanded it down for a good connection, then pinched it back into place. Worked perfectly. Just be careful when pulling off the old element. Make sure all parts are securely attached . Fixing it ourselves was much cheaper.
0 of 1 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
cassandra from baltic, CT
Parts Used:
WPY04000041
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins
Tools:
Screw drivers
bake element burnt out
unscrewed old part - held onto wires so they wouldn't be pulled into stove, attached new part 5 minutes top!
0 of 1 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
Michelle from Ozawkie, KS
Parts Used:
WPY04000041
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins
Tools:
Screw drivers
Baking element quit working...could not bake anything in oven
Followed the instructions. Unplugged stove, Un-did the screws on the plate, pulled out the element to expose the connectors. Used the pliers to pull off the two wires (hot and neutral) from the element. Cut the ground wire. Used the new ground screws provided with the new baking element to reattach the plate to the back wall of the oven. Done! Oven works great now. Very pleased customer!
0 of 1 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • 1

Model Compatibility

This part works with the following models:
Fix Number: FIX11757468
Manufacturer Part Number: WPY04000041
Brand
Model Number
Description
Admiral
1058AH-W
Range - Electric
Admiral
1058AH-Z
Range - Electric
Admiral
1058WH-W
Range - Electric
Admiral
1068AH-CHZW
Range - Slide-in, Electric
Admiral
1068F-CZ
Range - Slide-in, Electric
Admiral
1068WH-CHZW
Range - Freestanding, Electric
Kenmore
21433
Wall Oven - Electric Wall Oven
Maytag
26AA-6CLX
Range - Maytag Range/Stove/Oven Model 26AA-6CLX (26AA6CLX, 26AA 6CLX) Parts
Maytag
288G-6CV
Range - Maytag Range/Stove/Oven Model 288G-6CV (288G6CV, 288G 6CV) Parts
Magic Chef
28FA-6CXWV8
Microwave Oven Combo
Magic Chef
28FA-6CXWV8-94
Microwave Oven Combo
Magic Chef
28FA-6CXWV8-DZ
Microwave Oven Combo
Magic Chef
28FA-7CVWV8-94
Microwave Oven Combo
Magic Chef
28FA-7CXW
Range
Magic Chef
28FA-7CXW-19
Range
Magic Chef
28FA-7CXW-94
Range
Magic Chef
28FA-7CXWV8
Microwave Oven Combo
Magic Chef
28FA-7CXWV8-94
Microwave Oven Combo
Magic Chef
28FA-7CXWV8-QM
Microwave Oven Combo
Magic Chef
28FB-7CXW
Range
Magic Chef
28FG-7CXWV8
Microwave Oven Combo
Magic Chef
28FK-6CXWV8
Microwave Oven Combo
Magic Chef
28FK-6CXWV8-94
Microwave Oven Combo
Magic Chef
28FK-6CXWV8-DZ
Microwave Oven Combo
Magic Chef
28FK-7CVWV8-94
Microwave Oven Combo
Magic Chef
28FK-7CXW
Range
Magic Chef
28FK-7CXW-19
Range
Magic Chef
28FK-7CXW-94
Range
Magic Chef
28FK-7CXWV8-QM
Microwave Oven Combo
Magic Chef
28FN-6CXWV8
Microwave Oven Combo
