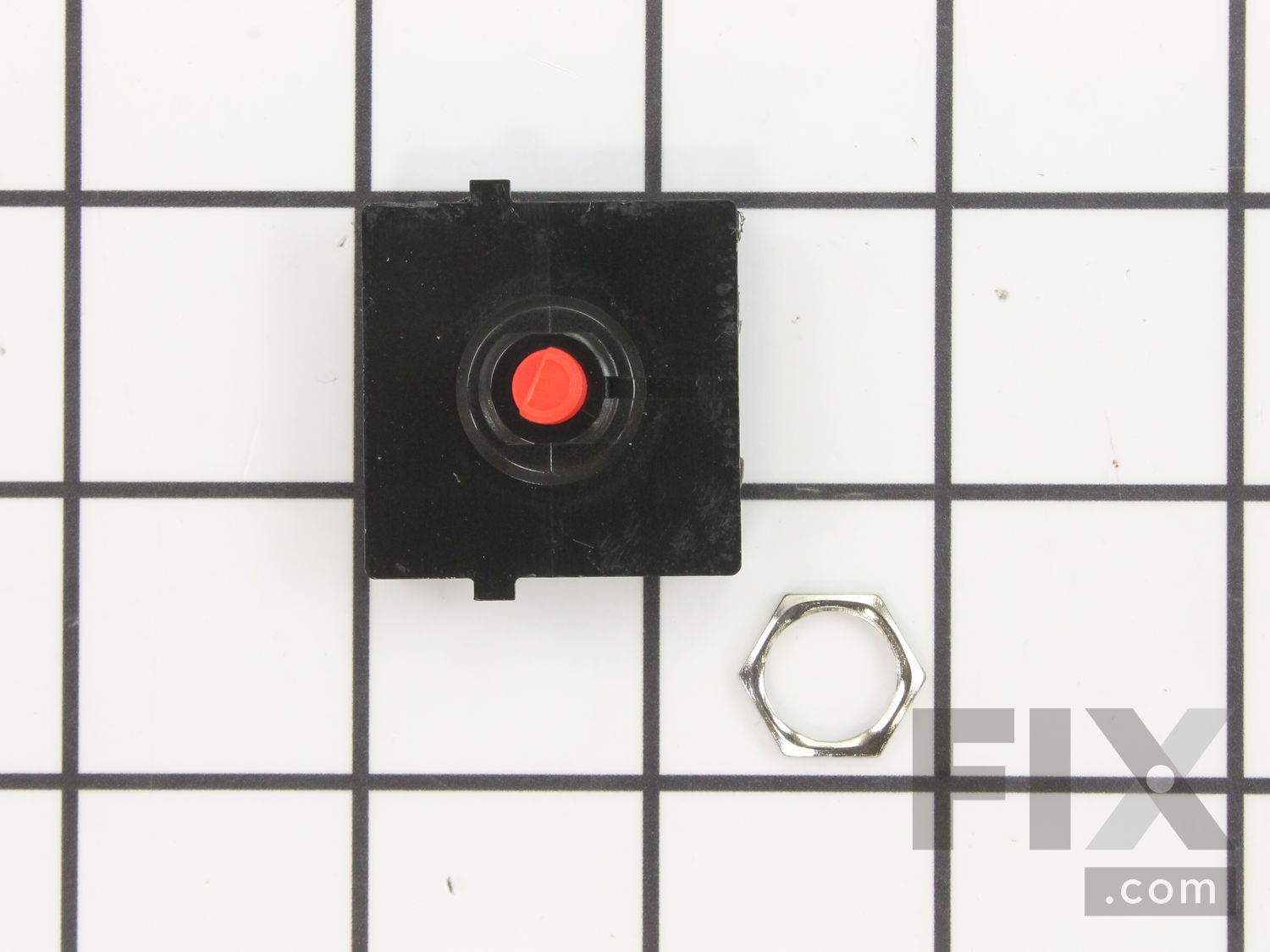

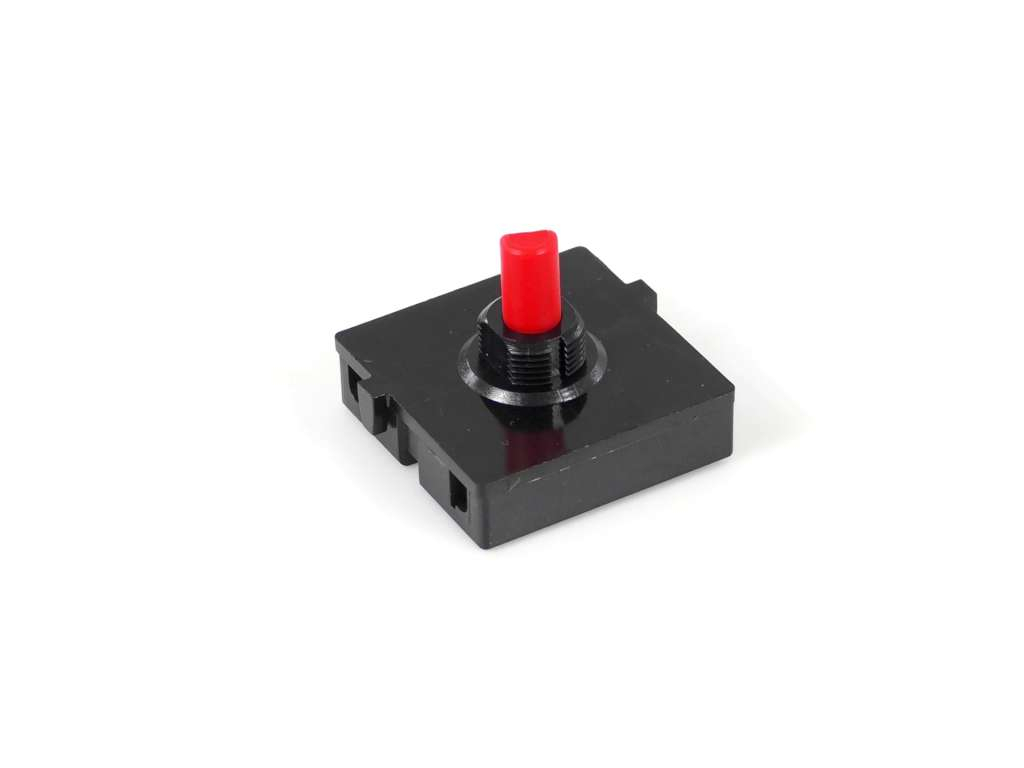

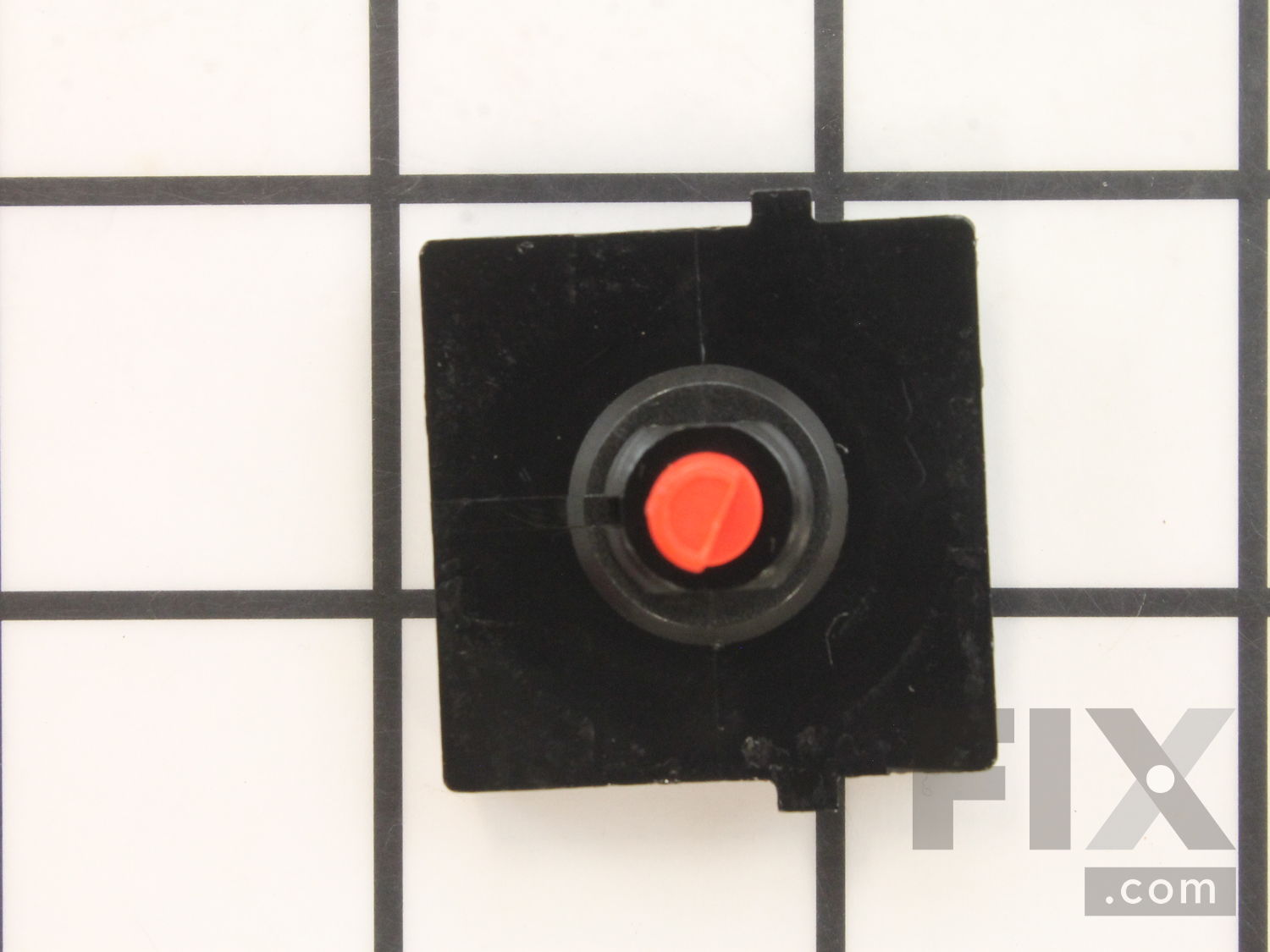

Fan Switch

$10.23
Fix Number: FIX953545
Manufacturer #: WB24X10129
Manufactured by: GE

Product Description

This is the replacement fan switch for your range hood. When you turn the knob to turn the range fan on, the fan switch is actuated. If your fan will not turn on when the knob is turned, you most likely have an issue with the fan switch. The fan has a main square portion with a red center that connects to the fan control knob. The main portion is approximately 1 inch in diameter. This part is sold individually. Be sure to disconnect the power source from your range before you begin this repair.

Questions and Answers

Questions and Answers

Be the first to ask our experts a question about this part!

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 3.3 / 5.0, 1 reviews.
    Sort by:
    Sorry, we couldn't find any existing installation instruction that matched.
    • Customer:
      Thomas from Wildwood Crest, NJ
    • Parts Used:
      WB24X10130, WB24X10129
    • Difficulty Level:
      Easy
    • Total Repair Time:
      30 - 60 mins
    • Tools:
      Pliers, Screw drivers
    plastic stems broke replaced both switches
    Turn off circuit breaker to vent hood. Note how narrow wire channel cover fits into switch cover underneath hood. Remove range burners and sit on range facing switch cover for access to screws with small Phillips head screwdriver. Remove both back wire cover and switch cover screws. Remove covers. Remove plastic control knobs on front by pulling straight off. Do not twist. With pliers or wrench remove two locking nuts. Light switch has three wires. Fan switch has four. Note wire colors and corresponding numbered slots on back of switch. Using end of large paper clip push into wire slot behind wire to loosen spring tension and carefully pull wire straight out. Do all wires in one switch at a time. Keep wire end straight and insert into correct numbered slot on new switch. Do not overtighten locking nuts upon reassembly. Replace knobs. Screw switch cover back on and then narrow wire cover. Turn circuit breaker on. Test new switches.
    13 of 15 people found this instruction helpful.
    Was this instruction helpful to you?
    Thank you for voting!
      Model Compatibility
      This part works with the following models:
      Fix Number: FIX953545
      Manufacturer Part Number: WB24X10129
      Brand
      Model Number
      Description
      General Electric
      AV447FBS
      Range Hood
      General Electric
      AV447FWS
      Range Hood
      General Electric
      JV247P1WW
      Range Hood
      General Electric
      JV248P1SS
      Range Hood
      General Electric
      JV347H1BB
      Range Hood - Electric
      General Electric
      JV347H1CC
      Range Hood - Electric
      General Electric
      JV347H1WW
      Range Hood - Electric
      General Electric
      JV347H2BB
      Range Hood
      General Electric
      JV347H2CC
      Range Hood
      General Electric
      JV347H2WW
      Range Hood
      General Electric
      JV348L1SS
      Range Hood - Electric
      General Electric
      JV348L1SSC
      Range Hood
      General Electric
      JV348L2SS
      Range Hood
      General Electric
      JV367H1BB
      Range Hood - Electric
      General Electric
      JV367H1CC
      Range Hood - Electric
      General Electric
      JV367H1WW
      Range Hood - Electric
      General Electric
      JV367H2BB
      Range Hood
      General Electric
      JV367H2CC
      Range Hood
      General Electric
      JV367H2WW
      Range Hood
