See part 4 in the diagram

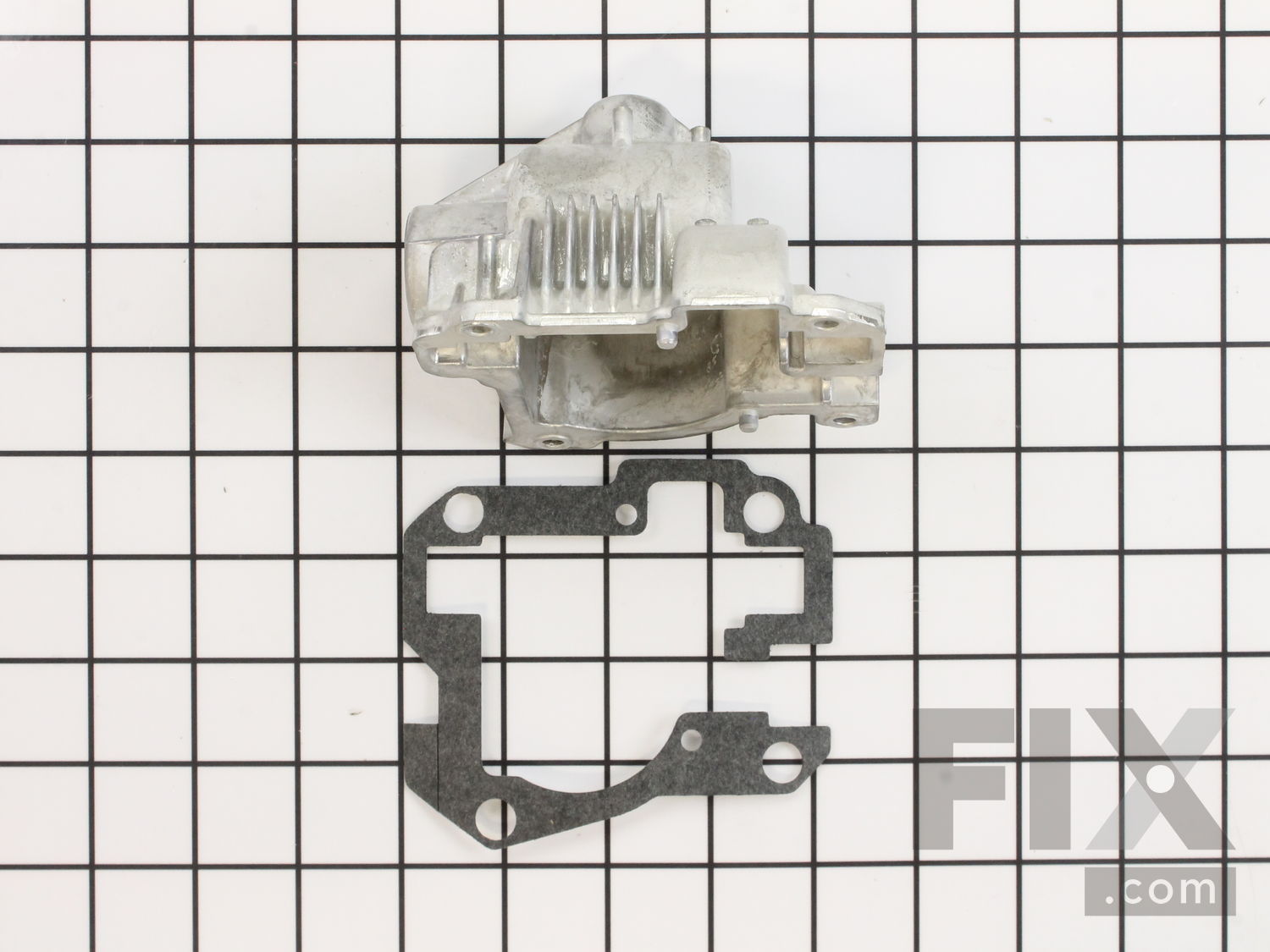

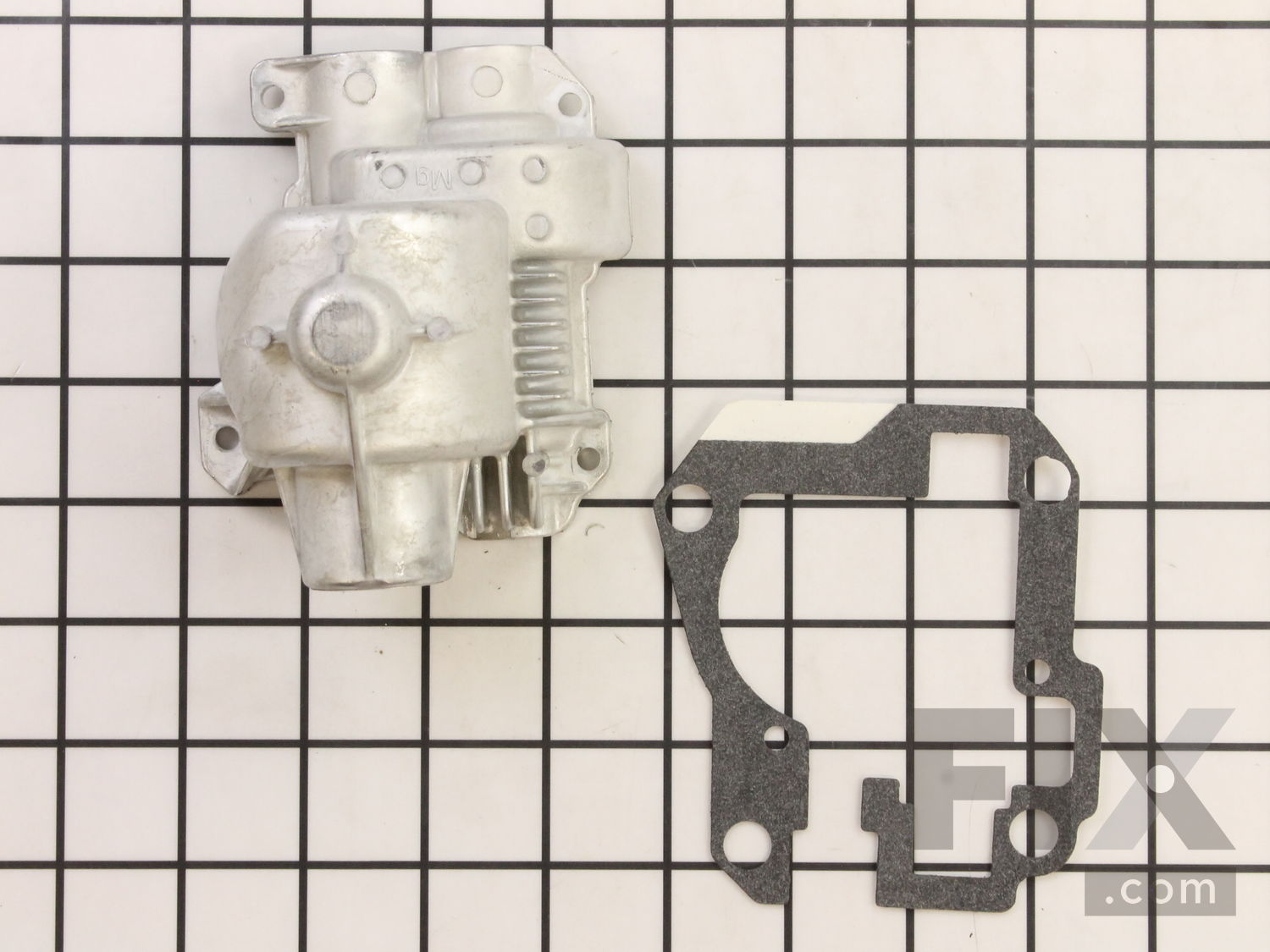

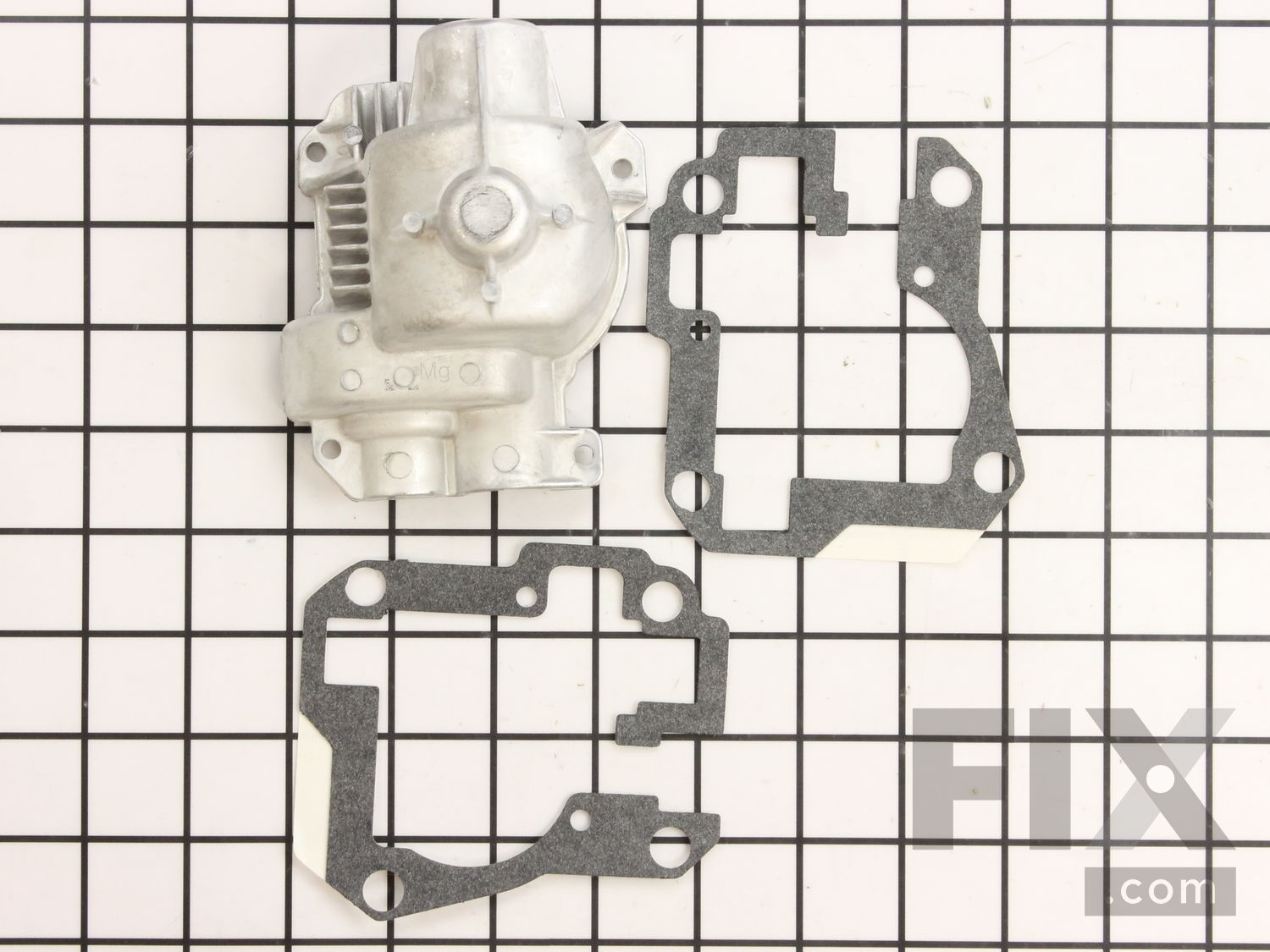

( Grid squares measure 1x1 inch )

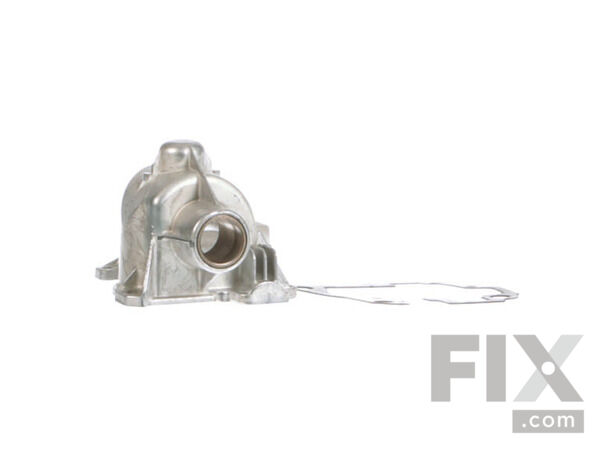

Gearcase Housing with Gasket

$44.63   In Stock
Fix Number: FIX1871466
Manufacturer #: 8212396
Manufactured by: Whirlpool

Product Description

NOTE: This part has been upgraded from plastic to metal housing. Gasket is no longer available separately. ***Used with Stand Mixers.

Questions and Answers

Questions and Answers

Be the first to ask our experts a question about this part!

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 3.2 / 5.0, 6 reviews.
    Sort by:
    Sorry, we couldn't find any existing installation instruction that matched.
    • Customer:
      Lewis M from Seattle, WA
    • Parts Used:
      8212396
    • Difficulty Level:
      Easy
    • Total Repair Time:
      15 - 30 mins
    • Tools:
      Screw drivers
    replace old gear housing
    Seems a common problem with this mixer is a crack in the gear housing. really easy to fix. The replacement part is more durable metal. Simply remove the ribbon cover (one screw), remove the 4 screws, take off the top of the mixer, then remove the cracked plastic housing (4 screws). Messy part is salvaging as much grease as possible from the old housing. Don't forget to salvage the gear assembly (push from the outside where male mixer attachments enter the female receptor). Use the new gasket. Total job took 15 minutes and makes you feel competent. IF all goes well, your mixer and attachments will make less noise and stop leaking oil and won't be a problem when you knead bread.
    1 person found this instruction helpful.
    Was this instruction helpful to you?
    Thank you for voting!
    • Customer:
      christa from springfield, MO
    • Parts Used:
      8212396, WP9706047
    • Difficulty Level:
      Really Easy
    • Total Repair Time:
      15 - 30 mins
    • Tools:
      Pliers, Screw drivers
    Ruined / sheared gear
    Four screws on transmission case, two on the circuit after taking a picture to make sure I plugged wires in right later. Three screws for the base and two for the motor. Thoroughly cleaned the gears to make sure no metal bits stayed in reassemble. New grease and put it back together. Unfortunately the main shaft was bent and I didn't think to check it, not sure why... (reminder: if you run it hard enough to bust the case... check the shaft) Had been mixing heavy dough at a high speed. Had been doing it for years and must say it held up well for the stress I had put on it. Anyways, it had broken around the bushing holding the main shaft, in turn the gears weren't tight and eventually stripped. After getting the parts, I was a little concerned about them not being tapped but the pilot holes were drilled well and there was no problem.
    0 of 1 people found this instruction helpful.
    Was this instruction helpful to you?
    Thank you for voting!
    worm gear warn out {2}
    When installing the transmission housing I cant seem to get the two end bushing and ball bearing thrust washer all back in on the worm gear
    0 of 1 people found this instruction helpful.
    Was this instruction helpful to you?
    Thank you for voting!
    • Customer:
      Jeff from Baltimore, MD
    • Parts Used:
      WPW10170081, 8212396, WP9709231
    • Difficulty Level:
      Easy
    • Total Repair Time:
      15 - 30 mins
    • Tools:
      Screw drivers
    gear popped through the gearcase, lost power
    opened top , opened housing, cleaned out the old grease and parts, installed new parts, filled gearcase with new grease and put back together
    0 of 1 people found this instruction helpful.
    Was this instruction helpful to you?
    Thank you for voting!
    • Customer:
      Tom from Rochester, NY
    • Parts Used:
      8212396, WP9709231
    • Difficulty Level:
      A Bit Difficult
    • Total Repair Time:
      1- 2 hours
    • Tools:
      Screw drivers
    Cracked housing/stripped wormgear
    Housing cover(plastic) cracked causing wormgear to misalign. Removed band and mixer cover, removed housing cover and gear. Very easy with phillipshead. There are two bushings on either end of gear. Remove from old and put on new. New housing is made of metal. Took grease from inside old housing and coated all new parts. There are two nubs on bottom of housing cover that need to fit into holes in the base. The plastic nubs had broken off and were stuck in the holes and had to be drilled out. Carefully selected drill bit size(forget what size/sorry) and re-drilled holes. Carefully re-assembled. My wife has been making Xmas cookies and bread for the last two weeks and it has been working beautifully. Hope this helps. Hopefully Kitchenaid will discontinue the plastic housings.
    0 of 1 people found this instruction helpful.
    Was this instruction helpful to you?
    Thank you for voting!
    Accessory input port striped. Not driving attachment.
    Problem found is plastic transmission cover cracked causing too much play between gears causing them to skip and strip. New replacement cover is cast metal. Great improvement. Remove trim ring (one screw). Remove top cover (4 screws). Remove plastic transmission cover (4 screws). Remove snap ring that holds too beveled gear. Replace gear and re install snap ring. Replace gear in transmission (other beveled gear) I also replace bronze bushings at each end of the adjacent worm gear. Re pack all gears and transmission cover with fresh grease. Reinstall all gears and transmission cover. Ensure all components are properly seated and lined up. Re instal cover and trim ring. Easy fix. Less than an hour. Works as good as new. Replacement parts fit perfectly.
    0 of 1 people found this instruction helpful.
    Was this instruction helpful to you?
    Thank you for voting!
      Model Compatibility
      This part works with the following models:
      Fix Number: FIX1871466
      Manufacturer Part Number: 8212396
      Brand
      Model Number
      Description
      KitchenAid
      4KB25G1XBU3
      Mixer
      KitchenAid
      4KB25G1XBU5
      Mixer
      KitchenAid
      4KB25G1XBY5
      Mixer
      KitchenAid
      4KB25G1XCO5
      Mixer
      KitchenAid
      4KB25G1XER3
      Mixer
      KitchenAid
      4KB25G1XER5
      Mixer
      KitchenAid
      4KB25G1XGA5
      Mixer
      KitchenAid
      4KB25G1XMC5
      Mixer
      KitchenAid
      4KB25G1XMY5
      Mixer
      KitchenAid
      4KB25G1XOB3
      Mixer
      KitchenAid
      4KB25G1XOB5
      Mixer
      KitchenAid
      4KB25G1XTG3
      Mixer
      KitchenAid
      4KB25G1XTG5
      Mixer
      KitchenAid
      4KB25G1XWW3
      Mixer
      KitchenAid
      4KB25G1XWW5
      Mixer
      KitchenAid
      4KD2661XMC3
      Mixer
      KitchenAid
      4KG25G0XMC4
      Mixer
      KitchenAid
      4KG25G0XWH4
      Mixer
      KitchenAid
      4KG25G7XER4
      Mixer
      KitchenAid
      4KG25G7XOB4
      Mixer
      KitchenAid
      4KG25G7XSL4
      Mixer
      KitchenAid
      4KG25G7XWH4
      Mixer
      KitchenAid
      4KG25H3XER5
      Mixer
      KitchenAid
      4KG25H3XOB5
      Mixer
      KitchenAid
      4KG25H3XSL5
      Mixer
      KitchenAid
      4KG25H3XWH5
      Mixer
      KitchenAid
      4KN15C1XER1
      Mixer
      KitchenAid
      4KN15C1XMC1
      Mixer
      KitchenAid
      4KN15C1XOB1
      Mixer
      KitchenAid
      4KN15C1XWH1
      Mixer
