See part 9 in the diagram
Replacing your Maytag Dryer Drive Motor - 60Hz 115V play video
( Grid squares measure 1x1 inch )

Drive Motor - 60Hz 115V

★★★★★
★★★★★
1 Review
$ 136.18   In Stock
Fix Number: FIX3500893
Manufacturer #: W10410999
Manufactured by: Whirlpool

Product Description

This motor comes with a redesigned motor switch and new wire terminals. This part runs at 1/4hp. It performs 1725 revolutions per minute and carries 4.5 amps and 115V.

Videos For installing this part.

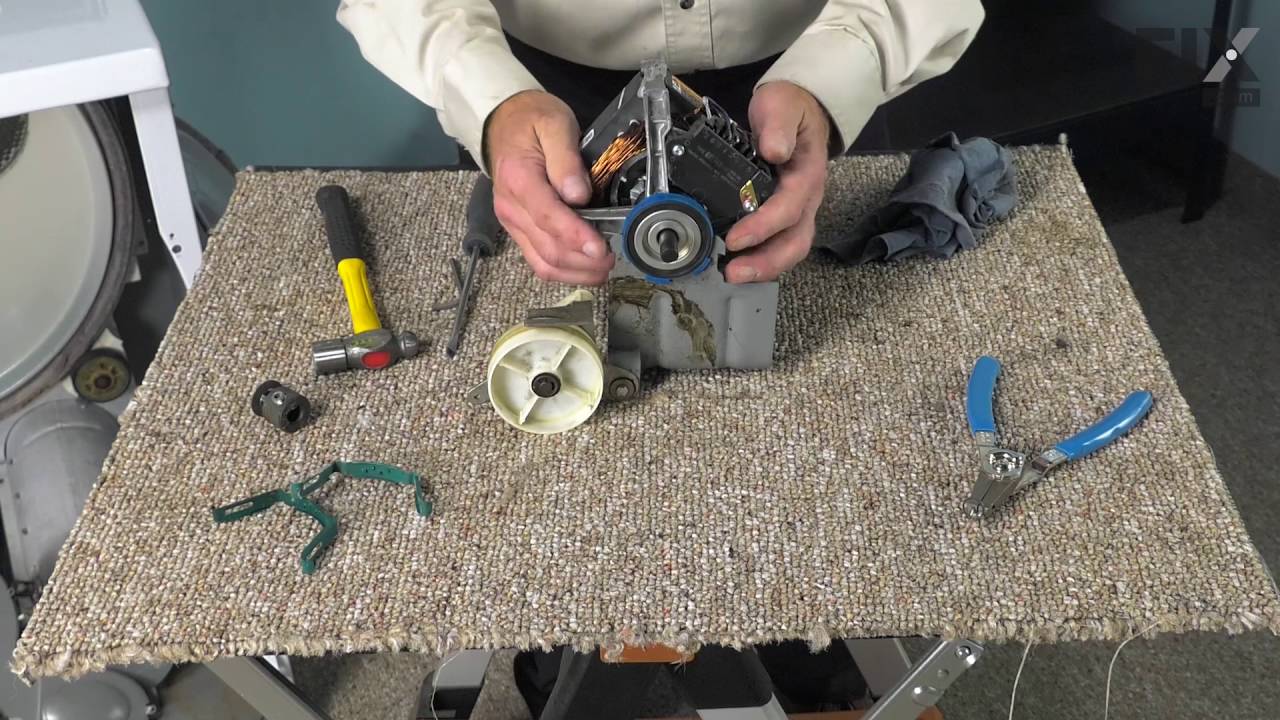

Replacing your Drive Motor - 60Hz 115V

Replacing your Drive Motor - 60Hz 115V play video

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 2.7 / 5.0, 5 reviews.
    Sort by:
    Sorry, we couldn't find any existing installation instruction that matched.
    • Customer:
      ROBERT from RUMSON, NJ
    • Parts Used:
      W10410999, WPY312959, Y303836
    • Difficulty Level:
      Easy
    • Total Repair Time:
      More than 2 hours
    • Tools:
      Nutdriver, Pliers, Screw drivers, Socket set, Wrench (Adjustable), Wrench set
    The motor died on my 38 year old Maytag dryer.
    Because of the New Year's Holiday, it took 6 days to get the 2-3 business day ordered parts. I disassembled the dryer and cleaned it as I went. During disassembly, the blower wheel fell apart when the retaining clamp was removed. When the drum was out, I had good access to the motor which did not move when I tried to turn the shaft. I then ordered the parts and waited for 6 days. The new motor electrical connections were different from the original motor but the proper crimp terminals were provided with the motor and the connection instructions were clear. Assembling the belt required an internet search to determine the correct side of the belt to the drum. The instructions said smooth side to the drum, but the belt had a rubbery grooved side and a flat brought side. I confirmed from an internet search that the "smooth" side in the instructions meant the rough side of the belt. If you do this job make sure that you have a crimper for the wire terminals and a ring clip pliers for the two ring clips that hold the blower wheel in place.
    4 of 6 people found this instruction helpful.
    Was this instruction helpful to you?
    Thank you for voting!
    • Customer:
      Isaac from LOS ANGELES, CA
    • Parts Used:
      W10410999
    • Difficulty Level:
      Easy
    • Total Repair Time:
      1- 2 hours
    • Tools:
      Pliers, Screw drivers, Wrench set
    The old motor was gummed up and full of lint, bearings were shot.
    The motor can be accessed by removing the front panel of the dryer, then the front drum supports - you need a tiny wrench for the screws, as the ones on this dryer aren't slotted for a screwdriver. The straps holding the motor down can be removed with strong downward pressure and something to pry away the arms when they're clear of the tabs that hold them in place. Save these straps as the new motor doesn't include them!

    Replacing the motor itself is straightforward. Look online for wiring instructions if the model doesn't match exactly (they redesigned the wiring for more recent models).

    I needed a blowtorch to remove the pulley wheel from the old motor - the set screw was very stubborn. Use a bit of loctite on the screw when reinstalling.
    2 of 2 people found this instruction helpful.
    Was this instruction helpful to you?
    Thank you for voting!
    • Customer:
      Jerry from New Lothrop, MI
    • Parts Used:
      W10410999
    • Difficulty Level:
      Really Easy
    • Total Repair Time:
      More than 2 hours
    • Tools:
      Nutdriver, Socket set
    Connections were different than the original.
    I pulled the dryer motor, and installed the new one. However, it was unclear how to make the new connections, and even the repairman struggled with them. I apparently had them all right, except, he said that one connection should have been one terminal over. He got it going, but he said that even he had to adjust his bifocals to see where the error was. A clearer picture would have helped. It cost me an extra $90, but I am happy. He said that otherwise, I did a very good job.
    1 of 2 people found this instruction helpful.
    Was this instruction helpful to you?
    Thank you for voting!
    • Customer:
      James from Canyon Lake, TX
    • Difficulty Level:
      Easy
    • Total Repair Time:
      More than 2 hours
    • Tools:
      Pliers, Screw drivers, Socket set
    dryer shut off. restarted and motor shut off again after about 10 seconds. smelled burning. .
    used u tube video to show me how to do the job. this slowed me down but the video showed the exact model of the dryer and how to take it apart and put back together. was easy. the problem was easy to figure out because the motor was actually smoking and was hard to turn the shaft. the drum rollers and the idlier wheel were turning ok. nothing left to cause the problem. proof was when it went back together it ran smooth and quite the way it was supposed to.
    1 of 3 people found this instruction helpful.
    Was this instruction helpful to you?
    Thank you for voting!
    • Customer:
      David from Oklahoma City, OK
    • Parts Used:
      W10410999
    • Difficulty Level:
      Easy
    • Total Repair Time:
      Less than 15 mins
    • Tools:
      Nutdriver, Pliers, Screw drivers, Socket set
    Extremely loud noise during operation
    All necessary info. was on this web site including part numbers and installation. Only problem was that my dishwasher was so old the replacement motor was obselete and I found this out out when I was sent a dryer motor instead of a dishwasher motor. Somehow the part numbers were mixed.I sure hope I can receive a refund for this. I have shipped this back for refund but haven't heard anything. Still, this web site was outstanding with helping mewith this issue. Thank You
    0 of 1 people found this instruction helpful.
    Was this instruction helpful to you?
    Thank you for voting!
      Customer Reviews
      Average Rating: (1 Review)
      5.0
      ★★★★★
      ★★★★★
      Filter By Rating:
      • 5
        1
      • 4
        0
      • 3
        0
      • 2
        0
      • 1
        0
        Sort by:
        Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
          Model Compatibility
          This part works with the following models:
          Fix Number: FIX3500893
          Manufacturer Part Number: W10410999
          Brand
          Model Number
          Description
          Maytag
          DE106
          Dryer - Electric
          Maytag
          DE107
          Dryer - Electric
          Maytag
          DE110
          Dryer - Electric
          Maytag
          DE180
          Dryer - Maytag Dryer Model DE180 Parts
          Maytag
          DE18CA
          Dryer - Electric
          Maytag
          DE18CM
          Dryer - Electric
          Maytag
          DE18CS
          Dryer - Electric
          Maytag
          DE18CT
          Dryer - Electric
          Maytag
          DE19CA
          Dryer - Electric
          Maytag
          DE19CD
          Dryer - Electric
          Maytag
          DE19CS
          Dryer - Electric
          Maytag
          DE19CT
          Dryer - Electric
          Maytag
          DE210
          Dryer - Electric
          Maytag
          DE212
          Dryer - Residential
          Maytag
          DE21CA
          Dryer - Electric
          Maytag
          DE21CM
          Dryer - Electric
          Maytag
          DE21CS
          Dryer - Electric
          Maytag
          DE21CT
          Dryer - Electric
          Maytag
          DE22CA
          Dryer - Electric
          Maytag
          DE22CS
          Dryer - Electric
          Maytag
          DE22CT
          Dryer - Electric
          Maytag
          DE23CD
          Dryer - Electric
          Maytag
          DE24CA
          Dryer - Electric
          Maytag
          DE24CM
          Dryer - Electric
          Maytag
          DE24CS
          Dryer - Electric
          Maytag
          DE24CT
          Dryer - Electric
          Maytag
          DE25CS
          Dryer - Electric
          Maytag
          DE26CA
          Dryer - Commercial
          Maytag
          DE26CD
          Dryer - Commercial
          Maytag
          DE26CS
          Dryer - Electric
