Drum Support Roller Kit

&SeePartX&
1570070-2-S-Whirlpool-12001541-Drum Support Roller Kit
1570070-1-S-Whirlpool-12001541-Drum Support Roller Kit
1570070-3-S-Whirlpool-12001541-Drum Support Roller Kit
https://www.fix.com/Schematics/Maytag/59071.gif

This drum support roller includes one drum roller and two bearings. Most dryers use two drum rollers, and is recommended to change both at once.

This part works with the following brands: Maytag, International, Jenn-Air, Crosley.

This part works with the following products: Dryer, Washer Dryer Combo.

This part fixes the following symptoms: Noisy, Will not tumble, Marks left on clothes, Will not start, Takes too long to dry.

Fix Part Number: FIX1570070

Installation Videos

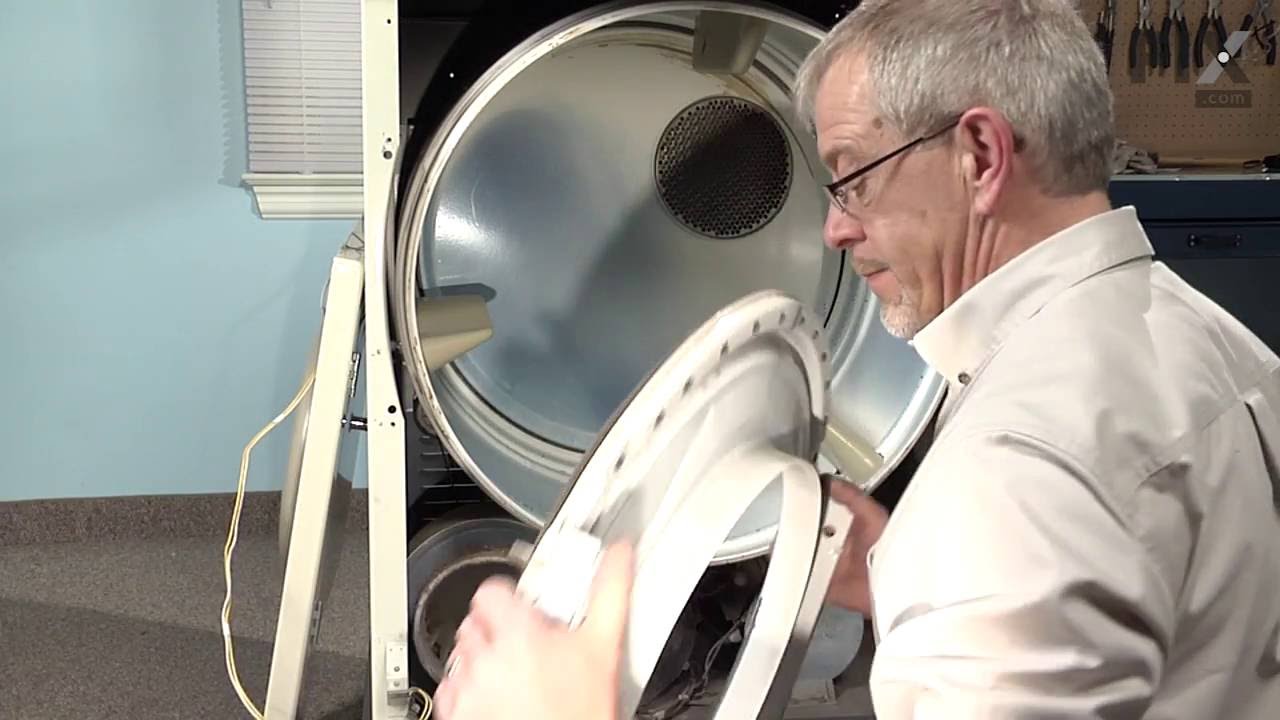

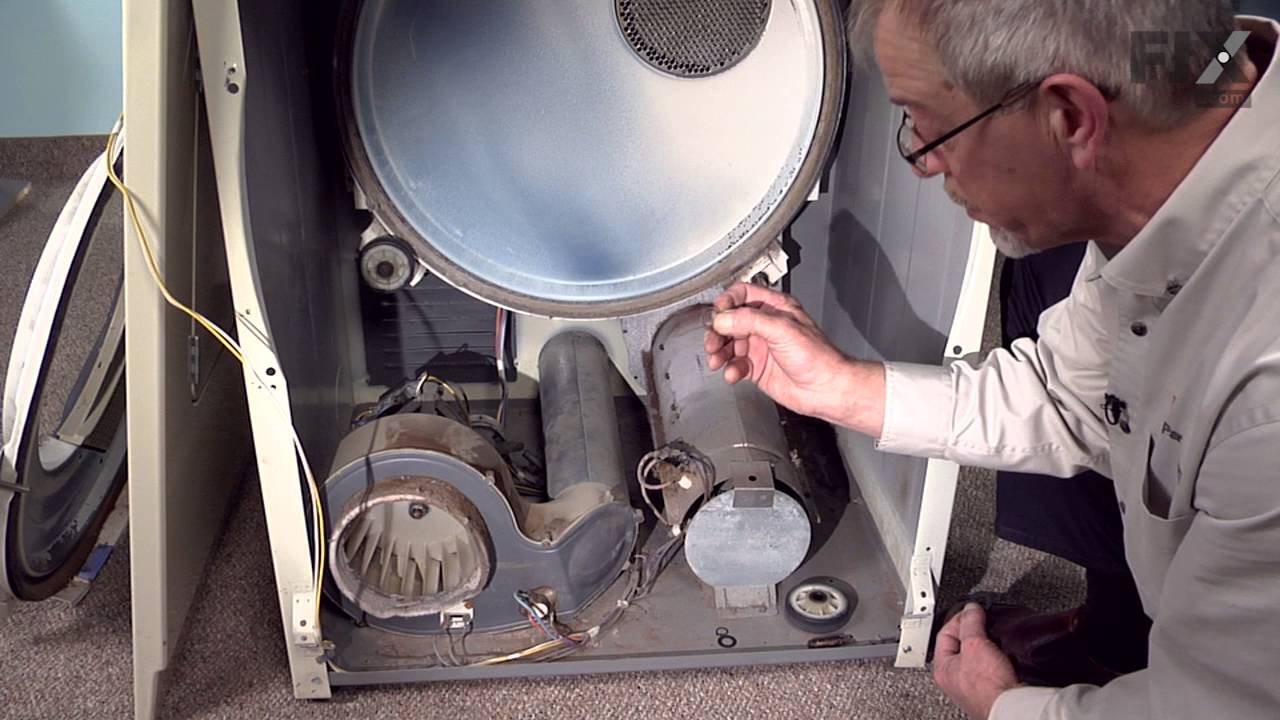

Replacing your Maytag Dryer Drum Support Roller Kit
Watch this how to video with simple, step-by-step instructions for a successful DIY repair.
Fixes the following symptoms:
  • High pitch squeak coming from dryer during cycles
Tools used for this repair:
  • 5/16" Nut Driver
  • Snap Ring Pliers
  • Stubby Philips Screw Driver

Related Parts

Installation Instructions

Showing 1-10 of 64 Instructions
>
page 1 of 7
<

"sqealing" noise when drum rotating

Disconnected power supply, removed front panel, removed tub support bracket, removed electrical lines from light and door switch( to have better access to install front guide kit), removed belt, removed drum, removed old rollers, installed new rollers and rest of installation was in reverse order of taking machine apart. In order to install the front guide kit(which I've never done before), I had to watch the installation instructions via you-tube. This was a tremendous aide as the instructions were simple and very adequate.

Were these instructions helpful?

4 of 4 people found these instructions helpful
Parts Used: Tumbler and Motor Belt , Idler Pulley Wheel , Front Glide Kit , Drum Support Roller Kit
Difficulty Level: Very Easy
Total Repair Time: 1- 2 hours
Tools: Nutdriver, Pliers, Screw drivers
Customer: James from Gainesville, GA

Dryer was a bit noisy with a full load of wet clothes

As per the repair videos on the site, I searched the internet for a couple of supplementary videos just to make sure I was doing it correctly. It was was all pretty easy. Expect to vacuum out and clean out the interior of the dryer. Also, to make things easier, disconnect the bulkhead and exterior like in the video, but also keep the top flipped up until reassembling, it'll make it much easier. When reinstalling the belt, remember how the belt is going to go around the pulley, you'll have to do this without sight as the barrel will the way and you won't be able to see what you're doing. It's really not hard but just keep this in mind. Also, as you disassembling, it would help to snap some pictures of where each screw goes and how; reassembly was a tiny bit tricky as I didn't do this.

Were these instructions helpful?

2 of 2 people found these instructions helpful
Parts Used: Idler Pulley Wheel and Bearing , Roller Shaft , Multi Rib Belt - 91-5/8" , Front Glide Kit , Drum Support Roller Kit , Retaining Ring
Difficulty Level: Easy
Total Repair Time: 1- 2 hours
Tools: Nutdriver, Pliers, Screw drivers
Customer: Tim from PORTLAND, OR

The roller bearings worn out causing belt to break

First thing was to watch this video on Youtube on the take down of this dryer and determine what caused the malfunction.

Were these instructions helpful?

1 of 1 people found these instructions helpful
Parts Used: Multi Rib Belt - 91-5/8" , Drying Rack , Drum Support Roller Kit , Retaining Ring
Difficulty Level: Really Easy
Total Repair Time: 30 - 60 mins
Tools: Nutdriver, Pliers, Screw drivers
Customer: John from Zephyr, TX

Squeaky

Followed youtube tutorials, pretty straightforward. Take pictures of where wires connect for door switch, light, et al. Have a shop-vac handy to vacuum all the dust, lint, dog hair, etc that's accumulated over the years inside the unit.My spreader c-clip pliers were not small enough to fit in the holes of those tiny c-clips,had to improvise.Used steel wool to polish all roller shafts, Before re-installing drum and belt, orient yourself to this procedure by practicing threading belt properly before positioning the drum in your way!

Were these instructions helpful?

0 of 1 people found these instructions helpful
Parts Used: Idler Pulley Wheel and Bearing , Multi Rib Belt - 91-5/8" , Drum Support Roller Kit
Difficulty Level: Really Easy
Total Repair Time: 1- 2 hours
Tools: Pliers, Screw drivers, Socket set
Customer: Shawn from Plano, TX

Squeaking noise when starting up

Unplug dryer!! Remove two screws, pop front face off. Took picture of wires connecting dryer front. Disconnect two wires, set door aside. Removed four screws and removed front piece that holds drum in place. (Cleaned all the lint out while it was off.) Checked where the belt location was on drum, (should have taken a pic). Carefully removed drum. Removed both rollers and put new ones on. I did not replace the belt at this time, it was still in good shape. Replace drum, be sure the belt is in correct place. It will not work if it is in wrong area of drum. Replace everything, be careful to not lose a screw!

Were these instructions helpful?

0 of 1 people found these instructions helpful
Parts Used: Tumbler and Motor Belt , Drum Support Roller Kit
Difficulty Level: Really Easy
Total Repair Time: 30 - 60 mins
Tools:
Customer: marcia from Elburn, IL

Replace drum rollers and their shafts

followed applianceparts video on youtube,although dryer somewhat different(older) ....video made the repair happen...

Were these instructions helpful?

0 of 1 people found these instructions helpful
Parts Used: Roller Shaft , Drum Support Roller Kit
Difficulty Level: Easy
Total Repair Time: 1- 2 hours
Tools: Nutdriver, Screw drivers, Socket set
Customer: donald from franklin lakes, NJ

Noisy drum while drying.

Replaced the wheels at the back and also the belt. ( I also removed the lint buildup around the drum felt and on the heating chamber and motor. That alone helped the noise problem. I did this prior to ordering parts, as I had taken it apart to see what the problem might be.)I don't have any additions to what I saw in the repair video. That video showed me all I needed to do. Great video. First time the dryer has been worked on since it was purchased in about 1984. We were a family of 6, so its good stuff.

Were these instructions helpful?

0 of 1 people found these instructions helpful
Parts Used: Tumbler and Motor Belt , Drum Support Roller Kit
Difficulty Level: Very Easy
Total Repair Time: 30 - 60 mins
Tools: Nutdriver, Screw drivers
Customer: Franklin from Indianapolis, IN

Dryer was very noisy due to worn drum rollers.

For belt installation, I found that pushing the belt rearward into the drum roller groove made it much easier to get the belt over the idler pulley. Once I had it over the idler pulley it was a simple matter to slide the belt forward into it's normal operating position.

Were these instructions helpful?

0 of 1 people found these instructions helpful
Parts Used: Tumbler and Motor Belt , Drum Support Roller Kit
Difficulty Level: Easy
Total Repair Time: 15 - 30 mins
Tools: Nutdriver, Screw drivers
Customer: Ken from Raytown, MO

Noisy running, particularly at start-up

Replaced the drum rollers and belt. The dryer runs and the noise has improved, but there is still a rumble when it starts. Now I think the idler spring may be worn out. I noticed some slack in the idler when I pressed it back to install the belt. I'll leave it alone for now. It's not a complex install, but it is a little difficult for an amateur.

Were these instructions helpful?

0 of 1 people found these instructions helpful
Parts Used: Drum Support Roller Kit
Difficulty Level: A Bit Difficult
Total Repair Time: 1- 2 hours
Tools: Screw drivers, Socket set
Customer: THOMAS from Shell Knob, MO

Drum roller was seized plus belt was old.

I TOOK THE FRONT OFF BY STARTING WITH THE TWO PHILLIPS SCREWS OUT CLOSE TO THE BOTTOM OF THE FRONT COVER .THEN I SLID THE BELT OFF THE TUMBLER AND TOOK IT OUT. FOUND THE ROLLER THAT WAS SEIZED AND PUT SOME PENETRATING OIL ON THE PIN. ONCE IT GOT LOOSE I TOOK THE ROLLER OFF & TOOK A LITTLE EMERY CLOTH TO POLISH THE PIN.PUT SOME TEFLON DRI LUBE ON THE PIN AND PUT THE NEW ROLLER ON PLUS SINCE THEY WERE SO OLD I PUT THE OTHER ROLLER ON TOO. PUT NEW BELT ON ,SLID THE TUMBLER BACK IN BY GENTLY HOLDING THE BELT SLIDING IT UP OVER THE TOP AND PUTTING IT IN PLACE MAKING SURE IT DIDN'T COME OFF THE PULLEY IN THE BACK. PUT FRONT COVER BACK ON AND THE SCREWS AND TURNED IT ON TO CHECK FOR ANY NOISE'S .

Were these instructions helpful?

0 of 1 people found these instructions helpful
Parts Used: Tumbler and Motor Belt , Drum Support Roller Kit
Difficulty Level: A Bit Difficult
Total Repair Time: 1- 2 hours
Tools: Nutdriver, Screw drivers
Customer: SCOTT from ROSEVILLE, OH
