Control Thermistor
$46.67
In Stock
Fix Number: FIX1149368
Manufacturer #: 134587700
Manufactured by:
Frigidaire
-
Product Description
This part controls the temperature of the inside of the dryer drum and prevents the dryer from overheating. This part is located in the blower housing.
-
Works with the following brandsFrigidaire, Kenmore, Crosley, Electrolux
-
Works with the following productsDryer, Washer Dryer Combo
-
Fixes the following symptomsToo hot
-
Part Number Cross ReferencePart# 134587700 replaces these:AP3866842, 1156925, 134216500
Product Description
This part controls the temperature of the inside of the dryer drum and prevents the dryer from overheating. This part is located in the blower housing.
-
Works with the following brands:Frigidaire, Kenmore, Crosley, Electrolux
-
Works with the following products:Dryer, Washer Dryer Combo
-
Fixes the following symptoms:Too hot
-
Part# 134587700 replaces these:AP3866842, 1156925, 134216500
Videos For installing this part.

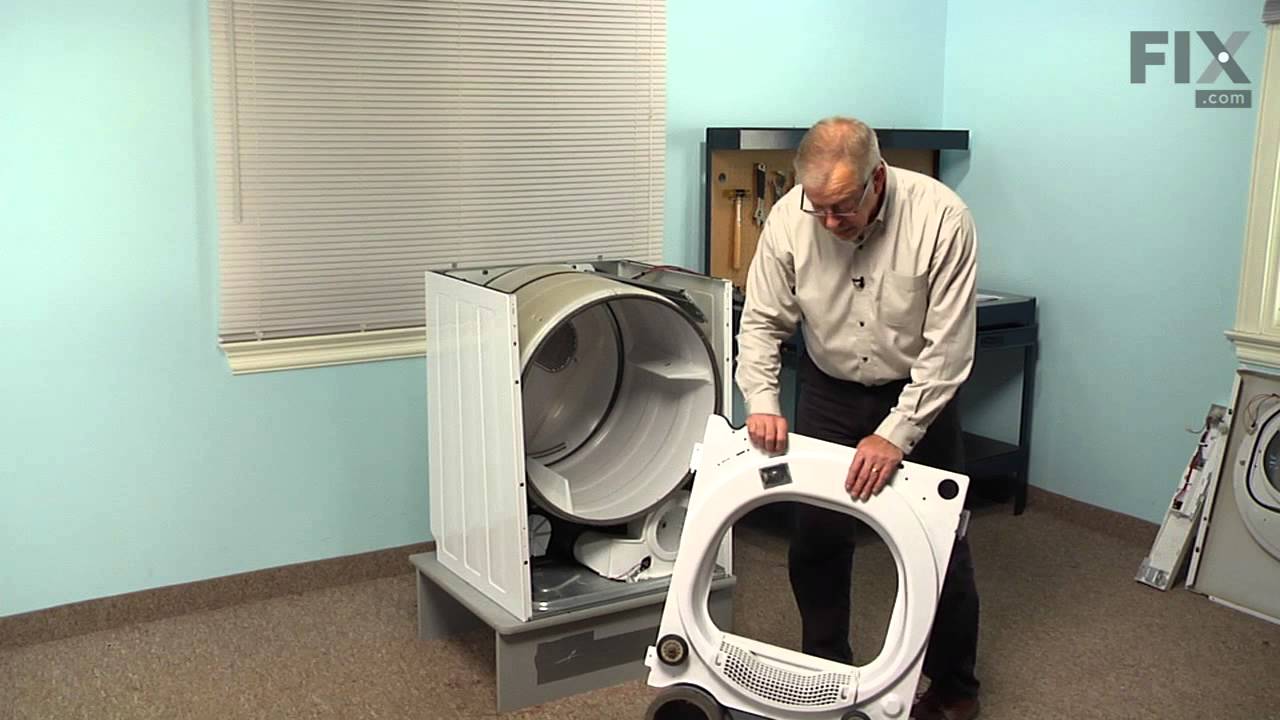

Replacing your Control Thermistor
Questions and Answers
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Related PartsAdditional or alternate parts to consider.
Installation Instructions Provided by Fix customers like you.
- < Prev
- 1
- Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
-
Customer:Roger from Port Washington, WI
-
Difficulty Level:Easy
-
Total Repair Time:1- 2 hours
-
Tools:Pliers, Screw drivers
little/no heat
checked on line how to take dryer apart, more screws and wires than I thought. Once I took a screw out, I labeled it on a piece of paper where it came from. I also to pictures. I wanted to make sure I put it back together correctly. I wasn't sure which part was bad, but I narrowed it down to 2 parts and ordered them both since cost for both was under $50.00. Once I got the dryer back together it worked great! Happy wife, happy life :).
Was this instruction helpful to you?
Thank you for voting!
-
Customer:James from Palm Coast, FL
-
Difficulty Level:Really Easy
-
Total Repair Time:15 - 30 mins
-
Tools:Pliers, Screw drivers
No Heat and error on front panel after about 2 minutes after running
removed 2 rear screws, removed top panel. Removed 2 top screws and 2 internal screws, disconnected electrical connections and removed front panel. removed drum guide. Disconnected drive belt, removed drum. removed 4 screws from rear, removed the heating element assembly. Cleaned the entire bottom section of the dryer. Installed new heating element assembly, installed thermal limiter and control thermistor, reassembled the dryer. Dryer has been working great!
Was this instruction helpful to you?
Thank you for voting!
-
Customer:Ronald from Boynton Beach, FL
-
Difficulty Level:A Bit Difficult
-
Total Repair Time:More than 2 hours
-
Tools:Nutdriver, Pliers, Screw drivers, Socket set
Dryer would not heat
I used the online videos supplied by this site , which were extremely helpful for me in completing this repair. The hardest part of the whole repair was aligning the drum to the door opening. I removed the door from the front panel inorder to more easily hold and align the drum, which was one of the best thing I can pass onto others. I had to innovate in removing the door because of the minimal clearance involved. I used a small locking wrench with a screw nutdrive to remove and reinsert the two screws that hold the door in place.
Was this instruction helpful to you?
Thank you for voting!
-
Customer:Timothy from Boulder, CO
-
Difficulty Level:A Bit Difficult
-
Total Repair Time:More than 2 hours
-
Tools:Nutdriver, Screw drivers, Wrench (Adjustable)
Dryer was not effectively drying clothes
I replaced the control thermistor and high limit thermistor. I followed the video and although it was a different model the dismantle and assembly instructions were very helpful. I did discover that the location for one of the sensor in the mechanical views provided was incorrect. I also discovered that the real problem was that the hot air venting was plugged and most likely the cause of the problem in the first place. I am not sure that this was listed as a cause of the problem but it was certainly where I should have started from.
Was this instruction helpful to you?
Thank you for voting!
