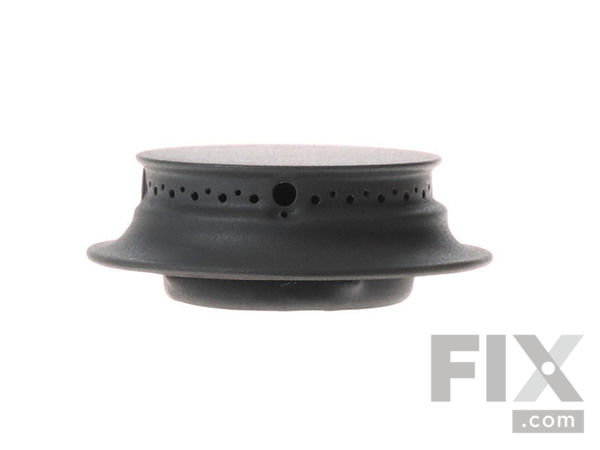

Burner Head WP3403M075-29

Rated by 1 customers

?

Really Easy

15 - 30 mins

Ratings submitted by customers like you who bought this part.

?
$117.42
In Stock
Fix Number:
FIX11741676
Manufacturer #:
WP3403M075-29
Manufactured by:
Whirlpool

Jump to:

Product Description

  • Works with the following brands:
    Jenn-Air
  • Works with the following products:
    Cooktop, Range
  • Part# WP3403M075-29 replaces these:
    AP6008536, 3403M075-29, 74005891
Works with the following brands:
Jenn-Air
Works with the following products
Cooktop, Range
Part Number Cross Reference
Part# WP3403M075-29 replaces these:
AP6008536, 3403M075-29, 74005891
