Part Location Diagram of WH16X543 GE Suspension Rod and Spring
See part 415 in the diagram
Replacing your General Electric Washer Suspension Rod and Spring
( Grid squares measure 1x1 inch )

Suspension Rod and Spring WH16X543

Rated by 1 customers

?

Easy

15 - 30 mins

Ratings submitted by customers like you who bought this part.

?
$47.28
In Stock
Fix Number:
FIX270536
Manufacturer #:
WH16X543
Manufactured by:
GE

Product Description

This part is the replacement suspension rod and spring assembly for your washer. The rod is approximately 27 inches long and is sold individually. The suspension rod and spring works something like a shock absorber and prevents the washer tub from shaking too much while the washer is operating. If you notice excessive shaking or vibrating, or if you notice a strange sound while the washer is running, you may need to replace the suspension rod and spring assembly. This is an OEM part sourced directly from the manufacturer.

Videos For installing this part.

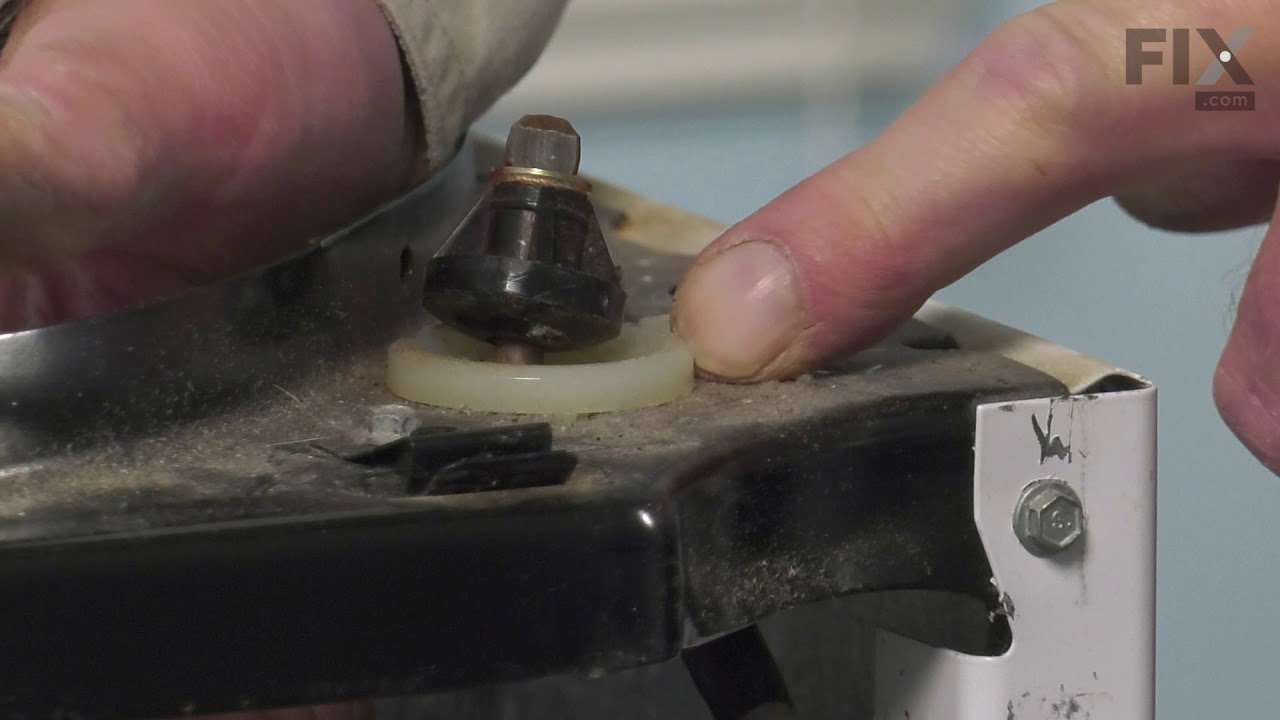

Replacing your Suspension Rod and Spring

Replacing your Suspension Rod and Spring

Questions and Answers

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

View More View Less
Tub Dampening Strap
$9.60
In Stock
Socket Rod Support - White
$12.59
In Stock
Suspension Rod and Spring Assembly
$43.20
In Stock
Affresh Washing Machine Cleaner - 3 pack
$12.58
In Stock
Produce Preserver Filter
$21.50
In Stock
Affresh Dishwasher Cleaner Tablets - 6
$19.09
In Stock
Cooktop Cleaning Cream
$15.57
In Stock
Cooktop Cleaner
$17.74
In Stock
Affresh Cleaner
$19.09
In Stock

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 3.9 / 5.0, 1 reviews.
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.
Customer:
Conrad from Berwick, ME
Parts Used:
WH16X543, WH01X10001
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Nutdriver
Noisy and movement
Removed control panel, front cover, and top cover. Lift the whole tub and motor assembly and put block of wood under to hold it up. Pop old rod out at the bottom by tapping with a hammer hand, and take the old rod seat out of the top frame, then put the new parts in. Do this on all four corners. I found it easier to do the back rods first . Remove the wood bock and seat the lower rods into position. Put the top cover on, control panel, and finally the front cover.
5 of 5 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • 1

Model Compatibility

This part works with the following models:
Fix Number: FIX270536
Manufacturer Part Number: WH16X543
Brand
Model Number
Description
General Electric
51451Y1WW
Washer
General Electric
51451Y2WW
Washer
General Electric
52120TAWB
Washer
General Electric
56021A0WW
Washer
General Electric
56031A0WW
Washer
General Electric
56041A0WW
Washer
General Electric
56051A0WW
Washer
General Electric
56121T5WW
Washer
General Electric
56121T8WW
Washer
General Electric
56121TAWW
Washer
General Electric
56121TBWW
Washer
General Electric
56200T5WB
Washer
General Electric
56220T6WW
Washer
General Electric
56220T8WW
Washer
General Electric
56220TAWW
Washer
General Electric
56220TBWW
Washer
General Electric
56221B0WW
Washer
General Electric
56221B1WW
Washer
General Electric
56221B2WW
Washer
General Electric
56221B3WW
Washer
General Electric
56221T6WW
Washer
General Electric
56231B0WW
Washer
General Electric
56231B1WW
Washer
General Electric
56231B2WW
Washer
General Electric
56231B3WW
Washer
General Electric
56241B0WW
Washer
General Electric
56241B1WW
Washer
General Electric
56241B2WW
Washer
General Electric
56241B3WW
Washer
General Electric
56251B0WW
Washer
