See part 13 in the diagram

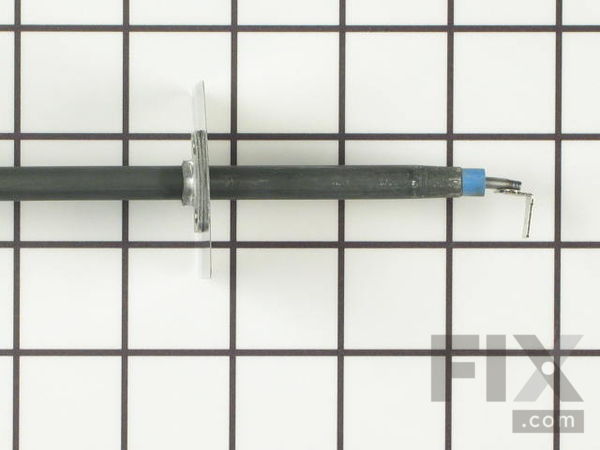

( Grid squares measure 1x1 inch )
Bake Element - 240V 2100W
Really Easy
15 - 30 mins
$31.44
Fix Number: FIX340505
Manufacturer #: 326791
Manufactured by:
Whirlpool
-
Product Description
The bake element is found in the bottom of the oven and is used to provide the heat necessary to cook or bake. If your oven is not coming up to temperature, will not heat up at all, or has inconsistent temperatures, then a faulty bake element may be to blame. This genuine OEM bake element is 240 Volt and 1200 Watts and is a partially open tapered style with push-on wire terminals. Before replacing this part, please be sure to disconnect the power supply to your range.
-
Works with the following brandsWhirlpool, Roper, Kenmore, Amana
-
Works with the following productsWall Oven, Range
-
Fixes the following symptomsLittle to no heat when baking, Element will not heat, Oven not heating evenly
-
Part Number Cross ReferencePart# 326791 replaces these:AP3095829, 3442, 326791, 14210176, 255103, 257376, 257987, 310216, 326791, 326791BULK, 660542
1 Question and Answer
Product Description
The bake element is found in the bottom of the oven and is used to provide the heat necessary to cook or bake. If your oven is not coming up to temperature, will not heat up at all, or has inconsistent temperatures, then a faulty bake element may be to blame. This genuine OEM bake element is 240 Volt and 1200 Watts and is a partially open tapered style with push-on wire terminals. Before replacing this part, please be sure to disconnect the power supply to your range.
-
Works with the following brands:Whirlpool, Roper, Kenmore, Amana
-
Works with the following products:Wall Oven, Range
-
Fixes the following symptoms:Little to no heat when baking, Element will not heat, Oven not heating evenly
-
Part# 326791 replaces these:
Questions and Answers
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.
Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Stefan
October 4, 2022
The tag in my oven reads 3.1 kilowatts @ 208 volts - 3.6 kilowatts @ 240 volts. the replacement part states it's 240V 2100W. Am I looking at the wrong part? Or will this work?
For model number RB100PXK-1
Hello Stefan, thank you for contacting us. The bake element, part number FIX340505, is compatible with your model and will work fine. Customer service is available 7 days a week if you need help placing an order. Glad to be of assistance!
Was this helpful?
Thank you for voting!
Installation Instructions Provided by Fix customers like you.
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
-
Customer:julie from LARGO, FL -
-
Difficulty Level:Really Easy
-
Total Repair Time:Less than 15 mins
-
Tools:Screw drivers
Bake Element Quit Working
Killed main power to house ! Removed old element screws & un-plugged old one then put new one in place and replaced screws till tight all done less then 5 min turn power back on and start cooking . Ps you will need a flash light also
Was this instruction helpful to you?
Thank you for voting!
-
Customer:Bonita from Garner, IA
-
Parts Used:326791
-
Difficulty Level:Really Easy
-
Total Repair Time:Less than 15 mins
-
Tools:Screw drivers
no problem
I was very impressed at the speed with which the heat element arrived at my home.It was the proper one and installation was quick and trouble-free.Thank You!
Was this instruction helpful to you?
Thank you for voting!
-
Customer:Willie from Marlin, TX
-
Parts Used:326791
-
Difficulty Level:Easy
-
Total Repair Time:15 - 30 mins
-
Tools:Screw drivers
Bake element was not heating
Unscrewed two screws holding element, there were two attatchments, unplug from two attatchments. Plug the new element into attatchments. Replace two screws.
Was this instruction helpful to you?
Thank you for voting!
-
Customer:CYNDY from Enid, OK
-
Parts Used:326791
-
Difficulty Level:Really Easy
-
Total Repair Time:Less than 15 mins
-
Tools:Screw drivers
burned out element
removed burned out element by removing screws from wall anchors located at the rear of the oven. removed burned out element by disconnecting from connector clips. took new element from box, placed in oven, connected the clips, aligned screw holes, screwed in, done IN LESS THAN 10 MINUTES. Much better than waiting on a repairman. feeling accomplished.
Was this instruction helpful to you?
Thank you for voting!
-
Customer:Thomas from Marlborough, MA
-
Parts Used:326791
-
Difficulty Level:Really Easy
-
Total Repair Time:Less than 15 mins
-
Tools:Screw drivers
Element Broke
shut of power to oven at circuit breaker ....remove 2 screws ...Pull out old element ...remove wires from element ...install wires on replacement element push cable back in install 2 screws...Turn power back on ...test .... Done
Was this instruction helpful to you?
Thank you for voting!
-
Customer:Wilma from Louisville, KY
-
Parts Used:326791
-
Difficulty Level:Easy
-
Total Repair Time:30 - 60 mins
-
Tools:Pliers, Screw drivers
Bottom heating element no longer heating
MAKE SURE ALL ELECTRICAL CURRENT IS CUT OFF FROM OVEN. 1. Need needle nose pliers & Phillips head screwdriver. 2. Remove screws from rear oven wall where old Heating element is attached. 3. Gently pull wiring from insulation until clips on the wiring are clearly visible. 4. Using needle nose pliers pull clip attaching old heating element apart from the wiring end of clip. (Be careful wiring is pulled far enough from insulation that you DO NOT LOSE WIRING BACK INSIDE REAR WALL OF OVEN). 5. Attach clip end of wiring into end of clip located on end of new element.
Was this instruction helpful to you?
Thank you for voting!
-
Customer:Marlin from Williamsport, PA
-
Parts Used:326791
-
Difficulty Level:Really Easy
-
Total Repair Time:30 - 60 mins
-
Tools:Screw drivers
Replaced Bake element
Remove 2 Phillips head screws at rear of element, pull element towards front a couple inches unplug wires from element. To install new element just reverse procedure. Total time under 5 minutes.
Was this instruction helpful to you?
Thank you for voting!
-
Customer:Terry from Albany, GA
-
Parts Used:326791
-
Difficulty Level:Very Easy
-
Total Repair Time:Less than 15 mins
-
Tools:Screw drivers
Lower element not heating
Turned power off at breaker. Using a screwdriver removed the two mounting screws for element. Pull element out about 2 inches then removed slide on wire terminals, Reverse order to install new element.
Was this instruction helpful to you?
Thank you for voting!
-
Customer:Suzi from Kerrville, TX
-
Parts Used:326791
-
Difficulty Level:Really Easy
-
Total Repair Time:Less than 15 mins
-
Tools:Pliers, Screw drivers
The heating element finally gave up...burned through.
Replacement part arrived promptly. We'd already removed the old part, so installing the new burner was simply plugging in and replacing brackets and screws. Easy, peasy.
Was this instruction helpful to you?
Thank you for voting!
-
Customer:James from Green Valley, IL
-
Parts Used:326791
-
Difficulty Level:Really Easy
-
Total Repair Time:Less than 15 mins
-
Tools:Screw drivers
Lower heat element burned out and would no longer get hot.
Easy repair. Turned off power to the oven. Took out the 2 screws in the rear of the oven that held the lower heating element in. Pulled the heating element out slowly about 3 inches exposing the wire connectors. Used a flat head screwdriver to pry the connectors off carefully. Reversed the procedure to install the new element and the wife started baking again.
Was this instruction helpful to you?
Thank you for voting!
