11770006-1-M-Whirlpool-W10916750-SWTCH-MEMB
Part Location Diagram of W10916750 Whirlpool SWTCH-MEMB
See part 2 in the diagram
( Grid squares measure 1x1 inch )
11770006-1-S-Whirlpool-W10916750-SWTCH-MEMB Part Location Diagram of W10916750 Whirlpool SWTCH-MEMB

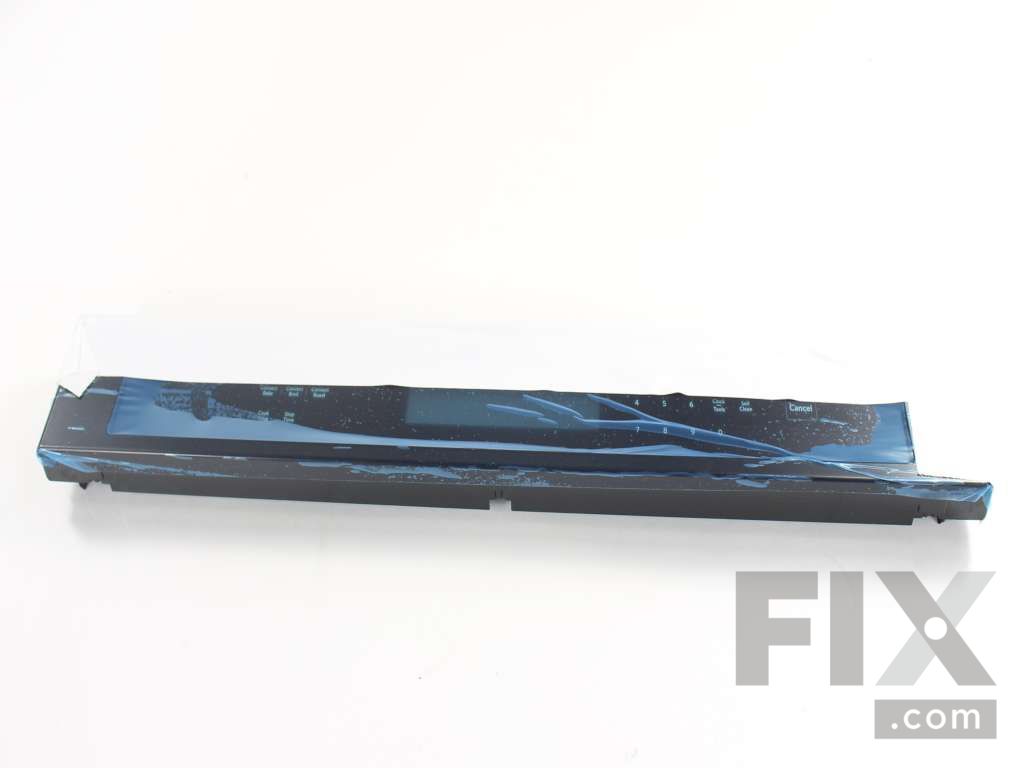

SWTCH-MEMB W10916750

Works With Model KOSE500ESS02!
$365.02
In Stock
Fix Number:
FIX11770006
Manufacturer #:
W10916750
Manufactured by:
Whirlpool
Works With Model KOSE500ESS02!

Jump to:

Product Description

This range oven membrane switch, also known as a touch pad or control panel assembly, is the flat, touch-sensitive interface that allows you to control your appliance’s functions with ease. It serves as the primary keypad for selecting settings such as temperature, timer, and cooking modes, sending signals to the main control board for accurate operation. Designed as a replacement for worn, cracked, or unresponsive panels, this component restores full functionality to your oven, ensuring smooth and reliable performance for everyday cooking.

  • Works with the following brands:
    KitchenAid, Whirlpool
  • Works with the following products:
    Wall Oven
  • Part# W10916750 replaces these:
    W10588713, W10884534, W10890565, W10913289, W11087455
Works with the following brands:
KitchenAid, Whirlpool
Works with the following products
Wall Oven
Part Number Cross Reference
Part# W10916750 replaces these:
W10588713, W10884534, W10890565, W10913289, W11087455

Questions and Answers

Be the first to ask our experts a question about this part!

Affresh Washing Machine Cleaner - 3 pack
$19.75
Special Order
Part Number: FIX1960673
This washing machine cleaner includes three time-release tablets designed to remove odor-causing residues, grime, and buildup from high-efficiency and top-load washing machines. The tablets work by cleaning the tub, pump...
Produce Preserver Filter
$18.54
In Stock
Part Number: FIX3503014
Fresh Flow Produce Preserver is made for your refrigerator to help keep produce fresh for longer by absorbing the chemical, ethylene, that causes your fruits and vegetables to ripen quicker. Your produce could be fresh f...
Affresh Washing Machine Cleaner Tablets – 6 Count
$28.91
In Stock
Part Number: FIX12345661
This Affresh Washing Machine Cleaner deep cleans to help remove the odor-causing residues and grime that daily loads leave behind. The time-release tablets are EPA Safer Choice certified, septic-safe and designed to clea...
Affresh Dishwasher Cleaner Tablets - 6
$22.91
In Stock
Part Number: FIX12345667
Affresh dishwasher Cleaner is specially formulated to help remove limescale and mineral build-up that can be unsightly and could affect your dishwasher's performance. Each tablet is designed to clean inside your machine ...
Affresh Ice Machine Cleaner
$27.83
In Stock
Part Number: FIX12583750
This nickel-safe, unscented ice machine cleaner measures 16 fluid ounces and is used to remove mineral build-up and hard water and is compatible with several makes and models of freestanding ice machines. To use properly...
Refrigerator Deodorizer
$32.12
In Stock
Part Number: FIX12739141
Refrigerator deodorizers help to reduce bacteria growth and therefore reduce smells and extend the life of food.

Model Compatibility

This part works with the following models:
Fix Number: FIX11770006
Manufacturer Part Number: W10916750
Brand Model Number Description
KitchenAid KOSE500EBL00 Wall Oven - ELECTRIC OVEN
KitchenAid KOSE500EBL01 Wall Oven - ELECTRIC OVEN
KitchenAid KOSE500EBL02 Wall Oven - ELECTRIC OVEN
KitchenAid KOSE500EBL03 Wall Oven
Whirlpool KOSE500EBL04 Wall Oven
Whirlpool KOSE500EBL05 Microwave Oven Combo - Microwave Oven Combo
KitchenAid KOSE500EBS00 Wall Oven - ELECTRIC OVEN
KitchenAid KOSE500EBS01 Wall Oven - ELECTRIC OVEN
KitchenAid KOSE500EBS02 Wall Oven - ELECTRIC OVEN
KitchenAid KOSE500EBS03
Whirlpool KOSE500EBS04 Wall Oven
Whirlpool KOSE500EBS05 Microwave Oven Combo - Microwave Oven Combo
KitchenAid KOSE500ESS00 Wall Oven - ELECTRIC OVEN
KitchenAid KOSE500ESS01 Wall Oven - ELECTRIC OVEN
KitchenAid KOSE500ESS02 Wall Oven - ELECTRIC OVEN
Whirlpool KOSE500ESS03
Whirlpool KOSE500ESS04 Wall Oven
Whirlpool KOSE500ESS05 Microwave Oven Combo - Microwave Oven Combo
KitchenAid KOSE500EWH00 Wall Oven - ELECTRIC OVEN
KitchenAid KOSE500EWH01 Wall Oven - ELECTRIC OVEN
KitchenAid KOSE500EWH02 Wall Oven - ELECTRIC OVEN
Whirlpool KOSE500EWH03 Wall Oven
Whirlpool KOSE500EWH04 Wall Oven
Whirlpool KOSE500EWH05 Microwave Oven Combo - Microwave Oven Combo
