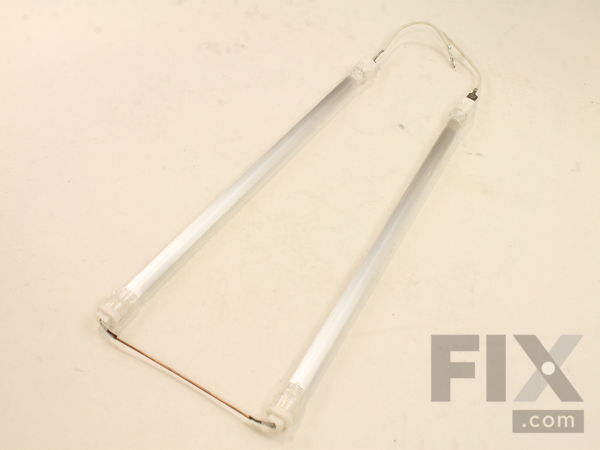

Part Location Diagram of SP0010494 Breville Bottom Element Set Assembly
See part 96 in the diagram
( Grid squares measure 1x1 inch )

Bottom Element Set Assembly

★★★★★
★★★★★
5 Reviews

Rated by 4 customers

?

Difficult

More than 2 hours

Ratings submitted by customers like you who bought this part.

?
$10.71
On Order
Fix Number:
FIX12008676
Manufacturer #:
SP0010494
Manufactured by:
Breville

Product Description

Questions and Answers

Ask our experts a question about this part and we'll get back to you as soon as possible!

12 questions answered by our experts.
  • 1
  • 2
Sort by:
Sorry, we couldn't find any existing answers that matched.
Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Joe
March 17, 2022
BOTTOM HEATING ELEMENT REPLACEMENT PARTS # OR WHO IS SELING THE PARTS
For model number BOV 900 BSSUSC
Fix.com logo
Hello Joe, thank you for your question. We have researched the model you have provided, and we would suggest the Bottom Element Set Assembly, part number FIX12008676. If you need help placing an order, our customer service is open 7 days a week. Please feel free to give us a call. We look forward to hearing from you!

21 people found this helpful.

Was this helpful?
Thank you for voting!
Dante
October 26, 2021
Como reparo con el kit comprado
For model number BOV800XL
Fix.com logo
Hello Dante, Thank you for contacting us. Here is a repair story from a previous customer. "First step was to remove the outer housing. I flipped the unit over and removed the screws on the feet and bottom panel. This was about 20 screws (note the front feet have a screw to secure a cover strip that covers the screws attaching the feet to the unit). Specifically note that there is a long screw on one of these feet that you need to keep track of and realign into a plate when reassembling. After that, remove all the screws from the back (again, there are a lot of screws to remove, but you will want to remove both those for the outside casing as well as for those securing the back panel). Now you should be able to lift the housing in order to get the back panel off of the unit. The housing will not come off yet because on the side near the front panel controls are a 5 or 6 black screws that secure the housing to the control panel. You need a long screwdriver as the metal housing can be sharp in order to remove these screws. Once undone, you should be able to lift the housing by raising the back first as it has a metal lip on the front. With the tilt, you should be able to remove the housing from the lip. With the housing off, unplug the heater element connector from the circuit panel. You might need a pair of pliers to do this. The other side of the heater element goes into a wire connector that you will need to cut off. I advise cutting off the wire connector versus cutting the wires as there is not a lot of extra wire if you need to re-strip the wire to go into a new connector. You will need to cut at least one of the tie straps to get the wire free. After that, remove the circuit board, should be 4 screws to get access to the heating element. From inside the toaster, remove 2 screws on the other side that fasten a bracket that holds the heating element in place. Removing the heating element was the most difficult challenge as there are two tabs on the side with the circuit board that holds the bulbs in place. I used a really small screwdriver to bend the tabs out so that I could remove the bulbs. Even with this, it took a lot of maneuvering with pliers to get the heads of the heater element free. I suggest goggles and gloves for this piece as I was worried the glass exteriors would break trying to release them. Once you slide the element out, the bracket should be able to slide off the end. Reassembly was more straightforward, but getting the heating element to seat correctly with the tabs was still a chore. Otherwise, the only other challenge was lining up the screws that held the housing to the front panel. A long magnetized screwdriver would be a good recommendation to do that piece. Finally, the one front fit does have a metal bracket that slides and so you need to align that piece before those screws will go in." We hope this helps!

8 people found this helpful.

Was this helpful?
Thank you for voting!
Angela
January 20, 2023
I need to replace the bottom element on my Breville toaster oven BOV 900. Will this element fit?
For model number BOV 900
Fix.com logo
Hi Angela, Thank you for your question. We were unable to find a parts list for your toaster oven and to verify if you can use this element on your toaster oven, you will need to contact Breville. If they verify that you can use this part or if they provide you with a part number for a heating element you can use, please feel free to contact us and we will verify if we carry it. We look forward to hearing from you!

2 people found this helpful.

Was this helpful?
Thank you for voting!
Troy
April 8, 2023
Is this the proper part for a model BOV 845? Thanks
For model number BOV845
Fix.com logo
Hello Troy, Thank you for your inquiry. We have researched the model you have provided and do not show this part as compatible. The compatible part number is FIX12008690. We hope this helps.

1 person found this helpful.

Was this helpful?
Thank you for voting!
Related Parts:
Lula
December 1, 2023
Does this fit my model? And if it does, do you have it in stock?
For model number BOV650XL
Fix.com logo
Hello Lula, Thank you for writing. The Bottom Element for this model is listed as Fix Number: FIX12008676. According to the Website Availability, this is a Special Order part. This means we do not keep them in stock and order them in from Breville once we have an order for one. As long as Breville has stock ready to ship, this takes about 10-15 Business Days for the part to arrive at the Warehouse and approximately 3-7 business days to ship out and arrive to you. We hope this helps!

1 person found this helpful.

Was this helpful?
Thank you for voting!
Dennis
November 16, 2023
I am in need of a Bottom element.
For model number BOV650xl
Fix.com logo
Hello Dennis, thank you for reaching out. The bottom element set assembly, part number FIX12008676, you have mentioned is compatible with your model. We hope this helps!

Was this helpful?
Thank you for voting!
Roger
October 15, 2021
What is the length of the heating element? I need a replacement for an oven Black and Decker model TO3265XSSD. Inside width is ~16"-17"
For model number TO3265XSSD
Fix.com logo
Hello Roger, Thank you for contacting us. This element is approximately 17" in length. We hope this helps!

Was this helpful?
Thank you for voting!
Susan
August 10, 2022
Do you have the bottom element part in stock? And if not, when will it be available?
Fix.com logo
Hello Susan, Thank you for the question. According to the Website Availability, this is a Special Order part. This means we do not keep them in stock and order them in from Breville once we have an order for one. As long as Breville has stock ready to ship, this takes about 10-15 Business Days for the part to arrive at the Warehouse and approximately 3-7 business days to ship out and arrive to you. We hope this helps!

Was this helpful?
Thank you for voting!
Pedro
May 11, 2023
Is this correct replacement part for the lower heating of the toaster oven
For model number BOV800XL
Fix.com logo
Hi Pedro, thank you for contacting us. The part you mentioned is not compatible with your model. The correct part for your model is the bottom element assembly, part number FIX12008690. We hope that helps!

Was this helpful?
Thank you for voting!
Related Parts:
Max
March 7, 2023
Hello, Is this fix Breville convection smart oven Model BOV800XL /A Thanks
Fix.com logo
Hello Max, thank you for reaching out. The bottom element assembly you mentioned is not compatible with your model. The correct part for your model is part number FIX12008690. We hope this solves your problem!

Was this helpful?
Thank you for voting!
Related Parts:
  • 1
  • 2

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 1.6 / 5.0, 4 reviews.
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.
Customer:
Michael from BOTHELL, WA
Parts Used:
SP0010494
Difficulty Level:
A Bit Difficult
Total Repair Time:
More than 2 hours
Tools:
Pliers, Screw drivers
Glass on the bottom heating element broke and needed replacement.
First step was to remove the outer housing. I flipped the unit over and removed the screws on the feet and bottom panel. This was about 20 screws (note the front feet have a screw to secure a cover strip that covers the screws attaching the feet to the unit). Specifically note that there is a long screw on one of these feet that you n eed to keep track of and realign into a plate when reassembling. After that, remove all the screws from the back (again, there are a lot of screws to remove, but you will want to remove both those for the outside casing as well as for those securing the back panel). Now you should be able to lift the housing in order to get the back panel off of the unit. The housing will not come off yet because on the side near the front panel controls are a 5 or 6 black screws that secure the housing to the control panel. You need a long screwdriver as the metal housing can be sharp in order to remove these screws. Once undone, you should be able to lift the housing by raising the back first as it has a metal lip on the front. With the tilt, you should be able to remove the housing from the lip. With the housing off, unplug the heater element connector from the circuit panel. You might need a pair of pliers to do this. The other side of the heater element goes into a wire connector that you will need to cut off. I advise cutting off the wire connector versus cutting the wires as there is not a lot of extra wire if you need to re-strip the wire to go into a new connector. You will need to cut at least one of the tie straps to get the wire free. After that, remove the circuit board, should be 4 screws to get access to the heating element. From inside the toaster, remove 2 screws on the other side that fasten a bracket that holds the heating element in place. Removing the heating element was the most difficult challenge as there are two tabs on the side with the circuit board that holds the bulbs in place. I used a really small screwdriver to bend the tabs out so that I could remove the bulbs. Even with this, it took a lot of maneuvering with pliers to get the heads of the heater element free. I suggest goggles and gloves for this piece as I was worried the glass exteriors would break trying to release them. Once you slide the element out, the bracket should be able to slide off the end. Reassembly was more straightforward, but getting the heating element to seat correctly with the tabs was still a chore. Otherwise, the only other challenge was lining up the screws that held the housing to the front panel. A long magnetized screwdriver would be a good recommendation to do that piece. Finally, the one front fit does have a metal bracket that slides and so you need to align that piece before those screws will go in.
24 of 24 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
Jocelyn from EAST SANDWICH, MA
Parts Used:
SP0010494
Difficulty Level:
A Bit Difficult
Total Repair Time:
1- 2 hours
Tools:
Screw drivers
Bottom Element Replacement
Lots of screw removal and folded metal to pull apart. There are 5 screws deep inside that must be removed. You'll need to 10" Phillips screw driver to get at them. Replacing them in re-assembly is very tricky, but possible....just time consuming.
9 of 9 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
Abdi from HILLSBOROUGH, CA
Parts Used:
SP0010494
Difficulty Level:
Very Difficult
Total Repair Time:
More than 2 hours
Tools:
Screw drivers, Wrench (Adjustable)
Broken quartz tube on the lower heater as I was cleaning the oven
I ordered the parts, but repair and replacement is a night mare. So many screws, extremely difficult to disassemble the lower heater. Heating element is not one piece and its connected to another heating element and they are attached to other PCBs and assemblies. DON'T Try it. I wasted two days and I am a handyman and ended up sending it to the vendor.
5 of 5 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
Gerardo from MIAMI SHORES, FL
Parts Used:
SP0010494
Difficulty Level:
Very Difficult
Total Repair Time:
More than 2 hours
Tools:
Pliers, Socket set, Wrench set
Fix.com terrible support response, they don’t care.
Sent me wrong part, submitted a return request and then they completely disappeared and never addressed nor responded on the issue ever again. Will never buy from fix.com again.
2 of 2 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • 1
Customer Reviews
Average Rating: (5 Reviews)
3.6
★★★★★
★★★★★
Filter By Rating:
  • 5
    2
  • 4
    1
  • 3
    1
  • 2
    0
  • 1
    1
  • 1
Sort by:
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.

Model Compatibility

This part works with the following models:
Fix Number: FIX12008676
Manufacturer Part Number: SP0010494
Brand
Model Number
Description
Breville
BOV650XL
Toaster Oven - The Compact Smart Oven
