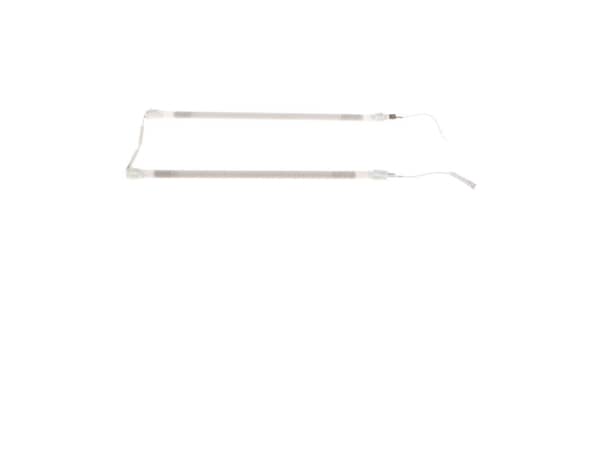

Bottom Element Set Assembly SP0010494

Hello Joe, thank you for your question. We have researched the model you have provided, and we would suggest the Bottom Element Set Assembly, part number FIX12008676. If you need help placing an order, our customer service is open 7 days a week. Please feel free to give us a call. We look forward to hearing from you!

Hello Dante, Thank you for contacting us. Here is a repair story from a previous customer. "First step was to remove the outer housing. I flipped the unit over and removed the screws on the feet and bottom panel. This was about 20 screws (note the front feet have a screw to secure a cover strip that covers the screws attaching the feet to the unit). Specifically note that there is a long screw on one of these feet that you need to keep track of and realign into a plate when reassembling. After that, remove all the screws from the back (again, there are a lot of screws to remove, but you will want to remove both those for the outside casing as well as for those securing the back panel). Now you should be able to lift the housing in order to get the back panel off of the unit. The housing will not come off yet because on the side near the front panel controls are a 5 or 6 black screws that secure the housing to the control panel. You need a long screwdriver as the metal housing can be sharp in order to remove these screws. Once undone, you should be able to lift the housing by raising the back first as it has a metal lip on the front. With the tilt, you should be able to remove the housing from the lip. With the housing off, unplug the heater element connector from the circuit panel. You might need a pair of pliers to do this. The other side of the heater element goes into a wire connector that you will need to cut off. I advise cutting off the wire connector versus cutting the wires as there is not a lot of extra wire if you need to re-strip the wire to go into a new connector. You will need to cut at least one of the tie straps to get the wire free. After that, remove the circuit board, should be 4 screws to get access to the heating element. From inside the toaster, remove 2 screws on the other side that fasten a bracket that holds the heating element in place. Removing the heating element was the most difficult challenge as there are two tabs on the side with the circuit board that holds the bulbs in place. I used a really small screwdriver to bend the tabs out so that I could remove the bulbs. Even with this, it took a lot of maneuvering with pliers to get the heads of the heater element free. I suggest goggles and gloves for this piece as I was worried the glass exteriors would break trying to release them. Once you slide the element out, the bracket should be able to slide off the end. Reassembly was more straightforward, but getting the heating element to seat correctly with the tabs was still a chore. Otherwise, the only other challenge was lining up the screws that held the housing to the front panel. A long magnetized screwdriver would be a good recommendation to do that piece. Finally, the one front fit does have a metal bracket that slides and so you need to align that piece before those screws will go in." We hope this helps!

Hi Angela, Thank you for your question. We were unable to find a parts list for your toaster oven and to verify if you can use this element on your toaster oven, you will need to contact Breville. If they verify that you can use this part or if they provide you with a part number for a heating element you can use, please feel free to contact us and we will verify if we carry it. We look forward to hearing from you!

Hello Troy, Thank you for your inquiry. We have researched the model you have provided and do not show this part as compatible. The compatible part number is FIX12008690. We hope this helps.

Hello Lula, Thank you for writing. The Bottom Element for this model is listed as Fix Number: FIX12008676. According to the Website Availability, this is a Special Order part. This means we do not keep them in stock and order them in from Breville once we have an order for one. As long as Breville has stock ready to ship, this takes about 10-15 Business Days for the part to arrive at the Warehouse and approximately 3-7 business days to ship out and arrive to you. We hope this helps!

Hello Dennis, thank you for reaching out. The bottom element set assembly, part number FIX12008676, you have mentioned is compatible with your model. We hope this helps!

Hello Roger, Thank you for contacting us. This element is approximately 17" in length. We hope this helps!

Hello Susan, Thank you for the question. According to the Website Availability, this is a Special Order part. This means we do not keep them in stock and order them in from Breville once we have an order for one. As long as Breville has stock ready to ship, this takes about 10-15 Business Days for the part to arrive at the Warehouse and approximately 3-7 business days to ship out and arrive to you. We hope this helps!

Hi Pedro, thank you for contacting us. The part you mentioned is not compatible with your model. The correct part for your model is the bottom element assembly, part number FIX12008690. We hope that helps!

Hello Max, thank you for reaching out. The bottom element assembly you mentioned is not compatible with your model. The correct part for your model is part number FIX12008690. We hope this solves your problem!
