Part Location Diagram of WP67004757 Whirlpool Defrost Thermostat
See part 3 in the diagram

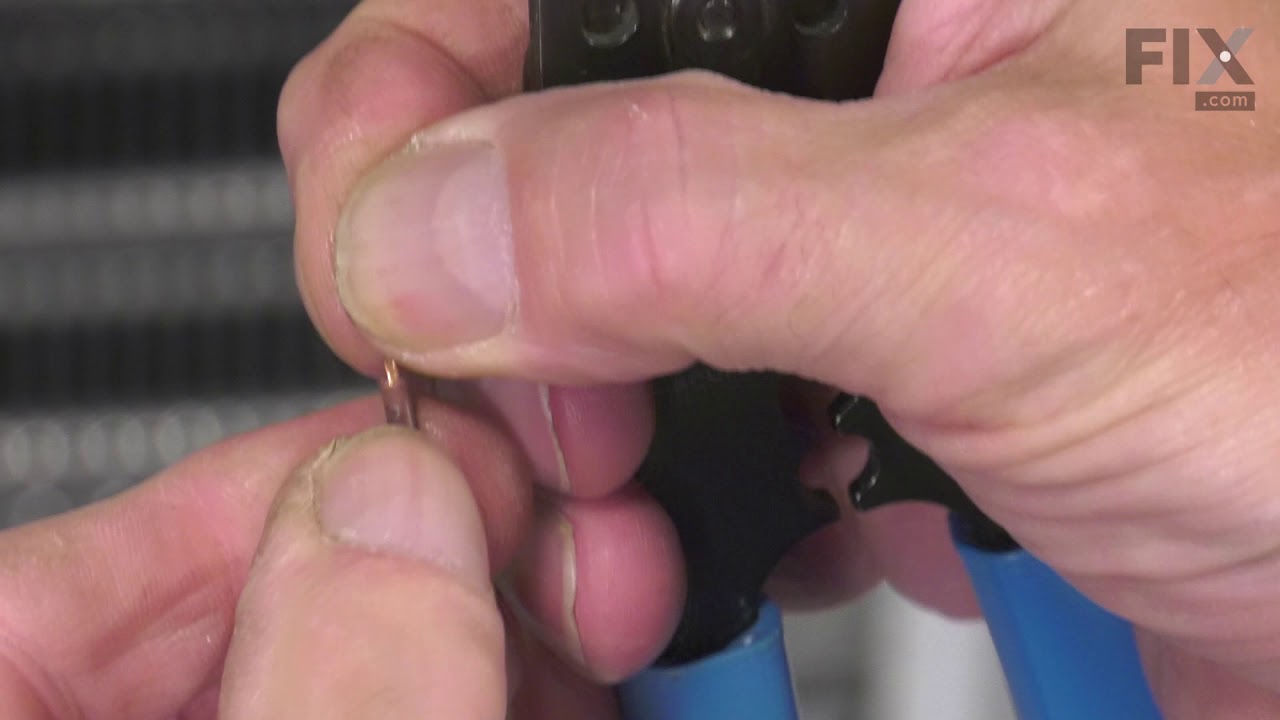

Replacing your Maytag Refrigerator Defrost Thermostat
( Grid squares measure 1x1 inch )

Defrost Thermostat

Rated by 3 customers

?

Easy

15 - 30 mins

Ratings submitted by customers like you who bought this part.

?
$83.44
In Stock
Fix Number:
FIX11743599
Manufacturer #:
WP67004757
Manufactured by:
Whirlpool

Product Description

This is a temperature sensing mechanism. It can sense the rise in evaporator temperature during a defrost cycle and cycles the defrost heater off after all frost is melted from the coils.

Videos For installing this part.

Replacing your Defrost Thermostat

Replacing your Defrost Thermostat

Questions and Answers

Be the first to ask our experts a question about this part!

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 3.6 / 5.0, 3 reviews.
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.
Customer:
Wiley from JACKSON, AL
Parts Used:
WP67004757
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Nutdriver, Pliers
Thermostat
Step one: disconnect power. Step two: remove contents of freezer. Step three: remove trays. Step three: remove screws holding back panel with 10 mm nut driver or socket: Step four: pull top of panel slightly away from back of frigerator to reveal light bulb connection and disconnect the two prongs by pulling upwards. Step five: pull panel upwards and towards yourself to remove. Step six: if condenser is iced over, use hair dryer to melt. Step seven: locate thermostat and unclip from from condenser: Step eight: cut the two wires close to the old thermostat: Step nine: using knife or wire strippers, peel plastic covering to expose wire. Step ten: If available. use round wire connectors by inserting exposed wire into and squeezing ends with pliers. Pull wires after squeezing ends of connector to verify good connection. Step eleven: use heat shrink to slide over connection. Step twelve: slide other end of wire into round connector and squeeze end as before. Step thirteen: slide heat shrink over your connection. Step fourteen: with wire connection at midway point in heat shrink, use hair dryer to heat by blowing air along the entire length of heat shrink, moving slowly. Heat from dryer will shrink plastic onto connection and protect from moisture. Step fifteen: loop any excess wire and tie wrap in location above or on top of condenser, like as done by manufacturer. Step sixteen: reverse process of attaching panel, remember to attach light connections before attaching panel.
3 of 3 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
Lonnie from Homosassa, FL
Parts Used:
WP67004757
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Nutdriver
Freezer and Refrigerator were not keeping proper cooling and frost was building up in the freezer
Removed food in Freezer and turn it off after frost melted I removed shelves and panel in the freezer with the nut driver. Found the Defrost Thermostat and cut wires and spliced in the new Thermostat. Put everything back in place and refrigerator is now working perfectly.
1 person found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
Michael from Bothell, WA
Parts Used:
WP67004757
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
Tools:
Nutdriver
Freezer coil would ice over preventing both freezer and refrigerator from cooling properly
The first thing I did was completely defrost the refrigerator/freezer using a hair dryer, cleaned the dust from underneath the refrigerator/freezer and tested to see if that was the problem. Within 2 days it iced up again. So the solution was as follows... (0) unplugged the power cable; (1) removed all the drawers; (2) removed the ligh t bulb cover and bulb; (3) unscrewed the lower panel - 5 screws to remove the panel (we had to disconnect the wires to the light by just pulling them off.) and exposed the freezer coil; (4) used a hair dryer to defrost the freezer coil and expose all the wiring; (5) identified the thermostat on the coil which was the defrost thermostat (and took a picture of it so i could put it back the same way); (6) unclipped the thermostat from the coil; (7) checked the markings on the old thermostat to ensure they matched the new one in terms temperature zone for the thermostat; once verified we (8) cut the zip ties bundling the wires together just above the coil; (9) cut the 2 wires close to the old thermostat so that we could strip the old wires and install the new unit; (10) after striping the wires, we used heat shrink butt connectors and crimped the new wires with the old wires then heated the butt connectors with a heat gun to seal the heat shrink around the connections; (11) wires were re-bundled away from the coils with two zip ties; (12) reclipped the thermostat on the coil; (13) attached the power to the light; and (14) reinstalled the back panel with the 5 screws. I let the refrigerator/freeze balance for 6 hours and found everything worked and was within the correct temperature range. I check the vent to the coils and noticed that it was not icing up so all is OK. I picked up the heat shrink butt connectors at Harbor Freight - very simple repair which beats buying a new refrigerator. Searching the this site and google was very helpful.
0 of 1 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • 1

Model Compatibility

This part works with the following models:
Fix Number: FIX11743599
Manufacturer Part Number: WP67004757
Brand
Model Number
Description
Kenmore
59655652500
Refrigerator
Kenmore
59655653500
Refrigerator
Kenmore
59655654500
Refrigerator
Kenmore
59655659500
Refrigerator
Kenmore
59657002600
Refrigerator
Kenmore
59657003600
Refrigerator
Kenmore
59657006600
Refrigerator
Kenmore
59657009600
Refrigerator
Kenmore
59657012600
Refrigerator
Kenmore
59657013600
Refrigerator
Kenmore
59657016600
Refrigerator
Kenmore
59657019600
Refrigerator
Amana
AC2224GEKB
Refrigerator - Side-by-side
Amana
AC2224GEKS
Refrigerator - Side-by-side
Amana
AC2224GEKW
Refrigerator - Side-by-side
Amana
AC2224PEKB
Refrigerator
Amana
AC2224PEKB0
Refrigerator - AMANA REFRIGERATOR
Amana
AC2224PEKW
Refrigerator
Amana
AC2224PEKW0
Refrigerator - AMANA REFRIGERATOR
Amana
AC2225GEKB
Refrigerator - Side-by-side
Amana
AC2225GEKB0
Refrigerator - AMANA REFRIGERATOR
Amana
AC2225GEKS
Refrigerator - Side-by-side
Amana
AC2225GEKS0
Refrigerator - AMANA REFRIGERATOR
Amana
AC2225GEKW
Refrigerator - Side-by-side
Amana
AC2225GEKW0
Refrigerator - AMANA REFRIGERATOR
Amana
AC2228HEKB
Refrigerator - Side-by-side
Amana
AC2228HEKB0
Refrigerator - AMANA REFRIGERATOR
Amana
AC2228HEKS
Refrigerator - Side-by-side
Amana
AC2228HEKS0
Refrigerator - AMANA REFRIGERATOR
Amana
AC2228HEKW
Refrigerator - Side-by-side
