11741733-1-M-Whirlpool-WP3412D024-26-Sealed Burner Cap with Electrode
Part Location Diagram of WP3412D024-26 Whirlpool Sealed Burner Cap with Electrode
See part 1 in the diagram
Replacing your Maytag Range Sealed Burner Cap with Electrode
11741733-1-S-Whirlpool-WP3412D024-26-Sealed Burner Cap with Electrode 360 view
( Grid squares measure 1x1 inch )
11741733-1-S-Whirlpool-WP3412D024-26-Sealed Burner Cap with Electrode 11741733-2-S-Whirlpool-WP3412D024-26-Sealed Burner Cap with Electrode 11741733-1-S-Whirlpool-WP3412D024-26-Sealed Burner Cap with Electrode 360 view
Part Location Diagram of WP3412D024-26 Whirlpool Sealed Burner Cap with Electrode Replacing your Maytag Range Sealed Burner Cap with Electrode

Sealed Burner Cap with Electrode WP3412D024-26

Rated by 6 customers

?

Very Easy

15 - 30 mins

Ratings submitted by customers like you who bought this part.

?
$62.55
In Stock
Fix Number:
FIX11741733
Manufacturer #:
WP3412D024-26
Manufactured by:
Whirlpool

Jump to:

Product Description

This burner cap assembly is sold with the spark electrode. Please note this part has been redesigned and no longer requires a gasket. Sold individually.

  • Works with the following brands:
    Maytag, Magic Chef, Jenn-Air, Hardwick
  • Works with the following products:
    Range, Cooktop
  • Fixes the following symptoms:
    Gas igniter glows, but will not light, Will Not Start, Element will not heat
  • Part# WP3412D024-26 replaces these:
    AP6008593, 12500051, 12500099, 3412D015-14, 3412D016-14, 3412D017-14 , 3412D017-26, 3412D018-26, 3412D024-26, 3412D025-26, 74003965, 74007309, WP3412D024-26VP Show less
Works with the following brands:
Maytag, Magic Chef, Jenn-Air, Hardwick
Works with the following products
Range, Cooktop
Fixes the following symptoms
Gas igniter glows, but will not light, Will Not Start, Element will not heat
Part Number Cross Reference
Part# WP3412D024-26 replaces these:
AP6008593, 12500051, 12500099, 3412D015-14, 3412D016-14, 3412D017-14, 3412D017-26, 3412D018-26, 3412D024-26, 3412D025-26, 74003965, 74007309, WP3412D024-26VP

Videos For installing this part.

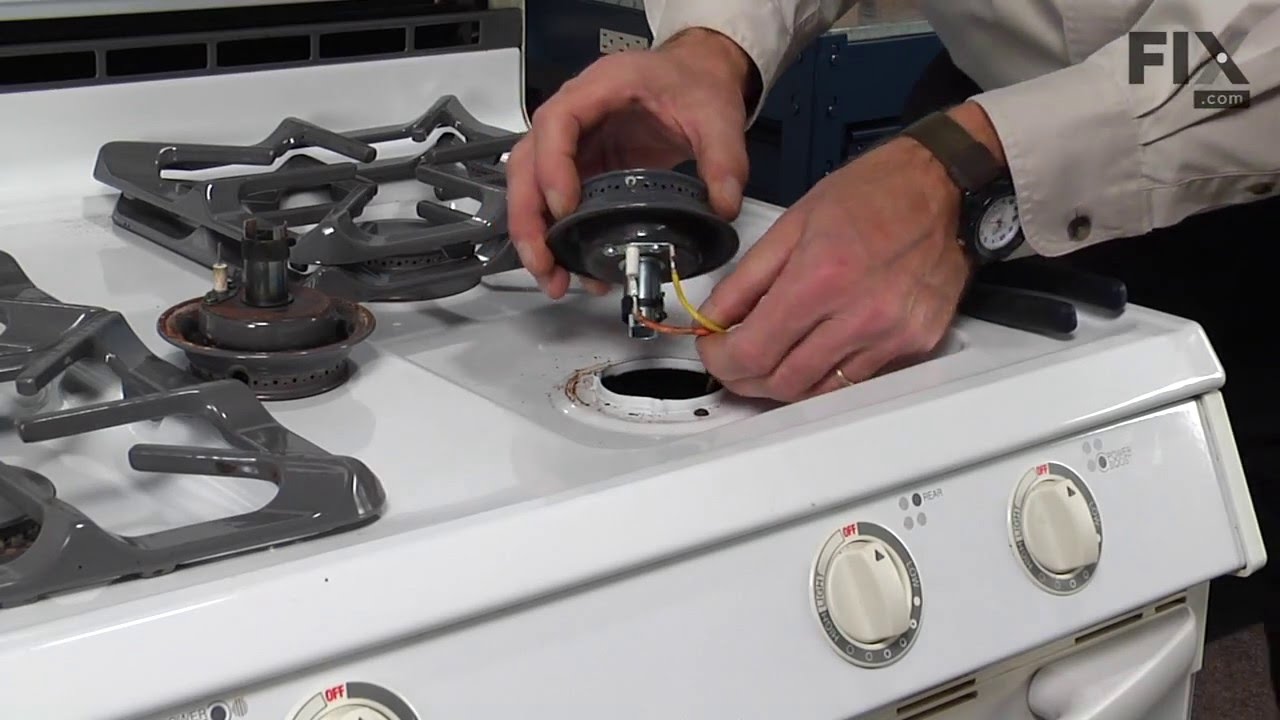

Replacing your Sealed Burner Cap with Electrode

Replacing your Sealed Burner Cap with Electrode
