See part 17 in the diagram
( Grid squares measure 1x1 inch )

Natural Gas to Liquid Propane Conversion Kit

$31.83
Fix Number: FIX1570293
Manufacturer #: 12001809
Manufactured by: Whirlpool

Product Description

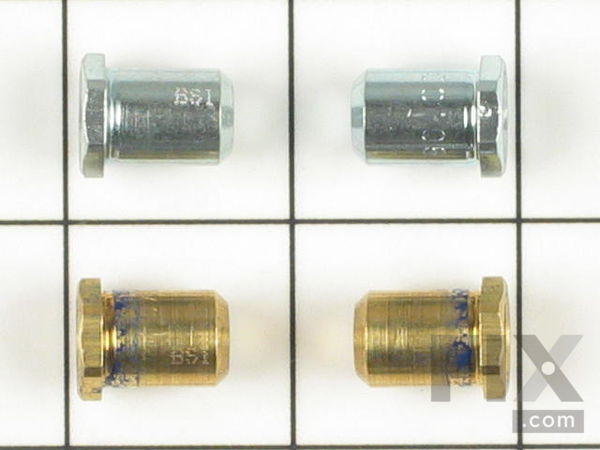

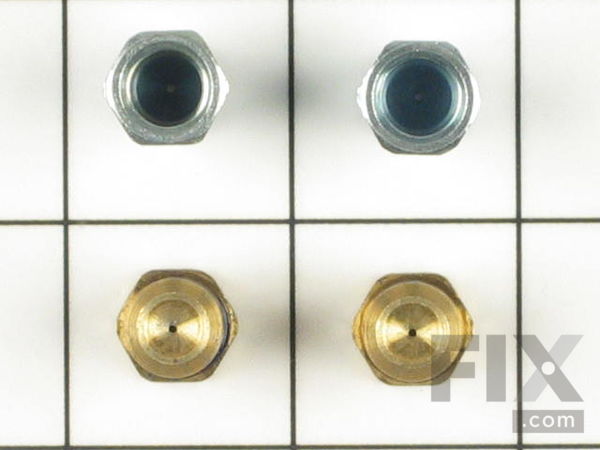

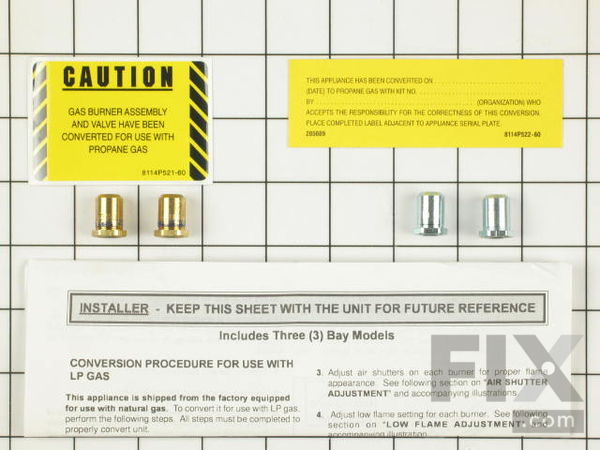

This Conversion Kit is designed for use with various Ranges and Cooktops manufactured by Whirlpool, Jenn-Air, and Maytag. To ensure this is compatible with your appliance, please see the "Model Cross Reference List" below. This Kit contains the four orifices needed for converting your natural gas range to liquid propane. Each orifice is approximately 0.75" long. Please note, to convert back to natural gas, you must save the old orifices, or you will have to purchase burner tubes that contain the natural gas orifices. Ensure that all safety measures described in instructions are followed due to the risk of explosion or fire from incorrect installation. Each kit is sold individually.

Questions and Answers

Questions and Answers

Ask our experts a question about this part and we'll get back to you as soon as possible!

2 questions answered by our experts.
Sort by:
Sorry, we couldn't find any existing answers that matched.
Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Lucias
December 6, 2021
Is there a natural gas to lp conversion kit for my model?
For model number JGR8750BDB
Hello Lucias, Thank you for contacting us. We have researched the model you have provided and have found there is no Conversion Kit required, you adjust the orifices and flip the regulator on the Valve. We hope this helps!

1 person found this helpful.

Was this helpful?
Thank you for voting!
Jonathan
March 28, 2022
I have change the orifices to lp but it still does not seem to burn right and there was not and spring with any of the kits. I found what am I doing wrong. I seen people say something about flipping the regulator over
For model number JDG8130ADS
Hello Jonathan, Thank you for the question. To convert the oven you will need to remove the small cap on the regulator and flip the pin for use on LP. We hope this helps, good luck with this repair!

Was this helpful?
Thank you for voting!

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 5.0 / 5.0, 3 reviews.
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.
  • Customer:
    Andrew from ALBION, MI
  • Parts Used:
    12001809
  • Difficulty Level:
    Really Easy
  • Total Repair Time:
    Less than 15 mins
  • Tools:
    Socket set, Wrench (Adjustable)
The cook top came out of a house with natural gas and my house is propane.
The regulator has a cap that easily flips over to switch from natural gas to lp. The orifices needed to be replaced to keep the burner flame from burning my eyebrows off. I used a 1/2 inch open end wrench to change the first of the four orifices but then I grabbed my socket wrench and did the rest in about 5 minutes. The flames were perfect! No need to adjust the air mix. So that was it.
3 of 4 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • Customer:
    Martin J. from Bend, OR
  • Parts Used:
    WP71001641, 12001809
  • Difficulty Level:
    Really Easy
  • Total Repair Time:
    Less than 15 mins
  • Tools:
    Nutdriver, Screw drivers
Wanted to convert to propane
Unscrew jets using 1/2 spanner. Install new jets that were clearly labelled with excellent instructions for adjusting air into jets also so easy. My flames are blue and stove working perfectly. I cannot endorse this site enough excellent!
3 of 7 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • Customer:
    Marvin L from Salem, OR
  • Parts Used:
    12001809
  • Difficulty Level:
    Very Easy
  • Total Repair Time:
    Less than 15 mins
  • Tools:
    Pliers, Wrench set
changing my natural gas cook top to LP gas
vary easy to fallow instructions, removed the burners and burner pan to expose gas orifice, removed orifice with 1/2 inch deep socket, replaced with LP gas orifice , aproximenent start to finish 12 minuets.
1 of 6 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Model Compatibility
This part works with the following models:
Fix Number: FIX1570293
Manufacturer Part Number: 12001809
Brand
Model Number
Description
Jenn-Air
CG106B
Cooktop - Gas
Jenn-Air
CG106L
Cooktop - Gas
Jenn-Air
CG106S
Cooktop - Gas
Jenn-Air
CG205W
Cooktop - Gas
Jenn-Air
CG206B
Cooktop - Gas
Jenn-Air
CG206B-C
Cooktop - Gas
Jenn-Air
CG206L
Cooktop - Gas
Jenn-Air
CG206L-C
Cooktop - Gas
Jenn-Air
CG206S
Cooktop - Gas
Jenn-Air
CG206S-C
Cooktop - Gas
Maytag
CSG9900AAB
Cooktop - Gas
Maytag
CSG9900AAE
Cooktop - Gas
Jenn-Air
CVG4100B
Cooktop - Gas
Jenn-Air
CVG4280B
Cooktop - Gas
Jenn-Air
CVG4280S
Cooktop - Gas
Jenn-Air
CVG4280W
Cooktop - Gas
Whirlpool
SC8720EDB0
Cooktop - Gas 30", Convertible
Whirlpool
SC8720EDW0
Cooktop - Gas 30", Convertible
Jenn-Air
SEG196
Range - Slide-in, Electric-Gas Combo
Jenn-Air
SEG196-C
Range - Slide-in, Electric-Gas Combo
Jenn-Air
SEG196W
Range - Slide-in, Electric-Gas Combo
Jenn-Air
SEG196W-C
Range - Slide-in, Electric-Gas Combo
Jenn-Air
SVD48600B
Range - Slide-in, Electric-Gas Combo
Jenn-Air
SVD48600BC
Range - Slide-in, Electric-Gas Combo
Jenn-Air
SVD48600P
Range - Slide-in, Electric-Gas Combo
Jenn-Air
SVD48600PC
Range - Slide-in, Electric-Gas Combo
Jenn-Air
SVD48600PF
Range - Slide-in, Electric-Gas Combo
Jenn-Air
SVD48600PG
Range - Slide-in, Electric-Gas Combo
Jenn-Air
SVD48600PK
Range - Slide-in, Electric-Gas Combo
Jenn-Air
SVD48600PR
Range - Slide-in, Electric-Gas Combo
