470125-1-M-Frigidaire-5303935058 -Terminal Block Kit
Part Location Diagram of 5303935058 Frigidaire Terminal Block Kit
See part 11 in the diagram

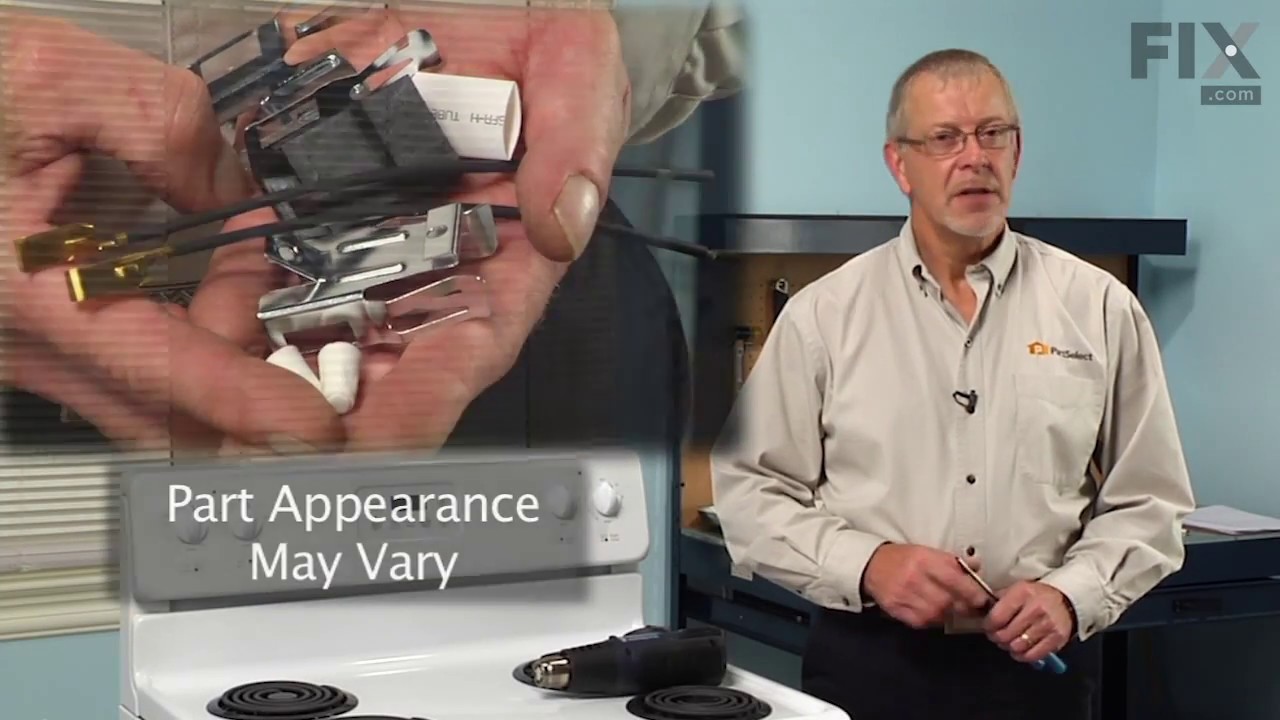

Replacing your Frigidaire Range Terminal Block Kit
470125-1-S-Frigidaire-5303935058 -Terminal Block Kit 360 view
( Grid squares measure 1x1 inch )
470125-1-S-Frigidaire-5303935058 -Terminal Block Kit 470125-1-S-Frigidaire-5303935058 -Terminal Block Kit 360 view
Part Location Diagram of 5303935058 Frigidaire Terminal Block Kit Replacing your Frigidaire Range Terminal Block Kit

Terminal Block Kit

Works With Model GEF400WAW1!

Rated by 9 customers

?

Really Easy

30 - 60 mins

Ratings submitted by customers like you who bought this part.

?
$9.73
In Stock
Fix Number: FIX470125
Manufacturer #: 5303935058
Manufactured by: Frigidaire
Works With Model GEF400WAW1!
  • Product Description

    This kit comes with the necessary components to replace your burner terminal block. It includes interchangeable mounting brackets, a terminal box, ceramic wire nuts, heat shrink protective tubing, and wires. The purpose of this part is to connect the wire harness to the surface element, which allows for the burners to heat up. Some common issues that result from a damaged terminal block is that your element will not heat properly or not heat up at all, may cause burning smell, or make a buzzing noise. If you remove the element and the tips are black, that is a good sign there is a problem with the terminal block and it should be replaced. It may also be necessary to replace the burner elements as well, if the tips are badly damaged. This repair will require a pair of wire strippers, a #1 square head screwdriver, and a heat gun or hair dryer. If you are not comfortable with cutting, stripping, and reconnecting of wires you should contact a qualified professional to complete this repair. Please be sure to disconnect the power supply to your appliance before starting this repair. As this is a genuine OEM parts kit, it will be compatible with your appliance model.

  • Works with the following brands
    Frigidaire, Tappan, Kenmore, Kelvinator
  • Works with the following products
    Range, Cooktop, Wall Oven
  • Fixes the following symptoms
    Element will not heat, Will Not Start, Oven not heating evenly
  • Part Number Cross Reference
    Part# 5303935058 replaces these:
    AP2591744, 12871, 5303935058, 08002879, 08002916, 08002917, 08002918, 08002919, 08003109, 08008697, 08008699, 08010475, 08011433, 08011962, 08012830, 08012865, 08067829, 08950054, 09957075, 3008769 ... Show more , 3016601, 3016957, 3018000, 3051402, 3051825, 318366400, 355L120S01, 42822, 5300219245, 5301167733, 5303016957, 5303211301, 5303285957, 5303304731, 5303310284, 5303912666, 709T026P01, 709T026S01, 709T026S02, 709T034P01, 709T034S01, 709T045P01, 709T045S01, 8002916, 8002917, 8002918, 8002919, 8010475, 8012865, 8067829, 9175, A1505240, A1505979, AE042023, AP042024, G54972, G55667, K001167470, K001167733, K001315483, K001319226, K1167204, K1167205, K1167470, K1167733, K1310415, K1311332, K1312169, K1312179, K1312800, K1315200, K1315483, K1319226, K1323861, K1323982, K5043104, K5043105, K5118101, K5118102, K5118103, K5118104, K5118105, K5137801, P042024, PP042024, Q000160979, Q000212097, Q000219245, Q160979, S5303310284 Show less
1 Installation Video
1 Related Part Questions and Answers
9 Installation Instructions Model Compatibility
Product Description Part Videos Questions and Answers Related Parts Installation Instructions Model Compatibility

Product Description

This kit comes with the necessary components to replace your burner terminal block. It includes interchangeable mounting brackets, a terminal box, ceramic wire nuts, heat shrink protective tubing, and wires. The purpose of this part is to connect the wire harness to the surface element, which allows for the burners to heat up. Some common issues that result from a damaged terminal block is that your element will not heat properly or not heat up at all, may cause burning smell, or make a buzzing noise. If you remove the element and the tips are black, that is a good sign there is a problem with the terminal block and it should be replaced. It may also be necessary to replace the burner elements as well, if the tips are badly damaged. This repair will require a pair of wire strippers, a #1 square head screwdriver, and a heat gun or hair dryer. If you are not comfortable with cutting, stripping, and reconnecting of wires you should contact a qualified professional to complete this repair. Please be sure to disconnect the power supply to your appliance before starting this repair. As this is a genuine OEM parts kit, it will be compatible with your appliance model.

  • Works with the following brands:
    Frigidaire, Tappan, Kenmore, Kelvinator
  • Works with the following products:
    Range, Cooktop, Wall Oven
  • Fixes the following symptoms:
    Element will not heat, Will Not Start, Oven not heating evenly
  • Part# 5303935058 replaces these:
    AP2591744, 12871, 5303935058, 08002879, 08002916, 08002917 ... Show more , 08002918, 08002919, 08003109, 08008697, 08008699, 08010475, 08011433, 08011962, 08012830, 08012865, 08067829, 08950054, 09957075, 3008769, 3016601, 3016957, 3018000, 3051402, 3051825, 318366400, 355L120S01, 42822, 5300219245, 5301167733, 5303016957, 5303211301, 5303285957, 5303304731, 5303310284, 5303912666, 709T026P01, 709T026S01, 709T026S02, 709T034P01, 709T034S01, 709T045P01, 709T045S01, 8002916, 8002917, 8002918, 8002919, 8010475, 8012865, 8067829, 9175, A1505240, A1505979, AE042023, AP042024, G54972, G55667, K001167470, K001167733, K001315483, K001319226, K1167204, K1167205, K1167470, K1167733, K1310415, K1311332, K1312169, K1312179, K1312800, K1315200, K1315483, K1319226, K1323861, K1323982, K5043104, K5043105, K5118101, K5118102, K5118103, K5118104, K5118105, K5137801, P042024, PP042024, Q000160979, Q000212097, Q000219245, Q160979, S5303310284 Show less

Videos For installing this part.

Replacing your Terminal Block Kit

Replacing your Terminal Block Kit

Questions and Answers

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

Surface Element - 8 Inch - 2600W
$40.80
Part Number: FIX2339242
The surface elements provide heat for cooking on the top your range, typically in a smaller and larger size to fit your various pots and pans. If an element is not heating up, it is a sign that it should be replaced. Thi...
$40.80
In Stock

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 4.1 / 5.0, 9 reviews.
  • 1
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
  • Customer:
    SHIRLEY O from boxborough, MA
  • Difficulty Level:
    Really Easy
  • Total Repair Time:
    30 - 60 mins
  • Tools:
    Pliers, Screw drivers
burner would not heat
removed burners, cut wires to each burner, installed new wires from terminal block kit. reinstalled surface element. Followed directions from video located at site of the ordered items
6 of 7 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Surface Burners Broken
Watched the video on how to change the terminal Block and it was a breeze! Step by Step followed the video and walked right through the repair. Range is working very well. The repair was easy as could be, the hardest part was the traffic to get to the range!
6 of 11 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • Customer:
    Melvin L from West Melbourne, FL
  • Difficulty Level:
    Really Easy
  • Total Repair Time:
    Less than 15 mins
  • Tools:
    Pliers
Burner was low, intermitten
Turn off power @ the Breaker Box, cut the wires, (make sure the routing was not changed, it really don't matter) installed as the note/direction state. 10-15min.
4 of 6 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • Customer:
    Phil from Elkton, OR
  • Parts Used:
    5303935086, 5303935058
  • Difficulty Level:
    Really Easy
  • Total Repair Time:
    30 - 60 mins
  • Tools:
    Pliers, Screw drivers, Socket set
8 inch surface element melted at elbow to terminal block - shot out a 6 inch flame.
Note: This is the first time I've ever tried fixing a stove. First, I ordered a new element. Took a minute to install, but it didn't solve the problem. I ordered a terminal block kit and switch kit. Replaced the terminal block. Took about 10 minutes. Only problem was the shrink sleeves melted. Electrician's tape remedied the problem. Tested the element again. It still didn't work. Following instructions provided, replaced the old switch with the new universal switch. First unplugged stove. Removed upper back panel. Took a closeup photo of switch connections, in case I messed up. Removed old switch, leaving all wires connected. Per instructions, mounted new switch and fitted dial to proper length - took about two minutes. Permanently mounted new switch. New switch wire terminals were not in the same location as on the old switch. No matter, both old and new switch terminal designations are clearly marked. Transferred wires from old terminals, one at a time, and connected to corresponding terminal on new switch. Plugged in stove. Turned on the new switch. Element worked fine. Tested the rest of the stove, just to make sure I didn't mess anything up. Everything worked. Replaced back panel. Cleaned up areas on the stove that are hard to reach while stove is in place. Slid stove back in place. Works like a champ.
4 of 6 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • Customer:
    Kennerh from Bridgeton, NJ
  • Parts Used:
    5303935058
  • Difficulty Level:
    Very Easy
  • Total Repair Time:
    15 - 30 mins
  • Tools:
Electric coil would not always heat.
I followed the video, which is a great idea, thank you!
3 of 3 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • Customer:
    Nina from Cheviot, OH
  • Parts Used:
    5303935058
  • Difficulty Level:
    Very Easy
  • Total Repair Time:
    30 - 60 mins
  • Tools:
    Screw drivers
Burner would sometimes work & sometimes not. Would stop in the middle of cooking.
Just follow the directions provided with the terminal block & it's really, really easy. Only problem that I had was telling the front from the back & the top from the bottom but I think that the wires only snap in one way so there is no way to screw it up!
2 of 2 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • Customer:
    james from saint clair, PA
  • Parts Used:
    316442301, 5303935058
  • Difficulty Level:
    Very Easy
  • Total Repair Time:
    15 - 30 mins
  • Tools:
    Screw drivers
burner stopped working
followed instructions on video and enclosed with part, extremely easy, only difficulty I never used heat shrink before, used a lighter on heat shrink but heat gun would be easier if you have one
2 of 2 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • Customer:
    Leigh from Maysville, KY
  • Parts Used:
    5303935058, 3051163, 3051162
  • Difficulty Level:
    Really Easy
  • Total Repair Time:
    30 - 60 mins
  • Tools:
terminal block kit you sent me the wrong kit
i did not on the terminal block but that is not what it is called.it was the plug for the burner
1 of 2 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Heating element was intermittently over heating and switch was sparking
Followed the repair instructions at each of the parts web pages. Also found that the instructions at this location were helpful to understand why the new switch did not look like the original switch.
1 of 2 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • 1
Back to Top
Model Compatibility
This part works with the following models:
Fix Number: FIX470125
Manufacturer Part Number: 5303935058
Brand
Model Number
Description
Kenmore
1196458010
Wall Oven
Kenmore
1196458011
Wall Oven
Kenmore
1196458110
Wall Oven
Kenmore
1196458111
Wall Oven
Kenmore
1196458112
Wall Oven
Kenmore
1196468010
Wall Oven
Kenmore
1196468011
Wall Oven
Kenmore
1196468110
Wall Oven
Kenmore
1196468111
Wall Oven
Kenmore
1196468112
Wall Oven
Kenmore
1196478010
Wall Oven
Kenmore
1196478011
Wall Oven
Kenmore
1196478110
Wall Oven
Kenmore
1196478111
Range
Kenmore
1196478112
Wall Oven
Kenmore
1196488010
Wall Oven
Kenmore
1196488011
Wall Oven
Kenmore
1196488110
Wall Oven
Kenmore
1196488111
Range
Kenmore
1196488112
Wall Oven
Kenmore
1196498210
Wall Oven
Kenmore
1196508210
Wall Oven
Kenmore
1199008710
Range
Kenmore
1199008810
Range
Kenmore
1199018710
Range
Kenmore
1199018810
Range
Kenmore
1199018811
Range
Kenmore
1199018813
Range
Kenmore
1199018883
Range
Kenmore
1199028410
Range
