Part Location Diagram of 308452002 Homelite Detergent Suction Kit
See part 54 in the diagram

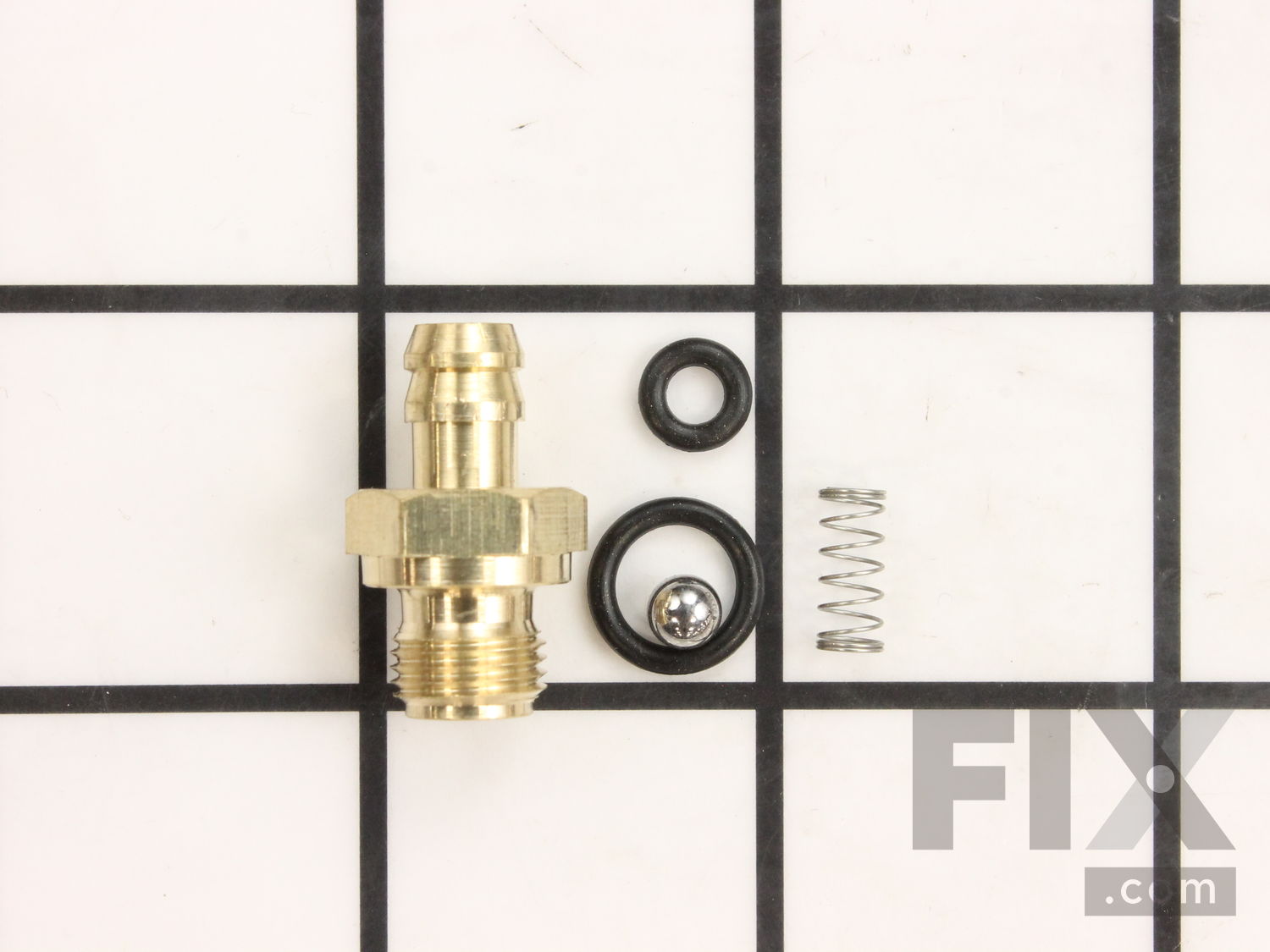

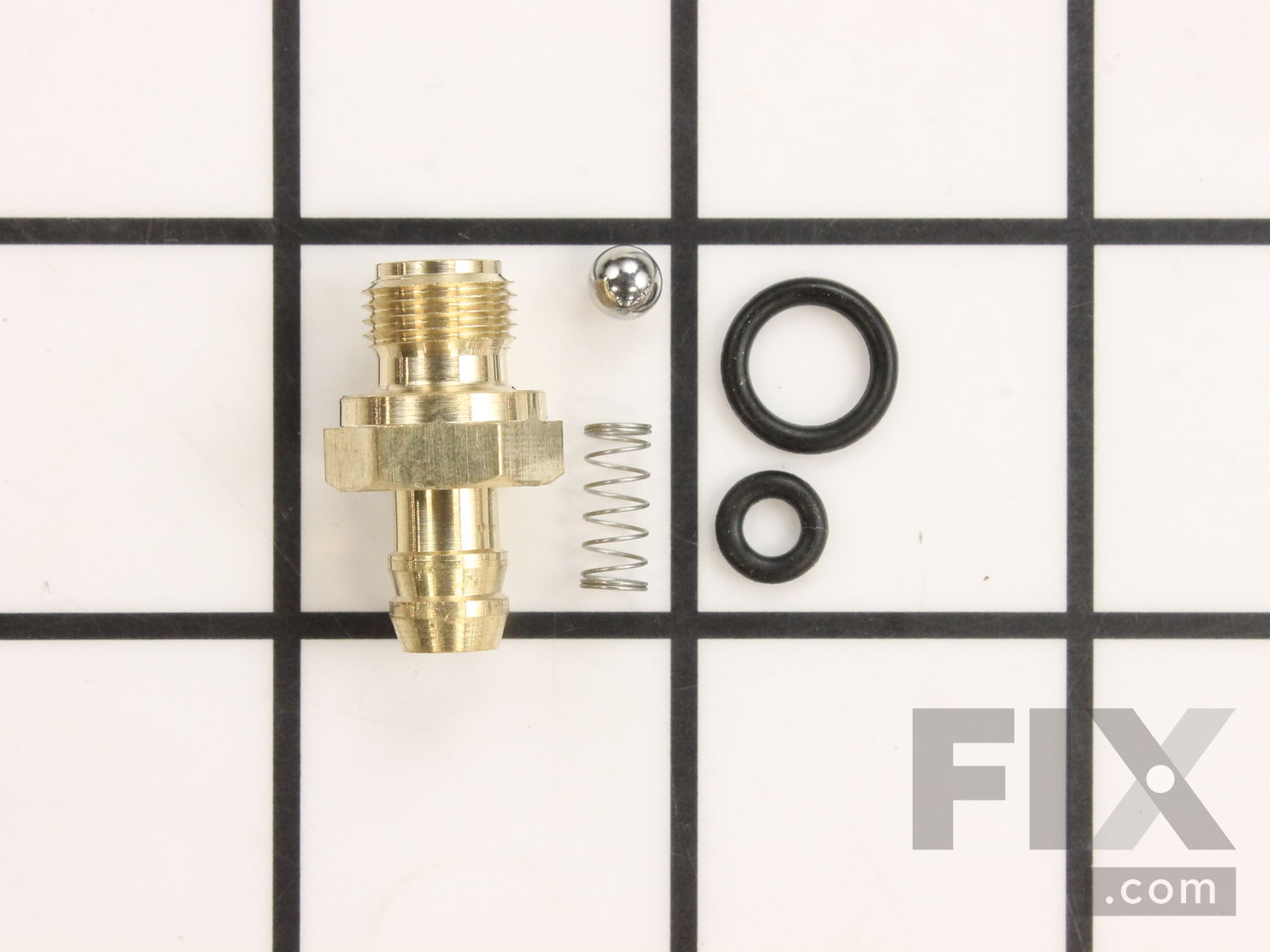

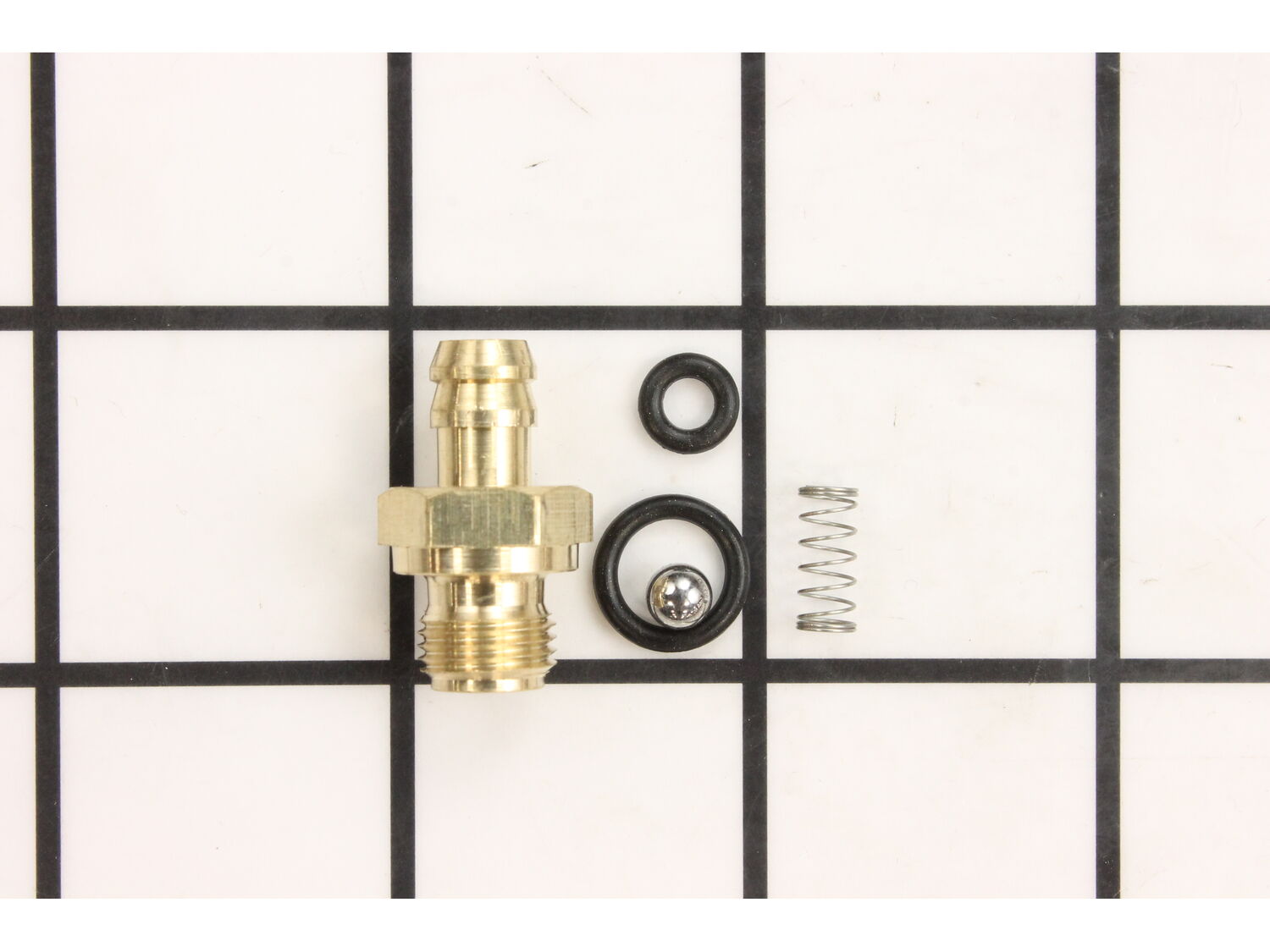

( Grid squares measure 1x1 inch )

Detergent Suction Kit

$4.99
In Stock
Fix Number:
FIX9938134
Manufacturer #:
308452002
Manufactured by:
Homelite

Product Description

This is an OEM detergent suction kit, also referred to as a chemical injection kit, for a pressure washer. This kit is threaded into the pump assembly and is connected to the chemical siphon tube that is located in a container that holds the cleaner. This kit includes, (1) bronze nozzle, (1) large O-ring, (1) small O-ring, (1) steel ball, (1) spring (5 components total). For this repair, use a pair of pliers to grasp the detergent supply tube and remove the tube from the chemical injector. Remove the old injector with a wrench. To prepare the kit, start by placing the O-rings on the bronzed nozzle, then the steel ball, then the spring. Apply lubricant on the large O-ring and then thread it back into the port.

Questions and Answers

Ask our experts a question about this part and we'll get back to you as soon as possible!

2 questions answered by our experts.
  • 1
Sort by:
Sorry, we couldn't find any existing answers that matched.
Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Keith
November 18, 2021
Regarding this detergent suction kit. Where does the small O-ring go? Does it go in the brass pc before you put the ball in? Thanks for you help.
Fix.com logo
Hello Keith, Thank you for the great question. The O-Rings are placed on the Bronze nozzle, then the spring will go in first, then the steel ball, then thread in the nozzle. We hope this helps!

4 people found this helpful.

Was this helpful?
Thank you for voting!
Pablo
November 23, 2023
is water suppose to come out of the valve, when under pressure or ill have to ajust the pressure spring valve. so this wont happen. thanks
For model number ryobi 802700
Fix.com logo
Hello Pablo, thank you for reaching out. The unloader valve reduces water pressure within the pressure washer pump when the pump runs, but the spray wand is not used by recirculating water to the pump inlet. If the valve sticks in the closed position, the thermal relief valve frequently discharges hot water onto the ground because the unloader valve can not open to allow recirculation. If the pressure washer does not develop adequate outlet pressure, the unloader valve could be stuck open. Replace the unloader valve, part number FIX11857417, if it sticks in either the closed or open position. We hope this information helps!

Was this helpful?
Thank you for voting!
Related Parts:

Model Compatibility

This part works with the following models:
Fix Number: FIX9938134
Manufacturer Part Number: 308452002
Brand
Model Number
Description
Homelite
BM802711
Pressure Washer - Bm802711 Pressure Washer Mfg. No. 090079304
Homelite
BM802823
Pressure Washer - Bm802823 Pressure Washer Mfg No. 090079397 7-3-18 (Rev:02)
Homelite
BM80320X
Pressure Washer - Bm80320x Pressure Washer Mfg No. 090079296 5-18-16 (Rev:01)
Homelite
BM803300H
Pressure Washer - Bm803300h 3300 Psi Pressure Washer Mfg. No. 095079452 11-13-20 (Rev:01)
Homelite
BM803300HVNM
Pressure Washer - Bm803300hvnm 3300 Psi Pressure Washer Mfg. No. 095079452 11-13-20 (Rev:01)
Homelite
BM80544
Pressure Washer - Bm80544 3100 Psi Pressure Washer Mfg. No. 090079457 11-13-20 (Rev:01)
Homelite
BM80913
Pressure Washer - Black Max Pressure Washer
Homelite
BM80913A
Pressure Washer - 2600 PSI Pressure Washer
Homelite
BM80915
Pressure Washer - 3000 PSI Pressure Washer
Homelite
BM80915D
Pressure Washer - Bm80915d 3000 Psi Pressure Washer
Homelite
BM80915E
Pressure Washer - Bm80915e 3000 Psi Pressure Washer
Homelite
BM80919
Pressure Washer - 2700 PSI Pressure Washer
Homelite
BM80919A
Pressure Washer - 2700 PSI Pressure Washer
Homelite
BM80919B
Pressure Washer - Bm80919b 2700 Psi Pressure Washer
Homelite
BM80919D
Pressure Washer - Bm80919d 2700 Psi Pressure Washer
Homelite
BM80919E
Pressure Washer - Bm80919e 2800 Psi Pressure Washer
Homelite
BM80920
Pressure Washer - Bm80920 2800 Psi Pressure Washer
Homelite
BM80930
Pressure Washer - Bm80930 3200 Psi Pressure Washer
Homelite
GC80747
Pressure Washer - G-Clean Pressure Washer
Homelite
GC80922
Pressure Washer - Homelite Pressure Washer Model GC80922 Parts
Homelite
HL252300
Pressure Washer - Pressure Washer
Homelite
HL80833
Pressure Washer - 3-N-1 Hi-Speed Gasoline Pressure Washer
Homelite
HL80835
Pressure Washer - 3-N-1 Hi-Speed Gasoline Pressure Washer
Homelite
HL80923
Pressure Washer - 3100 PSI Pressure Washer
Homelite
HLCA80710
Pressure Washer - Pressure Washer
Homelite
HU80432
Pressure Washer - Pressure Washer
Husky
HU80432A
Pressure Washer - Husky Pressure Washer Model HU80432A Parts
Homelite
HU80709
Pressure Washer - Pressure Washer
Homelite
HU80833A
Pressure Washer - 3-N-1 Hi-Speed Gasoline Pressure Washer
Homelite
HU80911
Pressure Washer - Pressure Washer
