10310270-1-M-DeLonghi-511741-Large Double Rocker Switch
( Grid squares measure 1x1 inch )
10310270-1-S-DeLonghi-511741-Large Double Rocker Switch 10310270-2-S-DeLonghi-511741-Large Double Rocker Switch 10310270-3-S-DeLonghi-511741-Large Double Rocker Switch

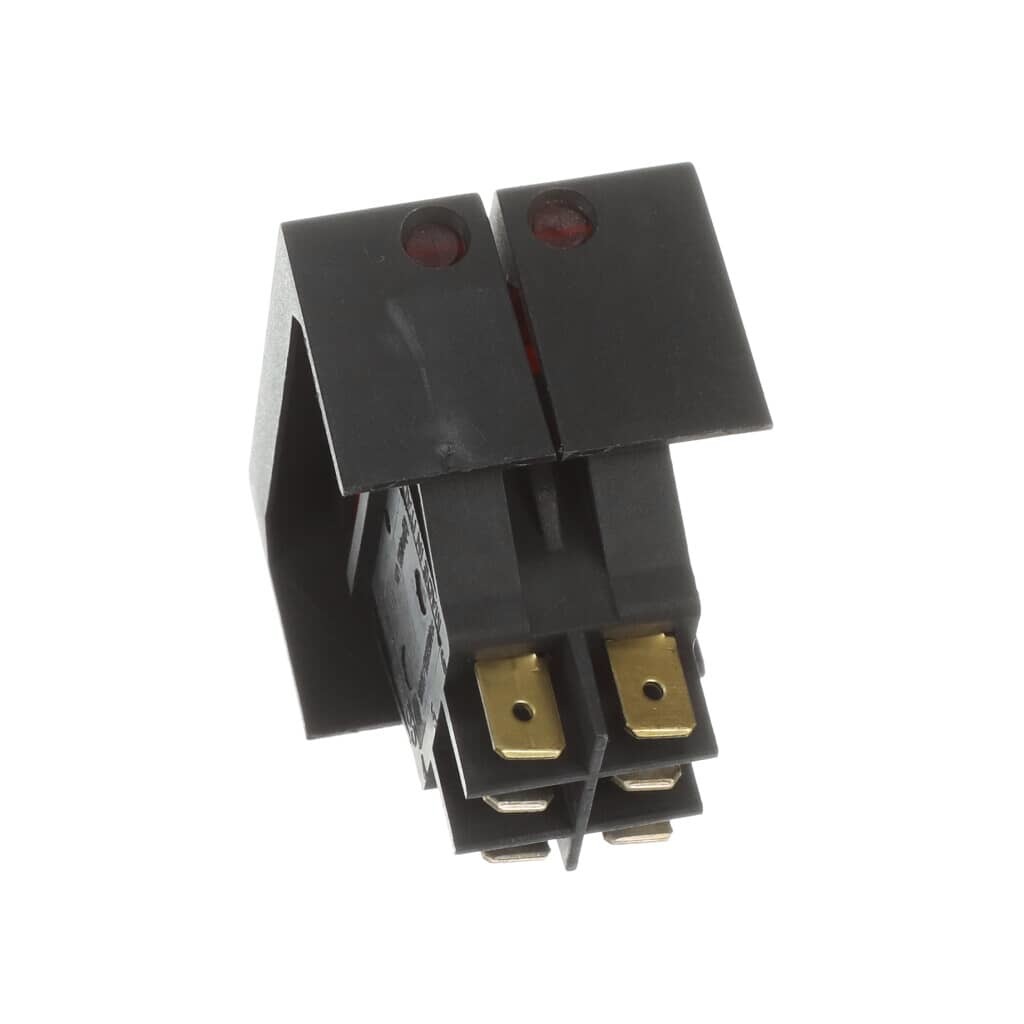

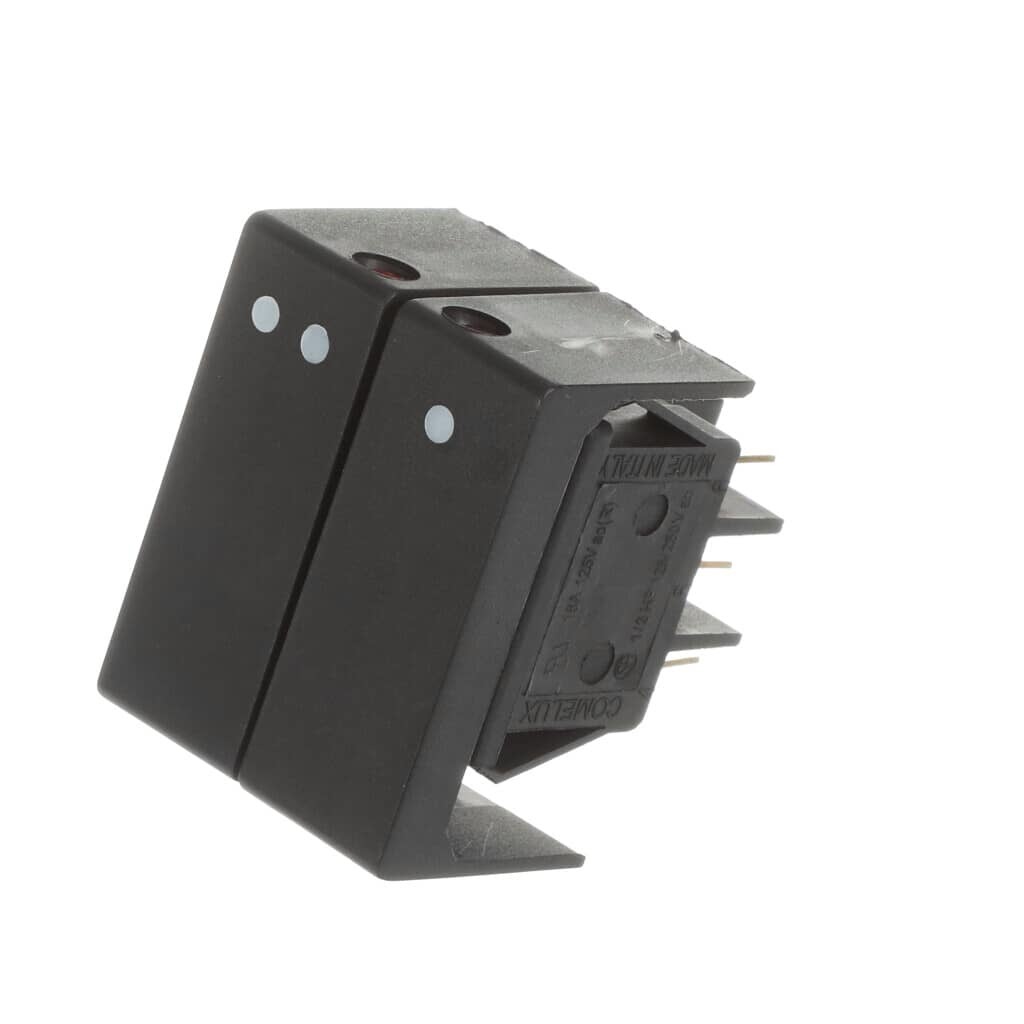

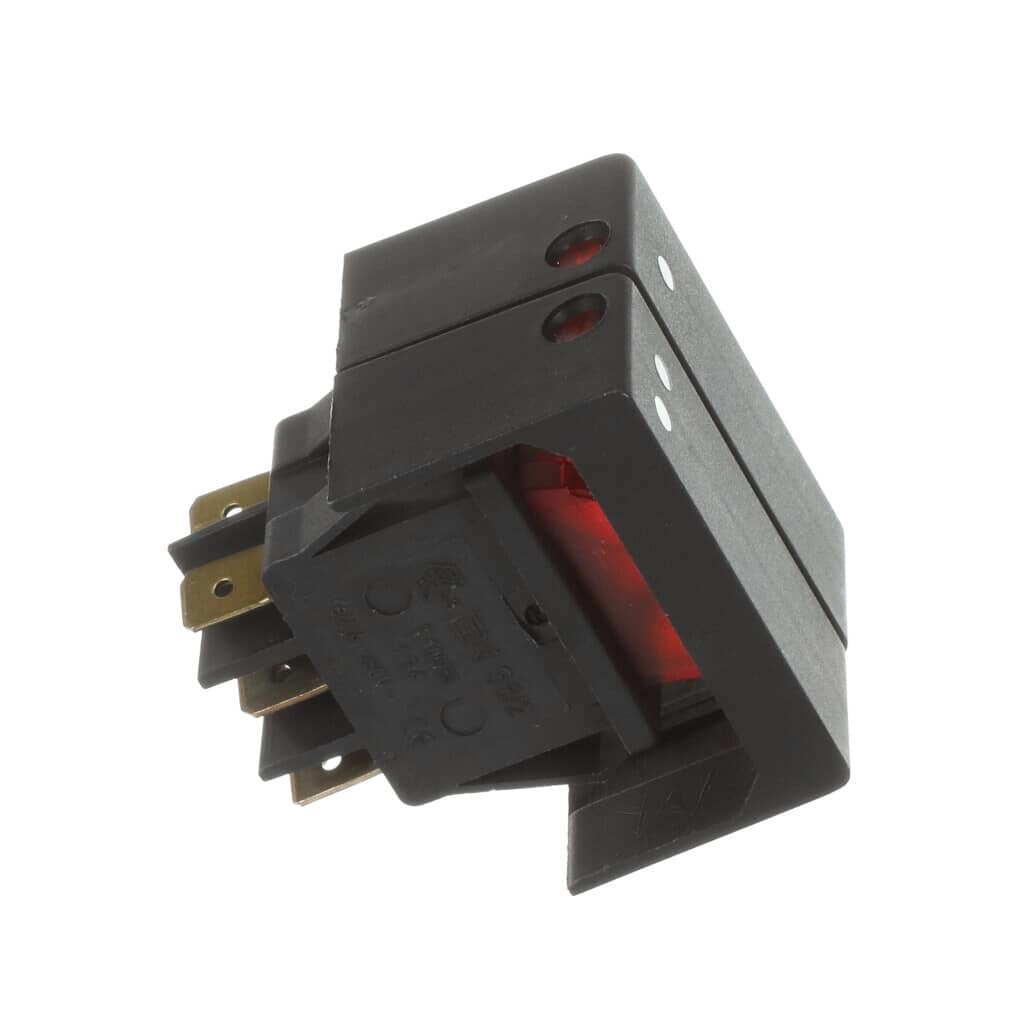

Large Double Rocker Switch 511741

★★★★★
★★★★★
3 Reviews

Rated by 3 customers

?

Really Easy

30 - 60 mins

Ratings submitted by customers like you who bought this part.

?
$12.32
In Stock
Fix Number:
FIX10310270
Manufacturer #:
511741
Manufactured by:
DeLonghi

Jump to:

Product Description

This authentic replacement rocker switch is supplied directly from original manufacturer. It is specially made for use with DeLonghi heaters. It controls the on/off functions of a unit. Switches are commonly replaced parts, over time, mechanical internals will wear out requiring replacement. This plastic switch is sold individually. To complete this repair you will need a screwdriver. • First make sure the tools is not plugged in • Then you want to remove the cover screws • Remove the old switch • Secure the new switch in place • Reassemble and test the unit

  • Works with the following brands:
    DeLonghi
  • Works with the following products:
    Heater
Works with the following brands:
DeLonghi
Works with the following products
Heater

Questions and Answers

Ask our experts a question about this part and we'll get back to you as soon as possible!

1 question answered by our experts.
  • 1
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.
Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
KENNETH
January 4, 2023
This switch looks nothing like the switch I took out of my model 9608. How do I know it will fit? I'm happy to send pictures of my old switch but don't see a way to do it here.
For model number 9608
Fix.com logo
Hi Kenneth, thank you for your inquiry. The Rocker Switch compatible with your model is part number FIX10310270. Customer service is always available to help you place an order if you are having trouble doing so. Good luck with your repair.

Was this helpful?
Thank you for voting!
Affresh Dishwasher Cleaner Tablets - 6
$21.89
In Stock
Part Number: FIX12345667
Affresh dishwasher Cleaner is specially formulated to help remove limescale and mineral build-up that can be unsightly and could affect your dishwasher's performance. Each tablet is designed to clean inside your machine ...
Affresh Washing Machine Cleaner - 3 pack
$19.89
In Stock
Part Number: FIX1960673
This washing machine cleaner includes three time-release tablets designed to remove odor-causing residues, grime, and buildup from high-efficiency and top-load washing machines. The tablets work by cleaning the tub, pump...
Produce Preserver Filter
$17.75
In Stock
Part Number: FIX3503014
Fresh Flow Produce Preserver is made for your refrigerator to help keep produce fresh for longer by absorbing the chemical, ethylene, that causes your fruits and vegetables to ripen quicker. Your produce could be fresh f...
Affresh Washing Machine Cleaner Tablets – 6 Count
$27.87
In Stock
Part Number: FIX12345661
This Affresh Washing Machine Cleaner deep cleans to help remove the odor-causing residues and grime that daily loads leave behind. The time-release tablets are EPA Safer Choice certified, septic-safe and designed to clea...
Refrigerator Deodorizer
$29.78
In Stock
Part Number: FIX12739141
Refrigerator deodorizers help to reduce bacteria growth and therefore reduce smells and extend the life of food.
Affresh Ice Machine Cleaner
$26.87
In Stock
Part Number: FIX12583750
This nickel-safe, unscented ice machine cleaner measures 16 fluid ounces and is used to remove mineral build-up and hard water and is compatible with several makes and models of freestanding ice machines. To use properly...

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 3.9 / 5.0, 3 reviews.
  • 1
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
Customer:
Stephen from BERKELEY HTS, NJ
Parts Used:
511741
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers
Bad switch
1) Unplug heater and lay on its side on secure surface.
2) Open cover panel (containing the switch) with a #2 Phillips screwdriver (one screw).
3) Take a photo of the wires at the switch so you don't forget anything. You could also make a drawing instead.
4) Mark with tape or labels which wire goes where.
5) Gent ly pull off the wires from the 6 switch connections (do this by hand). They just a push fit connection.
5) Using a flat-head screwdriver, push the plastic tabs holding the switch to the plastic panel insert. It is a little hard to push both top and bottom tabs simultaneously, so you may need two screwdrivers and maybe a second person to help. Just be gentle and don't break anything. Have persistence.
6) Pop out the old switch and pop in the new switch so the tabs click into place. Make sure you get the right side up!
7) Rewire according to your photo and labels. Push the connections down tight.
8) Tighten all the other wire push connections while the cover is open (again, with your fingers).
9) Carefully tuck the wires back inside the cover and connect it back to the heater base and screw the cover screw by hand until you know that it isn't cross-threaded.
10) Use #2 Phillips screwdriver and tighten.
Read less
4 of 4 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
Frederick from SAN FRANCISCO, CA
Parts Used:
511741
Difficulty Level:
Really Easy
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers
Two-part On/Off Switch brokeen
Followed the advice of others who had the same problem. Charted the switch connections before disconnecting and removing the old switch.
Removed the old switch by using a small screwdriver to depress the holding flanges on two sides of the switch and then "popping" out the switch.
Replaced with new switch by gently pushing it in to the heater so that the holding flanges were not damaged and snapped into place.
Reconnected the wires.
Put power to the heater and the new two-part switch worked perfectly.
Read less
2 of 2 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
Jerome from NEWPORT, MN
Parts Used:
511741
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins
Tools:
Pliers, Screw drivers
The wattage select switch for 900 watts broke
made a drawing of the switch and labeled the lugs 1 - 6. Then removed the wires one at a time and labeled according to the drawing. Removal of bad switch was easy and the new switch snapped right in
2 of 4 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • 1
★ Customer Reviews
Average Rating: (3 Reviews)
5.0
★★★★★
★★★★★
Filter By Rating:
  • 1
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Bill D - January 27, 2021
Verified Purchase
Perfect fit
No issues exactly what was needed
★★★★★
★★★★★
Denis C - November 4, 2019
Verified Purchase
The large double rocker switch best fit to my heater. It gives back the full power of my heater.
It is easy to replace my damaged rocker switch.
★★★★★
★★★★★
Virginia G - March 11, 2021
Verified Purchase
Perfect part for an old heater!
Not even a week after the new toggle was put on, the heater quit! I guess it was tired from many years of use!

Model Compatibility

This part works with the following models:
Fix Number: FIX10310270
Manufacturer Part Number: 511741
Brand Model Number Description
DeLonghi 3107 Heater - Heater
DeLonghi 3107T Heater - Heater
DeLonghi 5108T Heater - Oil Filled Heater
DeLonghi 5307 Heater - Heater
DeLonghi 9308 Heater - Heater
DeLonghi 9608 Heater - Heater
DeLonghi BU24P Miscellaneous - Appliance
