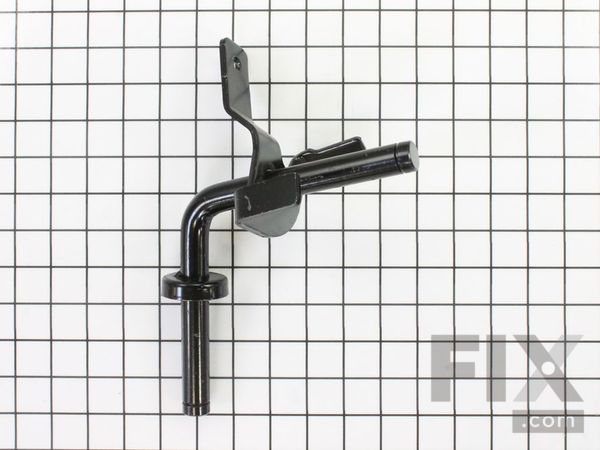

17016482-1-M-Husqvarna-538691201-Welded Wheel Spindle - Right
Part Location Diagram of 538691201 Husqvarna Welded Wheel Spindle - Right
See part I-5 in the diagram

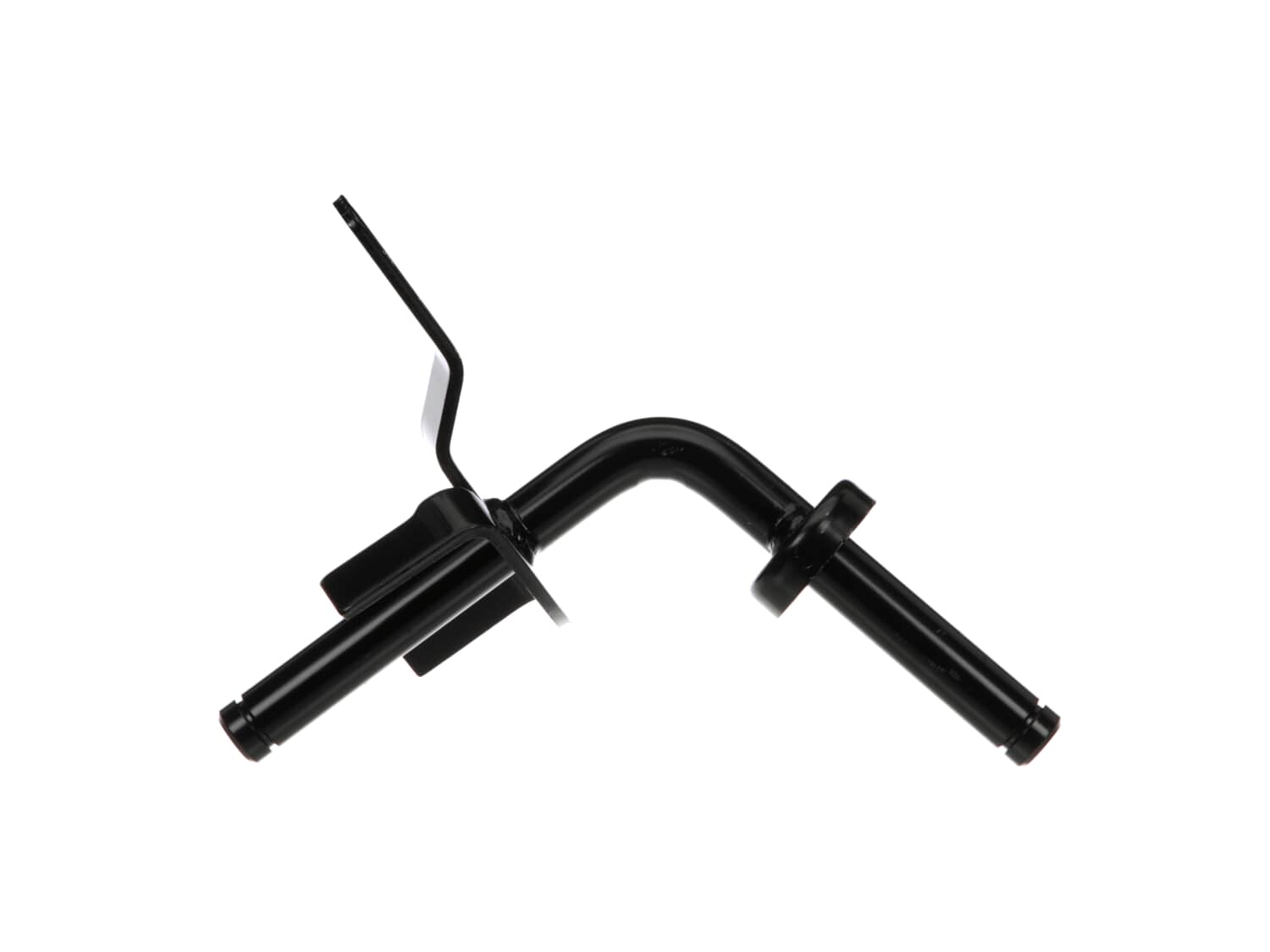

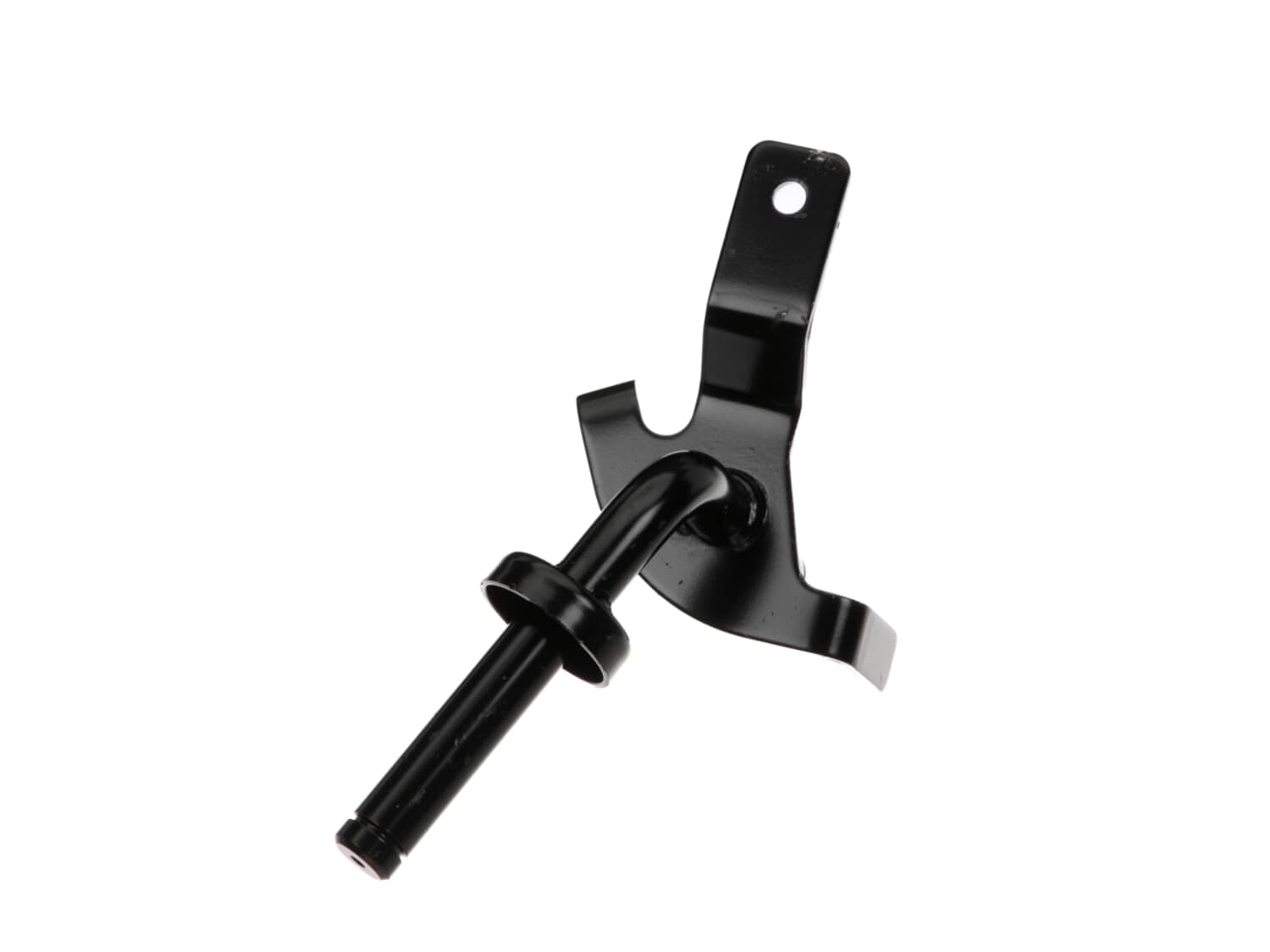

17016482-1-S-Husqvarna-538691201-Welded Wheel Spindle - Right 360 view
( Grid squares measure 1x1 inch )
17016482-1-S-Husqvarna-538691201-Welded Wheel Spindle - Right 17016482-2-S-Husqvarna-538691201-Welded Wheel Spindle - Right 17016482-3-S-Husqvarna-538691201-Welded Wheel Spindle - Right 17016482-1-S-Husqvarna-538691201-Welded Wheel Spindle - Right 360 view
Part Location Diagram of 538691201 Husqvarna Welded Wheel Spindle - Right

Welded Wheel Spindle - Right 538691201

$31.53
In Stock
Fix Number:
FIX17016482
Manufacturer #:
538691201
Manufactured by:
Husqvarna

Jump to:

Product Description

This genuine Craftsman right-side spindle assembly is designed to securely attach the front wheel to the front axle of your lawn tractor. Made from durable metal and sold pre-assembled, it offers a reliable and time-saving replacement solution. Installation Tip: You may need pliers, a socket set, and a screwdriver to complete the installation. For best results, consult your model’s diagram to confirm compatibility before purchase.

  • Works with the following brands:
    Husqvarna, Poulan, Jonsered, Craftsman
  • Works with the following products:
    Lawn Mower, Lawn Tractor
  • Part# 538691201 replaces these:
    194744, 403088, 532194744, 5324030-88, 532403088, 536052802 , 596873701 Show less
Works with the following brands:
Husqvarna, Poulan, Jonsered, Craftsman
Works with the following products
Lawn Mower, Lawn Tractor
Part Number Cross Reference
Part# 538691201 replaces these:
194744, 403088, 532194744, 5324030-88, 532403088, 536052802, 596873701

Questions and Answers
