Thermal Fuse

★★★★★

4 Reviews

Rated by 3 customers

Easy

1- 2 hours

Ratings submitted by customers like you who bought this part.

$23.42

Fix Number: FIX3530485

Manufacturer #: 6931EL3003D

Manufactured by: LG

Product Description

If your dryer is not turning on, or not heating up, there could be an issue with your thermal fuse. This OEM fuse is designed to act as a high-limit thermostat, and will turn off the heating element in your dryer if the appliance overheats. It does this by cutting off power to the dryer. If the fuse has blown, it will need to be replaced as they cannot be reset. You can test the fuse with a multimeter, and should receive a reading of 0 ohms of resistance if the fuse is still good. A common reason for a dryer to overheat is if the air vents are blocked, as the hot air is contained in the dryer causing the fuse to blow. Be sure to keep your dryer filter and vents clean of lint and other debris to prevent this from happening.
Works with the following brands

LG, Kenmore, General Electric
Works with the following products
Dryer, Washer Dryer Combo
Fixes the following symptoms

No heat or not enough heat, Will Not Start, Takes too long to dry, Shuts off too soon
Part Number Cross Reference

Part# 6931EL3003D replaces these:

AP4440975, 6931EL3003D, 6931EL3003E

2 Installation Videos

5 Related Parts Questions and Answers

1 Question and Answer

3 Installation Instructions

4 Customer Reviews

Model Compatibility

Product Description Part Videos Questions and Answers Related Parts Installation Instructions Customer Reviews Model Compatibility

Product Description

If your dryer is not turning on, or not heating up, there could be an issue with your thermal fuse. This OEM fuse is designed to act as a high-limit thermostat, and will turn off the heating element in your dryer if the appliance overheats. It does this by cutting off power to the dryer. If the fuse has blown, it will need to be replaced as they cannot be reset. You can test the fuse with a multimeter, and should receive a reading of 0 ohms of resistance if the fuse is still good. A common reason for a dryer to overheat is if the air vents are blocked, as the hot air is contained in the dryer causing the fuse to blow. Be sure to keep your dryer filter and vents clean of lint and other debris to prevent this from happening.

Works with the following brands:

LG, Kenmore, General Electric
Works with the following products:
Dryer, Washer Dryer Combo
Fixes the following symptoms:

No heat or not enough heat, Will Not Start, Takes too long to dry, Shuts off too soon
Part# 6931EL3003D replaces these:

AP4440975, 6931EL3003D, 6931EL3003E

Videos For installing this part.

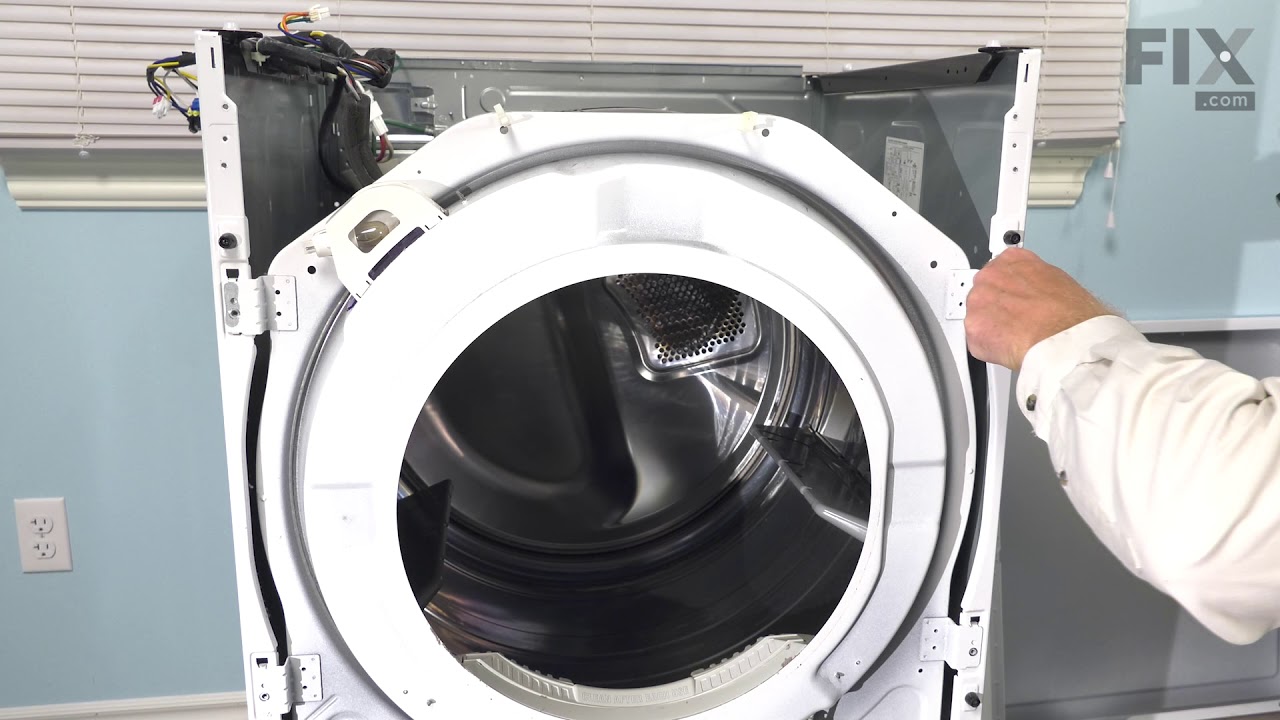

Replacing your Thermal Fuse

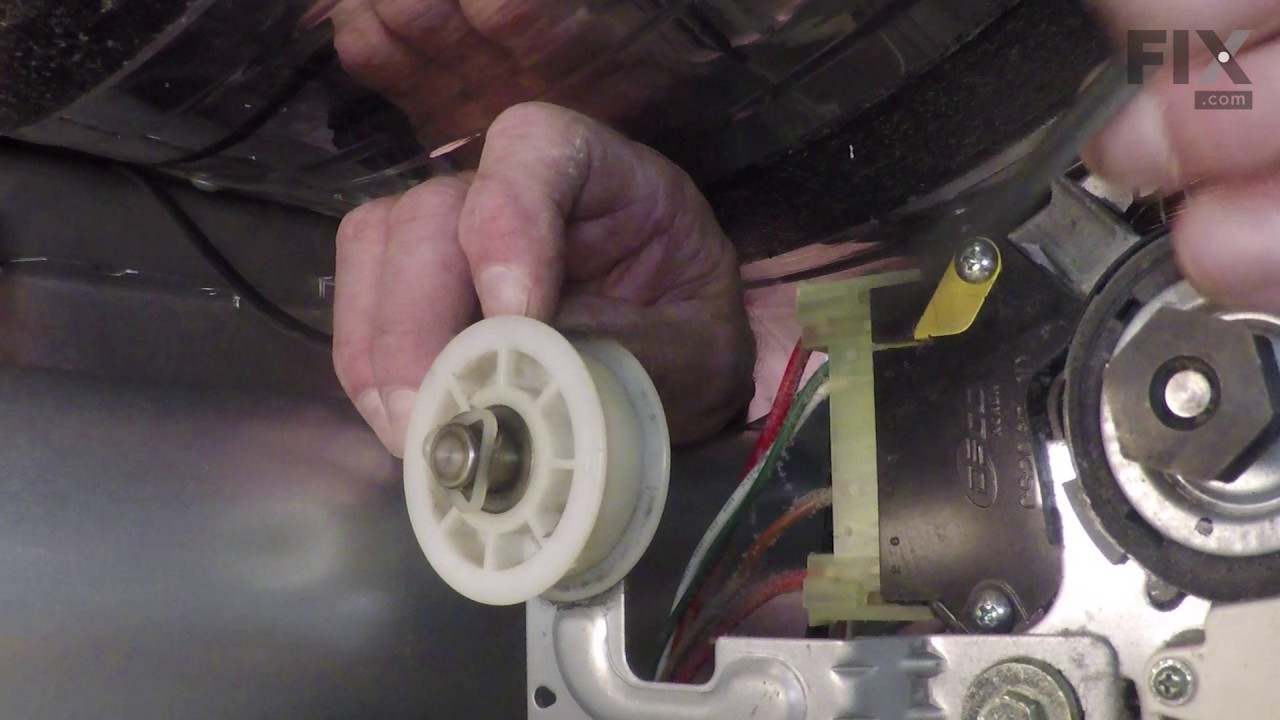

Replacing your Thermal Fuse

Questions and Answers

Ask our experts a question about this part and we'll get back to you as soon as possible!

1 question answered by our experts.

< Prev
1
Next >

Sort by:

James

February 9, 2022

1. My dryer has power but will not start. 2. I can hear a click when I press the (play/pause) START button. 3. I did clean the duct work in the wall all the way to the roof HEAVY LINT. 4. Lastly, disassembly video would be a help. Any advice greatly appreciated. Thanks very much.

For model number DLEX4270V

Hello James, thank you for your question. There could be a few reasons why your dryer will not start. The dryer won't start if the door switch senses that the door is open. To test your door switch, set your multimeter to the lowest position for ohms of resistance. Touch the black meter probe to one metal prong on the switch and the red probe to the other. Press in on the switch pole. If the meter doesn't change, the switch is bad and needs to be replaced. Part number FIX3529308. It could also be the push to start button, part number FIX11708666 or the timer part number FIX11710909. We hope this helps. Unfortunately, we do not have a video. Good luck with your repair!

Was this helpful?

Related Parts:

Door Switch

$39.04

PANEL ASSEMBLY,CONTROL

$324.31

PCB ASSEMBLY,DISPLAY

$230.09

< Prev
1
Next >

Related PartsAdditional or alternate parts to consider.

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 2.6 / 5.0, 3 reviews.

< Prev
1
Next >

Sort by:

Customer:

Richard from Harrison, OH
Parts Used:
6931EL3003D, 6931EL3001E
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers

No heat

Removed screw holding vent tube, pulled vent tube out. The thermal fuse and thermostat assy are left of inside the hole on the back of the dryer where the vent tube came out. The screws are easy to take out with one hand using a phillips screwdriver. I had to use a long screwdriver because the drum was in the way with a shorter one. The screws were pretty tight, so use a phillips with a good point, dont want to strip the screws. Because i can only get one hand in there, it was a little tricky getting the new parts lined up and starting the first screws at the same time, that took a little while but I finally got them started. If i couldnt get the first screws started i was goint to cut the bottom holes on the brackets for the parts, start the screw, slip the bracket onto the screw and then start the second screws. I used a magnetic flashlight inside the dryer, could put it in different places to see better in there. I should have put a few layers of masking tape arround the vent hole edge, its pretty sharp and when i was done i realised i had cut my arm on that edge. Dryer works again and dear Wife is happy.. I did test the old parts, thermal fuse was blown, probably because of too much lint in the flexable dryer hose, i shoulda replaced the dryer hose sooner.

8 of 8 people found this instruction helpful.

Was this instruction helpful to you?

Customer:

david from Winfield, WV
Parts Used:
6931EL3003D
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers

No heat when dryer runs

At first, I could not find a video on an older model dryer with controls on the back. Once I watched a video (on youtube) that showed a dryer with controls on the back (not an LG), I figured out how to get where I needed. The diagrams on the website showed me where I needed to find my part (thermostat) and from there it was easy. I started with the troubleshooting comments (least expensive first, obviously) and if that didn't work, I would work my way up to replacing the entire heating element. Once I put the part in and put it all back together, it is running more quietly and drying just like it used to. One small investment ($4.61 plus shipping) , an afternoon repairing myself, and I saved a TON of money (in repairman coming or purchasing a new dryer)!! Thanks for supplying troubleshooting help AND video support . Will definitely use this site from now on !

3 of 3 people found this instruction helpful.

Was this instruction helpful to you?

Customer:

JOHN from Petaluma, CA
Parts Used:
6931EL3003D, 6931EL3001F
Difficulty Level:
A Bit Difficult
Total Repair Time:
More than 2 hours
Tools:
Pliers, Screw drivers, Wrench (Adjustable)

ran but no heat

Check it out on You Tube and then proceed. Although the parts were very small and inexpensive there was much sheet metal to remove to get at them. This actually afforded and good opportunity to thoroughly clean the rollers and vacuum all the accumulated lint.

1 person found this instruction helpful.

Was this instruction helpful to you?

< Prev
1
Next >

★ Customer Reviews

Average Rating: (4 Reviews)

5.0

★★★★★

Filter By Rating:

5★

4
4★

0
3★

0
2★

0
1★

0

< Prev
1
Next >

Sort by:

★★★★★

Verified Purchase

Perfect fit

I am going to tell the truth on this one. I took this part number to Amazon to see if they had it cheaper. They did. All numbers match. Part number model number everything. Showed up two days later and, you guessed it wrong part. Happened with two parts. Order from “Fix” and bam good part and fixed the issue with the dryer. Thank you.

★★★★★

Verified Purchase

Easy fix

Easy order. Prompt shipment. Cost was considerably less than a service call. Ain’t Youtube the best?

★★★★★

Verified Purchase

Great service and reasonably priced Parts

I ordered my parts late in the evening and in a couple of days i had the Correct parts in my hand, so i have a good opinion of this company.

★★★★★

Verified Purchase

works,duh

it works, duh, kinda like the reason I bought it?

< Prev
1
Next >

Model Compatibility

This part works with the following models:

Fix Number: FIX3530485
Manufacturer Part Number: 6931EL3003D

61412

Dryer - LG Dryer Model 61412 Parts

61422

Dryer - LG Dryer Model 61422 Parts

61423

Dryer - LG Dryer Model 61423 Parts

61452

Washer Dryer Combo - Washer-Dryer

61462

Dryer - LG Dryer Model 61462 Parts

61463

Dryer - LG Dryer Model 61463 Parts

61513

Dryer - LG Dryer Model 61513 Parts

61522

Dryer - LG Dryer Model 61522 Parts

61523

Dryer - LG Dryer Model 61523 Parts

61552

Dryer - LG Dryer Model 61552 Parts

61553

Dryer - LG Dryer Model 61553 Parts

61622

Dryer - LG Dryer Model 61622 Parts

61623

Dryer - LG Dryer Model 61623 Parts

69272

Dryer - LG Dryer Model 69272 Parts

69278

Dryer - LG Dryer Model 69278 Parts

69472

Dryer - LG Dryer Model 69472 Parts

69478

Dryer - LG Dryer Model 69478 Parts

706574

Washer Dryer Combo - Washer-Dryer

Kenmore

79661522210

Dryer - Kenmore Dryer Model 796.61522210 (79661522210, 796 61522210) Parts

Kenmore

79669002000

Dryer

Kenmore

79669002010

Dryer

Kenmore

79669272000

Dryer

Kenmore

79669272010

Dryer

Kenmore

79669272012

Dryer

Kenmore

79669272900

Dryer

Kenmore

79669278000

Dryer

Kenmore

79669278010

Dryer

Kenmore

79669278900

Dryer

Kenmore

79669472000

Dryer

Kenmore

79669478000

Dryer
