Drum Support Bearing – Part Number: 131825900
Drum Support Bearing – Part Number: 131825900 Drum Support Bearing – Part Number: 131825900 Drum Support Bearing – Part Number: 131825900 https://fixcom.azureedge.net/Schematics/Frigidaire/6SLAUZTK.gif

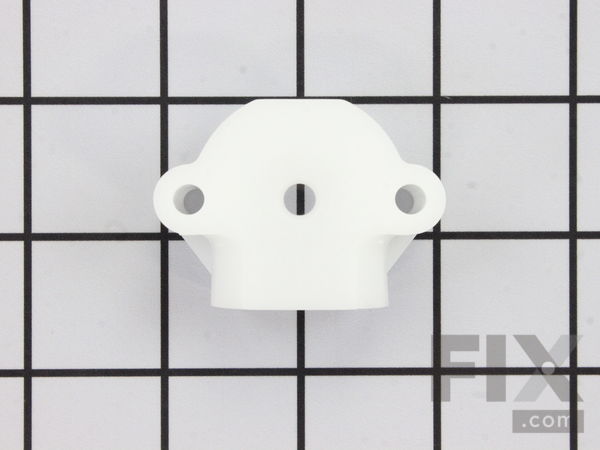

Drum Support Bearing

Your Price
$4.03

Fix Number: FIX418807

Manufacturer #: 131825900

Manufactured by: Frigidaire

Get this part fast. Average delivery time via standard shipping: 1.8 days.

Part description

This is a drum support bearing for your dryer. This part attaches to the inside of the rear panel of the cabinet. The drum support bearing helps rotate the drum smoothly and quietly. If your dryer is noisy and will not tumble, you will need to replace this part. Note that this is a drum bearing only.

Works with the following brands

Frigidaire, Kenmore, Gibson, Westinghouse, Kelvinator, Tappan, Crosley, Electrolux, Uni

Works with the following products

Dryer, Washer Dryer Combo

Fixes the following symptoms

Noisy | Will not tumble | Marks left on clothes | Will Not Start

Videos For installing this part.

Related Parts Additional or alternate parts to consider.

Part Photo
Description
Price
Availability
Part Number: FIX12579101
$6.51
On Order
Part Number: FIX418736
You can get this part in a kit also.
$51.33
In Stock
Order within the next 9 hrs and your part ships today!

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 3.0 / 5.0, 13 reviews
Customer:
michael from Cave City, KY
Parts Used:
Difficulty Level:
Really Easy
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers
Browning clothes .Zipper on jackets were tore off
after watching video and reading the review, whole job was simple
5 of 5 people found these instructions helpful

Were these instructions helpful?

Customer:
Gordon from Eau Claire, WI
Parts Used:
  • Drum Support Bearing
Difficulty Level:
Really Easy
Total Repair Time:
30 - 60 mins
Tools:
Pliers, Screw drivers
Dryer squeals when running
Followed video demonstration and it was easy. Used putty knife to release two latches under front edge of top cover. Tilted cover back against wall, removed two phillips screws at each inside location, lifted fron panel and swung aside to right location. Disengaged idler pulley and belt under drum (in lower corner) Used belt slack on top of drum to lift drum up and forward out of support bearing. Removed drum forward and out onto floor. Located drum support bearing in back/center of back panel held by two screws. Installed new bearing and reassembled. Runs great. Before this operation I had been almost ready to buy new dryer at $300 or more. Very satisfied with instructions and shipping service -- and minor cost !
0 of 1 people found these instructions helpful

Were these instructions helpful?

Customer:
Michael from Milan, TN
Parts Used:
  • Drum Support Bearing
Difficulty Level:
Really Easy
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers
Squeeking
Followed instructions in video. Easy to understand.
0 of 1 people found these instructions helpful

Were these instructions helpful?

Customer:
Ronald from Clermont, FL
Parts Used:
  • Drum Support Bearing
Difficulty Level:
Really Easy
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers
Loud squeaking noise
Pull control panel off. Remove door. Remove front of dryer. Remove top cover. Take belt off. Remove the dryer drum. Remove and replace the drum support bearing. Reverse steps to put back together.
0 of 1 people found these instructions helpful

Were these instructions helpful?

Customer:
todd from rogersville, TN
Parts Used:
Difficulty Level:
Really Easy
Total Repair Time:
30 - 60 mins
Tools:
Nutdriver, Screw drivers
Nosiy dryer
it went great
0 of 1 people found these instructions helpful

Were these instructions helpful?

Customer:
Ben from Corrales, NM
Parts Used:
Difficulty Level:
Easy
Total Repair Time:
1- 2 hours
Tools:
Pliers, Screw drivers, Socket set
Thumping sound drum was wobbling
Replaced the drum bearing kit. Hardest part was screwing new screws into the rear bearing. I recommend you screw them in first then take them out then place bearing on drum and screw them back in or youll never bet them on. Add plenty of grease and put the bearing in from outside back not from inside. Alot easier. CAREFUL OF METAL SO SHARP IT CUTS LIKES RAZOR USE TOWEL AND LONG SLEEVES OR YOULL LOOSE FINGERS EASY.
0 of 1 people found these instructions helpful

Were these instructions helpful?

Customer:
Brent from Maple Grove, MN
Parts Used:
Difficulty Level:
Really Easy
Total Repair Time:
1- 2 hours
Tools:
Nutdriver, Pliers, Screw drivers
No heat, drum would spin
so eliminated idea of thermostat. replaced heating element coil. also replaced drum bearing and belt as long as it was apart Forgot to mention how quickly we received our parts. Amazingly fast. Thank you .
0 of 1 people found these instructions helpful

Were these instructions helpful?

Customer:
Steven from Citrus Heights, CA
Parts Used:
Difficulty Level:
Really Easy
Total Repair Time:
1- 2 hours
Tools:
Screw drivers
Dryer was making a squealing noise
On the back of the dryer there is an inspection cover, remove it and you can get to the belt. release tension and remove the belt (Very easy to do, no tools required). Two screws hold the top in place, remove, slide top back and set to side. There are two screws and four clips holding the front on remove the screws and pop the clips loose, unplug wiring harness and remove front. Remove plastic guide that is in front of the drum, pop drum up and out of bracket holding the back, slide drum out the front. Now you have access to the rear drum bearing. Reassemble in the reverse order. There is a good video online that you can follow prior to starting this project.
0 of 1 people found these instructions helpful

Were these instructions helpful?

Customer:
Jill from South Bristol, ME
Parts Used:
  • Drum Support Bearing
Difficulty Level:
A Bit Difficult
Total Repair Time:
1- 2 hours
Tools:
Nutdriver, Screw drivers
Loud squeal while dryer was running
Same as the video, except we didn't dare to pull the belt to pop the drum out of the drum support bearing as it was looking old and we had only ordered the drum support bearing not a new belt too. We popped it out with a claw hammer (claw side) which worked fine. Also, we didn't have any hi temp grease as called for in the video. This should come standard with the bearing!
0 of 1 people found these instructions helpful

Were these instructions helpful?

Customer:
David from Cushing, MN
Parts Used:
Difficulty Level:
A Bit Difficult
Total Repair Time:
1- 2 hours
Tools:
Nutdriver, Screw drivers
Our dryer was making a high squeaking noise then a lower rumble. Time to fix.
This is a stackable washer dryer removed door and top so as to remove drum. Sure enough the bearing was worn bad.replaced following your video.First tried to snap drum into bearing with drum plate attached but because of ceiling height unable.Removed bearing plate from drum snapped into bearing then the fun began. It was difficult to line up the first of 3 screws but with my wife steadying it finally able to get them fastened. Your video was very helpful . Thanks
0 of 1 people found these instructions helpful

Were these instructions helpful?

Customer:
Donald from SPRINGVILLE, IN
Parts Used:
Difficulty Level:
A Bit Difficult
Total Repair Time:
30 - 60 mins
Tools:
Nutdriver, Screw drivers
Squeacky drum
remove control panel,unplug door switch connector,removedryer door assembly,unhook belt from tensioner,lift druum out of drum bearing and remove drum. change therear bearing,using bearing grease to retain the small ball bearing in the back of thedrum bearing during assembly. reverse for reassembly.
0 of 1 people found these instructions helpful

Were these instructions helpful?

Customer:
Gary L from Cairo, GA
Parts Used:
Difficulty Level:
A Bit Difficult
Total Repair Time:
1- 2 hours
Tools:
Nutdriver, Pliers, Screw drivers
Small tears,permanent brown stains left on clothing, and severe squealing.
I watched the videos on this repair from this site. I shut off the power to the dryer first. Using a putty knife I slipped it under the top of the dryer between the top and front panel and raised the top. Next I removed the two Phillip screws that secured the front cover, then leaned the cover forward a little and used a pair of pliers to disconnect the door switch, after which I slid the front panel off of the cabinet. I matched the new upper drum glide to the old one and removed the old upper drum glide,I cleaned off the old glue and left over material with a putty knife and a paint/rust remover tool that I had picked up from the auto parts store. I applied the high temperature adhesive to the arch and replaced the upper drum glide. Next I performed the same procedure to replace the front lower drum seal. I used clothe pins to hold the seals in place while the glue dried. I let the seals dry over night. The next thing was to inspect the drum support bearing, I found that the bearing had severely worn the ball and melted the nylon bearing, so I replaced the complete drum support kit because of the excessive wear that I found upon inspection. I t was a little difficult replacing the ball shaft because I had no help,I had a hard time reaching around the drum to get the screws started, Once I finished with that I replaced the grounding ball, I used the high temperature grease to hold the grounding ball in place while I replaced the screws that fastened the drum support bearing, then replaced the drum and belt assembly. When that was finished I vacuumed all of the lint out of the cabinet replaced the front cover, connected the door switch, lowered and secured the top. My dryer works like new again, and it doesn't take as long to dry the laundry as it has before I replaced the front lower seal and upper drum glide, Thanks !!!
0 of 1 people found these instructions helpful

Were these instructions helpful?

Customer:
Jeffrey from DeForest, WI
Parts Used:
Difficulty Level:
Easy
Total Repair Time:
1- 2 hours
Tools:
Nutdriver, Socket set
Dryer was making a high pitched squealing noise.
I followed the videos shown on the website. Using the rear access panel to reconnect the dryer belt made it a lot easier. The plastic drum support I believe was the biggest cause of the noise. ( it had a hole worn in it ) this is the first maintenance I ever needed to preform on this machine so it made sense to me to replace all three items since I already had it torn down. The he dryer is now as quiet as it ever was.
0 of 1 people found these instructions helpful

Were these instructions helpful?
