259530-3-M-GE-WD18X10010-Pump Connector
Part Location Diagram of WD18X10010 GE Pump Connector
See part 455 in the diagram

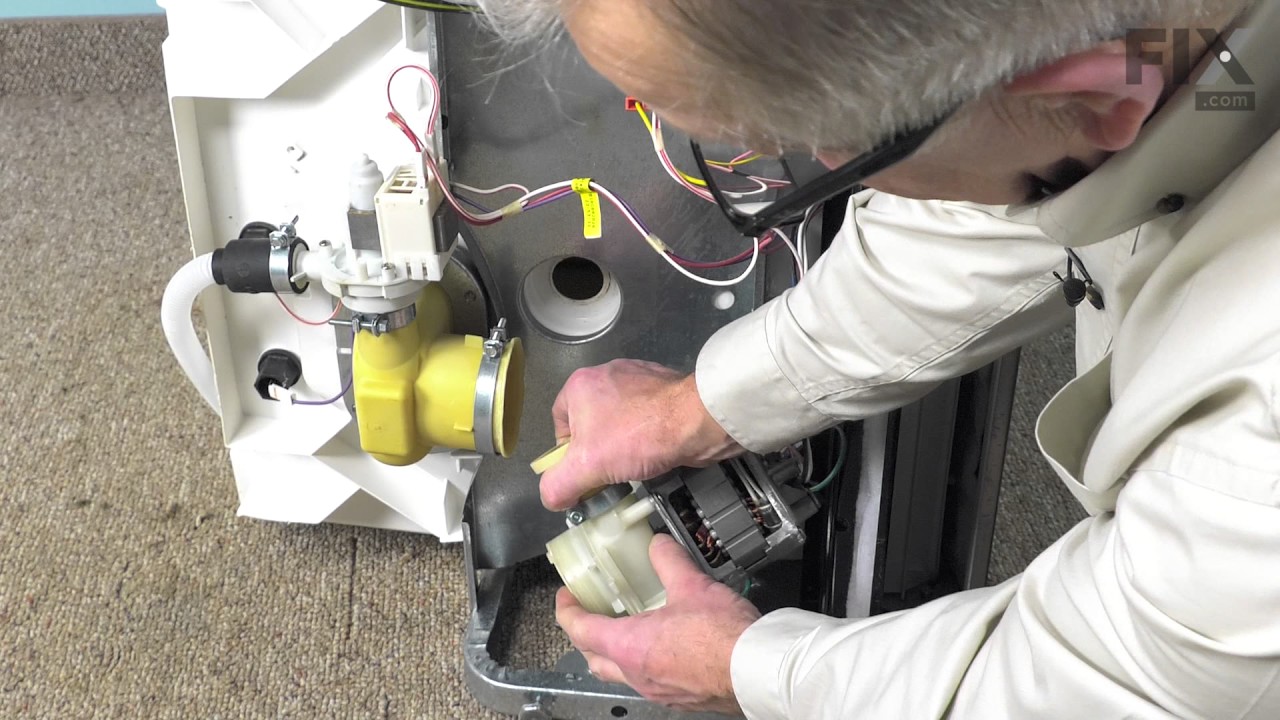

Replacing your General Electric Dishwasher Pump Connector
259530-1-S-GE-WD18X10010-Pump Connector 360 view
( Grid squares measure 1x1 inch )
259530-1-S-GE-WD18X10010-Pump Connector 259530-2-S-GE-WD18X10010-Pump Connector 259530-1-S-GE-WD18X10010-Pump Connector 360 view
Part Location Diagram of WD18X10010 GE Pump Connector Replacing your General Electric Dishwasher Pump Connector

Pump Connector

Rated by 3 customers

?

Easy

30 - 60 mins

Ratings submitted by customers like you who bought this part.

?
$40.14
In Stock
Fix Number: FIX259530
Manufacturer #: WD18X10010
Manufactured by: GE
  • Product Description

    The circulation pump adapter, or pump adapter assembly connects the circulation pump to the tub of your dishwasher. If your dishwasher is leaking around this adapter, check the connection to ensure everything is fitted tightly. If there is a problem with the adapter, make sure to disconnect the water supply to your dishwasher before completing the repair.

  • Works with the following brands
    General Electric, Hotpoint
  • Works with the following products
    Dishwasher
  • Fixes the following symptoms
    Leaking, Not cleaning dishes properly
  • Part Number Cross Reference
    Part# WD18X10010 replaces these:
    AP3185201, 943450
1 Installation Video
2 Related Parts Questions and Answers
3 Installation Instructions Model Compatibility
Product Description Part Videos Questions and Answers Related Parts Installation Instructions Model Compatibility

Product Description

The circulation pump adapter, or pump adapter assembly connects the circulation pump to the tub of your dishwasher. If your dishwasher is leaking around this adapter, check the connection to ensure everything is fitted tightly. If there is a problem with the adapter, make sure to disconnect the water supply to your dishwasher before completing the repair.

  • Works with the following brands:
    General Electric, Hotpoint
  • Works with the following products:
    Dishwasher
  • Fixes the following symptoms:
    Leaking, Not cleaning dishes properly
  • Part# WD18X10010 replaces these:
    AP3185201, 943450

Videos For installing this part.

Replacing your Pump Connector

Replacing your Pump Connector

Questions and Answers

Be the first to ask our experts a question about this part!

Inlet Sump
$35.78
Part Number: FIX259528
This works in conjunction with the pump and filtration system. It is used to receive drainage for disposal.
$35.78
In Stock
Sump
$37.62
Part Number: FIX959014
This works in conjunction with the pump and filtration system. It is used to receive drainage for disposal.
$37.62
In Stock

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 2.9 / 5.0, 3 reviews.
  • 1
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
  • Customer:
    Bruce from Massapequa Park, NY
  • Parts Used:
    WD18X10010
  • Difficulty Level:
    A Bit Difficult
  • Total Repair Time:
    30 - 60 mins
  • Tools:
    Nutdriver, Screw drivers, Wrench (Adjustable)
Leaking water
I shut off electricity at the breaker and shut off water supply under the sink. Disconnected water line and electrical lines under the dishwasher. Removed 2 screws holding dishwasher to counter and pulled it out. Loosened hose clamps on connector and moved pump out of the way. Opened door and removed spinning washer blade and pulled water line from center piece. Used channel locks to loosen connector. From underneath, unscrewed connector. Screwed in new connector and put everything back together.
0 of 1 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • Customer:
    Jared from Reinholds, PA
  • Parts Used:
    WD18X10010
  • Difficulty Level:
    Easy
  • Total Repair Time:
    30 - 60 mins
  • Tools:
    Nutdriver
Pump connector pin hole leak
Turn off dishwasher breaker. Remove kick panel from front of dishwasher. Use nut driver to remove motor support, then loosen clamp from pump connector. Also loosen clamp on sump inlet and motor will drop down. Be prepared for water. Unscrew pump connector from bottom of tub. May need channel locks to loosen. Screw in new pump connector making sure to thoroughly tighten. Slide pump up into connector and sump and tighten clamps. Install pump support and replace kick panel. There is no need to slide unit out and flip over for this repair. If your pump is an inch or more off the floor you can do this repair without moving the unit.
0 of 1 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • Customer:
    Ed from Hummelstown, PA
  • Parts Used:
    WD18X10010
  • Difficulty Level:
    Easy
  • Total Repair Time:
    1- 2 hours
  • Tools:
    Nutdriver
loud noise then wouldn't drain
Dishwasher started making violent noise at certain parts of the cycle. After a few weeks, it stopped draining the tub. Found that the drain pump stopped working and the rubber sump had degraded. While the rubber circulation pump connector appeared to be ok, it didn't reseal after pump/sump installation and had to be replaced as well.
0 of 1 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • 1
Model Compatibility
This part works with the following models:
Fix Number: FIX259530
Manufacturer Part Number: WD18X10010
Brand
Model Number
Description
General Electric
40201-0
Dishwasher
General Electric
402011
Dishwasher
General Electric
40205-0
Dishwasher
General Electric
402051
Dishwasher
General Electric
40206-0
Dishwasher
General Electric
402061
Dishwasher
General Electric
402070
Dishwasher
General Electric
403110
Dishwasher
General Electric
403111
Dishwasher
General Electric
405010
Dishwasher
General Electric
405011
Dishwasher
General Electric
405012
Dishwasher
General Electric
405050
Dishwasher
General Electric
405051
Dishwasher
General Electric
405052
Dishwasher
General Electric
405060
Dishwasher
General Electric
405061
Dishwasher
General Electric
405062
Dishwasher
General Electric
4070100
Dishwasher
General Electric
4070110
Dishwasher
General Electric
4070500
Dishwasher
General Electric
4070510
General Electric
4070600
Dishwasher
General Electric
4070610
Dishwasher
General Electric
4070800
Dishwasher
General Electric
4070810
General Electric
4071100
Dishwasher
General Electric
4071110
General Electric
4071120
Dishwasher
General Electric
4071500
Dishwasher
