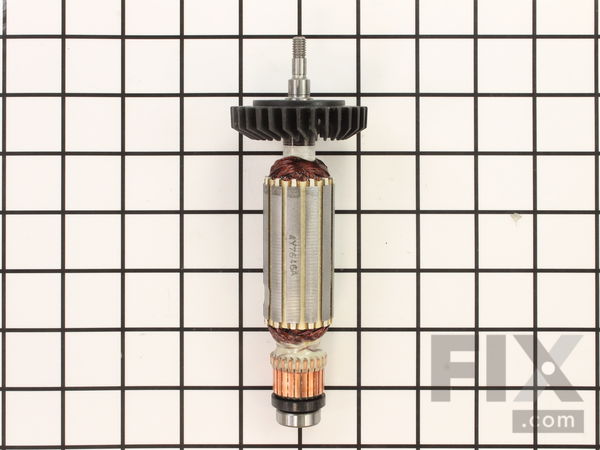

Part Location Diagram of 517646-0 Makita Armature Assembly 115v
See part 6 in the diagram

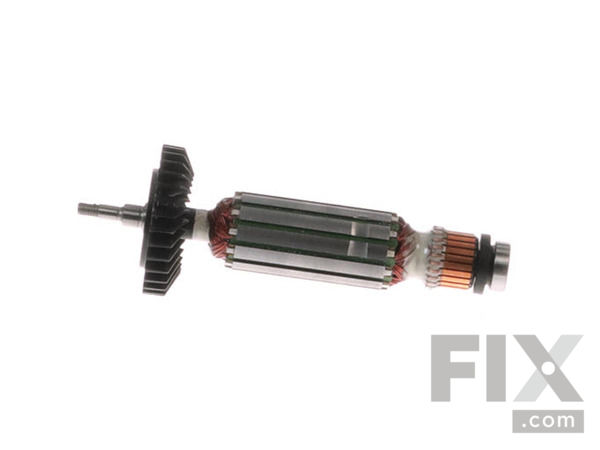

10152349-1-S-Makita-517646-0-Armature Assembly 115v 360 view
( Grid squares measure 1x1 inch )
10152349-1-S-Makita-517646-0-Armature Assembly 115v 10152349-1-S-Makita-517646-0-Armature Assembly 115v 360 view
Part Location Diagram of 517646-0 Makita Armature Assembly 115v

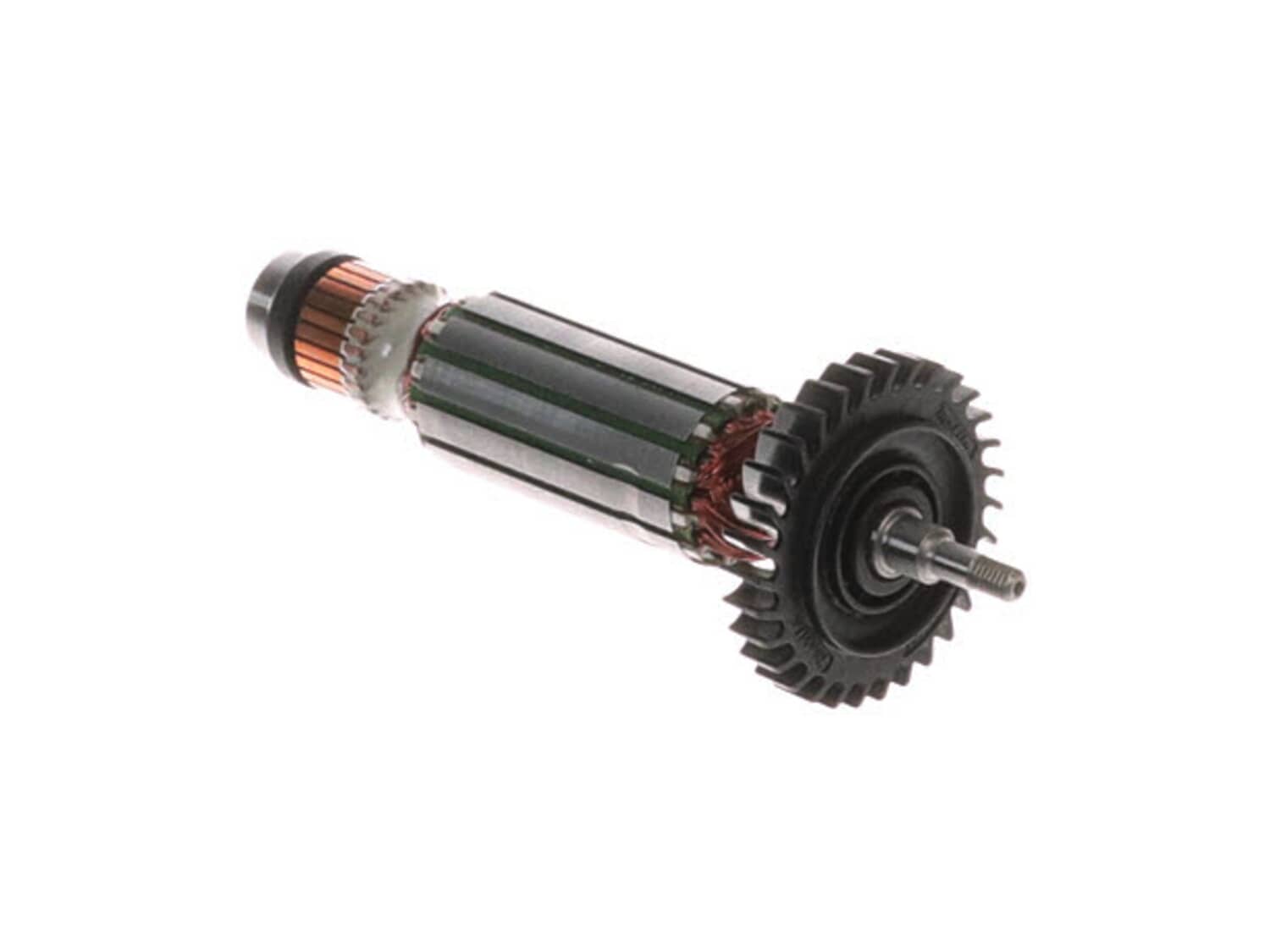

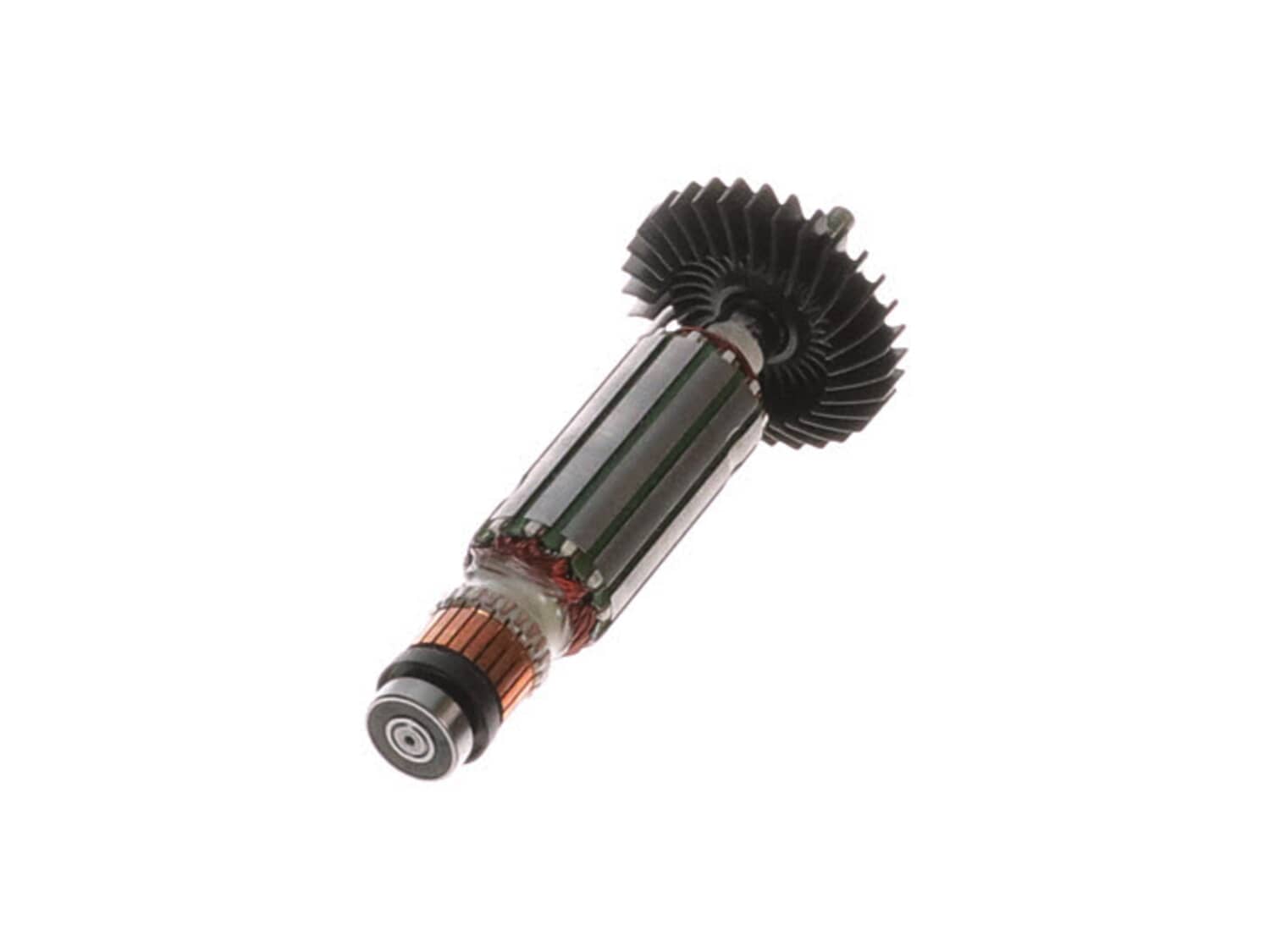

Armature Assembly 115v 517646-0

Rated by 1 customers

?

Easy

30 - 60 mins

Ratings submitted by customers like you who bought this part.

?
$22.64
In Stock
Fix Number:
FIX10152349
Manufacturer #:
517646-0
Manufactured by:
Makita

Jump to:

Product Description

This is a genuine OEM sourced replacement part which is specially designed for Makita power tools. This is a complete assembly which is sold individually, keep in mind, it includes the armature, the fan, the armature bearing and the commutator end bearing. Due to constant contact with carbon brushes armature will eventually wear out and would need to be replaced to maintain peak performance. It is highly recommended to replace both carbon brushes when replacing an armature. Please make sure to refer to the appropriate diagrams of your model for the correct location and application of this component.

  • Works with the following brands:
    Makita
  • Works with the following products:
    Angle Grinder, Grinder
Works with the following brands:
Makita
Works with the following products
Angle Grinder, Grinder
