Models > MVWX655DW0

MVWX655DW0 Maytag Washer

Jump to:

Find Part by Name

Keep searches simple, eg. "belt" or "pump".

Diagrams for MVWX655DW0

Viewing 6 of 6
Keep searches simple, eg. "belt" or "pump".
The lid latch is a safety feature found in your washer. Its purpose is to stop the machine from spinning when the lid is opened. You may need to replace the lid latch assembly if your washer will not ...
In Stock
Order within the next 6 hrs and your part ships today!
The drive belt works with the pulley in your washer in order to spin the tub. If you notice a burning rubber smell, your washer has become excessively noisy, or it will not spin, it could indicate an ...
In Stock
Order within the next 6 hrs and your part ships today!
The washer drive pulley kit is also known as a replacement clutch assembly, or a cam kit. The drive pulley is found at the bottom of your washing machine, mounted to the drive shaft. Common symptoms i...
In Stock
Order within the next 6 hrs and your part ships today!
The drive hub connects the basket of your washer to the transmission shaft, which in turn allows the basket to spin. If your washer will not agitate, spins slowly, or is excessively noisy, it may requ...
In Stock
Order within the next 6 hrs and your part ships today!
This 18 ml bottle of white appliance touch-up paint is used to cover scratches or marks on your appliance. The white touch-up paint can be used on refrigerators, microwaves, ranges, clothes dryers, an...
In Stock
Order within the next 6 hrs and your part ships today!
This insert is sold individually. Knob not included. Knob is sold separately.
In Stock
Order within the next 6 hrs and your part ships today!
$11.10
This hose clamp is sold individually.
In Stock
Order within the next 6 hrs and your part ships today!
In Stock
Order within the next 6 hrs and your part ships today!
This gray and white washer lid bumper contains a rubber bottom and is sold individually.
In Stock
Order within the next 6 hrs and your part ships today!
$128.14
This wash plate is for washers Unplug the washer and shut off the water supply before installing this part
In Stock
Order within the next 6 hrs and your part ships today!
In Stock
Order within the next 6 hrs and your part ships today!
Sold individually.
In Stock
Order within the next 6 hrs and your part ships today!

Questions and Answers

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

1 question answered by our experts.
  • 1
Sort by:
Sorry, we couldn't find any existing answers that matched.
Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Amy
December 31, 2022
Should the wash plate stay tight and in place one tightened up. Or should it move around???
For model number MVWX655DW0
Fix.com logo

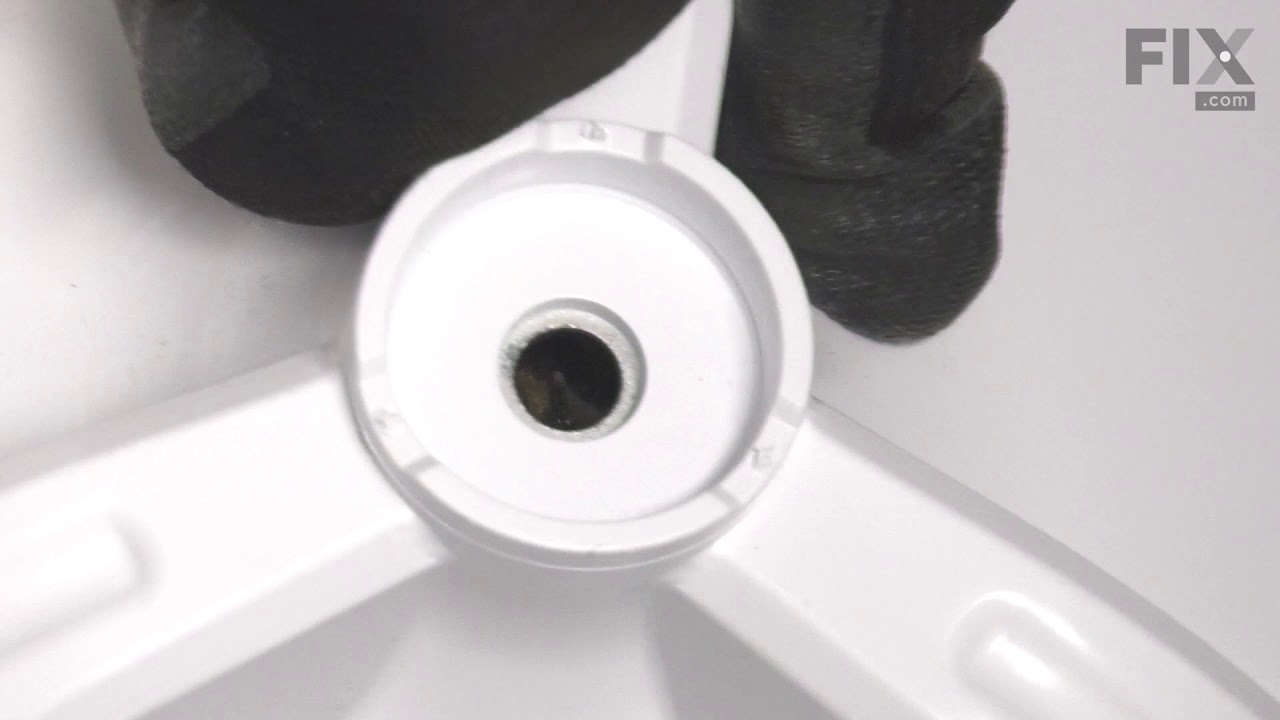

Hello Amy, Thank you for your inquiry. It should stay in place onto the spline gear in the middle and agitate with the gear, but it should not move around on the bottom of the tub. If it seems loose and moving around, then the plate may be damaged on the bottom side or there could be an issue with the spline gear on gear case, the drive hub, or the drive pulley. We have included a link to our video on how to remove the wash plate and you can check underneath of it and see the spline gear. Good luck with your repair.

Was this helpful?
Thank you for voting!
Related Parts:

Common Problems and Symptoms for MVWX655DW0

Viewing 11 of 11
Will not agitate
Fixed by these parts
Fixing Fixing Fixing
How to fix it
Will Not Start
Fixed by these parts
Fixing Fixing
How to fix it
Leaking
Fixed by these parts
Fixing Fixing Fixing
How to fix it
Spins slowly
Fixed by these parts
Fixing Fixing Fixing
How to fix it
Lid or door won’t close
Fixed by these parts
Fixing Fixing Fixing
How to fix it
Will not drain
Fixed by these parts
Fixing Fixing Fixing
How to fix it
Spinning Issues
Fixed by these parts
Fixing Fixing Fixing
How to fix it
Shaking and Moving
Fixed by these parts
Fixing Fixing
How to fix it
Burning smell
Fixed by these parts
Fixing Fixing
How to fix it
Locking Issues
Fixed by these parts
Fixing
How to fix it
Does not dispense fabric softener or detergent
Fixed by these parts
Fixing
How to fix it
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Customer:
William from Wakefield, RI
Parts Used:
W10404050
Difficulty Level:
Very Easy
Total Repair Time:
15 - 30 mins
Tools:
Nutdriver, Screw drivers
Defective lid latch - Cabrio Washer
The instructions that came with the part were worthless. Essentially, unplug, put in new part, plug it back in. I spent a considerable amount of time on the internet and finally found a video showing how to open the top. Unlike other models, it is held down by clamps in the back rather than clips in the front. Once finding this inform ation the installation was simple. Remove the clamps and the back of the console, slide the top forward and lift, remove and replace the lock and reassemble. You don't even have to remove the hoses.
91 of 109 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
Jerry from WALLA WALLA, WA
Parts Used:
WPW10006384, W10721967
Difficulty Level:
Really Easy
Total Repair Time:
15 - 30 mins
Tools:
Nutdriver, Screw drivers, Socket set
Noise on bottom of Washer louder as time went on. 1 1/2 years
Well, first investigated and found loose nut on drive clutch. First take off the two screws with nut drive then cover off using a screwdriver blade to snap off the cover. Then socket ratchet to take off the nut on drive clutch. take off belt by slowly rotating the drive gear. two screws that hold the electronics to the upper drive clutch and put aside, so you can snap off the cover for drive clutch on upper part with screwdriver and off the parts come and install whole unit back as took it apart. Line up the new upper clutch so that is position as was before. (Using parts diagram helps a lot as www. partsselect.com has for you or Maytag.com.) Then put the electronic part board back on and the gear and nut. Make sure it is tight by several attempts to make sure it's snugged up good and then slowly roll belt back on the pulley and motor drive. Put your cover guard back on with two screws and done.
83 of 112 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
Allison from RICHFORD, NY
Parts Used:
W10528947
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Screw drivers
Hub had warn its grooved teeth off and washer wouldnt agitate
ordered hub and it shipped quickly. I was able to put the hub in place and screw the screws in. you want to tighten them down slowly and go around to each screw tightening a little at a time so you don't break the hub. as you tighten the screws down the hub slides down flush. its impossible to just push the hub on with your hand. Buttoned it back up and got caught up on laundry. good day when the washer is fixed.
41 of 54 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
