Models
>
BL110
BL110 (41AD110G965) Bolens Trimmer
Jump to:
Find Part by Name
Keep searches simple, eg. "belt" or "pump".
Diagrams for BL110
Viewing 2 of 2_WW_1.gif "Engine Assembly Diagram and Parts List for 41AD110G965 Bolens Trimmer")
_WW_2.gif "General Assembly Diagram and Parts List for 41AD110G965 Bolens Trimmer")
Keep searches simple, eg. "belt" or "pump".
$35.86
It is an authentic manufacturer-sourced replacement part that i supplied for Craftsman trimmers. The function of a carburetor is to mix the air and the gas into a highly combustible mix before it goes...
In Stock
$13.42
This bump knob assembly fits lawn and gardening tools, usually trimmers. This part bumps on the ground to advance the cutting line from the spool. With time and use, this part can wear out easily. It ...
In Stock
This is a genuine OEM replacement throttle trigger (red). The throttle trigger is responsible for managing the speed of the engine. The throttle cable attaches to the trigger, which connects to the th...
No Longer Available
$13.77
This is an authentically sourced fuel tank assembly, including the fuel lines, fuel cap, fuel filter, and screws needed for assembly. This fuel tank assembly is for trimmers, and is where the fuel is ...
In Stock
$24.40
This spool is for line trimmers.
Spool houses the cutting line and fits inside the cutting head to cut grass and weeds.
Wear work gloves to protect your hands when installing this part.
In Stock
In Stock
In Stock
In Stock
In Stock
$10.70
This switch is used on a variety of trimmers, blowers and other similar gardening equipment. This switch controls the on and off operations of your tool. Switches have mechanical internals, which degr...
In Stock
In Stock
In Stock
Questions and Answers
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
- < Prev
- 1
- Next >
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.
Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Paul
August 9, 2023
i have replaced the string on the spool. it wont advance when bumping.
Have i done something wrong?
For model number BL110
Hello Paul, thank you for the great question. The issue is most likely with the spool line not being properly installed. We are providing you instructions that can help you install this part:
1. Unscrew the bump knob counter-clockwise. Remove the inner reel and spring.
2. Insert 10" of line through hole in top of the reel. Pull most of the line through hole until 3"-4" remains.
3. Bend short end and push it into the other hole. Pull tight.
4. Wind line tightly in the direction of the arrows. Split other end of line back 6" to 7".
5. Push them into holding slots.
6. Insert or slide lines into the eyelets in spool. Insert spring and reel into spool.
7. Pull lines firmly to release from holding slots.
8. Hold the inner reel in place.
9. Tighten the bump knob clock-wise.
We hope this information helps!
1 person found this helpful.
Was this helpful?
Thank you for voting!
Michael
June 3, 2023
I can't tighten spool up the shaft spins with the screw
For model number BL110

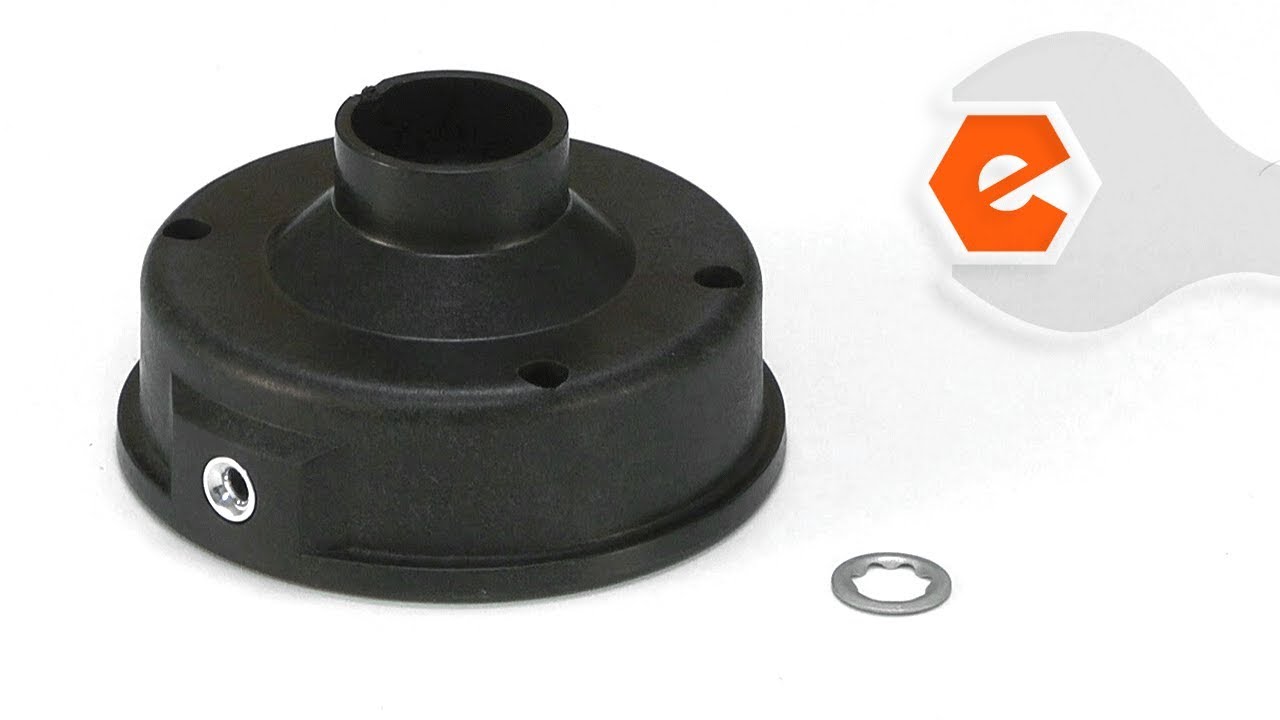

Hi Michael, thank you for reaching out. We have attached a relevant video that might help you properly install the spool assembly. We hope this helps!
Was this helpful?
Thank you for voting!
Common Problems and Symptoms for BL110
Viewing 1 of 1
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
- Customer:
- Erik from ROBERTSDALE, AL
- Parts Used:
- 753-06183
- Difficulty Level:
- Really Easy
- Total Repair Time:
- 15 - 30 mins
- Tools:
- Screw drivers
Fuel line broke
Removed the two screws holding the fuel tank to the main unit. Removed the two fuel lines and any stuck on rubber. Installed and installed two screws to mount the new tank. Slid fuel lines on their respective connectors. Done.
Was this instruction helpful to you?
Thank you for voting!
string trimmer would not start
emptied fuel from tank. pulled off the 2 fuel lines from the carburetor.opened the air cleaner door. removed the 2 torque screws that hold on the carburetor. removed the carburetor and air cleaner gasket. installed new carburetor and gasket and put back and tightened the 2 torque screws. closed air cleaner door and pushed the fuel lines o
... Read more
nto the new carburetor.put some fuel in the tank. started the trimmer. runs great.
Read less
Was this instruction helpful to you?
Thank you for voting!
- Customer:
- Zachary from CANTON, NC
- Parts Used:
- 753-06195
- Difficulty Level:
- Very Difficult
- Total Repair Time:
- More than 2 hours
- Tools:
- Screw drivers
Part didn't have cut outside for killswitch or spark plug wire
Had to cut plastic housing in order to get the part to fit.
If the new housing had the cut outside this would have been a simple 30 min repair.
Spend $5 more and get the right part from MTD/Bolens website.
If the new housing had the cut outside this would have been a simple 30 min repair.
Spend $5 more and get the right part from MTD/Bolens website.
Was this instruction helpful to you?
Thank you for voting!
