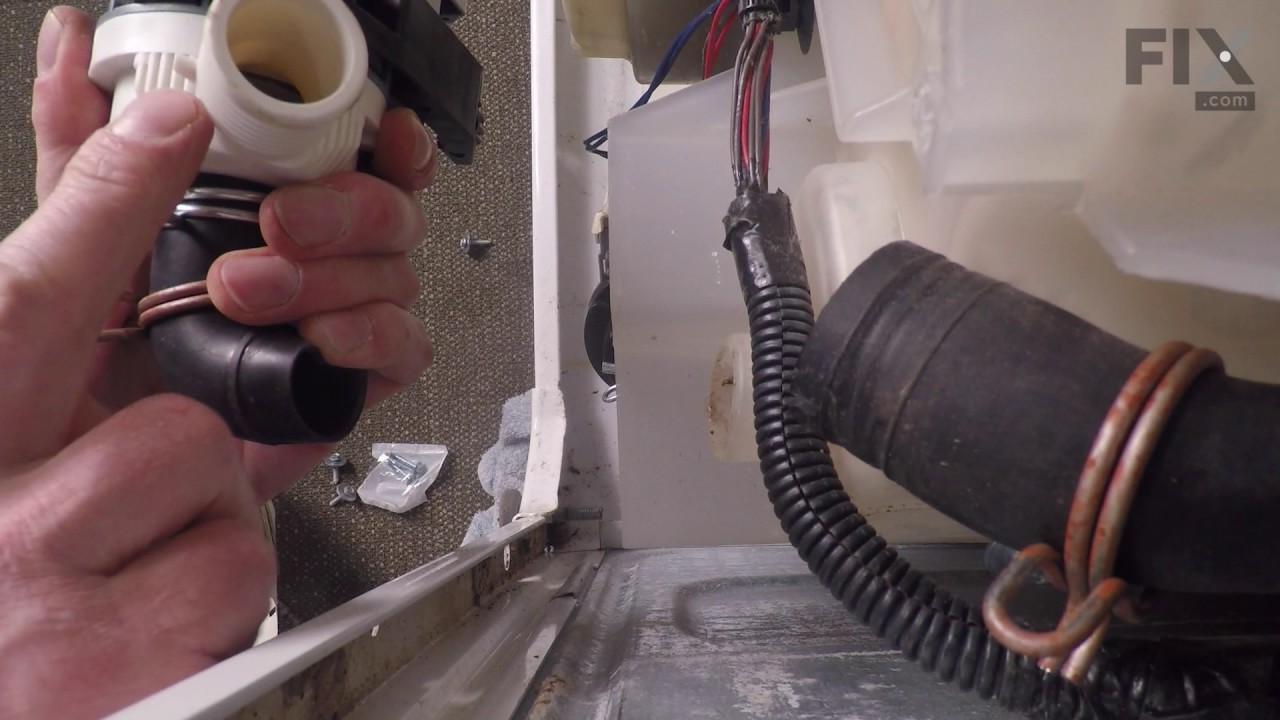

Replacing your Whirlpool Washer Drain Pump play video
( Grid squares measure 1x1 inch )

Drain Pump

$143.23
Fix Number: FIX5136124
Manufacturer #: W10536347
Manufactured by: Whirlpool

Product Description

This pump helps expel water from the washing machine and is activated after the spin speed is maintained for a specific period of time.

Videos For installing this part.

Replacing your Drain Pump

Replacing your Drain Pump play video
Questions and Answers

Questions and Answers

Be the first to ask our experts a question about this part!

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 3.8 / 5.0, 3 reviews.
    Sort by:
    Sorry, we couldn't find any existing installation instruction that matched.
    • Customer:
      david from Hammond, LA
    • Parts Used:
      W10536347
    • Difficulty Level:
      Really Easy
    • Total Repair Time:
      30 - 60 mins
    • Tools:
      Nutdriver, Pliers, Socket set
    had been makeing noise while draining for a while .then it quit draining
    Disconnected and removed the old one then I put it back the same way the only problem was figuring out how to put the new added heat shield on it there was no instructions to show exactly where it went
    4 of 4 people found this instruction helpful.
    Was this instruction helpful to you?
    Thank you for voting!
    • Customer:
      Horace from PIKESVILLE, MD
    • Parts Used:
      W10536347, W10198919
    • Difficulty Level:
      Easy
    • Total Repair Time:
      30 - 60 mins
    • Tools:
      Pliers, Screw drivers, Socket set
    Water would not drain and the machine was not stable during the spin cycle
    Free repair help video instruction made it much less difficult.
    1 person found this instruction helpful.
    Was this instruction helpful to you?
    Thank you for voting!
    • Customer:
      Kevin from JONESVILLE, VA
    • Parts Used:
      W10536347
    • Difficulty Level:
      Really Easy
    • Total Repair Time:
      15 - 30 mins
    • Tools:
      Wrench (Adjustable)
    Washer wouldn’t drain....
    Watched the instruction video from fix.com and it was so easy to follow. Had it up and running within a half hour.
    1 person found this instruction helpful.
    Was this instruction helpful to you?
    Thank you for voting!
