See part 11 in the diagram
Replacing your Whirlpool Washer Suspension Spring Retainer play video
( Grid squares measure 1x1 inch )

Suspension Spring Retainer

$6.68
Fix Number: FIX11749057
Manufacturer #: WPW10145155
Manufactured by: Whirlpool

Product Description

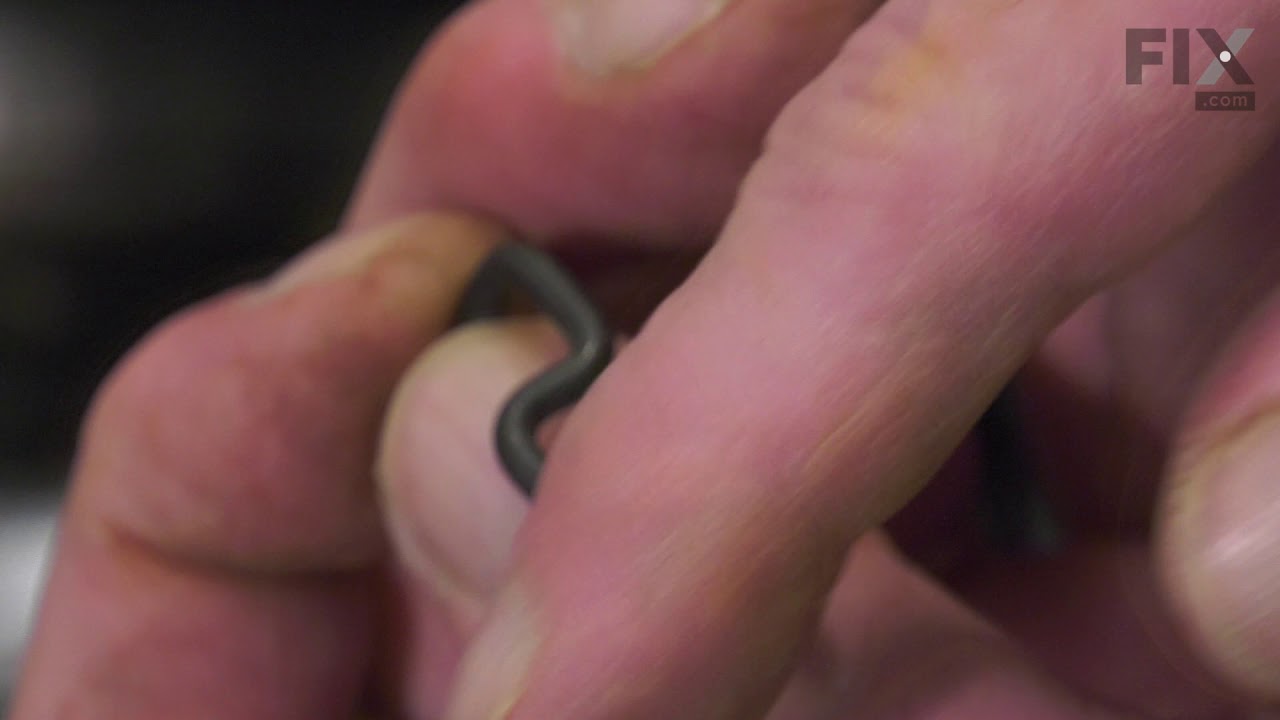

This is a replacement suspension spring retainer for your washer. The retainer holds the suspension spring in place while the washer is operating. If you notice movement, or an unusual noise or shaking of your washer when it is in use, it could mean that the suspension spring has been disconnected because of a broken or missing spring retainer. You will find the suspension spring retainer at the bottom of the tub assembly. To replace the retainer, use a pair of pliers to disconnect the suspension spring from the chassis mount to relieve the tension. Then, remove the spring from the retaining clip, and remove the retaining clip from the bottom of the washer. Attach the new retaining clip to the bottom of the washer, reattach the spring, and stretch it slightly so it can connect to the chassis. This part is sold individually.

Videos For installing this part.

Replacing your Suspension Spring Retainer

Replacing your Suspension Spring Retainer play video
Questions and Answers

Questions and Answers

Be the first to ask our experts a question about this part!

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 3.9 / 5.0, 1 reviews.
    Sort by:
    Sorry, we couldn't find any existing installation instruction that matched.
    • Customer:
      jerry from loveland, CO
    • Parts Used:
      WPW10145155, WP63907
    • Difficulty Level:
      Easy
    • Total Repair Time:
      15 - 30 mins
    • Tools:
      Pliers, Screw drivers
    tub bangs against frame or enclosure
    1. remove two screws holding control panel, then swing up. 2.remove two flat spring keepers on case top, disconnect the door switch connector at back or top case. 2 tilt entire case foreward and remove. replace the three springs and clips at bottom of tub. I had to bend the clips a bit more with a hammer and vise to make them more hook shape where they fit into the frame. 4. reassemble everything in the reverse order. I unplugged the washer but left the water and drain connected.
    4 of 4 people found this instruction helpful.
    Was this instruction helpful to you?
    Thank you for voting!
