See part 19 in the diagram

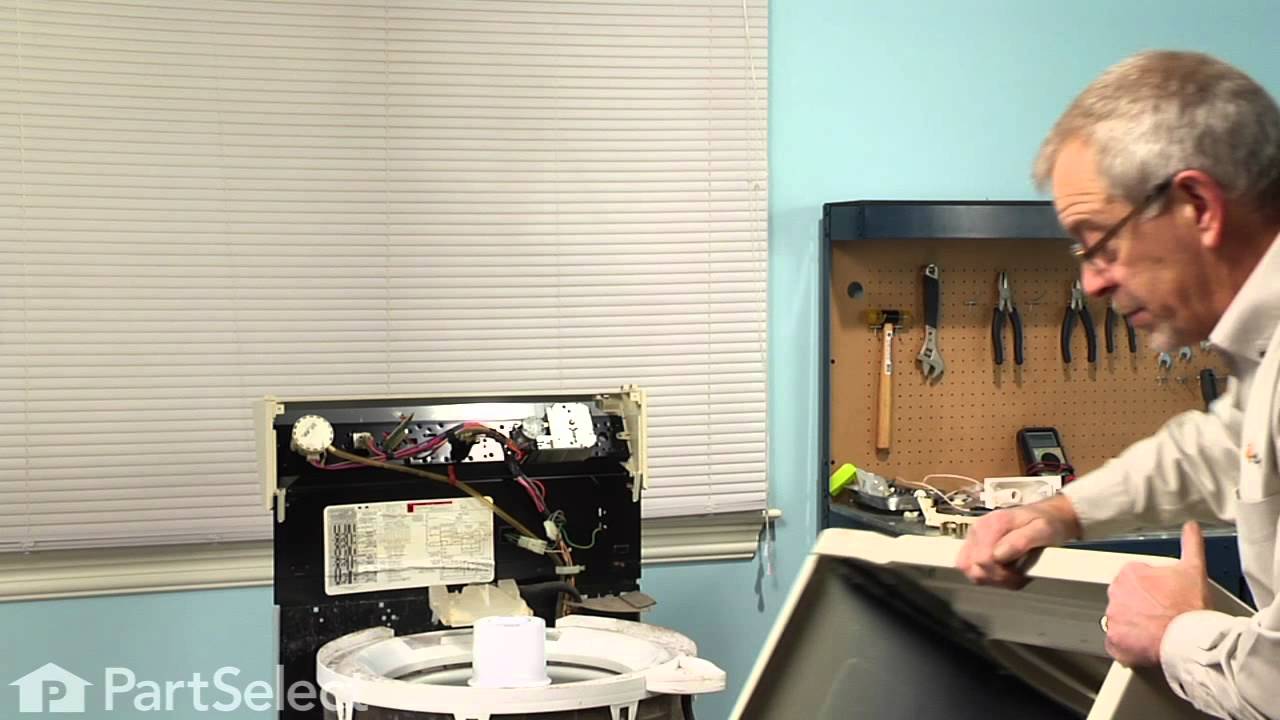

Replacing your Whirlpool Washer Pump Retainer play video
( Grid squares measure 1x1 inch )

Pump Retainer

$ 10.76   In Stock
Fix Number: FIX11746362
Manufacturer #: WP8546127
Manufactured by: Whirlpool

Product Description

Sold Individually.

Videos For installing this part.

Replacing your Pump Retainer

Replacing your Pump Retainer play video

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 2.9 / 5.0, 5 reviews.
    Sort by:
    Sorry, we couldn't find any existing installation instruction that matched.
    Agitator not working correctly and leaking from somewhere underneath.
    I watched the videos before I ordered the part and when the order arrived I replaced the parts with no problems. The most time consuming part of the job was cleaning the washer. You will be surprised to find what will accumulate down there after years of service. The order came in in record time so this site gets an A+ for being fast and accurate. No back-orders either. I will surely use for any-other parts I need in the future.
    20 of 20 people found this instruction helpful.
    Was this instruction helpful to you?
    Thank you for voting!
    • Customer:
      Michael from RIDGECREST, CA
    • Parts Used:
      WP8546127, WP3363394
    • Difficulty Level:
      Difficult
    • Total Repair Time:
      More than 2 hours
    • Tools:
      Pliers, Screw drivers
    I followed all instructio.
    Followed all instructions but when it came.time to remove the pump it wouldn't come off as easy as the video, which I that was due to the rust. Once it was pried off i cleaned it good and found it would not slide on as easy either, I had to use a block of wood and a hammer to litely tap it onto the shaft so I should not crack the plastic housing. It took 4 hours to replace this item, 2 to get off priying it, 2 litely tapping it on..
    1 person found this instruction helpful.
    Was this instruction helpful to you?
    Thank you for voting!
    leaks water as soon as tub starts to fill
    Tipped the machine on its side , undo the two hose clamps and two pump clips, then pull pump off motor drive. assemble reverse. very easy .. surprised at simplicity of such an expensive machime
    1 of 2 people found this instruction helpful.
    Was this instruction helpful to you?
    Thank you for voting!
    • Customer:
      Holly from Mechanicsburg, PA
    • Difficulty Level:
      Really Easy
    • Total Repair Time:
      15 - 30 mins
    • Tools:
      Screw drivers, Wrench (Adjustable)
    Pump leaked and needed replaced. Also replaced a rusted spring-unrelated to the pump.
    Removed washer shell. Propped washer front on 10 in 2x4 stilts. Unclipped the two clamps that hold the pump. Attempted to remove pump. Unsuccessful. Loosened the clamps that hold the motor and removed the motor. Still unable to remove pump from motor because they are rusted together. Happened to have a spare motor. When the new parts came in the mail, I put the replacement motor in the same way the old one came out. In error, I had purchased only one rubeer grommet, so I reused the four old ones. Clamped tge motor in place, Attached the new pump, Reattached the hoses to the pump, Reconnected the electric to the motor, Took out the stilts, Replaced the shell, Reattached the panel, Plugged it in, And started it up. Ready to do two weeks worth of laundry....
    0 of 1 people found this instruction helpful.
    Was this instruction helpful to you?
    Thank you for voting!
    • Customer:
      stephen from fort ann, NY
    • Parts Used:
      WP8546127, WP3363394
    • Difficulty Level:
      Easy
    • Total Repair Time:
      30 - 60 mins
    • Tools:
      Pliers
    heater doesn't fully heat
    Had to unhook and move dryer out of way.Then unhook washer and move so I could tip it over onto its back.Removed retainers and pump, unhooked hoses.Installed new pump then put everything back place. Probably done in less than an hour.Biggest part of job was moving machines .
    0 of 1 people found this instruction helpful.
    Was this instruction helpful to you?
    Thank you for voting!
      Model Compatibility
      This part works with the following models:
      Fix Number: FIX11746362
      Manufacturer Part Number: WP8546127
      Brand
      Model Number
      Description
      Kenmore
      10682872600
      Washer - Kenmore Washing Machine Model 106.82872600 (10682872600, 106 82872600) Parts
      Kenmore
      110088732791
      Washer Dryer Combo
      Kenmore
      1101050299
      Washer - Kenmore Washing Machine Model 110.1050299 (1101050299, 110 1050299) Parts
      Kenmore
      11013212200
      Washer
      Kenmore
      11014102300
      Washer
      Kenmore
      11014112300
      Washer
      Kenmore
      11014202300
      Washer
      Kenmore
      11014212200
      Washer
      Kenmore
      11014222300
      Washer
      Kenmore
      11014502300
      Washer
      Kenmore
      11014852300
      Washer
      Kenmore
      11015732400
      Washer
      Kenmore
      11015842400
      Washer - Kenmore Washing Machine
      Kenmore
      11015852400
      Washer
      Kenmore
      11015862400
      Washer
      Kenmore
      11015864400
      Washer
      Kenmore
      11015942400
      Washer
      Kenmore
      11015942401
      Washer
      Kenmore
      11015944400
      Washer
      Kenmore
      11015944401
      Washer
      Kenmore
      11015952400
      Washer
      Kenmore
      11015952401
      Washer
      Kenmore
      11015954400
      Washer
      Kenmore
      11015954401
      Washer
      Kenmore
      11015962400
      Washer
      Kenmore
      11015962401
      Washer
      Kenmore
      11015964400
      Washer
      Kenmore
      11015964401
      Washer
      Kenmore
      11016101690
      Washer
      Kenmore
      11016101691
      Washer
