See part 40 in the diagram
Replacing your Maytag Washer Syphon Break Elbow Kit with Clamp play video

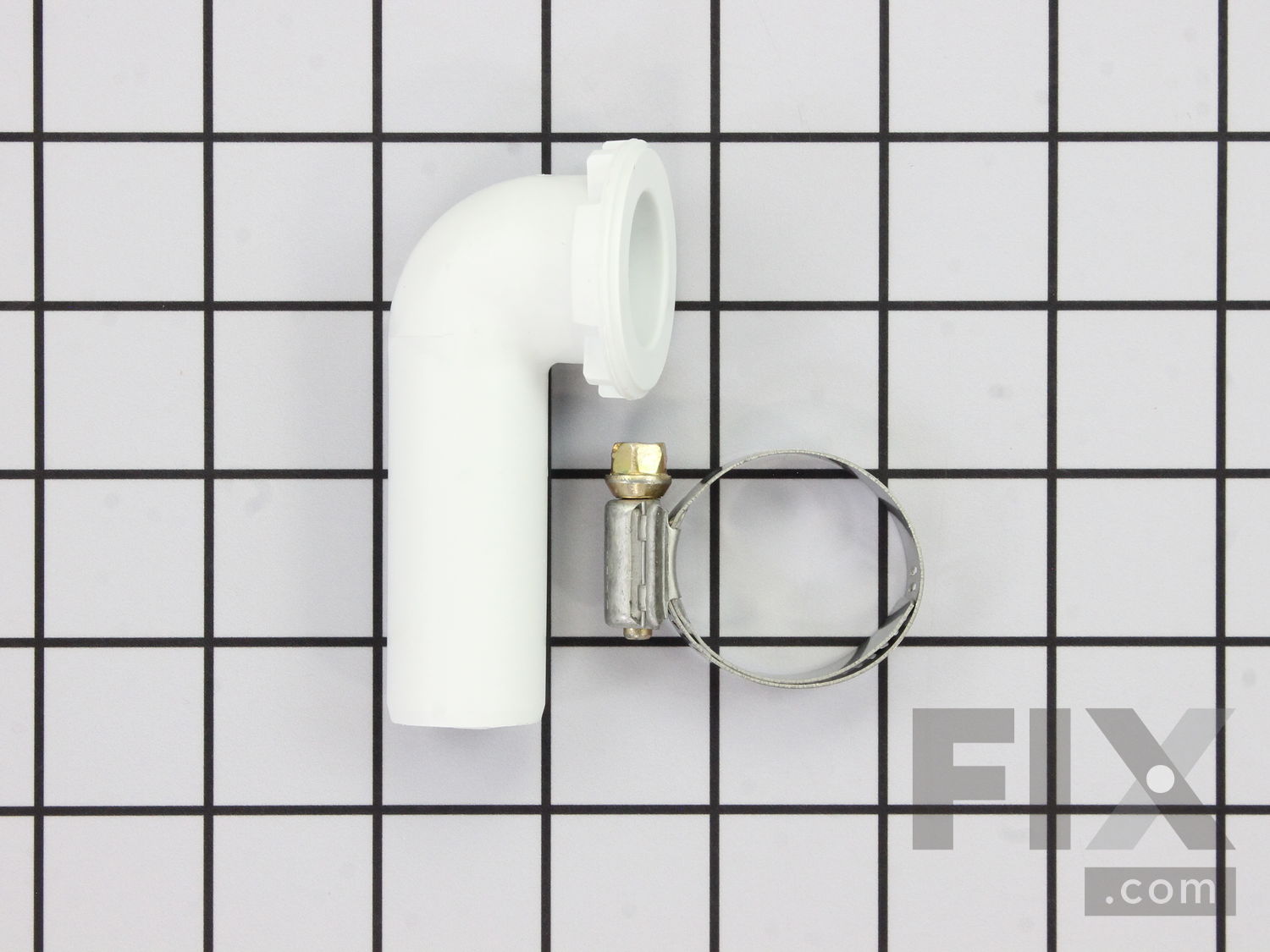

( Grid squares measure 1x1 inch )

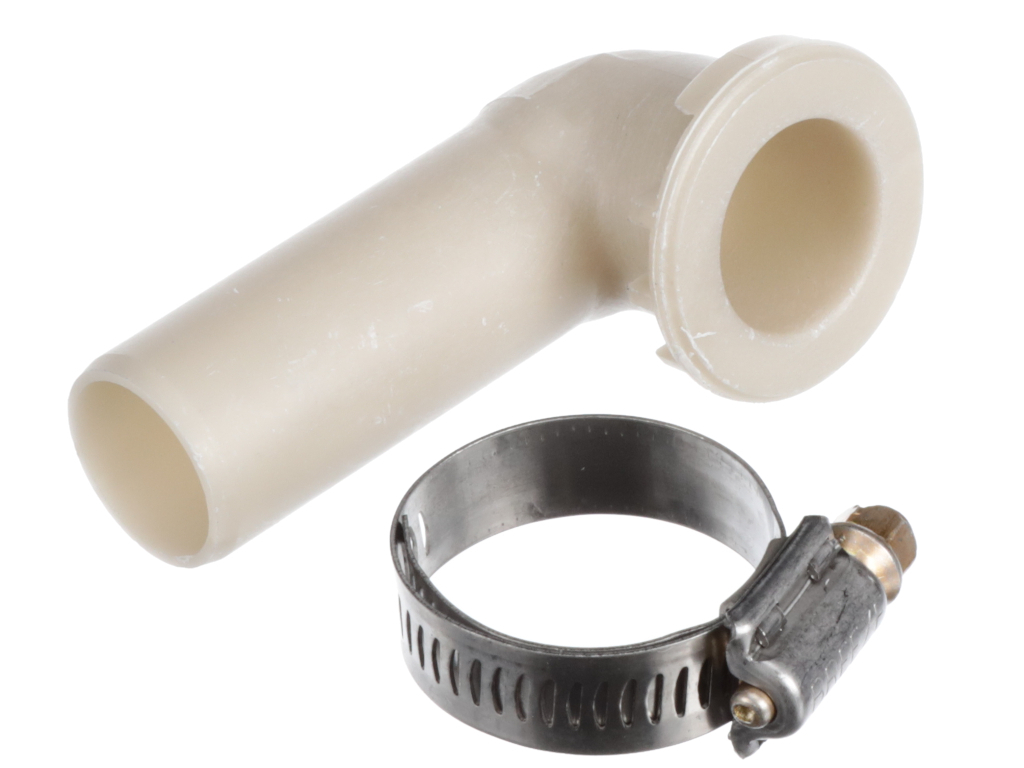

Syphon Break Elbow Kit with Clamp

$37.80
Fix Number: FIX2017573
Manufacturer #: 208847
Manufactured by: Whirlpool

Product Description

For drain hose 7/8".

Videos For installing this part.

Replacing your Syphon Break Elbow Kit with Clamp

Replacing your Syphon Break Elbow Kit with Clamp play video
Questions and Answers

Questions and Answers

Be the first to ask our experts a question about this part!

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 4.2 / 5.0, 5 reviews.
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.
  • Customer:
    matt from sacramento, CA
  • Parts Used:
    208847, 206638
  • Difficulty Level:
    Very Easy
  • Total Repair Time:
    15 - 30 mins
  • Tools:
    Pliers, Socket set
Leaking washer
I looked up the video on YouTube. It was extremely helpful. I am just not a handy guy, never got the lessons growing up I suppose. I have found their videos elegantly simple, and they provide me with the confidence to take on projects that I otherwise would have paid someone else to.This particular installation was a simple matter of pulling off the rear access panel, unscrewing the safe and break from the rear of the washer, pulling out the old parts and inserting them into the hoses, and then putting it all back together. The leak was fixed, I have run the washer about 4 times just to check, and everything is great. This site made ordering easy and installation even easier
0 of 1 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • Customer:
    derrick from st louis, MO
  • Parts Used:
    208847, 285805
  • Difficulty Level:
    Really Easy
  • Total Repair Time:
    15 - 30 mins
  • Tools:
    Nutdriver, Screw drivers
Water Was Running in washer slow.Drain hose Broke Off.
Took panel off and put back together.
0 of 1 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • Customer:
    RODNEY from MAGALIA, CA
  • Parts Used:
    208847, 206638
  • Difficulty Level:
    A Bit Difficult
  • Total Repair Time:
    30 - 60 mins
  • Tools:
    Nutdriver, Pliers, Screw drivers
siphon break leaking at base and elbow
the base worked fine but the elbow was 7/8 and my drain hose was 1". So I had to modify the old elbow to fit the new siphon break and old drain 1" drain hose. I didn't have the time or place to purchase a new hose. I buffed to old elbow seal seat and didn't leak....yet.
0 of 1 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • Customer:
    Thomas from Crestview, FL
  • Parts Used:
    12112425, 208847
  • Difficulty Level:
    Really Easy
  • Total Repair Time:
    15 - 30 mins
  • Tools:
    Nutdriver
belts wore out, would not spin cloths dry enough.
tilted washer back, belts install at bottom of washer. 5 minutes at most. removed round dust cover at back of washer for access. replaced syphon break elbow. elbow diameter too small for my drain hose so installed piece of 3/4 inch thin wall PVC pipe to shim it. works great - done
0 of 1 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • Customer:
    Adrienne from Ottawa, IL
  • Parts Used:
    208847
  • Difficulty Level:
    Really Easy
  • Total Repair Time:
    Less than 15 mins
  • Tools:
    Screw drivers, Socket set
I broke the old syphon elbow moving my washing machine
Before I ordered the part I watched the brief repair video on this website. It demonstrated the repair and instructed which tools to use. I found the video easy to follow and did the repair myself when the part arrived in about 10 minutes. My only suggestion: older drain hoses are larger than what new elbows fit down to-- make sure your hose fits the new elbow correctly (or get a new one that does apx. $10)...otherwise, it'll blow off when the washer drains!
0 of 1 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Model Compatibility
This part works with the following models:
Fix Number: FIX2017573
Manufacturer Part Number: 208847
Brand
Model Number
Description
Kenmore
106T14FL
Refrigerator - COLDSPOT REFRIGERATORS
Maytag
A104
Washer - Top Loading
Maytag
A105
Washer - Top Loading
Maytag
A110
Washer - Top Loading
Maytag
A112
Washer - Top Loading
Maytag
A180
Washer - Top Loading
Maytag
A181
Washer - Top Loading
Maytag
A182
Washer - Top Loading
Maytag
A183
Washer - Top Loading
Maytag
A190
Washer - Top Loading
Maytag
A1910
Washer - Top Loading
Maytag
A209
Washer - Top Loading
Maytag
A209S
Washer - Top Loading
Maytag
A210
Washer - Top Loading
Maytag
A210S
Washer - Residential
Maytag
A211
Washer - Top Loading
Maytag
A211S
Washer - Top Loading
Maytag
A212
Washer - Top Loading
Maytag
A212S
Washer - Residential
Maytag
A282
Washer - Top Loading
Maytag
A283
Washer - Top Loading
Maytag
A284
Washer - Top Loading
Maytag
A305
Washer - Top Loading
Maytag
A310
Washer - Top Loading
Maytag
A310S
Washer - Residential
Maytag
A312
Washer - Top Loading
Maytag
A312S
Washer - Residential
Maytag
A382
Washer - Top Loading
Maytag
A390
Washer - Top Loading
Maytag
A3910
Washer - Top Loading
