See part 1 in the diagram
Replacing your Maytag Washer Dual Cold Water Valve play video
( Grid squares measure 1x1 inch )

Dual Cold Water Valve

$71.58
Fix Number: FIX11750469
Manufacturer #: WPW10212596
Manufactured by: Whirlpool

Product Description

Water inlet valve controls the water flow into the washer. Fits some washers in the following series: Kenmore 110; Whirlpool CHW, WFW and YWFW; Maytag CHW, MHN, MHP, MHWE, MHWZ and YMHWE; Amana NFW and YNFW; and Inglis IFW and YIFW. Also fits some laundry centers in these series: Whirlpool CET and CGT; and Maytag MLE and MLG.

Videos For installing this part.

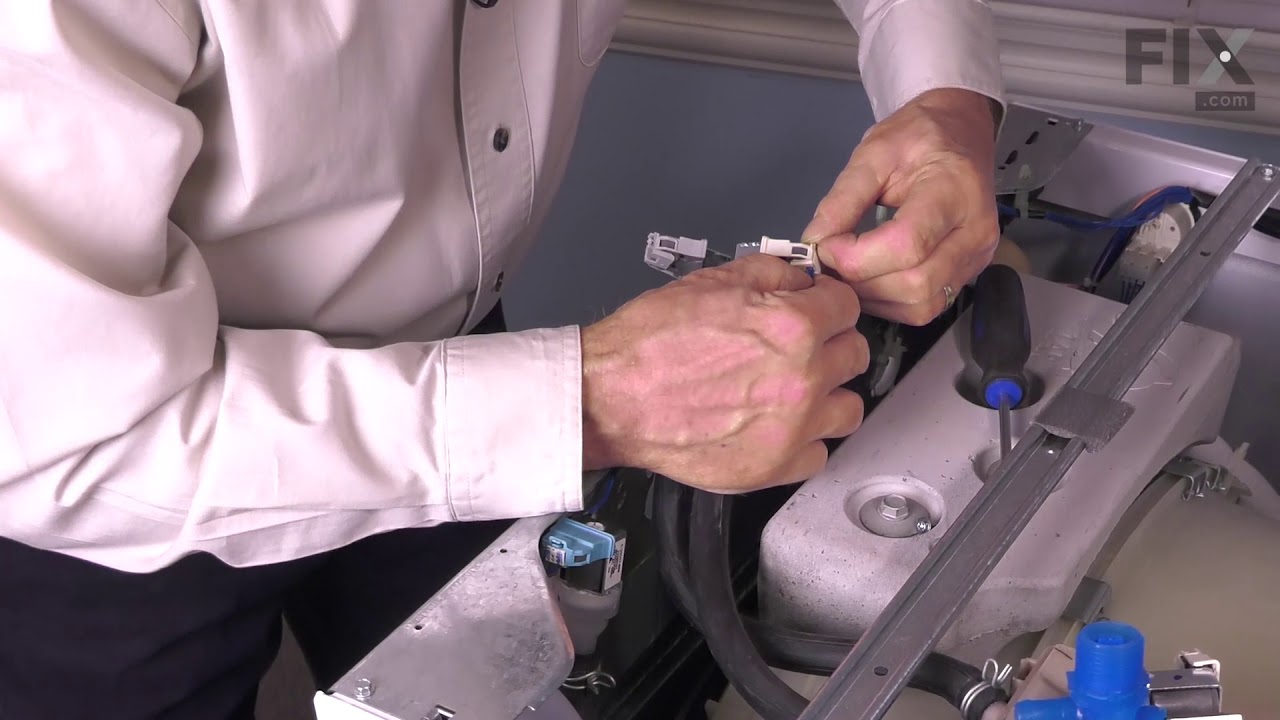

Replacing your Dual Cold Water Valve

Replacing your Dual Cold Water Valve play video
Questions and Answers

Questions and Answers

Ask our experts a question about this part and we'll get back to you as soon as possible!

1 question answered by our experts.
    Sort by:
    Sorry, we couldn't find any existing answers that matched.
    Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
    Ted
    March 14, 2022
    If this was defective would it prevent the softener section in the dispenser tray from filling with water?
    For model number YNFW7300WW00
    Hello Ted, Thank you for the question. If the Water Valve is defective it will not send water to the dispenser or enough water pressure to fill the tray. The valve can be tested with a Multimeter. Set your multitester to the ohms resistance scale X 1. Place each of the meter's probes to one terminal. Because the reading can vary from brand to brand and from model to model, there is no one reading you should receive. However, if your test produces a reading of infinity, then the solenoid is bad and the water valve should be replaced. If you need help placing an order, customer service is open 7 days a week. Please feel free to give us a call. We look forward to hearing from you!

    Was this helpful?
    Thank you for voting!

      Installation Instructions Provided by Fix customers like you.

      Average Repair Rating: 5.0 / 5.0, 1 reviews.
        Sort by:
        Sorry, we couldn't find any existing installation instruction that matched.
        • Customer:
          Thomas from LILBURN, GA
        • Parts Used:
          WPW10212596
        • Difficulty Level:
          Really Easy
        • Total Repair Time:
          Less than 15 mins
        • Tools:
          Pliers, Screw drivers, Socket set
        No cold water for wash cycle
        Disconnect electric plug
        Unscrewed 3 screw top back of lid
        Removed lid
        Disconnected two water hose claps with pliers
        Disconnected two electrical plugs
        Unscrewed one screw holding double value
        Removed valve and installed new one replacing screw
        Conceded electrical plugs on valve
        Connected water hoses.
        Installed lid and screws
        Plugged in washer
        Tested cold wash.
        Done!
        2 of 2 people found this instruction helpful.
        Was this instruction helpful to you?
        Thank you for voting!
          Model Compatibility
          This part works with the following models:
          Fix Number: FIX11750469
          Manufacturer Part Number: WPW10212596
          Brand
          Model Number
          Description
          Kenmore
          11041932510
          Washer - COMMERCIAL WASHER
          Kenmore
          11041942710
          Washer - WASHER
          Whirlpool
          CET8000AQ0
          Washer Dryer Combo
          Whirlpool
          CET8000AQ1
          Washer Dryer Combo
          Whirlpool
          CET8000XQ0
          Washer Dryer Combo - Commercial, Stacked
          Whirlpool
          CGT8000AQ0
          Washer Dryer Combo
          Whirlpool
          CGT8000AQ1
          Washer Dryer Combo
          Whirlpool
          CGT8000XQ0
          Washer Dryer Combo - Commercial, Stacked, Gas
          Whirlpool
          CHW8990AW0
          Washer
          Whirlpool
          CHW8990BW0
          Washer - COMMERCIAL AUTOMATIC WASHER
          Whirlpool
          CHW8990CW0
          Washer - COMMERCIAL WASHER
          Whirlpool
          CHW8990XW0
          Washer - Commercial, Automatic
          Whirlpool
          CHW9050AW0
          Washer - COMMERCIAL WASHER
          Whirlpool
          CHW9060AW0
          Washer - COMMERCIAL WASHER
          Whirlpool
          CHW9150GW0
          Washer - COMMERCIAL
          Whirlpool
          CHW9160GW0
          Washer - COMMERCIAL
          Inglis
          IFW7300WW00
          Washer - Residential, Automatic
          Inglis
          IFW7300WW01
          Washer
          Inglis
          IFW7300WW02
          Washer
          Maytag
          MHN30PDBWW0
          Washer - COMMERCIAL AUTOMATIC WASHER
          Maytag
          MHN30PDBXW0
          Washer - COMMERCIAL AUTOMATIC WASHER
          Maytag
          MHN30PDCWW0
          Washer - COMMERCIAL WASHER
          Maytag
          MHN30PDCXW0
          Washer - COMMERCIAL WASHER
          Maytag
          MHN30PRBWW0
          Washer - COMMERCIAL AUTOMATIC WASHER
          Maytag
          MHN30PRCWW0
          Washer - COMMERCIAL WASHER
          Maytag
          MHN31PRAWW0
          Washer - COMMERCIAL AUTOMATIC WASHER
          Maytag
          MHN33PDCWW0
          Washer - COMMERCIAL WASHER
          Maytag
          MHN33PDCWW1
          Washer - COMMERCIAL
          Maytag
          MHN33PDCXW0
          Washer - COMMERCIAL WASHER
          Maytag
          MHN33PDCXW1
          Washer - COMMERCIAL
