Motor Pivot Spring
This part is the replacement motor pivot spring for your washer. It is made of metal and is approximately 3 inches long and 2 inches wide. The motor pivot spring helps hold the drive motor in the correct position on the motor plate. If your drive motor shakes during use, if the pumps will not operate, or if your washer is excessively loud during operation, you may need to replace the motor pivot spring. Be sure to disconnect the washer from the power source before you begin this repair. This part is sold individually and is an OEM part sourced directly from the manufacturer.
Videos For installing this part.

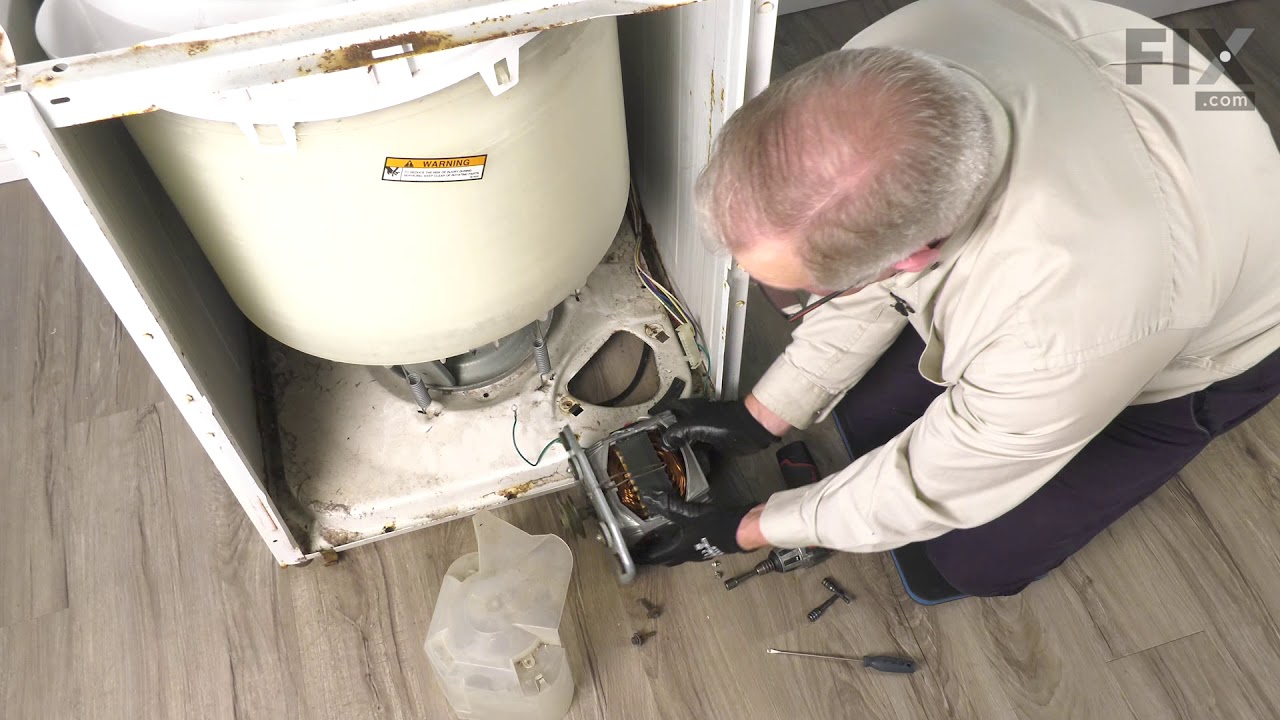

Replacing your Motor Pivot Spring
Questions and Answers
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Related PartsAdditional or alternate parts to consider.
Installation Instructions Provided by Fix customers like you.
- < Prev
- Next >
Customer:Brandon from Keller, TX
Difficulty Level:A Bit Difficult
Total Repair Time:1- 2 hours
Tools:Nutdriver, Pliers, Screw drivers, Socket set, Wrench (Adjustable)
I began by unplugging the unit first, securing the lid with duct tape and laying the washer on its front face. I removed the belt and transmission pulley per instructions contained in the replacement kit. Mainly consists of popping the "E" ring off with a screwdriver. Once the pulley was off, I stood the washer upright and to access and remove tub. Having the tub out made it easier to compress the brake spring when re-attaching the brake stator. Removing the tub is easy, I just popped off the tub cover and tilted the tub around to ease the tension and remove the bottom springs with pliers (this may require an assistant). With the tub removed, I turned it over to remove the brake stator. USE CAUTION WHEN REMOVING THE BRAKE STATOR. A 200 LB BRAKE SPRING IS UNDER IT AND IS UNDER TENSION. With the new brake rotor and brake stator secured, I replaced the snubber ring and motor pivot spring. I put it all back together in reverse order and it spun like a top, is quieter and stops on a dime!
- < Prev
- Next >
Manufacturer Part Number: WP22004376
