11739520-1-M-Whirlpool-WP22004333-Washer Water Inlet Valve
Part Location Diagram of WP22004333 Whirlpool Washer Water Inlet Valve
See part 2 in the diagram
11739520-1-S-Whirlpool-WP22004333-Washer Water Inlet Valve 360 view
( Grid squares measure 1x1 inch )
11739520-1-S-Whirlpool-WP22004333-Washer Water Inlet Valve 11739520-2-S-Whirlpool-WP22004333-Washer Water Inlet Valve 11739520-3-S-Whirlpool-WP22004333-Washer Water Inlet Valve 11739520-1-S-Whirlpool-WP22004333-Washer Water Inlet Valve 360 view
Part Location Diagram of WP22004333 Whirlpool Washer Water Inlet Valve

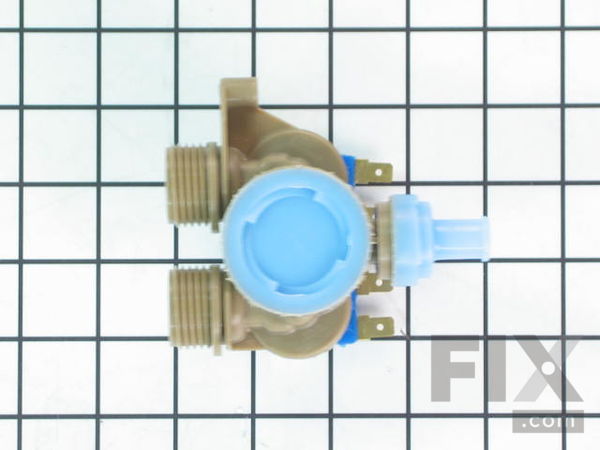

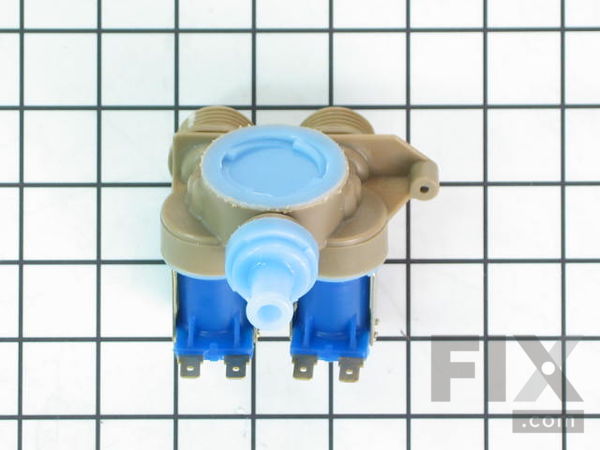

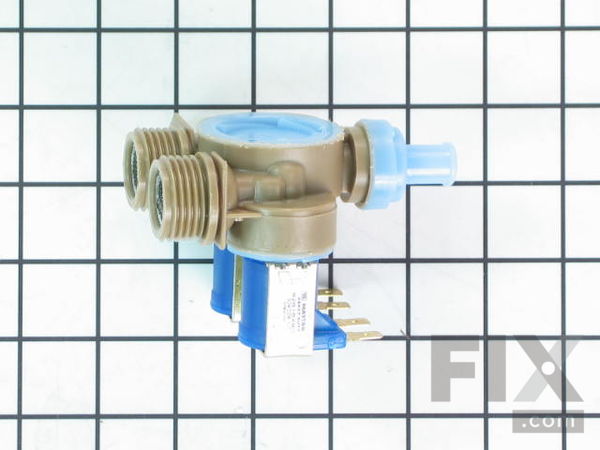

Washer Water Inlet Valve WP22004333

Rated by 3 customers

?

Really Easy

30 - 60 mins

Ratings submitted by customers like you who bought this part.

?
$99.95
In Stock
Fix Number:
FIX11739520
Manufacturer #:
WP22004333
Manufactured by:
Whirlpool

Jump to:

Product Description

This water inlet valve attaches the water lines to the back of your appliance. The attaching solenoids on the valve open and close according to the desired temperature, or amount of water needed.

  • Works with the following brands:
    Maytag
  • Works with the following products:
    Washer
  • Fixes the following symptoms:
    Leaking, No hot or cold water
  • Part# WP22004333 replaces these:
    AP6006446, 22004191, 22004333
Works with the following brands:
Maytag
Works with the following products
Washer
Fixes the following symptoms
Leaking, No hot or cold water
Part Number Cross Reference
Part# WP22004333 replaces these:
AP6006446, 22004191, 22004333

Questions and Answers

Ask our experts a question about this part and we'll get back to you as soon as possible!

1 question answered by our experts.
  • 1
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing answers that matched.
Try using some different or simpler keywords, or submit your new question by using the "Ask a Question" button above!
Jose Zendejas
December 15, 2025
This unit does not throw water, nor hot or cold. What could be causing this issue.
For model number MAV6260AWW
Fix.com logo
Hi Jose, thank you for reaching out. We would recommend checking the water inlet valve, part number FIX11739520. A faulty water inlet valve prevents the machine from receiving water because its internal solenoids fail to open when electrically signaled by the washer's controls. This results in either the screens being blocked by sediment or the electrical components failing to physically open the water pathway. You may need to replace it to fix the issue. We hope this solves your problem!

Was this helpful?
Thank you for voting!
Affresh Dishwasher Cleaner Tablets - 6
$21.89
In Stock
Part Number: FIX12345667
Affresh dishwasher Cleaner is specially formulated to help remove limescale and mineral build-up that can be unsightly and could affect your dishwasher's performance. Each tablet is designed to clean inside your machine ...
Affresh Washing Machine Cleaner - 3 pack
$19.89
In Stock
Part Number: FIX1960673
This washing machine cleaner includes three time-release tablets designed to remove odor-causing residues, grime, and buildup from high-efficiency and top-load washing machines. The tablets work by cleaning the tub, pump...
Produce Preserver Filter
$17.75
In Stock
Part Number: FIX3503014
Fresh Flow Produce Preserver is made for your refrigerator to help keep produce fresh for longer by absorbing the chemical, ethylene, that causes your fruits and vegetables to ripen quicker. Your produce could be fresh f...
Affresh Washing Machine Cleaner Tablets – 6 Count
$27.87
In Stock
Part Number: FIX12345661
This Affresh Washing Machine Cleaner deep cleans to help remove the odor-causing residues and grime that daily loads leave behind. The time-release tablets are EPA Safer Choice certified, septic-safe and designed to clea...
Refrigerator Deodorizer
$29.95
In Stock
Part Number: FIX12739141
Refrigerator deodorizers help to reduce bacteria growth and therefore reduce smells and extend the life of food.
Affresh Ice Machine Cleaner
$26.87
In Stock
Part Number: FIX12583750
This nickel-safe, unscented ice machine cleaner measures 16 fluid ounces and is used to remove mineral build-up and hard water and is compatible with several makes and models of freestanding ice machines. To use properly...

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 3.6 / 5.0, 3 reviews.
  • 1
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
Customer:
James from Orland Park, IL
Parts Used:
WP22004333
Difficulty Level:
Very Easy
Total Repair Time:
15 - 30 mins
Tools:
Nutdriver, Pliers, Socket set
Water dripping in tub before and after wash
Unplugged washer and disconnected water lines from back of washer. Used putty knife to slide between top of washer and cabinet to release latches that hold them together ( in front about two inches from each corner). Lifted top all the way back to have easy access to valve. Unplugged wiring from valve and removed two screws with socket an d slid out old valve. Slid new valve in place, attached screws and wiring, closed top, reattached hoses to back of washer and plugged back in. All done in about 20 minutes.
Read less
3 of 3 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
Edwin from Hollywood, CA
Parts Used:
WP22004333
Difficulty Level:
Really Easy
Total Repair Time:
15 - 30 mins
Tools:
Nutdriver, Screw drivers
Water driping in washer drum............
Down loaded Maytag's manual went on this site. I called & explained my problem & gave them the model number,order the Valve. it was that easy & saved lots of money..............
1 person found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
Richard from St Marys, WV
Parts Used:
WP22004333, WP21002026
Difficulty Level:
A Bit Difficult
Total Repair Time:
1- 2 hours
Tools:
Pliers, Screw drivers
washer would not stay in balance and at times cold water would not completely shut off
case top and front had to be removed, belt to pully removed, tub springs removed, install new snubber ring, remove and replace water valve. Hardest part of repair was putting springs back onto tub used vise grips to assist.
0 of 1 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • 1

Model Compatibility

This part works with the following models:
Fix Number: FIX11739520
Manufacturer Part Number: WP22004333
Brand Model Number Description
Maytag MAV6260AWW Washer - Residential
Maytag MAV6451AWQ Washer - Residential
Maytag MAV6451AWW Washer - Residential
Maytag MAV6457AWW Washer - Residential
Maytag MAV6458AWW Washer - Residential
Maytag MAV6548AWQ Washer - Residential
Maytag MAV6548AWW Washer - Residential
Maytag MAV6601AWQ Washer - Residential
Maytag MAV6601AWW Washer - Residential
Maytag MAV7260BWW Washer - Residential
Maytag MAV7501EWW Washer - Residential
Maytag MAV7504EWW Washer - Residential
Maytag MAV7551AWQ Washer - Residential
Maytag MAV7551AWW Washer - Residential
Maytag MAV7557EWQ Washer - Residential
Maytag MAV7557EWW Washer - Residential
Maytag MAV7657EWQ Washer - Residential
Maytag MAV7657EWW Washer - Residential
Maytag MAV8260AWQ Washer - Residential
Maytag MAV8260AWW Washer - Residential
Maytag MAV8551AWQ Washer - Residential
Maytag MAV8551AWW Washer - Residential
Maytag MAV8557AWQ Washer - Residential
Maytag MAV8557AWW Washer - Residential
Maytag MAV8601AWQ Washer - Residential
Maytag MAV8601AWW Washer - Residential
Maytag MAV9501EWQ Washer - Residential
Maytag MAV9501EWW Washer - Residential
Maytag MAV9504EWQ Washer - Residential
Maytag MAV9504EWW Washer - Residential
