Part Location Diagram of WP22002202 Whirlpool Timer
See part 9 in the diagram

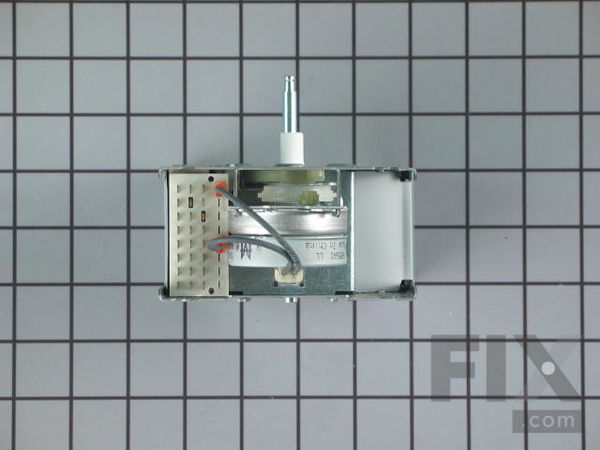

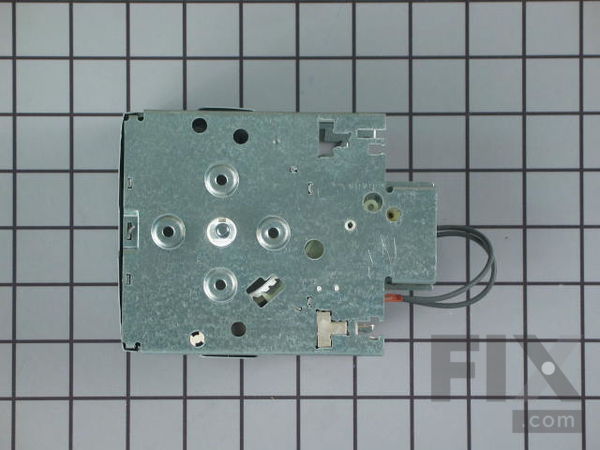

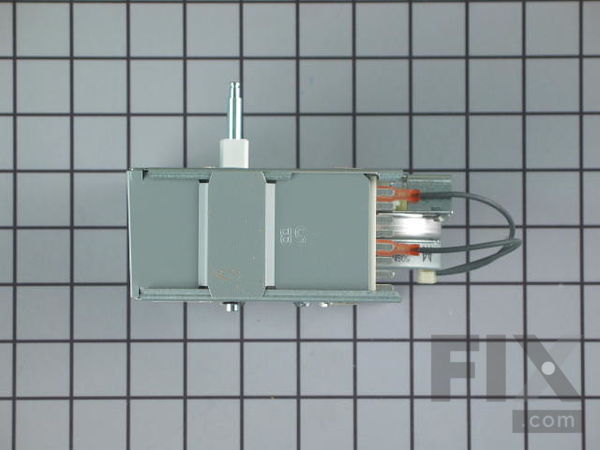

( Grid squares measure 1x1 inch )

Timer

$326.89
Special Order
Fix Number:
FIX11739343
Manufacturer #:
WP22002202
Manufactured by:
Whirlpool

Product Description

The timer controls most of the operations of the washer: water level, tub filling and emptying, length of cycles, and cycle setting sequences.

Questions and Answers

Be the first to ask our experts a question about this part!

Model Compatibility

This part works with the following models:
Fix Number: FIX11739343
Manufacturer Part Number: WP22002202
Brand
Model Number
Description
Maytag
LAT8406AAE
Washer - Residential
Maytag
LAT8406AAM
Washer - Residential
Maytag
LAT8506AAE
Washer - Residential
Maytag
LAT8506AAM
Washer - Residential
Maytag
LAT8506ABE
Washer - Residential
Maytag
LAT9390AAE
Washer - Residential
