Part Location Diagram of AJK72909307 LG Suspension Assembly
See part K100 in the diagram

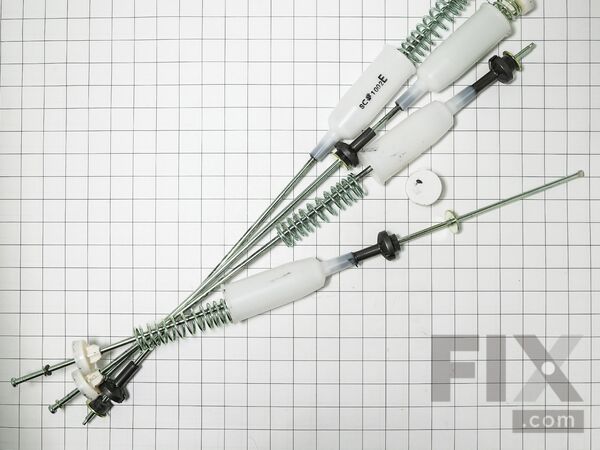

( Grid squares measure 1x1 inch )

Suspension Assembly AJK72909307

Rated by 1 customers

?

Really Easy

30 - 60 mins

Ratings submitted by customers like you who bought this part.

?
$130.58
In Stock
Fix Number:
FIX8737438
Manufacturer #:
AJK72909307
Manufactured by:
LG

Product Description

Questions and Answers

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 3.8 / 5.0, 1 reviews.
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.
Customer:
Nathan from VANCOUVER, WA
Parts Used:
AJK72909307
Difficulty Level:
Really Easy
Total Repair Time:
30 - 60 mins
Tools:
Nutdriver, Screw drivers
Top loader washing machine unbalance fault too often
Unplug power and shut off water. Disconnecthoses. Remove back cover. Loosen harness tie wraps to washer top. Remove two bolts on backside that hold top down. Push top towards front to clear tabs on front. Lift top and move to the side, replace 2 suspension springs on left. Move top to other side for access, replace two suspension springs on the right. Note: replace all four suspension springs as a set. They won’t appear broken, but the spring rate tension has become too soft over time and that’s why the suspension system doesn’t work right. Resulting in unbalanced faults all the time. Even when washer is empty during clean cycle. Adjust washer feet so wash tub is center in the circle of the top assembly. Put it back together. Connect water lines (or replace them if they are >5 years old). Plug in power. Turn on water valves.
1 person found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • 1

Model Compatibility

This part works with the following models:
Fix Number: FIX8737438
Manufacturer Part Number: AJK72909307
Brand
Model Number
Description
LG
31512
Washer Dryer Combo - Washer-Dryer
LG
31513
Washer - Washer
LG
31522
Washer Dryer Combo - Washer-Dryer
LG
35563
Washer Dryer Combo - Washer-Dryer
Kenmore
79631512210
Washer - Kenmore Washing Machine Model 796.31512210 (79631512210, 796 31512210) Parts
Kenmore
79631512211
Washer - Kenmore Washing Machine Model 796.31512211 (79631512211, 796 31512211) Parts
Kenmore
79631513210
Washer - Kenmore Washing Machine 79631513210
Kenmore
79631513211
Washer - Kenmore Washing Machine 79631513211
Kenmore
79631522210
Washer - Kenmore Washing Machine Model 796.31522210 (79631522210, 796 31522210) Parts
Kenmore
79631522211
Washer - Kenmore Washing Machine 79631522211
Kenmore
79631523210
Washer - Kenmore Washing Machine Model 796.31523210 (79631523210, 796 31523210) Parts
Kenmore
79631523211
Washer - Kenmore Washing Machine 79631523211
LG
WT4901CW
Washer
LG
WT4970CW
Washer - WASHER
LG
WT5070CV
Washer - Washer
LG
WT5070CW
Washer
LG
WT5075CW
Washer - Washer
LG
WT5170HV
Washer
LG
WT5170HW
Washer
LG
WT5170WH
Washer
LG
WT5270CW
Washer - 4.9 Cu.Ft. Mega Capacity High Efficiency Top Load Washer
LG
WT5270HW
Washer Dryer Combo - Washer-Dryer
LG
WT6001HV
Washer - WASHER
LG
WT6001HW
Washer - WASHER
