1482363-1-M-GE-WH11X10049 -Dial with Compression Ring

( Grid squares measure 1x1 inch )

1482363-1-S-GE-WH11X10049 -Dial with Compression Ring

1482363-2-S-GE-WH11X10049 -Dial with Compression Ring

1482363-1-S-GE-WH11X10049 -Dial with Compression Ring 360 view

Part Location Diagram of WH11X10049 GE Dial with Compression Ring

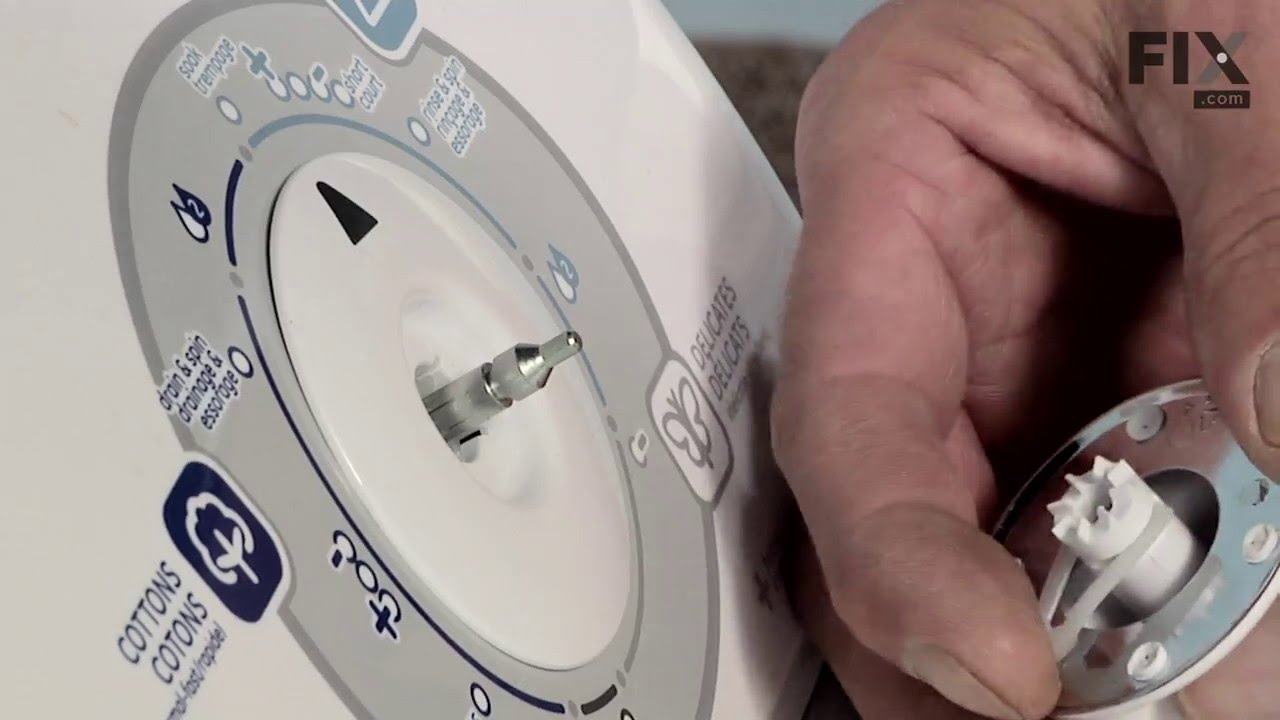

Replacing your General Electric Washer Dial with Compression Ring

Dial with Compression Ring

Rated by 11 customers

Really Easy

30 - 60 mins

Ratings submitted by customers like you who bought this part.

$13.94

Fix Number: FIX1482363

Manufacturer #: WH11X10049

Manufactured by: GE

Product Description

This timer dial with compression ring is a genuine OEM part for your washer. The dial is made of plastic and is white in color. It can be found on the timer shaft underneath the timer knob, and it features an arrow to indicate how far along your laundry is in the wash cycle. If your timer dial has become cracked or damaged, it should be replaced. Please note that this part is different and sold separately from the timer knob.
Works with the following brands

General Electric
Works with the following products
Washer
Fixes the following symptoms

Will Not Start, Touchpad does not respond
Part Number Cross Reference

Part# WH11X10049 replaces these:

AP3995255, 1264479

1 Installation Video

3 Related Parts Questions and Answers

11 Installation Instructions Model Compatibility

Product Description Part Videos Questions and Answers Related Parts Installation Instructions Model Compatibility

Product Description

This timer dial with compression ring is a genuine OEM part for your washer. The dial is made of plastic and is white in color. It can be found on the timer shaft underneath the timer knob, and it features an arrow to indicate how far along your laundry is in the wash cycle. If your timer dial has become cracked or damaged, it should be replaced. Please note that this part is different and sold separately from the timer knob.

Works with the following brands:

General Electric
Works with the following products:
Washer
Fixes the following symptoms:

Will Not Start, Touchpad does not respond
Part# WH11X10049 replaces these:

AP3995255, 1264479

Videos For installing this part.

Replacing your Dial with Compression Ring

Replacing your Dial with Compression Ring

Questions and Answers

Be the first to ask our experts a question about this part!

Related PartsAdditional or alternate parts to consider.

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 4.2 / 5.0, 11 reviews.

< Prev
1
2
Next >

Sort by:

Customer:

Peter from CLIFTON, NJ
Parts Used:
WH11X10049, WH01X10310, WH1X2117
Difficulty Level:
Very Easy
Total Repair Time:
Less than 15 mins
Tools:
Pliers

Knob replacement

Unplugged washer. Using needle nose pliers removed old knobs and installed new ones. Your how to video was helpful.

1 of 3 people found this instruction helpful.

Was this instruction helpful to you?

Customer:

Larry from Burlington, KY
Parts Used:
WH11X10049
Difficulty Level:
Very Difficult
Total Repair Time:
More than 2 hours
Tools:
Wrench set

Spins slowly

Replaced the belt. Did not fix. Replaced the fuse link. Did not fix. Replaced the lid switch. Did not fix. Went to Lows with one tool, MasterCard, and fix the problem by buying a new washing machine. Took 1/2 hour...

0 of 1 people found this instruction helpful.

Was this instruction helpful to you?

Customer:

Kevin from Tuscola, IL
Parts Used:
WH11X10049, WH01X10310
Difficulty Level:
Very Easy
Total Repair Time:
Less than 15 mins
Tools:
Pliers

Push-pull knob on timer will not turn timer

After finding like model on line used pictures of parts on partselect.com to confirm parts needed and then ordered. On arrival in two days, removed old timer knob using pliers to remove clip, removed dial (with compression ring). Installed new dial and pushed on new timer knob (DON'T remove clip and try to install later) with clip in place. Clip will fall into place when installed. It took longer to find out which model family the washer was than anything.

0 of 1 people found this instruction helpful.

Was this instruction helpful to you?

Customer:

JACKIE from LAS VEGAS, NV
Parts Used:
WH11X10049, WH01X10310
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins
Tools:
Pliers

THE COMPRESSION RING BROKE

I DID EXACTLY WHAT I WAS INSTRUCTED TO DO ON THE SITE "YOU TUBE" VIDEO. WOW--IT WAS TOO EASY--THANKS

0 of 1 people found this instruction helpful.

Was this instruction helpful to you?

Customer:

Trisha from Alma, NE
Parts Used:
WH11X10049, WH01X10310, WH02X10093, WH1X2721, WH1X2117
Difficulty Level:
Very Easy
Total Repair Time:
Less than 15 mins
Tools:
Pliers

Knob Stripped Out - Broke

Watched install video - snapped it on - problem fixed.

0 of 1 people found this instruction helpful.

Was this instruction helpful to you?

Customer:

Mike from Malakoff, TX
Parts Used:
WH11X10049, WH01X10310, WH1X2117
Difficulty Level:
Really Easy
Total Repair Time:
30 - 60 mins
Tools:
Nutdriver

Timer knob teeth worn off.could not select wash cycle.

First the exploded view provided in your website helped greatly I could see exactly what parts were involved. UPLUG WASHER ! 3 screws removed from back of control panel removed and the panel comes forward (hint..slide to right and it will detach from base making access easier) Pull knob out giving more room to remove plastic clip and knob comes off. 1 screw that holds timer in place removed and unplug the wiring harness. Reassemble using new parts in same manor as disassembly. Hint for putting clip on back of knob..place the clip partially on back of knob in the slot, put knob on shaft then using needle nose push the clip in place. Identifying and ordering parts here was a snap and saved me a bunch of money by not having to call a repair service. Thanks

0 of 1 people found this instruction helpful.

Was this instruction helpful to you?

Customer:

Orren from Brick, NJ
Parts Used:
WH11X10049, WH01X10310, WH1X2117
Difficulty Level:
Very Easy
Total Repair Time:
Less than 15 mins
Tools:
Pliers

Timer would not advance on any cycle.

I removed the timer knob clip with needle nosed pliers. Then I took the timer knob and compression ring off of their shaft. With a clean cloth and some 409,I cleaned the area behind where the knob and ring came from.I replaced all of the parts and tested the machine. It worked properly on all cycles. Until I found your site,I was prepared to spend over $700.00 on a new washer,but thankfully your instructions helped me save some money. Thank you: O.Smith

0 of 1 people found this instruction helpful.

Was this instruction helpful to you?

Customer:

Nathan from Prairieville, LA
Parts Used:
WH11X10049, WH01X10310, WH1X2117
Difficulty Level:
Very Easy
Total Repair Time:
Less than 15 mins
Tools:
Screw drivers

The washer knob was not engaging the timer when turned.

To remove the knob there is a small plastic clip holding it on. I pulled the knob out as far as it would normally go. Then I leaned over to look behind the knob and locate the clip. I used a small flat head screwdriver to push the clip off of the knob. I then pulled off the knob and dial compression ring. Inserted new compression ring first, then the knob. Installed new clip, being sure it secured the knob. That was all, very easy. The problem was cause by the plastic teeth on the knob had all broken off. This kept the knob from engaging the timer, and it would always spin freely.

0 of 1 people found this instruction helpful.

Was this instruction helpful to you?

Customer:

joe from toms river, NJ
Parts Used:
WH12X10350, WH11X10049, WH01X10310, WH1X2117
Difficulty Level:
Really Easy
Total Repair Time:
Less than 15 mins
Tools:
Nutdriver

dial knob and timer gear stripped

Pulled washer away from wall, removed 2 screws, slide front panel to the right and lift up. Unclip both wire harnesses and remove screw, twist timer housing left and remove. Install new timer, and plug harnesses in, replace the front panel, after panel installed then install new dial knob and insert clip.

0 of 1 people found this instruction helpful.

Was this instruction helpful to you?

Customer:

LOUIS from CORPUS CHRISTI, TX
Parts Used:
WH11X10049, WH01X10310, WH1X2117
Difficulty Level:
Really Easy
Total Repair Time:
15 - 30 mins
Tools:
Pliers, Screw drivers

free wheeling timer knob

removed old timer knob clip by pushing out with small flat blade screw driver, gently used screw driver to pry stuck knob from timer stem, pulled out old dial indicator, . lubricated timer stem, inserted new dial indicator aligning with slot on timer stem, inserted new knob, inserted new timer knob clip and pushed in to lock with screw driver

0 of 1 people found this instruction helpful.

Was this instruction helpful to you?

< Prev
1
2
Next >

Back to Top

Model Compatibility

This part works with the following models:

Fix Number: FIX1482363
Manufacturer Part Number: WH11X10049

General Electric

57731H0WW

Washer

General Electric

57731H2WW

Washer

General Electric

57731H3WW

Washer

General Electric

57731H5WW

Washer

General Electric

57731H6WW

Washer

General Electric

57731H7WW

Washer

General Electric

57731H8WW

Washer

General Electric

57731H9WW

Washer

General Electric

GBAN2800F0WW

Washer - WASHER

General Electric

GBSR3140H1WW

Washer

General Electric

GBSR3140H2WW

Washer

General Electric

GBSR3140H3WW

Washer

General Electric

GBSR3140H4WW

Washer

General Electric

GBSR3140H5WW

Washer

General Electric

GBSR3140H6WW

Washer

General Electric

GBSR3140H7WW

Washer

General Electric

GBSR3140H8WW

Washer

General Electric

GCAP1000M0WW

Washer

General Electric

GCAP1000M1WW

Washer

General Electric

GCAP1000M2WW

Washer

General Electric

GCAP1800D0WW

Washer

General Electric

GCAP1800D1WW

Washer

General Electric

GCSR2090H0WW

Washer

General Electric

GCSR2090H2WW

Washer

General Electric

GCSR2090H3WW

Washer

General Electric

GCSR2090H5WW

Washer

General Electric

GCSR2090H6WW

Washer

General Electric

GCSR2090H7WW

Washer

General Electric

GCSR2090H8WW

Washer

General Electric

GCSR2090H9WW

Washer
