See part 37 in the diagram
( Grid squares measure 1x1 inch )

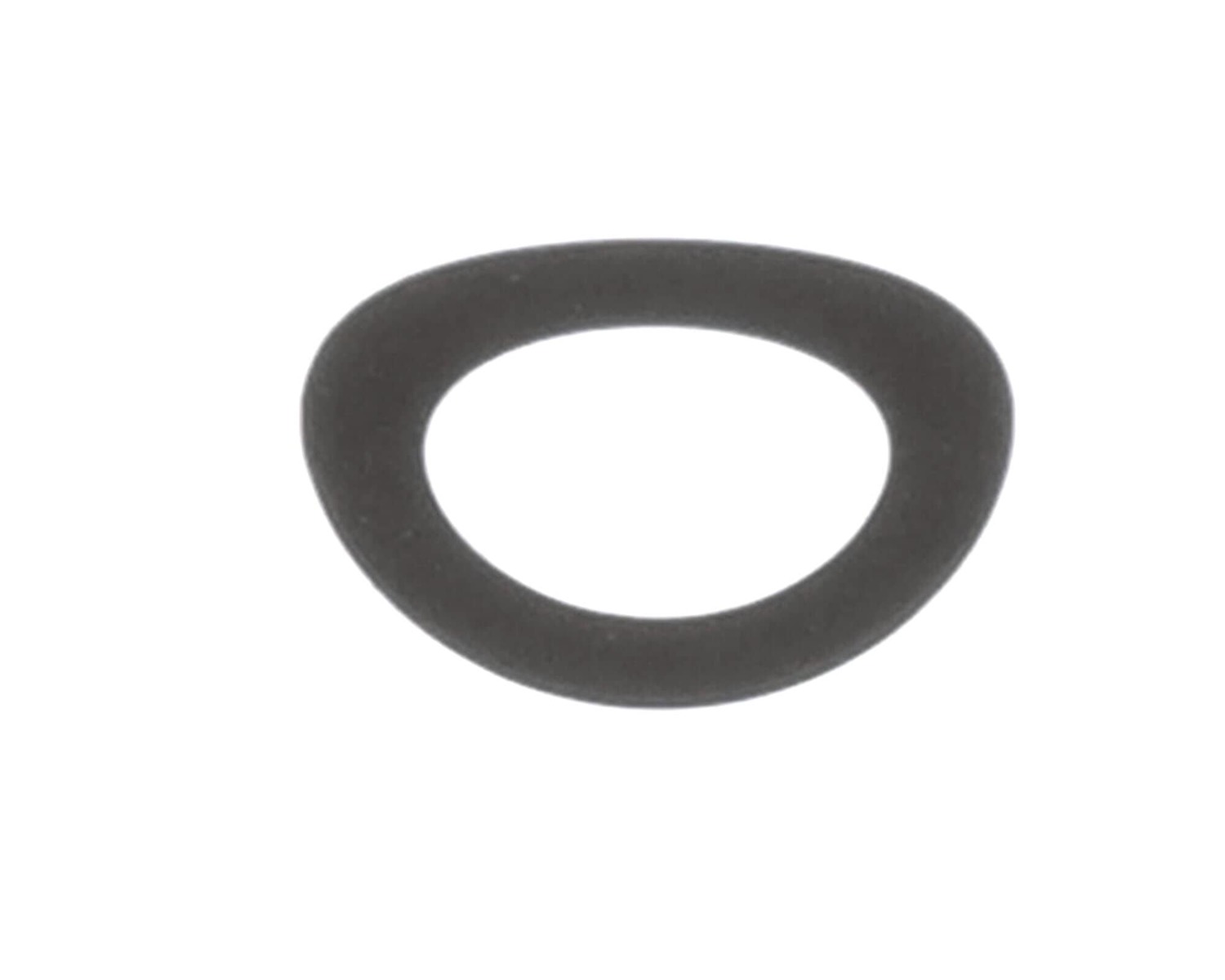

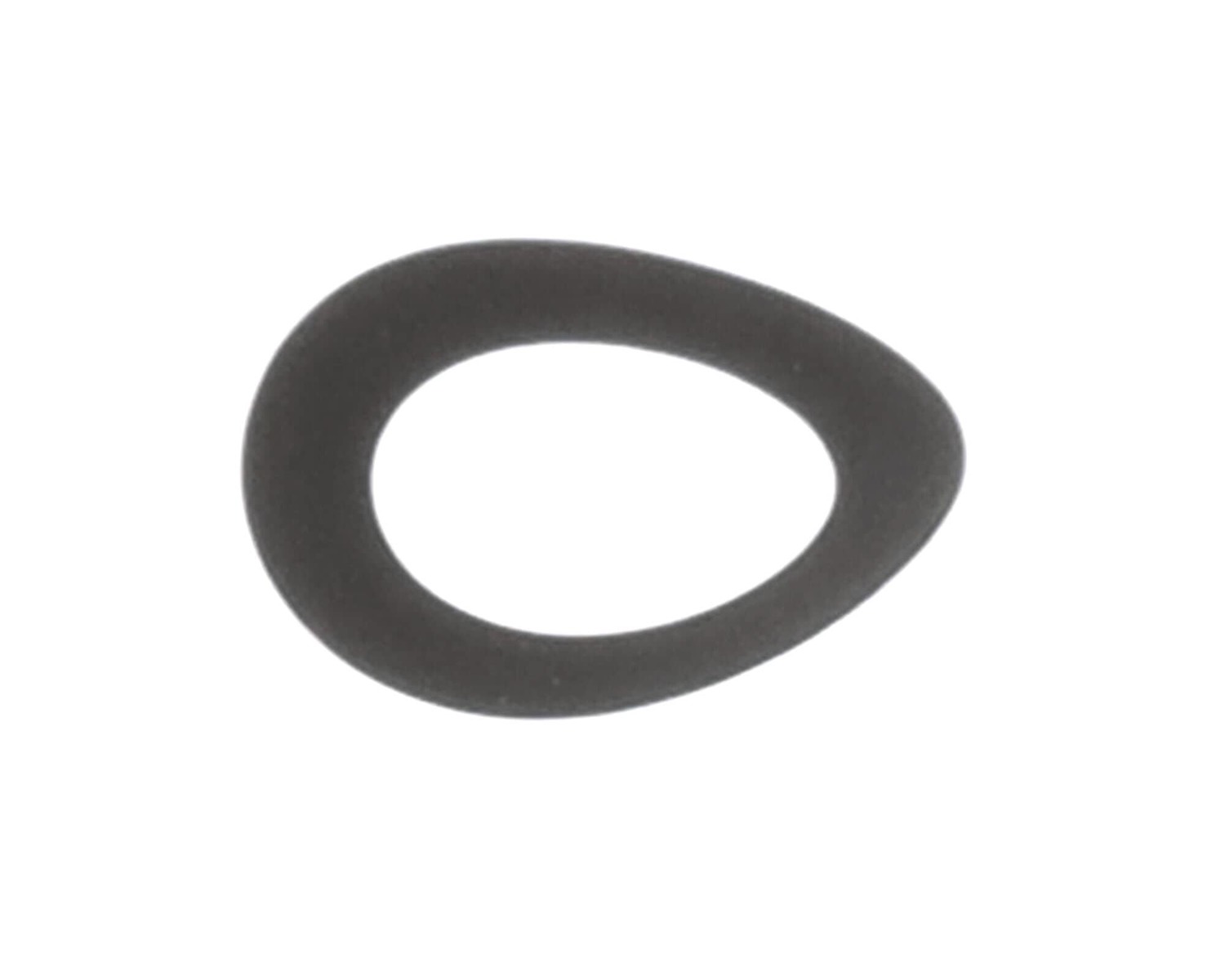

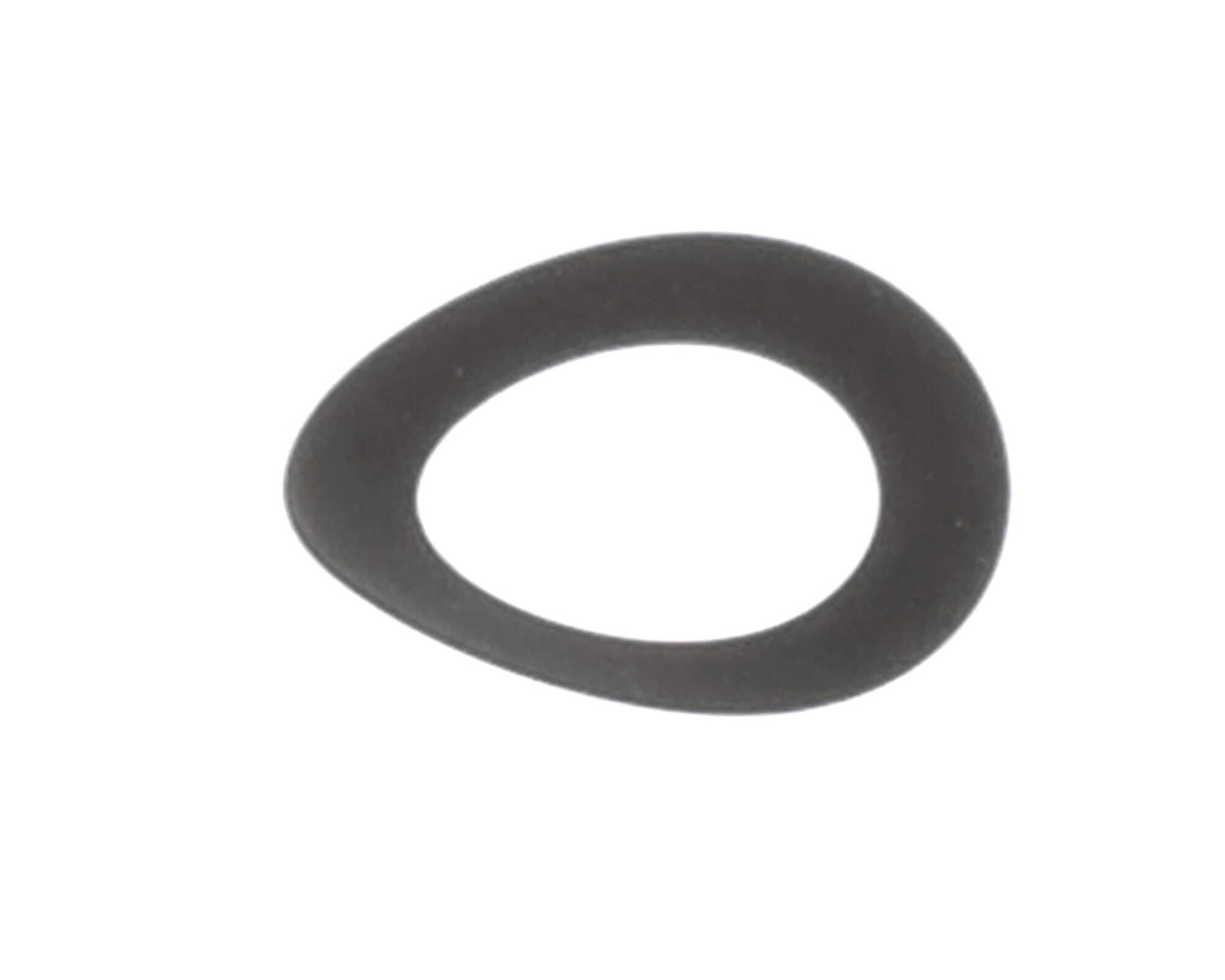

Spring-Type Washer

$12.69
Fix Number: FIX454173
Manufacturer #: 5303161306
Manufactured by: Frigidaire

Product Description

Questions and Answers

Questions and Answers

Be the first to ask our experts a question about this part!

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 2.3 / 5.0, 1 reviews.
    Sort by:
    Sorry, we couldn't find any existing installation instruction that matched.
    The drive belt squealed and smelled like burning rubber
    I first removed the old Idler Pulley by prying the washer off from the shaft. I thought at first they just put a washer on the shaft to hold it together but the old c-clip fell off after it rusted away. I found it in a small pile of rust on the base of the machine with a small magnet. I then got the new parts arranged for assembly. I removed the largest spring at the base of the drum near the motor with a pair of vise grips. There is very little clearance from shaft and the base of the machine so you need all the space you can get to put the new parts on. Be sure to put the spring back on in the same slot which was the second slot for my machine. Leave the top part of the spring in its slot and let it hang down. Take the new Idler pulley, insert the plastic spacer in between the new spring and install it inside the Idler Pulley onto the shaft. Put the tension spring on first and then the Pivot Shaft Washer. Install the c-clip and be careful since it is very small and could be lost easily. Keep a small magnet nearby just in case to pick it from the base of the washer since it may be hard to see if it gets away from you. Be sure to get the Tension Spring in the right hole that kind of looks like a triangle. There are six of them and you want to put the end of the spring in the third hole from the front looking in from the front of the machine. You can see them all by looking on the top right hand side of the motor. Just shine a flashlight there and you can see them. You then need to push the end of the spring into that hole (third one). If your machine originally had it in a different hole for instance like hole number two, put it in there. It could vary a little from machine to machine. Always use a new belt, a new Idler Pulley and Idler Pulley spring, a new Pivot Shaft Washer and new C-clip. Be sure to pad your arms or put some padding down since it will scrape your arms and or bruise them. It is in an uncomfortable position. Once that is on, install the new drive belt. Run the belt in from the right side under the biggest pulley, pull it to your left, wrap it around the motor's pulley, the Idler pulley and start it in the track of the largest pulley. While holding the belt in place, rotate the largest pulley with your right hand while pushing on the Idler pulley if necessary. As you rotate the largest pulley to the right the belt will go back into the track of the largest pulley and the belt will slip on. The last step is to put the BIG spring hanging down in front of you, on the drum, back into the second slot located on the base of the machine with vise grips. Now all you have to do is put the rest of the machine back together and check its operation. In the beginning if it smells just a little like burning rubber that should not be a problem. The belt is new and some of it will wear off while the water drains and the spin cycle begins. After a few loads of laundry the smell will go away. I have used my washer for many loads now and it works very well!
    4 of 4 people found this instruction helpful.
    Was this instruction helpful to you?
    Thank you for voting!
      Model Compatibility
      This part works with the following models:
      Fix Number: FIX454173
      Manufacturer Part Number: 5303161306
      Brand
      Model Number
      Description
      Kenmore
      41789970100
      Washer
      Kenmore
      41789970800
      Washer
      Kenmore
      41789975100
      Washer
      Kenmore
      41789975800
      Washer
      Kenmore
      41789980100
      Washer Dryer Combo
      Kenmore
      41789980800
      Washer Dryer Combo
      Kenmore
      41790802990
      Washer Dryer Combo
      Kenmore
      41790802991
      Washer Dryer Combo
      Kenmore
      41790802992
      Washer Dryer Combo
      Kenmore
      41790807990
      Washer Dryer Combo
      Kenmore
      41790812990
      Washer Dryer Combo
      Kenmore
      41790812991
      Washer Dryer Combo
      Kenmore
      41790812992
      Washer Dryer Combo
      Kenmore
      41790814000
      Washer Dryer Combo
      Kenmore
      41790814001
      Washer Dryer Combo
      Kenmore
      41790814002
      Washer Dryer Combo
      Kenmore
      41790817990
      Washer Dryer Combo
      Kenmore
      41790862990
      Washer Dryer Combo
      Kenmore
      41790862991
      Washer Dryer Combo
      Kenmore
      41790862992
      Washer Dryer Combo
      Kenmore
      41790872990
      Washer Dryer Combo
      Kenmore
      41790872991
      Washer Dryer Combo
      Kenmore
      41790872992
      Washer Dryer Combo
      Kenmore
      41791702000
      Washer Dryer Combo
      Kenmore
      41791702001
      Washer Dryer Combo
      Kenmore
      41792702200
      Washer Dryer Combo
      Kenmore
      41793702200
      Washer Dryer Combo
      Kenmore
      41793702201
      Washer Dryer Combo
      Kenmore
      41793802200
      Washer Dryer Combo
      Kenmore
      41793802201
      Washer Dryer Combo
