John
March 29, 2025
Model WOD51EC0AB05 comes to set temp but then drifts by as much as 90 Deg F. There are two control boards. Part 2 FIX: FIX11757377 Mfgr part no. WPW10752316 and part 3 FIX: FIX11773160 Mfgr Part no. W11035600. How do I determine which board is faulty. As they are approx. $400 each I'd rather not buy both. Any help would be appreciated.
For model number WOD51EC0AB05
Hello John, thank you for reaching out. Before replacing the board, we suggest testing the oven temperature sensor. With the sensor at room temperature, measure the resistance between the two prongs at the end of the sensor connector. The resistance of the sensor should read approximately 1080 – 1090 ohms at room temperature. If the sensor is good, it would be board FIX11757377 that controls the oven functions. We hope this information is useful!
This three count package of Affresh Washing Machine Cleaner helps remove odor causing residue from inside the washer, each slow dissolving tablet works throughout the wash cycle and is suitable for all washer brands, inc...
Fresh Flow Produce Preserver is made for your refrigerator to help keep produce fresh for longer by absorbing the chemical, ethylene, that causes your fruits and vegetables to ripen quicker. Your produce could be fresh f...
This Affresh Washing Machine Cleaner deep cleans to help remove the odor-causing residues and grime that daily loads leave behind. The time-release tablets are EPA Safer Choice certified, septic-safe and designed to clea...
Affresh dishwasher Cleaner is specially formulated to help remove limescale and mineral build-up that can be unsightly and could affect your dishwasher's performance. Each tablet is designed to clean inside your machine ...
This cleaner is ideal for ventilation, microwaves, cooktops, refrigeration, and stainless steel surfaces. It easily removes burnt-on debris and greasy residues. Can be used on kitchen cabinets, countertops, tile and stee...
Model Compatibility
This part works with the following models:

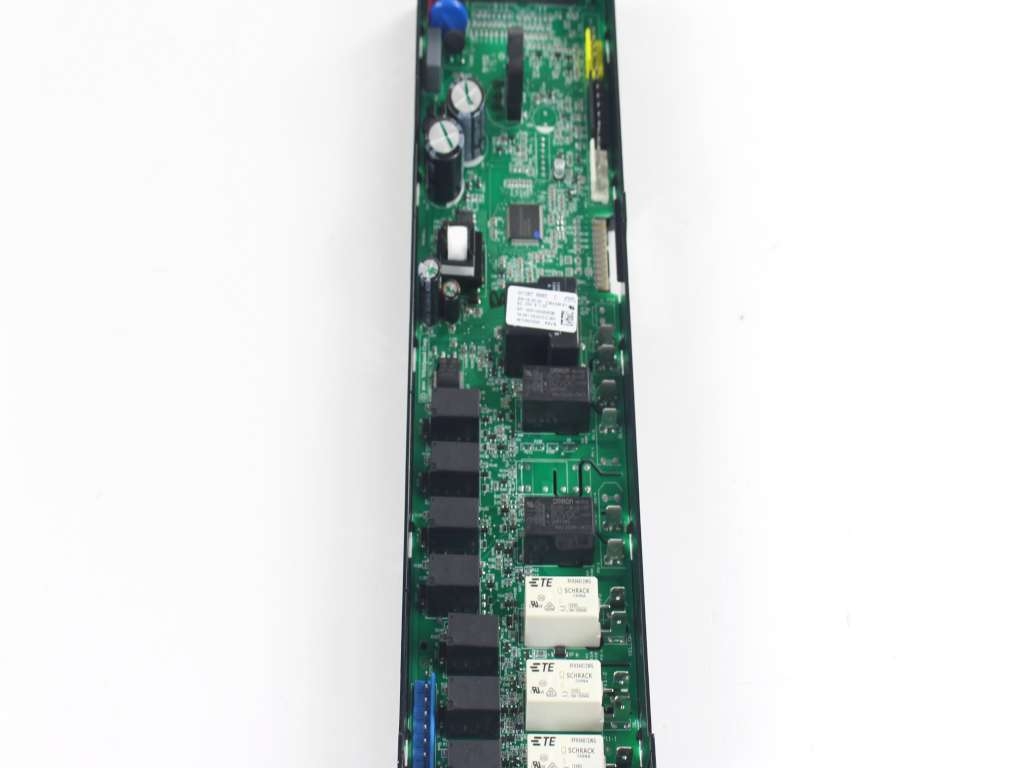

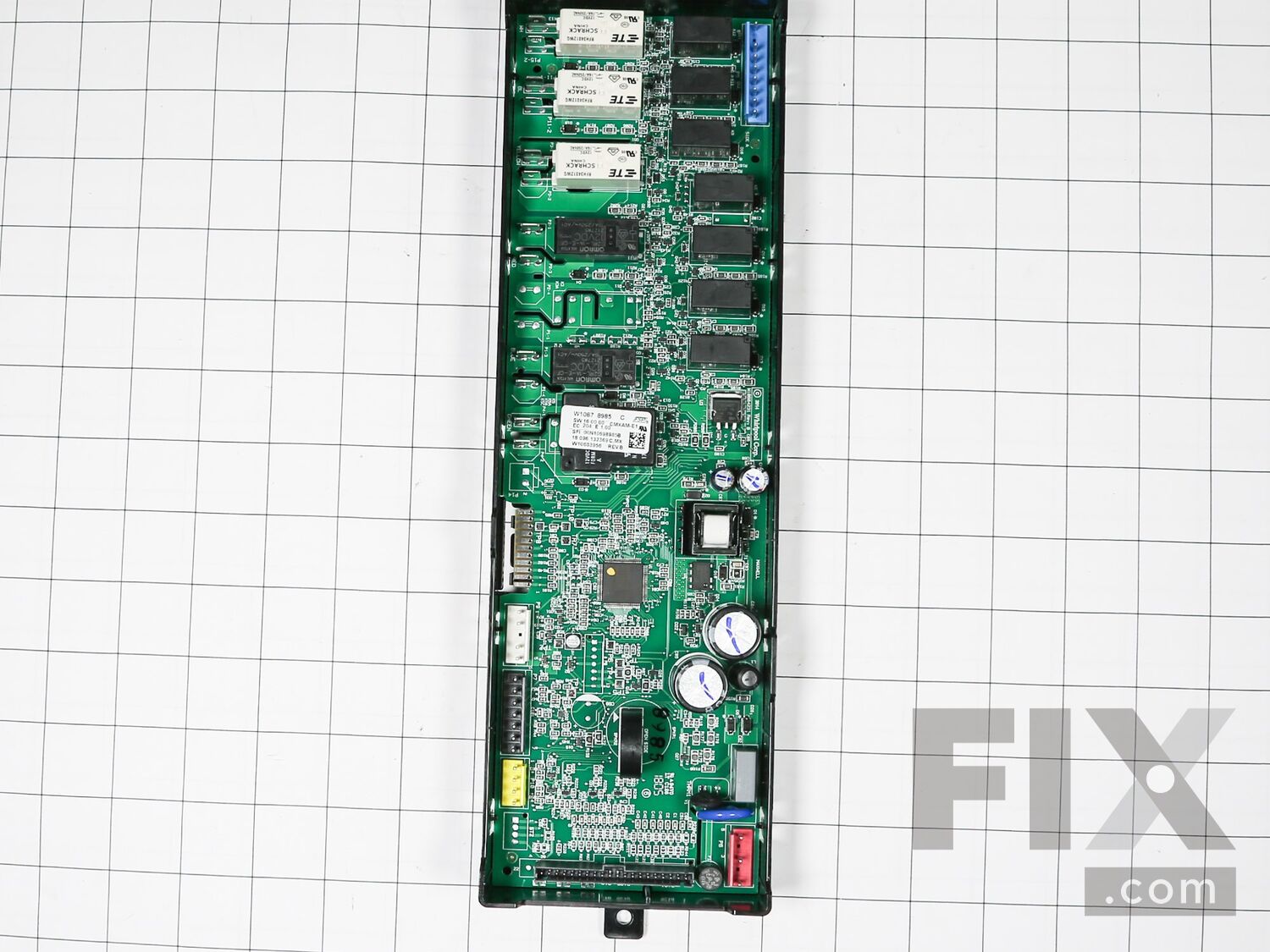

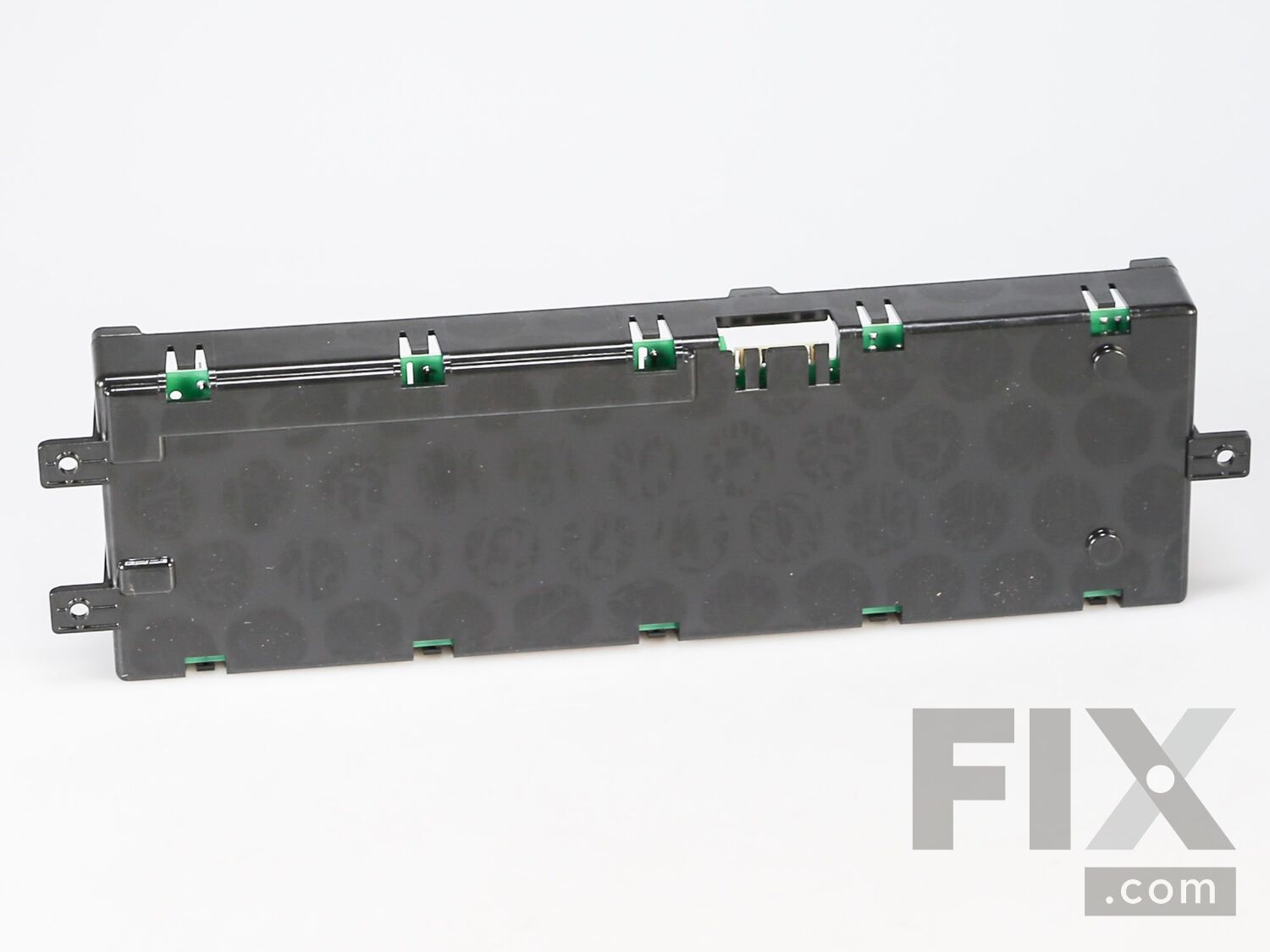

Fix Number: FIX11773160
