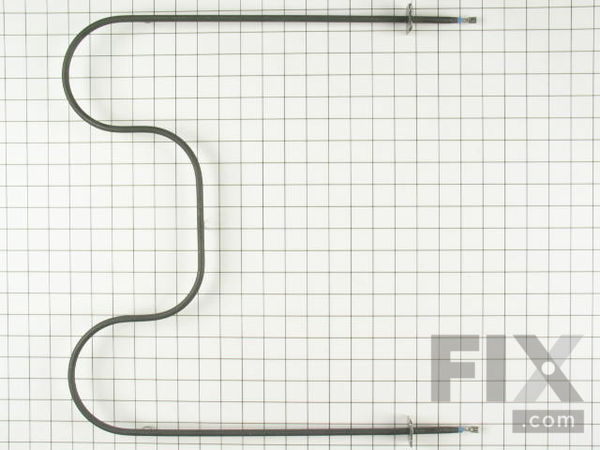

Part Location Diagram of WP74003020 Whirlpool Bake Element (19 Inch long x 19 Inch wide)
See part 3 in the diagram
( Grid squares measure 1x1 inch )

Bake Element (19 Inch long x 19 Inch wide)

Rated by 1 customers

?

Really Easy

15 - 30 mins

Ratings submitted by customers like you who bought this part.

?
$81.58
In Stock
Fix Number:
FIX11744015
Manufacturer #:
WP74003020
Manufactured by:
Whirlpool

Product Description

This electric oven bake element with female spade connections is 16 inches long and 19 inches wide. It has a terminal depth of three inches, making a total element length of nineteen inches.

Questions and Answers

Be the first to ask our experts a question about this part!

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 4.4 / 5.0, 1 reviews.
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.
Customer:
Matthew from Wheeling, WV
Parts Used:
WP74003020
Difficulty Level:
Really Easy
Total Repair Time:
15 - 30 mins
Tools:
Pliers, Screw drivers
Heating element broke
The repair was a breeze! Removed the two Phillips head screws from the oven wall and pulled the wires in to the oven about 3 inches to ensure that they did not fall behind the oven wall. Disconnected the old bake element and connected the new bake element. Pushed the bake element back in to the oven wall and replaced the screws securing the bake element in place. Biggest problem was where the oven is located in my kitchen and trying to access the inside of the oven, but no problems other than inconvenience.
0 of 1 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • 1

Model Compatibility

This part works with the following models:
Fix Number: FIX11744015
Manufacturer Part Number: WP74003020
