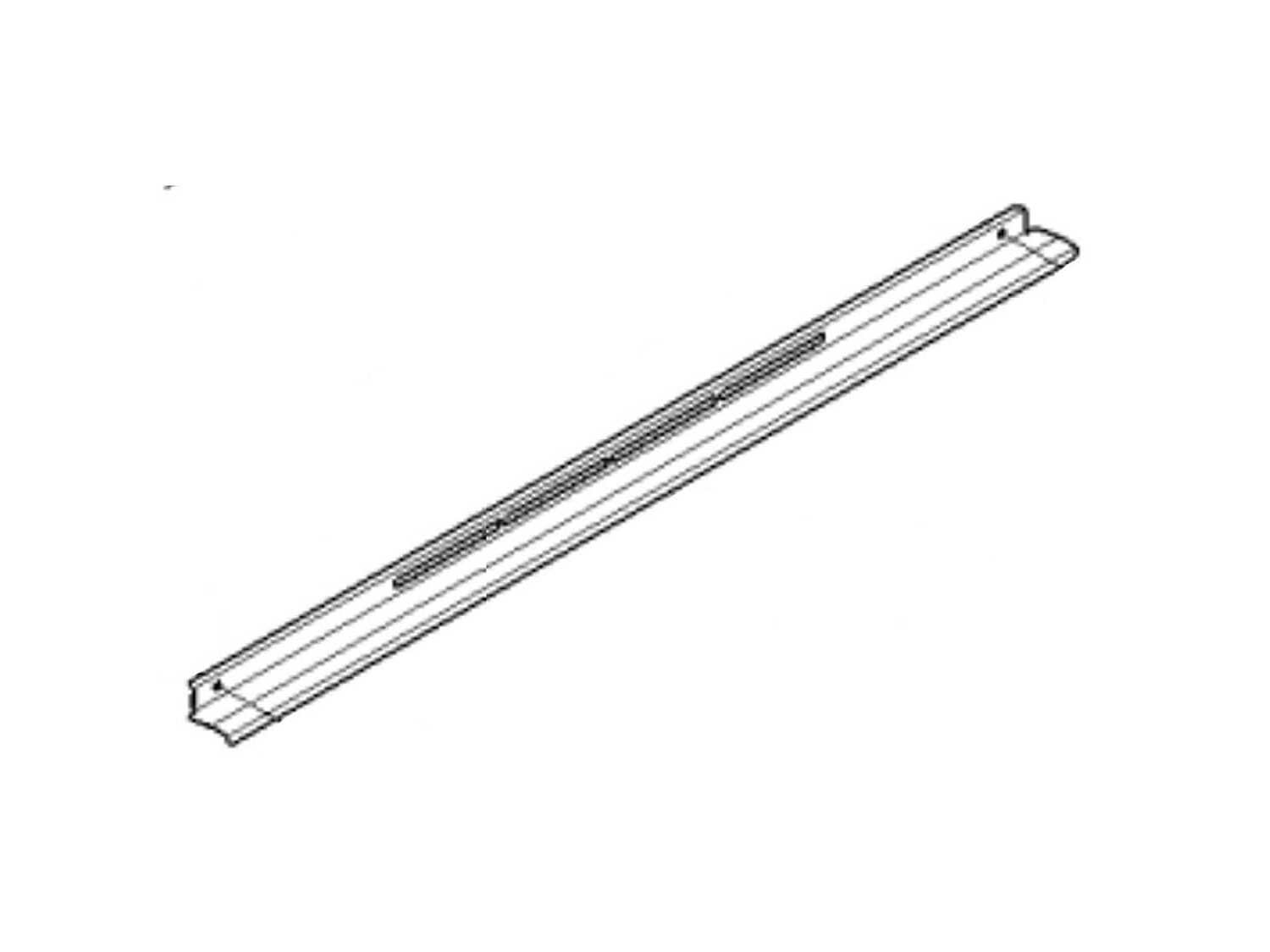

Part Location Diagram of 11000513 Bosch TRIMPLATE
See part 509 in the diagram
( Grid squares measure 1x1 inch )

TRIMPLATE 11000513

Works With Model HBN8651UC/03!
$137.40
Special Order
Fix Number:
FIX9495708
Manufacturer #:
11000513
Manufactured by:
Bosch
Works With Model HBN8651UC/03!

Product Description

Questions and Answers

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

Model Compatibility

This part works with the following models:
Fix Number: FIX9495708
Manufacturer Part Number: 11000513
Brand Model Number Description
Bosch HBN5451UC Wall Oven - BUILT-IN OVEN
Bosch HBN5451UC/04 Wall Oven - 500 Seriesã‚â Single Wall Ovenã‚â 27-Inchã‚â Stainless Steel
Bosch HBN5451UC/05 Wall Oven - 500 Series 27-Inch Single Wall Oven
Bosch HBN5451UC/06 Wall Oven - 500 Series Single Wall Oven 27-Inch Stainless Steel
Bosch HBN5451UC/07 Wall Oven - 500 Series Single Wall Oven 27-Inch Stainless Steel
Bosch HBN5651UC Wall Oven - BUILT-IN OVEN
Bosch HBN5651UC/04 Wall Oven - 500 Dbl Oven, 27-Inch, Ss, Conv / Ther
Bosch HBN5651UC/05 Wall Oven - 500 Series 27-Inch Double Wall Oven
Bosch HBN5651UC/06 Wall Oven - 500 Series 27-Inch Double Wall Oven
Bosch HBN8451UC Wall Oven - BUILT-IN OVEN
Bosch HBN8451UC/03 Wall Oven - 800 Seriesã‚â Single Wall Ovenã‚â 27-Inchã‚â Stainless Steel
Bosch HBN8451UC/04 Wall Oven - 800 Seriesã‚â Single Wall Ovenã‚â 27-Inchã‚â Stainless Steel
Bosch HBN8451UC/05 Wall Oven - 800 Seriesã‚â Single Wall Ovenã‚â 27-Inchã‚â Stainless Steel
Bosch HBN8451UC/06 Wall Oven - 800 Series 27-Inch Single Wall Oven
Bosch HBN8451UC/07 Wall Oven - 800 Series 27-Inch Single Wall Oven
Bosch HBN8651UC Wall Oven - BUILT-IN OVEN
Bosch HBN8651UC/03 Wall Oven - 800 Series Double Wall Oven 27-Inch Stainless Steel
Bosch HBN8651UC/04 Wall Oven - 800 Series 27-Inch Double Wall Oven
Bosch HBN8651UC/05 Wall Oven - 800 Series 27-Inch Double Wall Oven
