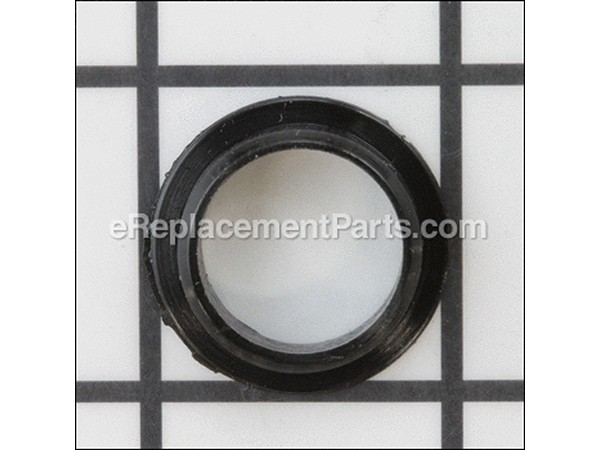

12041076-1-M-Kirby-K-135860-Shell Housing Bushing, Lg. Pla
Part Location Diagram of K-135860 Kirby Shell Housing Bushing, Lg. Pla
See part A-63 in the diagram
( Grid squares measure 1x1 inch )
12041076-1-S-Kirby-K-135860-Shell Housing Bushing, Lg. Pla Part Location Diagram of K-135860 Kirby Shell Housing Bushing, Lg. Pla

Shell Housing Bushing, Lg. Pla K-135860

$5.95
Special Order
Fix Number:
FIX12041076
Manufacturer #:
K-135860
Manufactured by:
Kirby

Jump to:

Product Description

This is a genuine OEM part. The large shell housing bushing is constructed of plastic, and is made for use with many vacuum models. This item helps to secure the handle fork spring shaft and the handle spring yoke in the motor shell housing. A screwdriver may be helpful in making the repair. This part is sold individually.

  • Works with the following brands:
    Kirby
  • Works with the following products:
    Upright Vacuum
Works with the following brands:
Kirby
Works with the following products
Upright Vacuum

Questions and Answers

Be the first to ask our experts a question about this part!

Affresh Washing Machine Cleaner - 3 pack
$19.75
Special Order
Part Number: FIX1960673
This three count package of Affresh Washing Machine Cleaner helps remove odor causing residue from inside the washer, each slow dissolving tablet works throughout the wash cycle and is suitable for all washer brands, inc...
Produce Preserver Filter
$18.54
In Stock
Part Number: FIX3503014
Fresh Flow Produce Preserver is made for your refrigerator to help keep produce fresh for longer by absorbing the chemical, ethylene, that causes your fruits and vegetables to ripen quicker. Your produce could be fresh f...
Affresh Washing Machine Cleaner Tablets – 6 Count
$28.91
In Stock
Part Number: FIX12345661
This Affresh Washing Machine Cleaner deep cleans to help remove the odor-causing residues and grime that daily loads leave behind. The time-release tablets are EPA Safer Choice certified, septic-safe and designed to clea...
Affresh Dishwasher Cleaner Tablets - 6
$22.91
In Stock
Part Number: FIX12345667
Affresh dishwasher Cleaner is specially formulated to help remove limescale and mineral build-up that can be unsightly and could affect your dishwasher's performance. Each tablet is designed to clean inside your machine ...
Refrigerator Deodorizer
$32.12
In Stock
Part Number: FIX12739141
Refrigerator deodorizers help to reduce bacteria growth and therefore reduce smells and extend the life of food.
Appliance Cleaner
$53.85
Special Order
Part Number: FIX16227489
This cleaner is ideal for ventilation, microwaves, cooktops, refrigeration, and stainless steel surfaces. It easily removes burnt-on debris and greasy residues. Can be used on kitchen cabinets, countertops, tile and stee...

Model Compatibility

This part works with the following models:
Fix Number: FIX12041076
Manufacturer Part Number: K-135860
Brand Model Number Description
Kirby 1CB Upright Vacuum - Omega Vacuum
Kirby 1CR Upright Vacuum - Classic Vacuum
Kirby 1HC Upright Vacuum - Heritage Vacuum
Kirby 1HD Upright Vacuum - Heritage Vacuum
Kirby 2CB Upright Vacuum - Classic III Vacuum
Kirby 2HD Upright Vacuum - Heritage II Vacuum
Kirby 3CB Upright Vacuum - Traditional Vacuum
Kirby 516 Upright Vacuum - Upright
Kirby 517 Upright Vacuum - Upright
Kirby 518 Upright Vacuum - Upright
Kirby 519 Upright Vacuum - Upright
Kirby 560 Upright Vacuum - Upright
Kirby 561 Upright Vacuum - Upright
Kirby 562 Upright Vacuum - Upright
Kirby D50 Upright Vacuum - Two-Speed Vacuum
Kirby D80 Upright Vacuum - Two-Speed Vacuum
Kirby HeritageIILegend Upright Vacuum - Vacuum
Kirby LegendII Upright Vacuum - Vacuum
Kirby VII Upright Vacuum - Upright
