17016616-1-M-Husqvarna-594935003-Carrier Plate
Part Location Diagram of 594935003 Husqvarna Carrier Plate
See part A-34 in the diagram
17016616-1-S-Husqvarna-594935003-Carrier Plate 360 view
( Grid squares measure 1x1 inch )
17016616-1-S-Husqvarna-594935003-Carrier Plate 17016616-2-S-Husqvarna-594935003-Carrier Plate 17016616-3-S-Husqvarna-594935003-Carrier Plate 17016616-1-S-Husqvarna-594935003-Carrier Plate 360 view
Part Location Diagram of 594935003 Husqvarna Carrier Plate

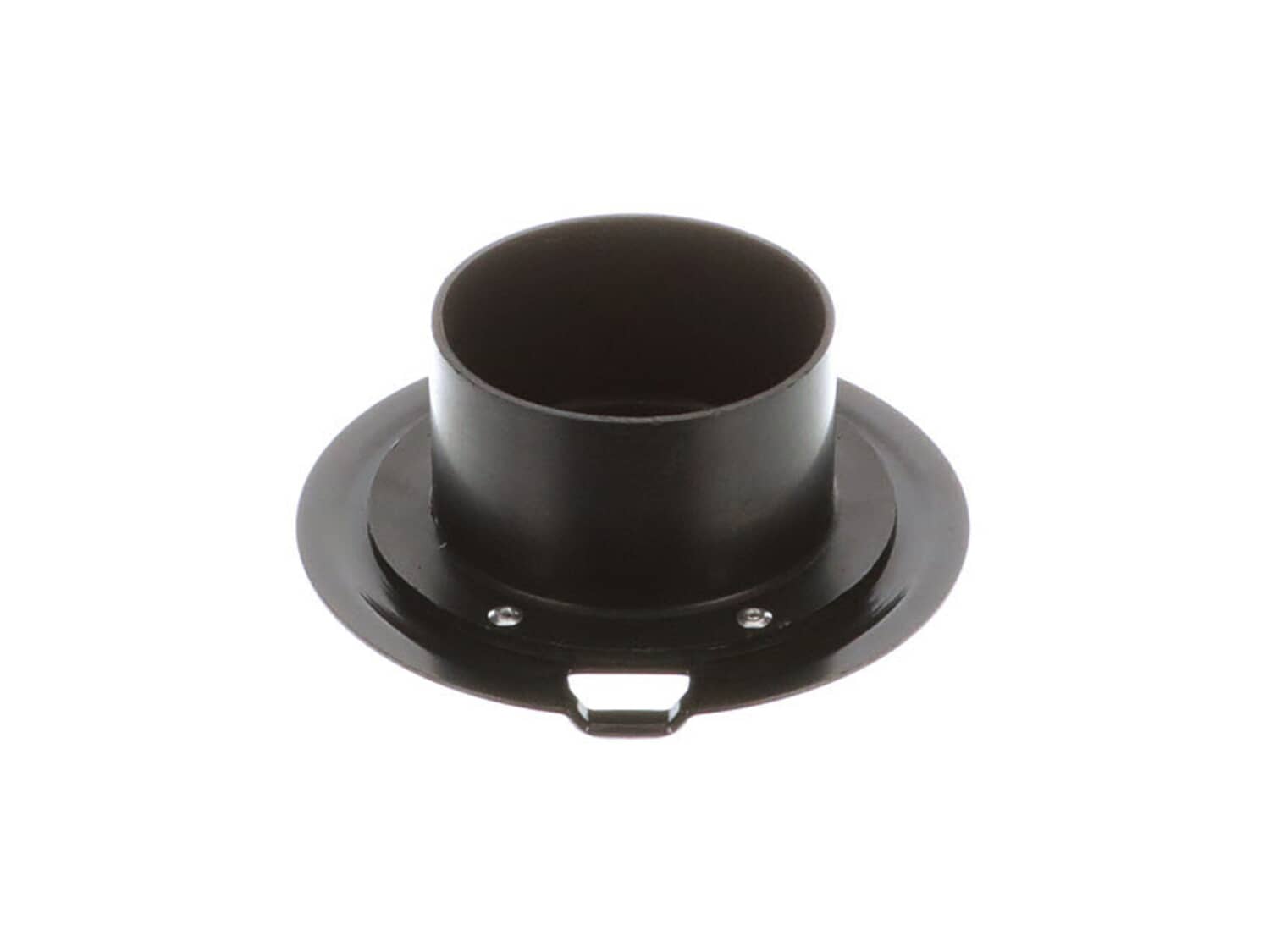

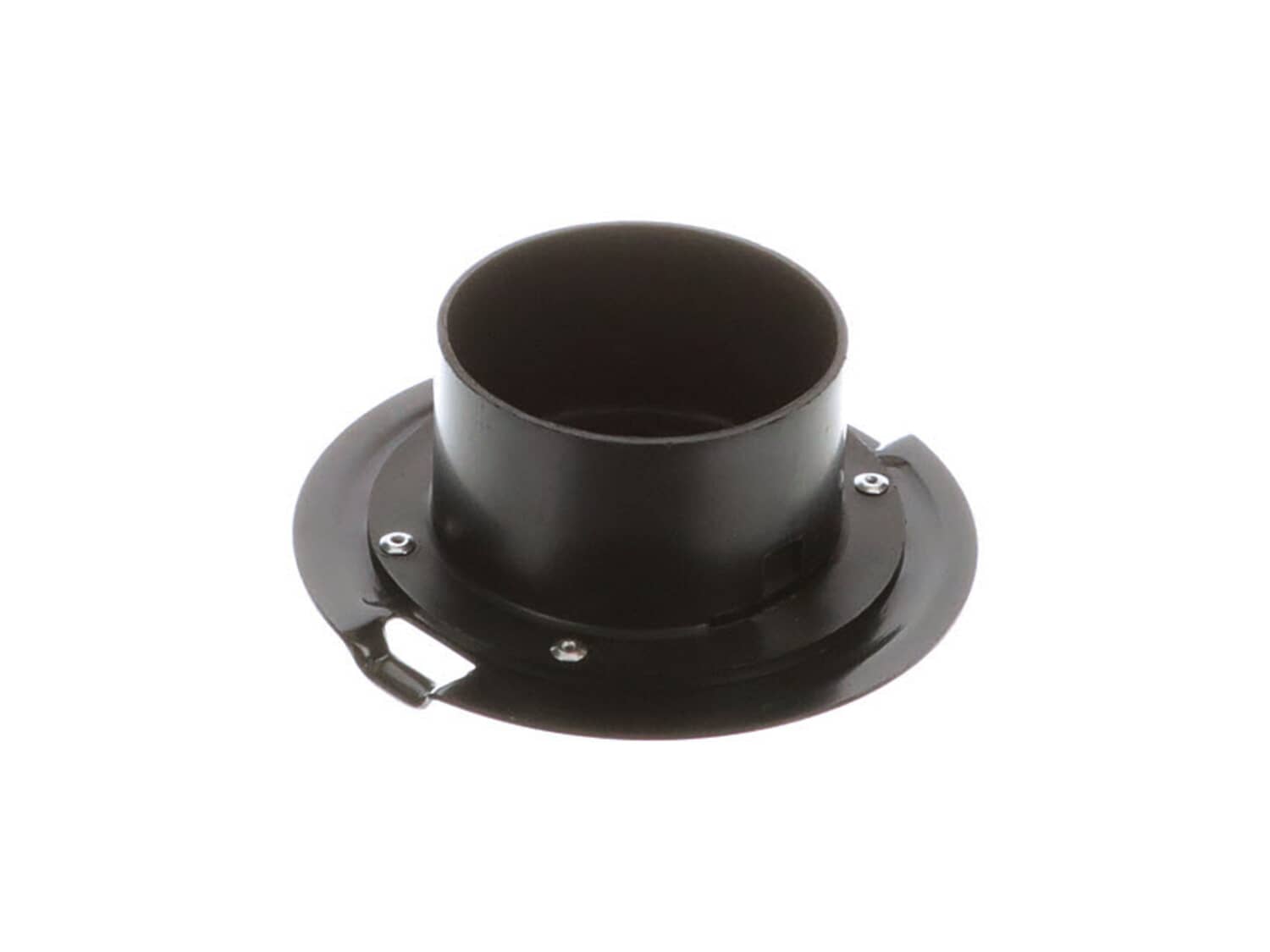

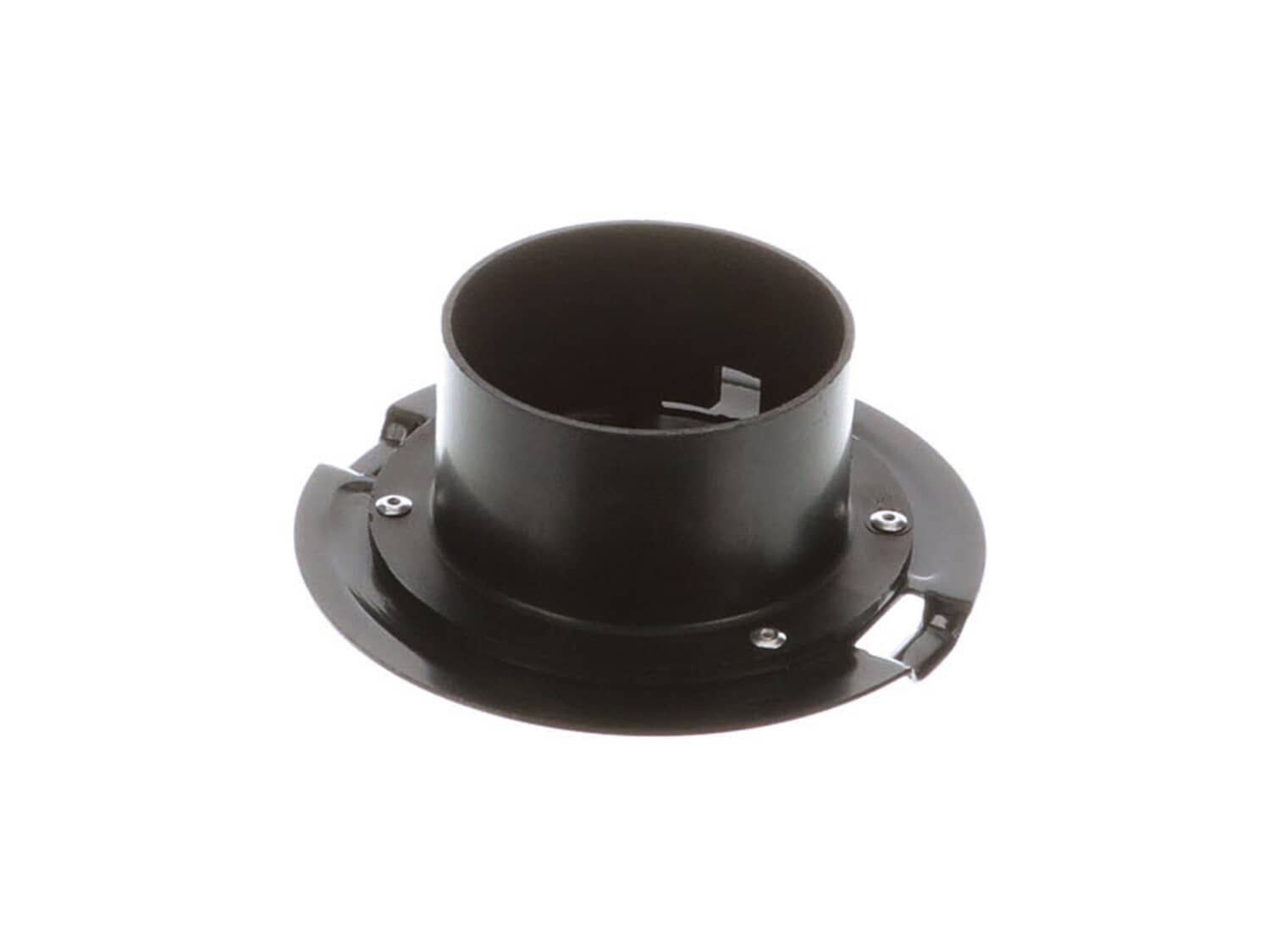

Carrier Plate 594935003

$65.76
In Stock
Fix Number:
FIX17016616
Manufacturer #:
594935003
Manufactured by:
Husqvarna

Jump to:

Product Description

This is a manufacturer approved replacement part designed for use with high wheeled trimmers. This carrier plate acts as a trimmer head/housing which secures the trimmer line. It is made out of metal and it is sold individually. Please note the locking plate/tab is sold separately. To complete this repair you would need a socket wrench to remove the bolt which holds the assembly to the jackshaft.

  • Works with the following brands:
    Husqvarna, Poulan, Weed Eater, Jonsered
  • Works with the following products:
    Trimmer, Lawn Mower
  • Part# 594935003 replaces these:
    532174544, 532180338, 594935003
Works with the following brands:
Husqvarna, Poulan, Weed Eater, Jonsered
Works with the following products
Trimmer, Lawn Mower
Part Number Cross Reference
Part# 594935003 replaces these:
532174544, 532180338, 594935003
