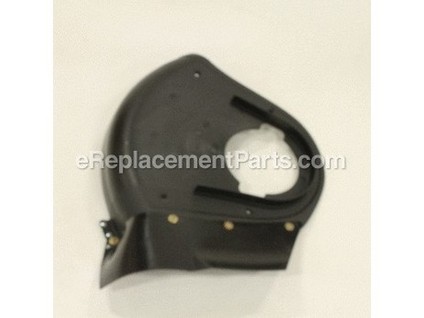

9292401-1-M-MTD-631-0096-Trimmer Deflector Assembly
Part Location Diagram of 631-0096 MTD Trimmer Deflector Assembly
See part 34 in the diagram
( Grid squares measure 1x1 inch )
9292401-1-S-MTD-631-0096-Trimmer Deflector Assembly Part Location Diagram of 631-0096 MTD Trimmer Deflector Assembly

Trimmer Deflector Assembly 631-0096

Works With Model ST100!
$139.97
Special Order
Fix Number:
FIX9292401
Manufacturer #:
631-0096
Manufactured by:
MTD
Works With Model ST100!

Jump to:

Product Description

This is an authentic Yard Man replacement part that has been sourced from the original manufacturer to be used with field trimmers. The plastic deflector connects to the trimmer base assembly and is used to direct grass clippings away from the user. This item is available as an individual replacement part. A hex wrench is needed to install this item.

  • Works with the following brands:
    Cub Cadet, MTD, Yard Man, Craftsman
  • Works with the following products:
    Trimmer
  • Part# 631-0096 replaces these:
    631-0096, 631-0099
Works with the following brands:
Cub Cadet, MTD, Yard Man, Craftsman
Works with the following products
Trimmer
Part Number Cross Reference
Part# 631-0096 replaces these:
631-0096, 631-0099

Questions and Answers

Be the first to ask our experts a question about this part!

Affresh Washing Machine Cleaner - 3 pack
$19.75
Special Order
Part Number: FIX1960673
This washing machine cleaner includes three time-release tablets designed to remove odor-causing residues, grime, and buildup from high-efficiency and top-load washing machines. The tablets work by cleaning the tub, pump...
Produce Preserver Filter
$18.54
In Stock
Part Number: FIX3503014
Fresh Flow Produce Preserver is made for your refrigerator to help keep produce fresh for longer by absorbing the chemical, ethylene, that causes your fruits and vegetables to ripen quicker. Your produce could be fresh f...
Affresh Washing Machine Cleaner Tablets – 6 Count
$28.91
In Stock
Part Number: FIX12345661
This Affresh Washing Machine Cleaner deep cleans to help remove the odor-causing residues and grime that daily loads leave behind. The time-release tablets are EPA Safer Choice certified, septic-safe and designed to clea...
Affresh Dishwasher Cleaner Tablets - 6
$22.91
In Stock
Part Number: FIX12345667
Affresh dishwasher Cleaner is specially formulated to help remove limescale and mineral build-up that can be unsightly and could affect your dishwasher's performance. Each tablet is designed to clean inside your machine ...
Affresh Ice Machine Cleaner
$27.83
In Stock
Part Number: FIX12583750
This nickel-safe, unscented ice machine cleaner measures 16 fluid ounces and is used to remove mineral build-up and hard water and is compatible with several makes and models of freestanding ice machines. To use properly...
Refrigerator Deodorizer
$32.12
In Stock
Part Number: FIX12739141
Refrigerator deodorizers help to reduce bacteria growth and therefore reduce smells and extend the life of food.

Model Compatibility

This part works with the following models:
Fix Number: FIX9292401
Manufacturer Part Number: 631-0096
Brand Model Number Description
Cub Cadet 100 Trimmer - St 25A-262J710 Wheeled String Trimmer
Cub Cadet 190-336-100 Trimmer - St 100 25a-262j756 (Hm 2014) 25a-262j756 (Hm 2014)
Yard Man 25A-203L129 Trimmer - Wheeled Trimmer
Yard Man 25A-203L729 Trimmer - 18" String Trimmer Mower
MTD 25A-208G013 Trimmer - String Trimmer Mower
Yard Man 25A-253D401 Edger - Edger
Yard Man 25A-253N401 Trimmer - Trimmer
MTD 25A-258H190 Lawn Mower - MTD Lawn Mower Model 25A-258H190 (25A258H190, 25A 258H190) Parts
Troy-Bilt 25A-258J766 Trimmer - Trimmer
Yard Man 25A-258L401 Trimmer - Trimmer
Cub Cadet 25A-262J709 Trimmer - Wheeled String Trimmer
Cub Cadet 25A-262J710 Trimmer - Cub Cadet String Trimmer Model 25A-262J710/2014 (25A262J710/2014, 25A 262J710/2014) Parts
Cub Cadet 25A-262J756 Trimmer - Cub Cadet String Trimmer Model 25A-262J756/2014 (25A262J756/2014, 25A 262J756/2014) Parts
MTD 25A-262J783 Lawn Mower - MTD Lawn Mower Model 25A-262J783 (25A262J783, 25A 262J783) Parts
MTD 25A-262J897 Trimmer - MTD String Trimmer Model 25A-262J897 (25A262J897, 25A 262J897) Parts
MTD 25A-26J7783 Trimmer - 159-Cc 22" Remington Wheeled Trimmer
Cub Cadet 25A-26SD710 Trimmer - 25a-26sd710 St 100 (2021)
Cub Cadet 25A-282J710 Trimmer - 25a-282j710 St 200 (2019)
Cub Cadet 25B-262J710 Trimmer - 25b-262j710 St 100 (2019)
MTD 5A-203L729 Trimmer - Walk-Behind Trimmer
MTD CST 100 Trimmer - MTD String Trimmer Model CST 100 (CST100) Parts
MTD RM2200 Trimmer - Trimmer
MTD RM2210 Trimmer - Trimmer
Cub Cadet ST100 Trimmer - 25A-262J709 Wheeled String Trimmer
Craftsman ST120 Trimmer - Walk-Behind Trimmer
Craftsman ST150 Trimmer - Walk-Behind Trimmer
Cub Cadet TM622 Engine - Engine
Cub Cadet WST100 Trimmer - Wst 100 (25a-26sd710) (2022)
