OEM Kenmore Trash Compactor Wheel Assembly - Kit of 2 [882688] | Ships Today | Fix.com
Wheel Assembly - Kit of 2 – Part Number: 882688
Wheel Assembly - Kit of 2 – Part Number: 882688 Wheel Assembly - Kit of 2 – Part Number: 882688 Wheel Assembly - Kit of 2 – Part Number: 882688 https://fixcom.azureedge.net/Schematics/Maytag/33847.gif

Wheel Assembly - Kit of 2

Your Price
$15.34

Fix Number: FIX398587

Manufacturer #: 882688

Manufactured by: Whirlpool

Get this part fast. Average delivery time via standard shipping: 1.8 days.

Part description

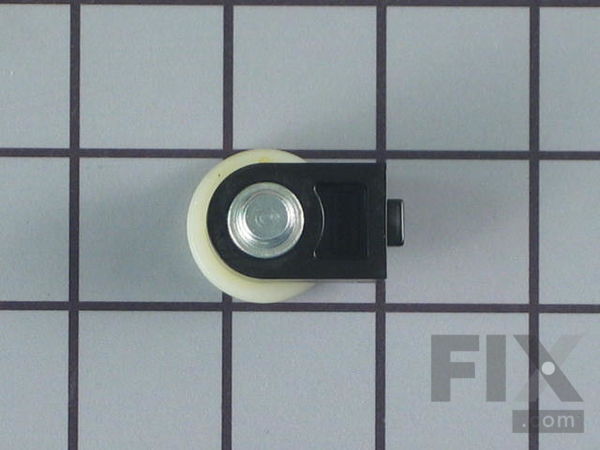

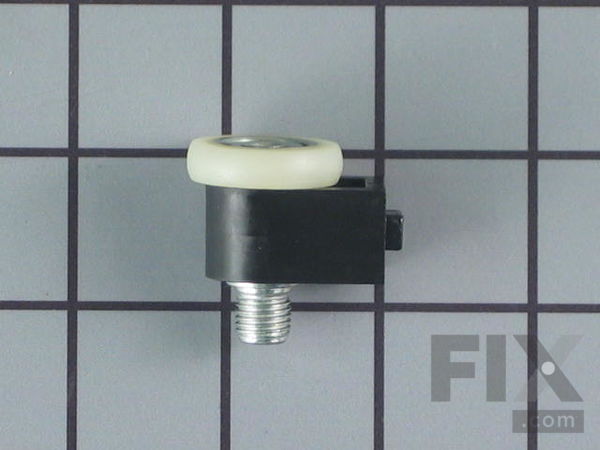

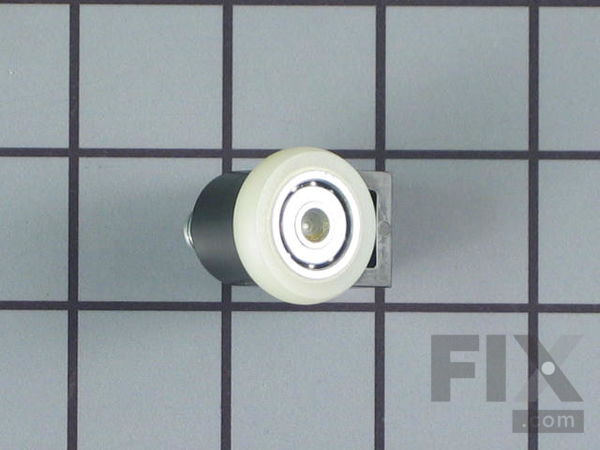

This is an OEM part sourced directly from the manufacturer. This wheel assembly kit is for use with trash compactors. The kit included two wheel bearings. These bearings allow the container drawer to slide out of the compactor with ease. There is one installed on each sides of the compactor, located at the base of the frame. Before repairing your appliance make sure it is unplugged.

Works with the following brands

Kenmore, Whirlpool, KitchenAid, Jenn-Air, Maytag, Magic Chef, Roper

Works with the following products

Trash Compactor

Fixes the following symptoms

Drawer is hard to open and/or close

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 2.5 / 5.0, 3 reviews
Customer:
Robert from Elm City, NC
Parts Used:
  • Wheel Assembly - Kit of 2
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Pliers, Screw drivers, Wrench set
Nylon bearing cover had worn off making compactor drawer difficult to close.
Removed 1 screw on each runner (Left & Right) then tilted up out of the way. Removed old rollers by removing the nut on the back of the bearing axle. Breaking the small metal tab on each side with pliers. I inserted the threaded shafts with the base rotated 90°, held the nut with a magnet until I got the shaft threaded, then tightened the nut as tight as I could with 2 fingers. I then rotated the nylon mount with a set of channel locks until the nylon tab was straight down and lock into position. I finished tightening the nut with an open end wrench. I found this easier than driving the nylon mount in from the bottom with a hammer and drift punch.
1 of 1 people found these instructions helpful

Were these instructions helpful?

Customer:
James from Anchorage, AK
Parts Used:
  • Wheel Assembly - Kit of 2
  • Nut
Difficulty Level:
Difficult
Total Repair Time:
1- 2 hours
Tools:
Pliers, Screw drivers, Wrench set
The bar that the rollers fit into has a lip on the front.
The lip on the front of the bar had to be bent so it was almost straight out so a wrench could be put on the nut to remove the old roller. There was not room enough to get on the nut with pliers or wrench and turn it. much more difficult than the instructions laid out.
1 of 1 people found these instructions helpful

Were these instructions helpful?

Customer:
Ben from Howell, MI
Parts Used:
Difficulty Level:
A Bit Difficult
Total Repair Time:
1- 2 hours
Tools:
Nutdriver, Pliers, Socket set
Trash compactor the drawer was very hard to open
In replacing the old partial rusted drawer slides had rusted screw with nuts that spun had to drill them out and replaced front larger bolt and nut the rear screw used a larger sheet metal screw. The wheels and bearing with on easy the instructions showed a modification to remove a tab for the different wheel assembly and installed just like the instructions. When done the drawer will slide out with just touch of your foot on open tab GREAT!! I was looking at buying a new compactor the repair saved me about 700 $. Thanks a lot. Never had a trash Compactor before this great and it keeps my puppy out of trash.
1 of 2 people found these instructions helpful

Were these instructions helpful?

Model Cross Reference

This part works with the following models:

Fix Number: FIX398587
Manufacturer Part Number: 882688
Brand
Model Number
Description
Kenmore
19025
Trash Compactor - Kenmore Trash Compactor Model 19025 (1988) (19025(1988)) Parts
KitchenAid
4KUCC150S0
Trash Compactor
KitchenAid
4KUCC150S1
Trash Compactor
KitchenAid
4KUCC150S2
Trash Compactor
KitchenAid
4KUCC151T0
Trash Compactor
KitchenAid
4KUCC151T1
Trash Compactor
KitchenAid
4KUCC151T4
Trash Compactor
Kenmore
6221338550
Trash Compactor
Kenmore
6221358550
Trash Compactor
Kenmore
6221388550
Trash Compactor
Kenmore
6228369301NZ
Trash Compactor
Kenmore
6228415001NO
Trash Compactor
Kenmore
6228416001GO
Trash Compactor
Kenmore
62284169900
Trash Compactor
Kenmore
6228419001GO
Trash Compactor
Kenmore
62284199910
Trash Compactor
Kenmore
62284199920
Trash Compactor
Kenmore
665.13633100
Trash Compactor - Kenmore Trash Compactor Model 665.13633100 (66513633100, 665 13633100) Parts
Kenmore
6651330590
Trash Compactor
Kenmore
6651336580
Trash Compactor
Kenmore
6651336581
Trash Compactor
Kenmore
6651336582
Trash Compactor
Kenmore
6651338550
Trash Compactor
Kenmore
6651338580
Trash Compactor
Kenmore
6651338581
Trash Compactor
Kenmore
6651338582
Trash Compactor
Kenmore
6651339580
Trash Compactor
Kenmore
6651339581
Trash Compactor
Kenmore
6651340590
Trash Compactor
Kenmore
6651340591
Trash Compactor
